Puig 0869N Naked Windscreen Instruction Manual

1. Konec produktuview

The Puig 0869N Naked Windscreen is designed to provide aerodynamic protection and enhance the aesthetic of your motorcycle. Constructed from highly impact-resistant polycarbonate, this windscreen offers durability and effective wind deflection during travel.

This model is part of Puig's range of Naked fairings, available for a wide variety of motorcycles. Specific adapter kits may be required for certain motorcycle models to ensure proper fitment.

Obrázek: Přední strana view of the Puig 0869N Naked Windscreen.

2. Nastavení a instalace

Installation of the Puig 0869N Naked Windscreen is designed to be straightforward. A visual instruction booklet is included to guide you through the process. It is crucial to verify compatibility with your specific motorcycle model before beginning installation.

2.1 Kontrola před instalací

• Unpack all components and verify that all parts listed in the instruction booklet are present and undamaged.
• Inspect the windscreen for any scratches or defects that may have occurred during shipping.
• Confirm that the windscreen is compatible with your motorcycle's make and model.

2.2 Obecné kroky instalace

1. Identify the mounting points on your motorcycle, typically around the headlight area.
2. Attach the provided brackets to the windscreen using the appropriate screws and washers. Note that the kit includes various bolts and washers to accommodate universal fitment; select those specified for your motorcycle model in the included visual guide.
3. Mount the windscreen assembly to your motorcycle's designated attachment points. Ensure all connections are secure but do not overtighten.
4. Adjust the windscreen's position for optimal aerodynamic performance and rider comfort, if adjustable.
5. Double-check all fasteners to ensure they are properly tightened before operating the motorcycle.

Image: Puig 0869N Naked Windscreen installed on a Yamaha motorcycle, side view.

Image: Puig 0869N Naked Windscreen installed on a Kawasaki motorcycle, side view.

3. Návod k obsluze

Once correctly installed, the Puig 0869N Naked Windscreen functions automatically to provide enhanced riding comfort. Its primary purpose is to deflect wind and reduce air pressure on the rider's chest, particularly at higher speeds, thereby improving the riding experience and reducing fatigue.

• The windscreen is designed for continuous use under normal riding conditions.
• No specific operational controls are associated with the windscreen itself.
• Always ensure the windscreen is clean and free from obstructions for optimal visibility.

4. Údržba

Proper maintenance will extend the life and maintain the clarity of your Puig 0869N Naked Windscreen.

4.1 Čištění

• Clean the polycarbonate surface with a soft cloth and mild soap and water solution.
• Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the polycarbonate material and its acrylic finish.
• Důkladně opláchněte čistou vodou a osušte měkkým hadříkem bez žmolků, abyste zabránili vzniku skvrn od vody.

4.2 Kontrola

• Periodically check all mounting hardware for tightness. Vibrations from riding can cause fasteners to loosen over time.
• Inspect the windscreen for any cracks or significant damage. Replace if structural integrity is compromised.

5. Řešení problémů

This section addresses common issues you might encounter with your windscreen.

5.1 Windscreen Appears Scratched Upon Arrival

• Problém: The windscreen has minor scratches or marks when unboxed.
• Řešení: Carefully inspect the packaging upon receipt. If significant damage is present, contact the retailer or manufacturer for assistance. Minor surface marks may sometimes be buffed out with specialized polycarbonate polish, but always test on an inconspicuous area first.

5.2 Poor Fitment or Gaps After Installation

• Problém: There is a noticeable gap between the windscreen and the motorcycle's headlight or other components, or the fitment seems incorrect.
• Řešení: Re-verify the compatibility of the 0869N model with your specific motorcycle. Ensure that the correct mounting hardware and adapters (if applicable) have been used as per the visual instruction booklet. Some motorcycles may require specific adjustments or additional spacers to achieve an optimal fit.

5.3 Windscreen Feels Loose

• Problém: The windscreen vibrates or feels unstable during operation.
• Řešení: Check all mounting bolts and fasteners. Tighten any loose connections. Ensure that all washers and spacers are correctly positioned to provide a secure mount. Avoid overtightening, which can stress the material.

6. Specifikace

Detailed technical specifications for the Puig 0869N Naked Windscreen.

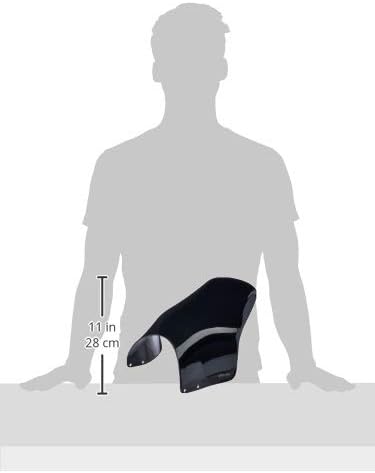

Image: Diagram illustrating the dimensions of the Puig 0869N Naked Windscreen.

7. Informace o záruce

Specific warranty details for the Puig 0869N Naked Windscreen are not provided in the available product information. Please refer to the documentation included with your purchase or contact Puig directly for warranty terms and conditions.

8. Zákaznická podpora

For further assistance, technical support, or inquiries regarding your Puig 0869N Naked Windscreen, please contact Puig customer service through their official webwebu nebo kontaktních informací uvedených na obalu produktu.
