FNIRSI LC1020E 100kHz LCR Meter and SMD Tester User Manual

1. Přesview

The FNIRSI LC1020E is a handheld LCR meter designed for precise measurement of inductance, capacitance, and resistance. It features a dual-parameter display, allowing simultaneous viewing of main and secondary parameters such as X, D, Q, θ, and ESR. With multiple test frequencies and voltage levels, it provides accurate readings for various electronic components. The device also includes a smart sorting function for efficient component screening.

2. Bezpečnostní informace

Před použitím zařízení si prosím přečtěte a pochopte všechny bezpečnostní pokyny. Nedodržení těchto pokynů může vést k úrazu elektrickým proudem, požáru nebo poškození zařízení.

• Do not attempt to measure live circuits or components with stored energy (e.g., charged capacitors) without first discharging them.
• Před měřením se ujistěte, že jsou měřicí vodiče v dobrém stavu a správně připojeny.
• Nepoužívejte zařízení ve vlhkém prostředí ani s mokrýma rukama.
• Avoid exposing the device to extreme temperatures, direct sunlight, or strong vibrations.
• Only use the specified power adapter or batteries if applicable.
• Veškerý servis svěřte kvalifikovanému personálu.

3. Nastavení

3.1 Napájení zařízení

The LC1020E is typically powered by an internal rechargeable battery or an external power source. Ensure the device is sufficiently charged before use. Connect the appropriate power adapter if external power is required.

3.2 Připojení měřicích kabelů

Connect the provided test leads to the input terminals on the LCR meter. Ensure a secure connection to prevent inaccurate readings or damage.

Image: The FNIRSI LC1020E LCR Meter with test leads connected to a large capacitor, demonstrating the primary and secondary parameter display.

4. Návod k obsluze

4.1 Zapnutí/vypnutí

Stiskněte a podržte Moc tlačítko pro zapnutí nebo vypnutí zařízení.

4.2 Základní navigace

The LC1020E features several buttons for navigation and setting adjustments:

• AUTO/R/L/C/Z: Switches between automatic component recognition and manual selection of Resistance, Inductance, Capacitance, or Impedance measurement modes.
• X/D/Q/θ/ESR: Toggles the secondary parameter displayed (Reactance, Dissipation Factor, Quality Factor, Phase Angle, Equivalent Series Resistance).
• OK: Confirms selections or enters sub-menus.
• DRŽET: Freezes the current measurement on the display.
• RYCHLOST: Adjusts the measurement speed (Fast, Medium, Slow).
• ​RANGE: Manually selects the measurement range.
• FREKV: Selects the test frequency.
• ÚROVEŇ: Adjusts the test voltage úroveň.
• OFFSET: Used for calibration or bias settings.

5. Measurement Modes and Parameters

5.1 Auto Measurement

In AUTO mode, the LC1020E automatically identifies the component type (Resistor, Inductor, or Capacitor) and switches to the appropriate measurement mode, simplifying testing.

Image: The FNIRSI LC1020E LCR Meter in 'AUTO' mode, displaying capacitance and dissipation factor for a component, with illustrations of an inductor, resistor, and capacitor.

5.2 Dual Parameter Display

The device simultaneously displays a primary parameter (L, C, R) and a secondary parameter (X, D, Q, θ, ESR), providing a comprehensive analysis of the component under test.

5.3 Test Frequencies and Voltage Úrovně

The LC1020E offers multiple test frequencies and RMS voltage levels for versatile measurements:

• Frekvence: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
• RMS svtage Úrovně: 0.1 V, 0.3 V, 0.6 V
• Vnitřní zaujatost: 0.0V, 0.5V

Image: The FNIRSI LC1020E LCR Meter display illustrating the selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and RMS voltage levels (0.1V, 0.3V, 0.6V).

5.4 Practical Measurement Scenarios

The LC1020E can be used for various component measurements:

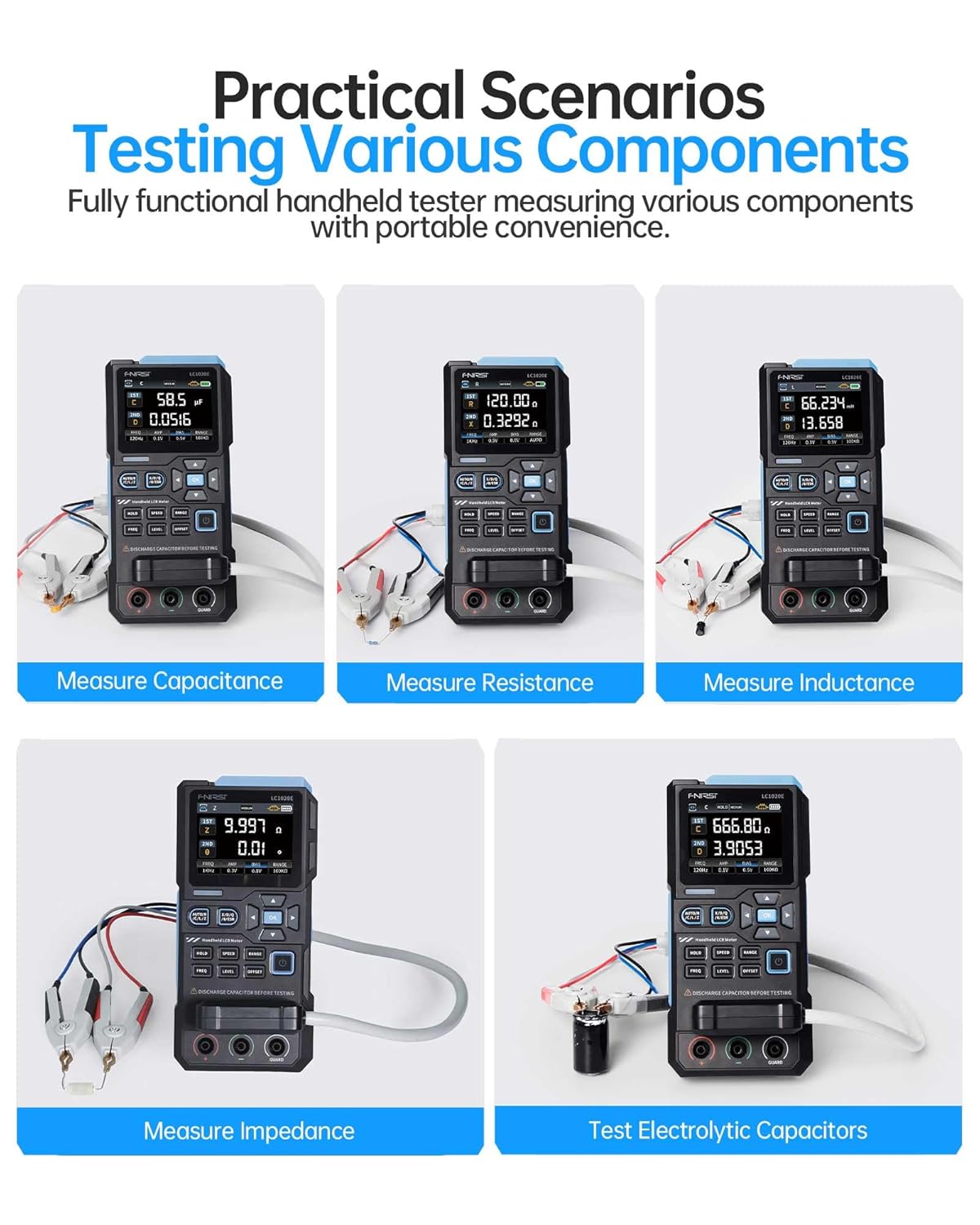

Image: A collage of five images showing the FNIRSI LC1020E LCR Meter measuring different components: capacitance, resistance, inductance, impedance, and electrolytic capacitors.

6. Smart Sorting & Comparison Mode

The smart sorting feature allows for efficient screening of components based on preset nominal values and tolerance limits. This mode calculates the relative error (%) and provides alerts via sound or LED if components fall outside the specified range.

6.1 Setting Nominal and Tolerance

1. Navigate to the Sorting/Comparison mode in the menu.
2. Set the desired nominal value for the component (e.g., 100nF for a capacitor).
3. Definujte procentuální tolerancitage (0.1 % až 99.9 %).

6.2 Performing Sorting

Once settings are configured, test components. The device will indicate whether the component meets the criteria (Pass/Fail) and track success/fail counts.

Image: The FNIRSI LC1020E LCR Meter demonstrating its sorting and comparison mode, showing a component passing the test and another failing, with various components laid out.

7. Kalibrace

For optimal accuracy, perform open/short calibration periodically or when changing test leads. This compensates for stray capacitance and inductance in the test setup.

7.1 Open Calibration

With no component connected to the test leads, initiate the open calibration process from the menu. This measures and compensates for stray capacitance.

7.2 Short Calibration

Short the test leads together (connect positive to negative) and initiate the short calibration. This measures and compensates for residual inductance and resistance in the leads.

8. FNIRSI LCR-ST1 Tweezer Tester

The FNIRSI LCR-ST1 is a portable LCR/ESR meter in a tweezer format, designed for precise measurement of surface-mount devices (SMD) and other small components. It supports resistance, capacitance, inductance, and diode measurements.

Image: The FNIRSI LCR-ST1 Smart Tweezer LCR/ESR Meter being used to test a component on a circuit board, highlighting its compact design and measurement capabilities.

8.1 LCR-ST1 Measurement Capabilities

• Testovací frekvence: 100 Hz, 1 kHz, 10 kHz
• Test Voltage: 0.3 Vrms, 0.6 Vrms
• Měřené parametry: R, C, L, Diodes, D Value (Dissipation Factor), Q Value (Quality Factor), X Value (Reactance), Z Value (Total Impedance), ESR (Equivalent Series Resistance).

Image: The FNIRSI LCR-ST1 Smart Tweezer displaying its auto-recognition feature and various parameters like D, Z, Q, X, and ESR, while testing small components.

8.2 Precision Measurement

The LCR-ST1 offers high precision with minimum measurements down to 10mΩ, 1µH, and 1pF, with an accuracy range between 0.5% and 5%.

Image: A close-up of the FNIRSI LCR-ST1 Smart Tweezer display, showing a precision resistance measurement of 1.942 Ω and a dissipation factor (D) of 458.70.

9. Specifikace

10. Řešení problémů

10.1 Nepřesné hodnoty

• Ujistěte se, že jsou měřicí vodiče správně připojeny a nejsou poškozené.
• Perform open/short calibration.
• Check if the correct measurement mode and frequency are selected for the component.
• Ensure the component is fully discharged before testing.

10.2 Zařízení se nezapíná

• Verify the battery is charged or the external power adapter is connected and functioning.
• Check for any physical damage to the device or power port.

10.3 Problémy se zobrazením

• If the display is blank or flickering, try restarting the device.
• Ujistěte se, že zařízení není vystaveno extrémním teplotám.

11. Záruka a podpora

11.1 Informace o záruce

This product typically comes with a standard return policy, allowing for refunds or replacements within 30 days of purchase. Please refer to your purchase documentation for specific warranty terms and conditions.

11.2 Zákaznická podpora

For technical assistance, troubleshooting, or warranty claims, please contact FNIRSI customer support or visit the official FNIRSI store online. You can find more information and contact details at the Obchod s technologiemi FNIRSI.
