1. Úvod
Thank you for choosing the Garvee 67 Inch Acrylic Freestanding Bathtub. This manual provides essential information for the safe installation, operation, and maintenance of your new bathtub. Please read these instructions carefully before installation and retain them for future reference.
2. Bezpečnostní informace
VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést ke zranění nebo poškození majetku.
- Ensure installation is performed by a qualified professional to prevent leaks or structural issues.
- Do not use abrasive cleaners or harsh chemicals on the bathtub surface, as this may cause damage.
- Always test water temperature before entering the bathtub to avoid scalding.
- Keep children and pets away from the bathtub during installation and unsupervised use.
- Do not stand on the edge of the bathtub.
- Ujistěte se, že podlaha unese hmotnost vany naplněné vodou a osoby.
3. Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:
- Garvee 67 Inch Acrylic Freestanding Bathtub
- Chrome Overflow Assembly
- Chrome Drain Assembly (Pop-Up Drain)
- Instalační příručka (tento dokument)
Image 1: The Garvee 67 Inch Acrylic Freestanding Bathtub, showcasing its modern design and Harp White-C finish within a bathroom environment.
4. Nastavení a instalace
The Garvee Freestanding Bathtub is designed for straightforward installation. However, due to its size and the need for proper plumbing connections, professional installation is highly recommended.
4.1 Kontroly před instalací
- Umístění: Ensure the chosen location has adequate space and a level floor capable of supporting the bathtub's weight when filled.
- Instalatérství: Verify that hot and cold water supply lines and a drain pipe are correctly positioned for a freestanding tub.
- Příprava podlahy: The floor surface should be clean, dry, and structurally sound.
4.2 Kroky instalace (doporučeno odborníky)
- Umístění: Carefully move the bathtub to its desired location.
- Vyrovnání: Adjust the bathtub's feet (if applicable) to ensure it is perfectly level.
- Odtokové připojení: Connect the bathtub's drain assembly to the floor drain. Ensure all connections are watertight using appropriate sealants.
- Přepadové připojení: Connect the overflow pipe to the drain assembly.
- Vodovod: Connect the faucet (not included) to the hot and cold water supply lines according to the faucet manufacturer's instructions.
- Test těsnosti: Fill the bathtub with water and inspect all connections for leaks. Allow the water to sit for a period to ensure no slow leaks are present.
- Konečné umístění: Once leak-free, secure the bathtub to the floor if required by local codes or for added stability.
Image 2: Product dimensions of the Garvee bathtub, indicating a length of 67 inches, a width of 31.3 inches, and a height of 22.8 inches.
5. Návod k obsluze
The Garvee Freestanding Bathtub is designed for a comfortable and relaxing soaking experience.
- Filling the Bathtub: Ensure the drain is closed. Turn on the faucet to fill the tub with water to your desired level and temperature.
- Namáčení: The ergonomic design with gently sloping streamlines provides optimal comfort for extended soaking.
- Vypouštění vany: To drain, activate the pop-up drain mechanism. The chrome overflow prevents accidental overfilling.
Image 3: An individual enjoying a bath in the Garvee tub, illustrating the ergonomic design that conforms to the body's natural curves for a comfortable soaking experience.
Image 4: Visual representation of the double-walled insulation feature, which helps maintain water temperature for a longer, more relaxing bath.
6. Údržba a péče
Proper care will ensure the longevity and appearance of your Garvee bathtub.
- Pravidelný úklid: Clean the bathtub regularly with a soft cloth or sponge and a mild, non-abrasive bathroom cleaner.
- Vyhněte se agresivním chemikáliím: Do not use abrasive powders, scouring pads, or cleaners containing ammonia, bleach, or strong acids, as these can damage the acrylic surface and chrome finish.
- Prevence skvrn: Wipe down the tub after each use to prevent water spots and soap scum buildup. The acrylic material is designed to be anti-stain and anti-yellowing.
- Údržba odtoku: Periodically check and clean the pop-up drain and overflow assembly to ensure proper function and prevent blockages.

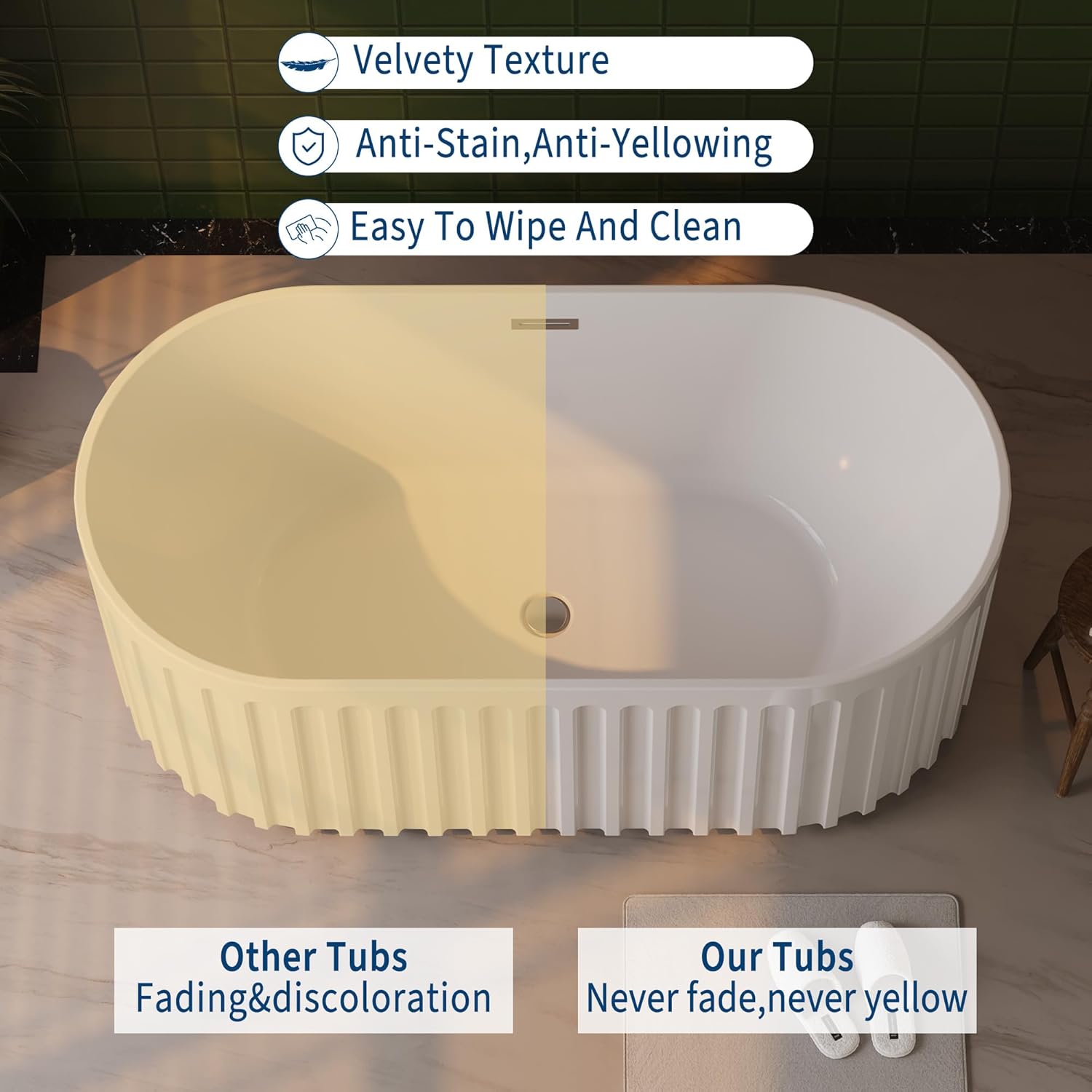

Image 5: A comparative image illustrating the Garvee bathtub's "Velvety Texture," "Anti-Stain, Anti-Yellowing," and "Easy To Wipe And Clean" properties, contrasting its long-lasting finish with other tubs that may fade and discolor.
Obrázek 6: Podrobný view of the integrated pop-up drain, highlighting its chrome finish and functionality for easy water release.
7. Řešení problémů
If you encounter issues with your Garvee bathtub, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Pomalé odvádění | Hair or debris in drain; partially closed drain. | Remove and clean the pop-up drain mechanism. Ensure the drain is fully open. |
| Leaks around drain/overflow | Loose connections; improper sealant application. | Tighten connections. Reapply plumber's putty or silicone sealant as needed. Consult a professional plumber. |
| Water temperature not maintained | External factors; extreme room temperature. | While the tub has double-walled insulation, extreme conditions can affect water temperature. Ensure bathroom is adequately heated. |
| Povrchové škrábance | Abrazivní čištění; ostré předměty. | Use only soft cloths and non-abrasive cleaners. Minor scratches may be buffed out with a specialized acrylic repair kit. |
If the problem persists after attempting these solutions, please contact Garvee customer support.
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Garvee |
| Číslo modelu | CWPHO_158UTY1W3s |
| Typ | Volně stojící vana |
| Materiál | Akryl |
| Barva | Harp White-C |
| Rozměry (D x Š x V) | 67 x 31 x 23.2 palce (přibližně) |
| Hmotnost položky | 105.2 liber (cca) |
| Typ odtoku | Chrome Pop-Up Drain |
| Přetékat | Chrome Overflow Included |
| Izolace | Double-walled |
9. Záruka a podpora
Garvee is committed to providing high-quality products. For warranty information, product support, or to report any issues, please contact Garvee customer service through the retailer where the product was purchased or visit the official Garvee webmísto.
Please have your model number (CWPHO_158UTY1W3s) and purchase date available when contacting support.
