Zavedení
Thank you for choosing the Ibergrif K22137 Kitchen Faucet. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and keep it for future reference.
Seznam obalů
Before beginning installation, ensure all components are present and undamaged. Refer to the packaging list below:
- Kuchyňská baterie
- Palubní deska
- Gumové těsnění
- Kovové těsnění
- Lock Nut with Screws
- Zátěžová koule
- Instalační hardware
- Návod k použití (tento dokument)
Image: All components of the Ibergrif K22137 Kitchen Faucet, including the faucet body, deck plate, gaskets, lock nut, and weight ball.
Nastavení a instalace
Follow these steps for proper installation. It is recommended to have basic plumbing knowledge or consult a professional if unsure.
- Připravte si kohoutek: Remove the rubber washer, metal washer, and lock nut from the faucet body.
- Position the Deck Plate: Place the deck plate over the sink's installation hole. This is used for 1 or 3-hole installations.
- Nainstalujte kohoutek: Fit the faucet into the sink's installation hole, ensuring the hoses pass through correctly.
- Zajistěte kohoutek: Reinstall the rubber washer, then the metal washer, and finally the lock nut from underneath the sink. Tighten by hand first, adjust the faucet to the correct position, then further tighten the lock nut with a screwdriver.
- Připojení vodovodního potrubí:
- Connect the pull-down hose to the water outlet pipe.
- Screw the braided tube with red threads onto the hot water angle valve.
- Screw the braided tube with blue threads onto the cold water angle valve.
- Use a wrench to securely tighten all connections.
- Install the Weight Ball: Unscrew the weight ball's screw, open the weight ball, and attach it to the marked position on the pull-down hose. Securely close and screw the weight ball.
- Propláchněte systém: Remove the spray head from the pull-down hose. Turn on the faucet for 1 minute to flush out any debris from the water lines. Turn off the handle and reassemble the spray head.
Video: Official Ibergrif installation guide for the kitchen faucet. This video demonstrates the step-by-step process of installing the faucet, including securing it to the sink, connecting water lines, and attaching the weight ball.
Image: A visual guide showing the four main steps for installing the Ibergrif K22137 Kitchen Faucet, from placing the faucet to connecting the hoses underneath the sink.
Návod k obsluze
Your Ibergrif K22137 faucet is designed for ease of use and versatility.
- Řízení průtoku vody: Use the single handle to control water flow and temperature. Move the handle up for increased flow and down for decreased flow. Move left for hot water and right for cold water.
- Výsuvný postřikovač: The sprayer head can be pulled down from the faucet spout for extended reach, making it easier to clean the sink or fill large pots.
- 3 režimy postřiku: The sprayer head features three distinct spray modes:
- Režim streamování: Provides a steady, aerated stream for filling pots and general washing.
- Režim postřiku: Delivers a powerful spray for rinsing dishes and cleaning the sink.
- Režim pozastavení: Temporarily stops water flow, useful when moving the sprayer between tasks without turning off the main handle.
- Otočení o 360°: The faucet spout can rotate 360 degrees, offering flexibility and convenience for various kitchen tasks.

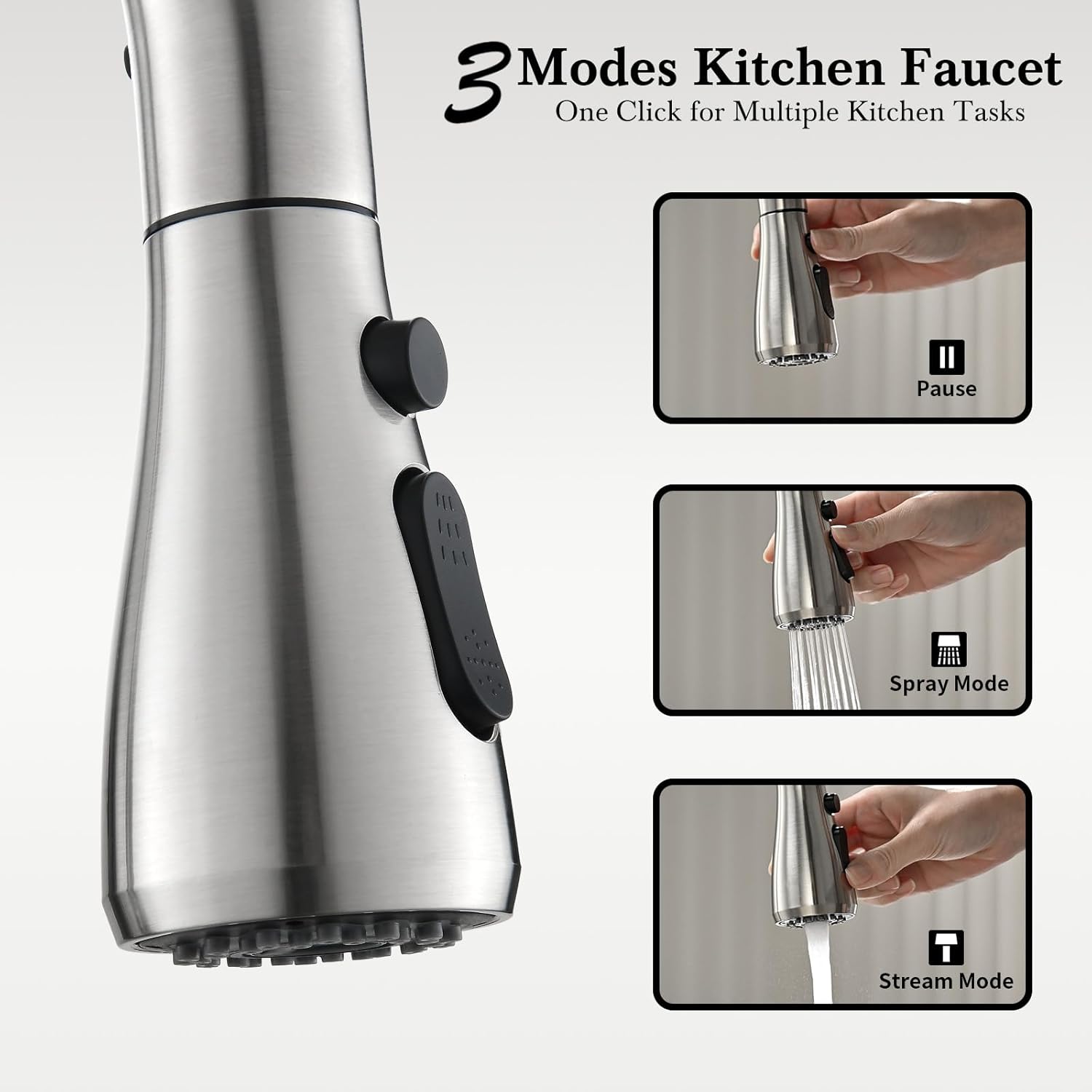

Image: Close-up of the Ibergrif K22137 Kitchen Faucet's pull-down sprayer head, illustrating the three available spray modes: Stream, Spray, and Pause.

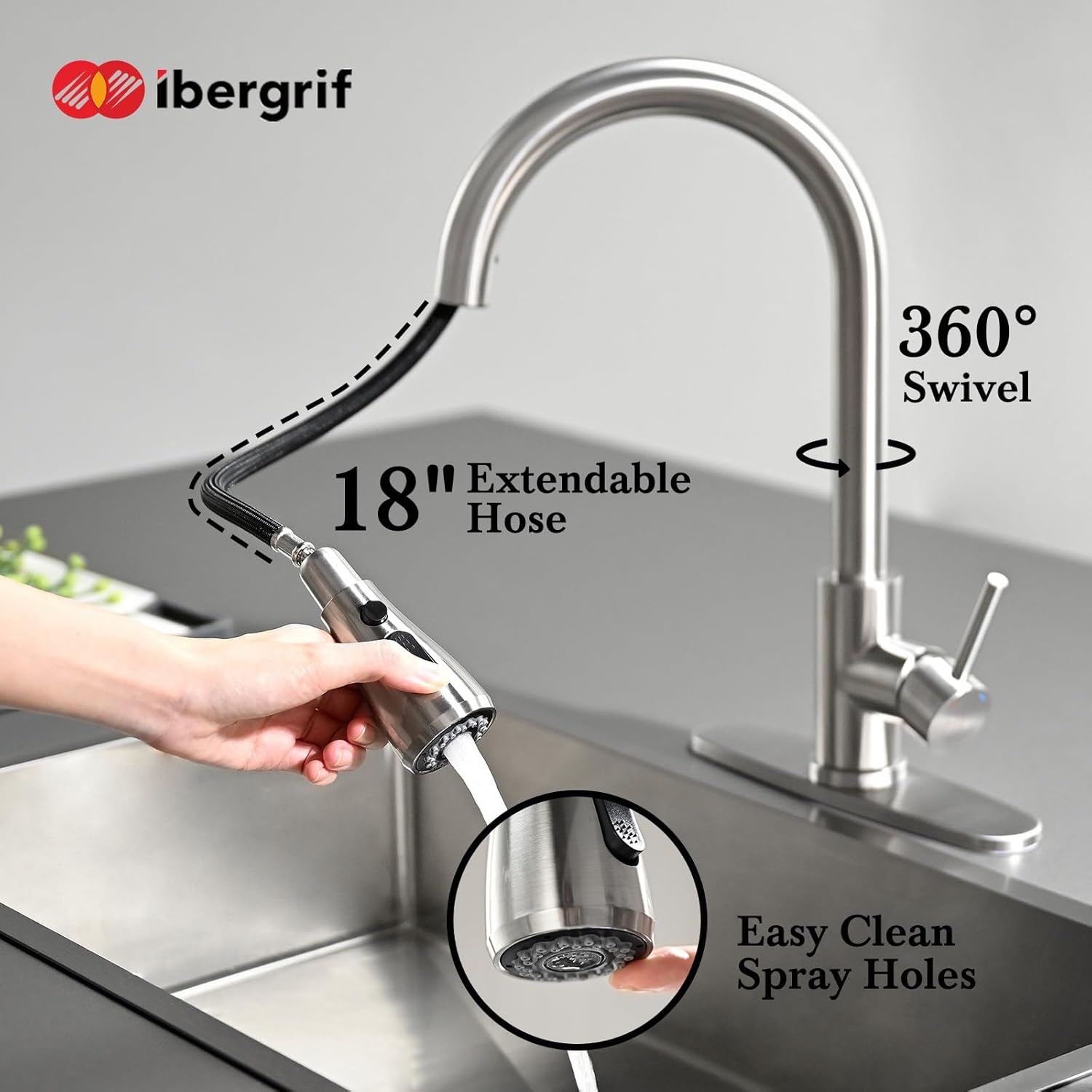

Image: The Ibergrif K22137 Kitchen Faucet demonstrating its 18-inch extendable hose and 360-degree swivel feature, highlighting its flexibility for various kitchen tasks.
Video: This video showcases the Ibergrif Kitchen Faucet with Pull Down Sprayer in action, demonstrating its various spray modes and ease of use for washing vegetables and cleaning kitchenware.
Údržba
Proper maintenance will ensure the longevity and optimal performance of your faucet.
- Čištění: Pravidelně čistěte kohoutek měkkým hadříkemamp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish.
- Spray Holes: The spray head features touch-clean rubber nozzles. To remove mineral buildup, simply wipe the nozzles with your finger or a soft brush.
- Keramická kazeta: The faucet is equipped with a drip-free ceramic cartridge, tested for up to 5,000,000 cycles. If leaks occur from the handle, the cartridge may need replacement.
Obrázek: Podrobný view of the Ibergrif K22137 Kitchen Faucet's internal ceramic cartridge, emphasizing its leakproof and durable design.
Image: A hand demonstrating how to easily clean the spray holes of the Ibergrif K22137 Kitchen Faucet's pull-down sprayer head by wiping away mineral deposits.
Odstraňování problémů
Pokud narazíte na nějaké problémy, podívejte se na následující běžné problémy a jejich řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Nízký průtok vody | Clogged aerator or supply lines. | Remove and clean the aerator. Check supply lines for kinks or blockages. |
| Úniky z rukojeti | Opotřebovaná keramická kartuše. | Replace the ceramic cartridge. |
| Water Drips from Spout | Faulty cartridge or mineral buildup. | Clean the spray holes. If dripping persists, replace the cartridge. |
| Sprayer Head Does Not Retract Fully | Weight ball improperly positioned or hose obstructed. | Adjust the position of the weight ball on the hose. Ensure the hose path under the sink is clear of obstructions. |
Specifikace
- Název modelu: K22137
- Značka: Ibergrif
- Materiál: SUS304 Nerezová ocel
- Typ dokončení: Kartáčovaný nikl
- Typ montáže: Deck Mount (1 or 3-hole compatible)
- Počet držadel: 1
- Design výtoku: High Arc Gooseneck
- Výška hubice: 6.29 palců
- Dosah hubice: 9.84 palců
- Rozměry produktu: 8.26"H x 9.84"Š x 14.56"V
- Hmotnost položky: 3.98 libry
- Maximální průtok: 1.8 galonu za minutu
- Speciální vlastnosti: 360° Swivel, Easy to Install, Lead Free, Leak Resistant, Pull Down Sprayer (3 modes: Stream, Spray, Pause)
- Zahrnuté komponenty: Aerator, Deck Plate, Handle, Installation Hardware, Instruction Manual

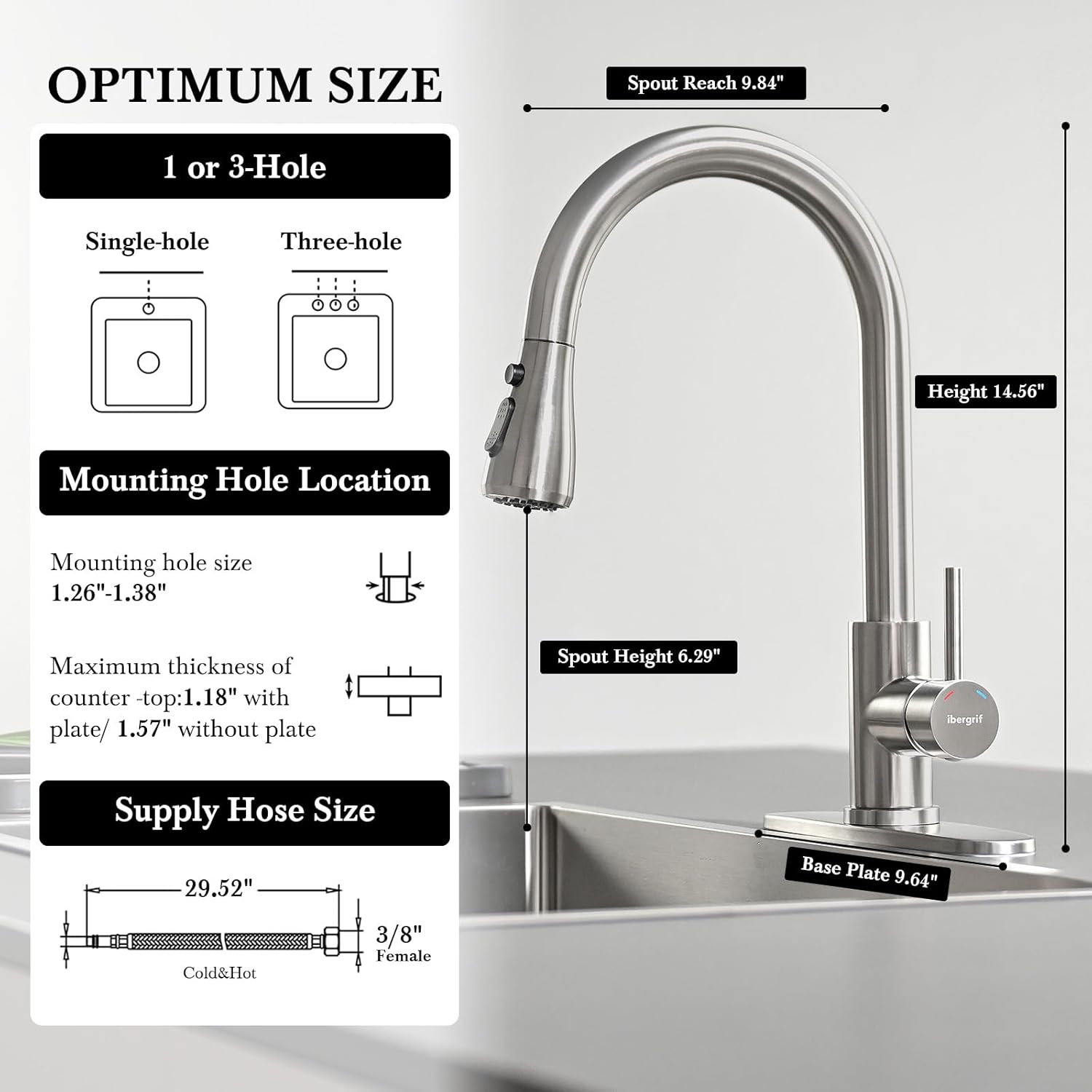

Image: Detailed diagram showing the optimum size and dimensions of the Ibergrif K22137 Kitchen Faucet, including spout reach, spout height, total height, and mounting hole specifications.
Záruka a podpora
The Ibergrif K22137 Kitchen Faucet comes with a limited warranty. For specific warranty details or technical support, please refer to the warranty card included in your packaging or contact Ibergrif customer service.
Výrobce: Ibergrif
