1. Konec produktuview

The Stelpro ASK1001W is a compact 1000W ceiling-mounted heater designed for residential or light commercial use. It delivers instant nichrome heat with quiet airflow, making it ideal for spaces up to 100 sq ft.

Klíčové vlastnosti:

• Topný výkon: 1000W, suitable for areas up to 100 sq ft.
• Topné těleso: Nichrome element for instant heat.
• Proud vzduchu: 90 CFM for even heat distribution, with a throw distance up to 10.5 ft.
• Instalace: Hardwired only (not plug-in).
• Řízení: Designed for use with a wall thermostat (sold separately); electronic thermostat recommended for accurate comfort.
• Design: Compact and discreet ceiling-mounted installation, saving wall space. Features an epoxy-polyester powder-coated cabinet for durability.
• Možnosti montáže: Flexible recessed or surface mounting, compatible with adapters for suspended ceilings. Can be mounted parallel or perpendicular to ceiling beams.

2. Bezpečnostní informace

Please read and understand all instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• Elektrická bezpečnost: This unit must be hardwired by a qualified electrician in accordance with all national and local electrical codes. Ensure power is disconnected at the main circuit breaker before installation or servicing.
• Umístění: Do not install the heater directly above a bathtub or shower. Maintain adequate clearance from combustible materials.
• Větrání: Ensure proper ventilation around the unit as specified in the installation guide.
• Děti a domácí mazlíčci: Během provozu držte děti a domácí zvířata v dostatečné vzdálenosti od topení.
• Údržba: Only perform maintenance as described in this manual. Refer all other servicing to qualified personnel.

3. Nastavení a instalace

The Stelpro ASK1001W heater offers versatile installation options. It is designed for hardwired connection and requires a wall thermostat for operation.

Kroky instalace:

1. Odpojení napájení: Turn off power at the main electrical panel before beginning installation.
2. Místo montáže: Choose a suitable ceiling location, ensuring adequate clearance from walls and other objects. The unit can be recessed or surface mounted.
3. Příprava zahájení: If recessing, cut an opening in the ceiling according to the dimensions provided in the detailed installation guide.
4. Bezpečné bydlení: Install the heater housing using the provided joist hangers or mounting brackets. Ensure it is securely fastened to ceiling joists or a sturdy support structure.
5. Elektrické připojení: Connect the 120V electrical supply wires to the heater's wiring compartment. This unit is hardwired only and does not use a plug. Ensure all connections are secure and comply with local electrical codes.
6. Připojení termostatu: Connect the heater to a compatible wall thermostat (electronic thermostat recommended for optimal performance). Follow the thermostat manufacturer's wiring instructions.
7. Instalace mřížky: Once wiring is complete and secure, attach the decorative grille to the heater housing.
8. Obnovit napájení: Turn power back on at the main electrical panel.

Figure 1: Illustration of a 120V hardwired electrical connection. This diagram emphasizes the hardwired nature of the Stelpro ASK1001W heater, showing wires connected directly to the electrical system rather than through a plug.

Figure 2: The Stelpro ASK1001W ceiling heater discreetly installed in the ceiling of a modern bathroom, demonstrating its compact and space-saving design.

4. Návod k obsluze

The Stelpro ASK1001W heater is controlled by an external wall thermostat (not included). An electronic thermostat is recommended for precise temperature control and energy efficiency.

Použití vašeho ohřívače:

• Ovládání termostatem: Adjust the desired temperature using your wall thermostat. The heater will activate when the room temperature falls below the set point and deactivate once the set point is reached.
• Počáteční provoz: Upon first use, a slight odor may be present as manufacturing residues burn off. This is normal and will dissipate quickly.
• Tichý provoz: The heater is designed for silent comfort, providing warmth without disruptive noise.

5. Údržba

Regular maintenance ensures optimal performance and longevity of your Stelpro ceiling heater. Always disconnect power before performing any maintenance.

Čištění:

• Vnější: Vyčistěte vnější část ohřívače měkkým, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• Přívod/výstup vzduchu: Periodically vacuum the air intake and outlet grilles to remove dust and debris. Ensure no objects obstruct airflow.

No other user-serviceable parts are inside the unit. For any internal cleaning or repairs, contact qualified service personnel.

6. Řešení problémů

If your heater is not operating correctly, consult the following common issues before contacting support.

• Žádné teplo/elektřina:
  • Check the circuit breaker for a tripped breaker.
  • Ensure the wall thermostat is set above the current room temperature.
  • Verify all electrical connections are secure (only to be checked by a qualified electrician).
• Nedostatečné teplo:
  • Confirm the heater's wattage is appropriate for the room size (1000W for up to 100 sq ft).
  • Check for drafts or poor insulation in the room.
• Neobvyklý hluk:
  • A slight clicking sound during heating/cooling cycles is normal due to thermal expansion.
  • If noise is excessive or persistent, disconnect power and contact support.

7. Specifikace

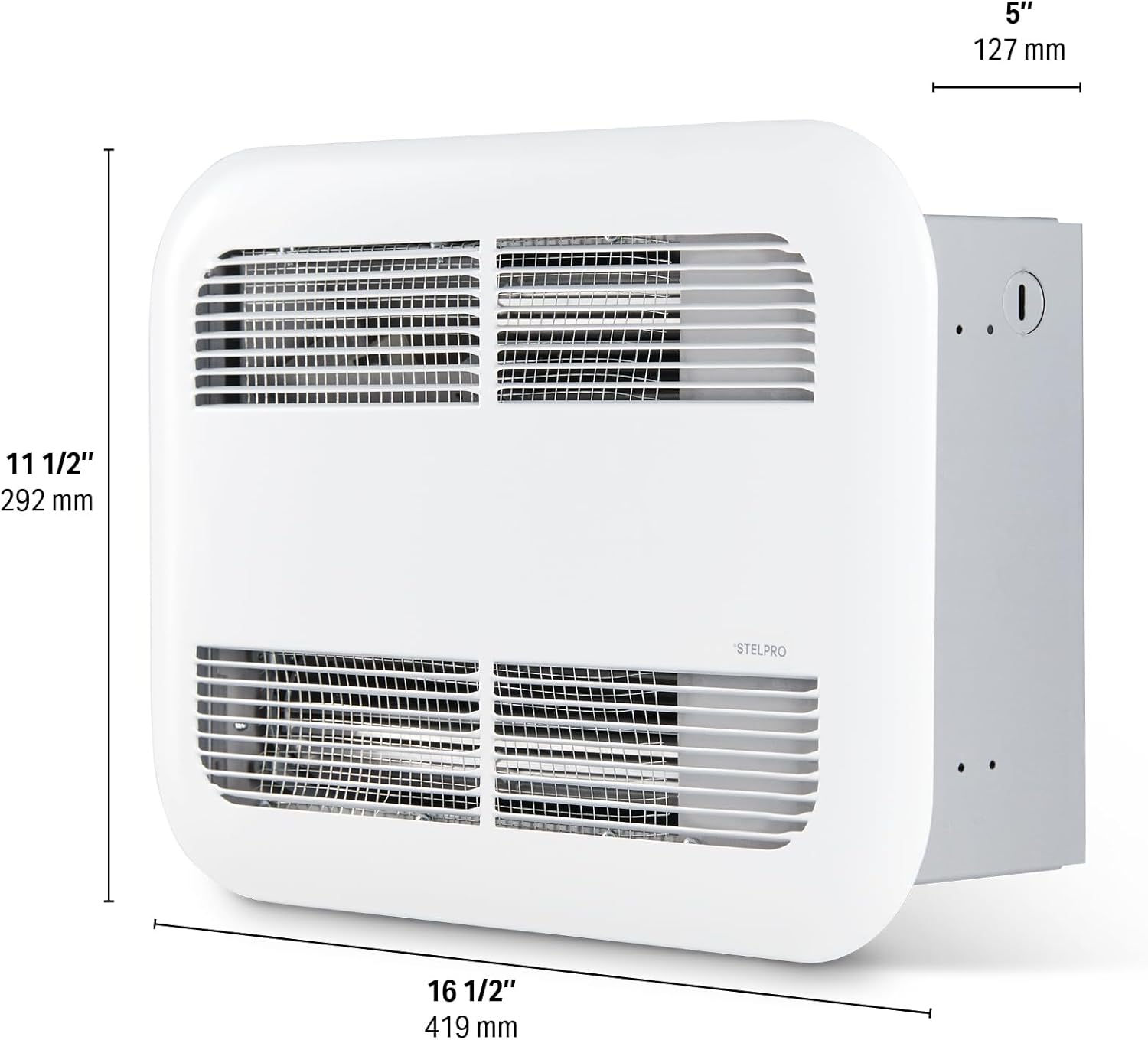

Obrázek 3: Strana view of the Stelpro ASK1001W heater showing its compact dimensions of 11 1/2 inches (292 mm) height, 16 1/2 inches (419 mm) width, and 5 inches (127 mm) depth.

8. Záruka a podpora

The Stelpro ASK1001W Ceiling Heater is covered by a 5-year limited warranty. Electronic components are covered for 3 years. This warranty ensures dependable operation and peace of mind.

For warranty claims or technical support, please refer to the contact information provided on your product packaging or visit the official Stelpro webmísto.
