Uživatelská příručka k přenosnému startovacímu zařízení do auta NEXPOW T11 a X7

1. Konec produktuview

The NEXPOW T11 and X7 Portable Car Jump Starter is a versatile device designed to provide reliable power for various vehicles and electronic devices. Featuring a powerful 6000A peak current and 24000mAh capacity, it can jump-start all gas engines and diesel engines up to 12.0L. The unit also functions as a power bank with multiple charging outputs and includes a high-definition display for easy monitoring.

Image: The NEXPOW T11 and X7 Portable Car Jump Starter unit shown with its included jumper cables and charging accessories.

2. Co je v krabici?

Your NEXPOW Portable Car Jump Starter package includes the following components:

• NEXPOW T11/X7 Jump Starter Unit
• Chytré startovací kabely s Clamps
• Nabíjecí kabel USB-C na USB-A
• 12V DC Output Adapter (Cigarette Lighter Socket)
• Uživatelská příručka a příručka pro rychlý start
• Tvrdé pouzdro

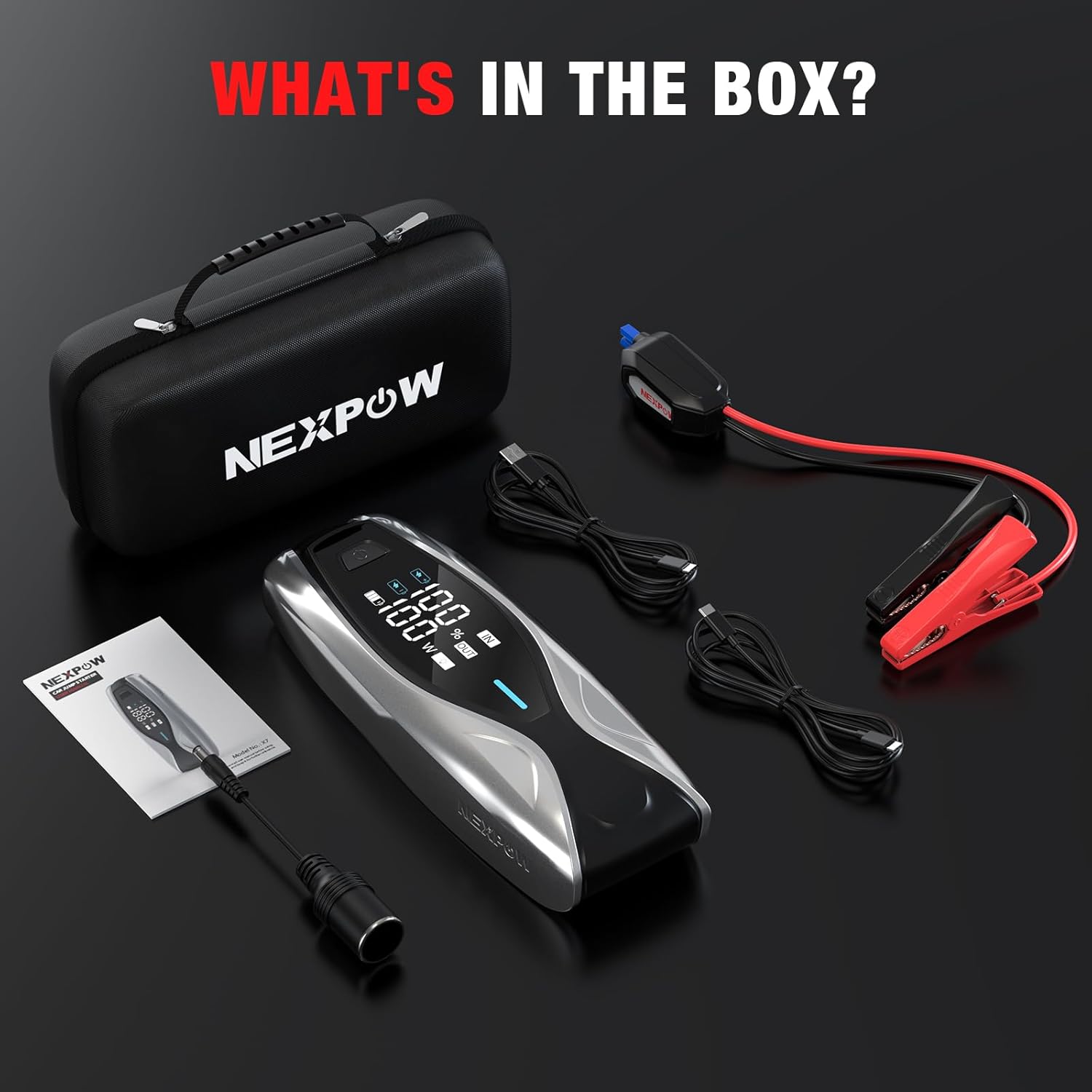

Image: All items included in the NEXPOW jump starter package, neatly arranged in their carrying case.

3. Specifikace

4. Nastavení

Connecting the Jump Starter

Before jump-starting, ensure the jump starter unit is adequately charged (preferably above 50%).

1. Insert Jumper Cables: Open the rubber cap on the jump starter unit and firmly insert the smart jumper cable connector into the EC5 port. The blue light on the jumper cable indicator should turn on, indicating standby mode.
2. Připojení k baterii vozidla: Připevněte červenou (+) třamp ke kladnému pólu baterie vozidla a černému (-) póluamp to the negative terminal. Ensure a secure connection. The jumper cable indicator should show a green light, indicating it's ready to jump-start.

Image: The intelligent wire clips of the jumper cables, designed for safe and correct connection to the vehicle battery.

5. Návod k obsluze

Powering On and Battery Status

To power on the jump starter, press the power button located on the unit. The 3.2-inch HD LCD screen will display the current battery percentage and working status.

Image: The 3.2-inch HD display monitoring the working status and power level of the jump starter.

Použití baterky

The jump starter includes a 600LM LED flashlight with multiple modes:

• Stálé světlo: Press the flashlight button once for a steady beam.
• Režim SOS: Press the flashlight button twice for an SOS signal.
• Stroboskopický režim: Press the flashlight button three times for a flashing strobe light.

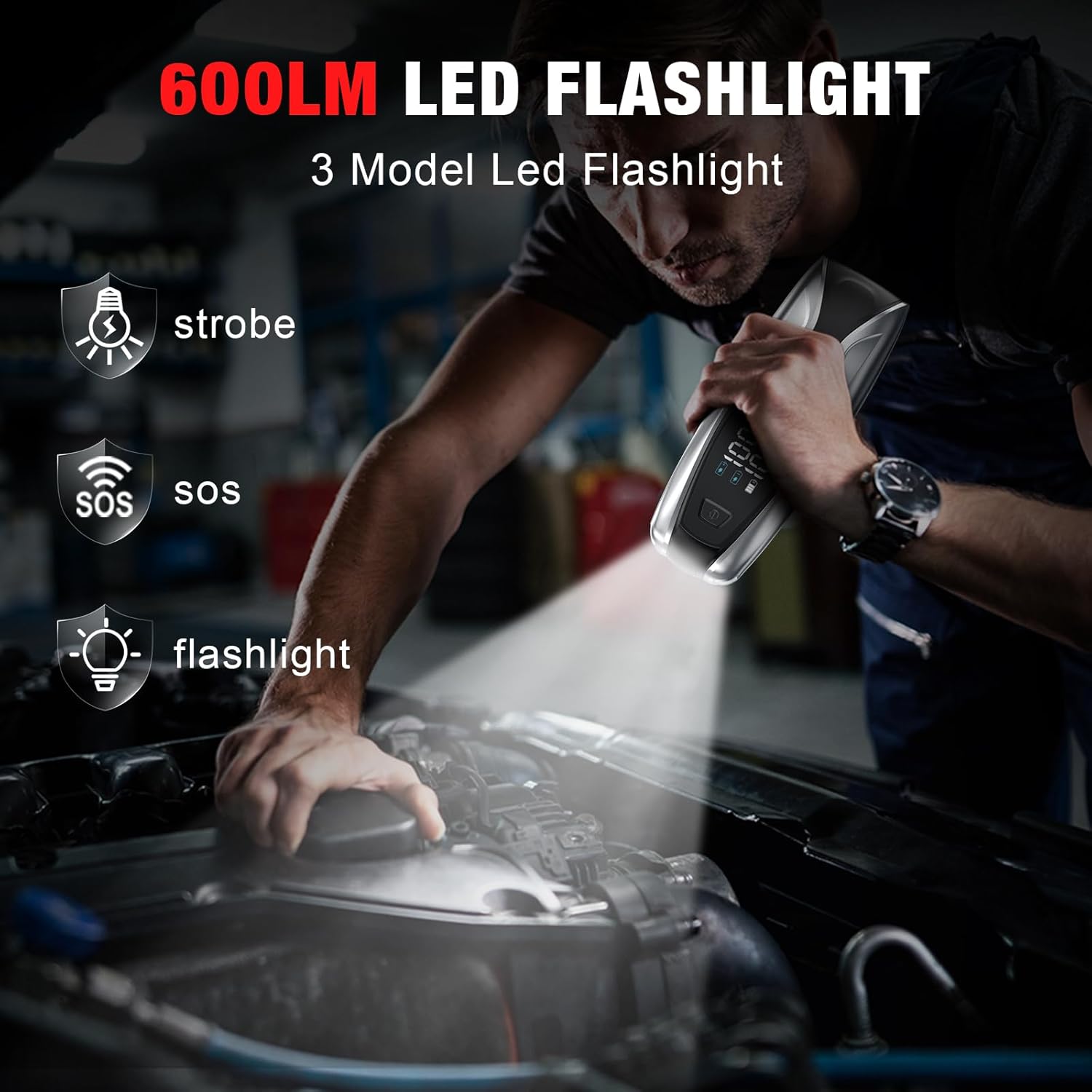

Image: The 600LM LED flashlight demonstrating its various modes, including solid, strobe, and SOS.

Startování vozidla skokem

1. Ensure the jump starter is connected to the vehicle battery terminals correctly and the indicator light on the jumper cables is green.
2. Enter your vehicle and start the engine.
3. Once the engine starts, immediately remove the jumper cables from the vehicle battery terminals, then disconnect them from the jump starter unit.

6. Nabíjení startovacího zařízení

The NEXPOW jump starter features 60W PD bi-directional fast charging via its Type-C port, allowing for rapid recharging of the unit itself.

1. Connect the USB-C charging cable to the Type-C input port on the jump starter.
2. Connect the other end of the cable to a compatible 60W PD wall adapter (not included) or car charger.
3. The 3.2-inch HD LCD screen will display the charging progress. A full charge can be achieved in approximately 1.7 hours with a 60W charger.

Image: The jump starter's 60W PD dual-way in/output for faster charging, illustrating recharge times based on charger wattage.

7. Údržba

To ensure optimal performance and longevity of your NEXPOW jump starter, follow these maintenance guidelines:

• Pravidelné nabíjení: Although the unit can hold its charge for up to 2 years, it is recommended to recharge it periodically, especially if it has been used.
• Skladování: Store the jump starter in its hard shell carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
• Čištění: Use a soft, dry cloth to clean the unit. Avoid using harsh chemicals or abrasive materials.

8. Safety Features and Troubleshooting

Integrované ochrany

The NEXPOW jump starter is equipped with 8 types of intelligent protections to ensure safe operation:

• Ochrana před nadproudem
• Ochrana proti přepólování
• Nízkoteplotní ochrana
• Ochrana proti vysoké teplotě
• Ochrana proti přetížení
• Ochrana proti zkratu
• Ochrana před přeplněním
• Ochrana proti nadproudu

Skokan Clamp Pokyny k indikátoru

The indicator lights on the smart jumper cables provide important status and troubleshooting information:

9. Záruka a podpora

For detailed warranty information, product support, or to register your NEXPOW T11/X7 Portable Car Jump Starter, please refer to the warranty card included in your product packaging or visit the official NEXPOW webUschovejte si účtenku jako doklad o koupi pro případné reklamace.
