ALLmeter Digital Dial Indicator with Magnetic Base (Model ALL090FBA) Instruction Manual

Zavedení

This manual provides detailed instructions for the proper use, setup, and maintenance of your ALLmeter Digital Dial Indicator with Magnetic Base. Designed for high-precision measurements, this tool is suitable for various applications in machine shops, automotive repair, and industrial settings. Please read this manual thoroughly before operating the device to ensure accurate results and safe handling.

Co je v krabici

Po otevření balení ověřte, zda jsou přítomny všechny následující komponenty:

• Digitální číselník
• Magnetic Base with Flexible Arm
• 1.5V baterie
• Přenosný úložný box
• Návod k použití (tento dokument)

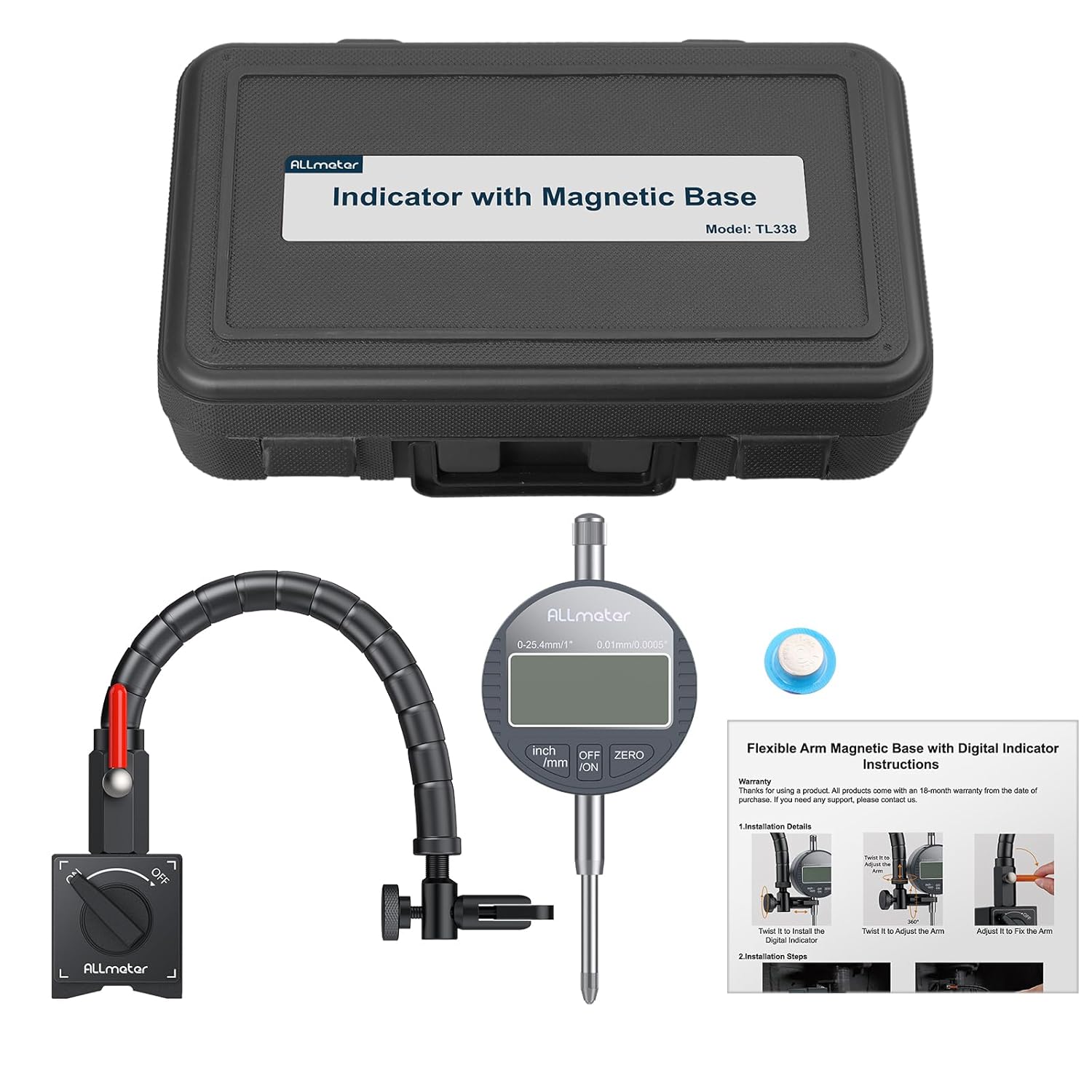

Image: All components included in the ALLmeter Digital Dial Indicator set, neatly arranged for inspection.

Vlastnosti produktu

• Vysoká přesnost: Offers 0.01mm (0.0005") resolution and a 0-1 inch/25.4mm measuring range for accurate results.
• Flexibilní umístění: Features a 360° adjustable magnetic base with 176lbs (80kg) tensile force for secure attachment and versatile positioning.
• Robust & Easy Use: Constructed with an aluminum alloy body, includes an auto-off function, and supports unit conversion between inches and millimeters.
• Univerzální kompatibilita: Designed to fit all 4-14mm dial indicators, making it suitable for various machinery, including lathes, presses, and CNC machines.
• Kompletní sada: Comes with a battery, portable box, and this manual for immediate use.

Obrázek: Overview of the ALLmeter Digital Dial Indicator and its key features.

Nastavení a instalace

Follow these steps to set up your digital dial indicator and magnetic base:

1. Attach Flexible Arm to Magnetic Base: Securely screw the flexible arm into the magnetic base. Ensure it is tightened to prevent movement during use.
2. Position Magnetic Base: Place the magnetic base on a clean, flat ferrous surface. Rotate the ON/OFF switch on the base to the "ON" position to activate the magnet and secure the base.
3. Install Digital Dial Indicator: Insert the stem of the digital dial indicator into the clamp at the end of the flexible arm. Tighten the adjusting screw to firmly hold the indicator in place.
4. Upravte polohu ramen: Use the rotary lever on the flexible arm to adjust its angle and position. The 360° rotating twist allows for precise alignment of the indicator's probe with the measurement point.

Image: Components of the flexible arm and magnetic base, illustrating adjustment points.

Image: Visual guide for the installation process, from securing the base to preparing for measurement.

Návod k obsluze

Once the indicator is installed, follow these steps for accurate measurements:

1. Zapnutí: Press the "ON/OFF" button to turn on the digital dial indicator.
2. Vyberte jednotky: Press the "inch/mm" button to switch between imperial (inches) and metric (millimeters) units as needed.
3. Nastavení nuly: Position the probe against the reference surface or the starting point of your measurement. Press the "ZERO" button to set the current position as zero.
4. Proveďte měření: Gently move the object or the indicator to measure the desired dimension. The digital display will show the displacement from the zero point.
5. Vypnout: Press the "ON/OFF" button again to turn off the indicator when not in use. The device also features an auto-off function to conserve battery.

Obrázek: Podrobný view of the digital dial indicator's interface and controls.

Image: The dial indicator set measuring a brake rotor, illustrating a practical application.

Údržba

Proper maintenance ensures the longevity and accuracy of your ALLmeter Digital Dial Indicator:

• Čištění: Wipe the indicator and magnetic base with a soft, dry cloth after each use. Avoid using solvents or abrasive cleaners.
• Skladování: Store the device in its portable storage box in a dry, dust-free environment when not in use.
• Výměna baterie: If the display becomes dim or unresponsive, replace the 1.5V battery. Refer to the indicator's battery compartment for specific instructions.
• Vyhněte se dopadu: Protect the indicator from drops or impacts, as this can affect its precision.
• Péče o magnetickou podložku: Keep the magnetic surfaces clean and free of debris to ensure maximum holding force.

Odstraňování problémů

If you encounter issues with your digital dial indicator, consider the following:

• Displej nefunguje:
  • Zkontrolujte, zda je baterie správně nainstalována.
  • Vyměňte baterii, pokud je slabá nebo vybitá.
  • Ujistěte se, že bylo stisknuto tlačítko ZAP/VYP.
• Nepřesná čtení:
  • Ensure the magnetic base is securely attached to a stable, flat ferrous surface.
  • Verify that the indicator is firmly clamped in the flexible arm and not loose.
  • Clean the probe tip and the measurement surface to remove any debris.
  • Perform a zero-setting calibration before taking measurements.
• Magnetická základna nedrží:
  • Ensure the ON/OFF switch on the magnetic base is in the "ON" position.
  • Clean the magnetic surfaces and the mounting surface.
  • The magnetic base requires a ferrous material surface at least 30mm thick for maximum pull force.

Specifikace

Obrázek: Přamples of the dial indicator set being used in different precision measurement scenarios.

Záruka a podpora

ALLmeter products come with a 15-month warranty from the date of purchase. If you require any support, have questions, or need to claim warranty service, please contact ALLmeter customer service through the retailer where the product was purchased or visit the official ALLmeter webstránky pro kontaktní informace.

ALLmeter is committed to providing precise, accurate, and stable measuring tools. We strive for unparalleled quality in each product to ensure customer satisfaction.
