Homary 71" Whirlpool Bathtub with Heating - Instruction Manual

1. Důležité bezpečnostní informace

Please read all instructions carefully before installation and use of your Homary whirlpool bathtub. Failure to follow these instructions could result in injury or property damage. Retain this manual for future reference.

• Elektrická bezpečnost: Ensure the bathtub is installed by a qualified electrician in accordance with all local and national electrical codes. The unit must be connected to a dedicated, grounded circuit protected by a Ground Fault Circuit Interrupter (GFCI). Do not operate the bathtub if the GFCI trips.
• Teplota vody: The water temperature in a whirlpool bathtub should not exceed 104°F (40°C). Prolonged immersion in hotter water can cause hyperthermia, which may result in dizziness, fainting, or heat stroke.
• Chemické použití: Use only approved bath additives and cleaning agents. Avoid abrasive cleaners or harsh chemicals that can damage the acrylic surface or internal components.
• Děti a domácí mazlíčci: Never leave children or pets unattended near or in the bathtub. Always ensure the bathtub is drained and covered when not in use.
• Zdravotní stavy: Consult a physician before use if you are pregnant, have heart disease, high blood pressure, diabetes, or any other medical condition. Avoid alcohol or drugs before or during use, as they can impair judgment and increase the risk of drowning.
• Instalace: Ensure the floor structure can support the weight of the filled bathtub and occupants. Proper ventilation is required in the bathroom.

2. Konec produktuview

The Homary 71" Whirlpool Bathtub is designed for a relaxing spa experience, featuring advanced hydrotherapy and comfort elements. This two-person jetted bathtub includes both air and water jets, a built-in heating system to maintain water temperature, and chromatherapy LED lighting.

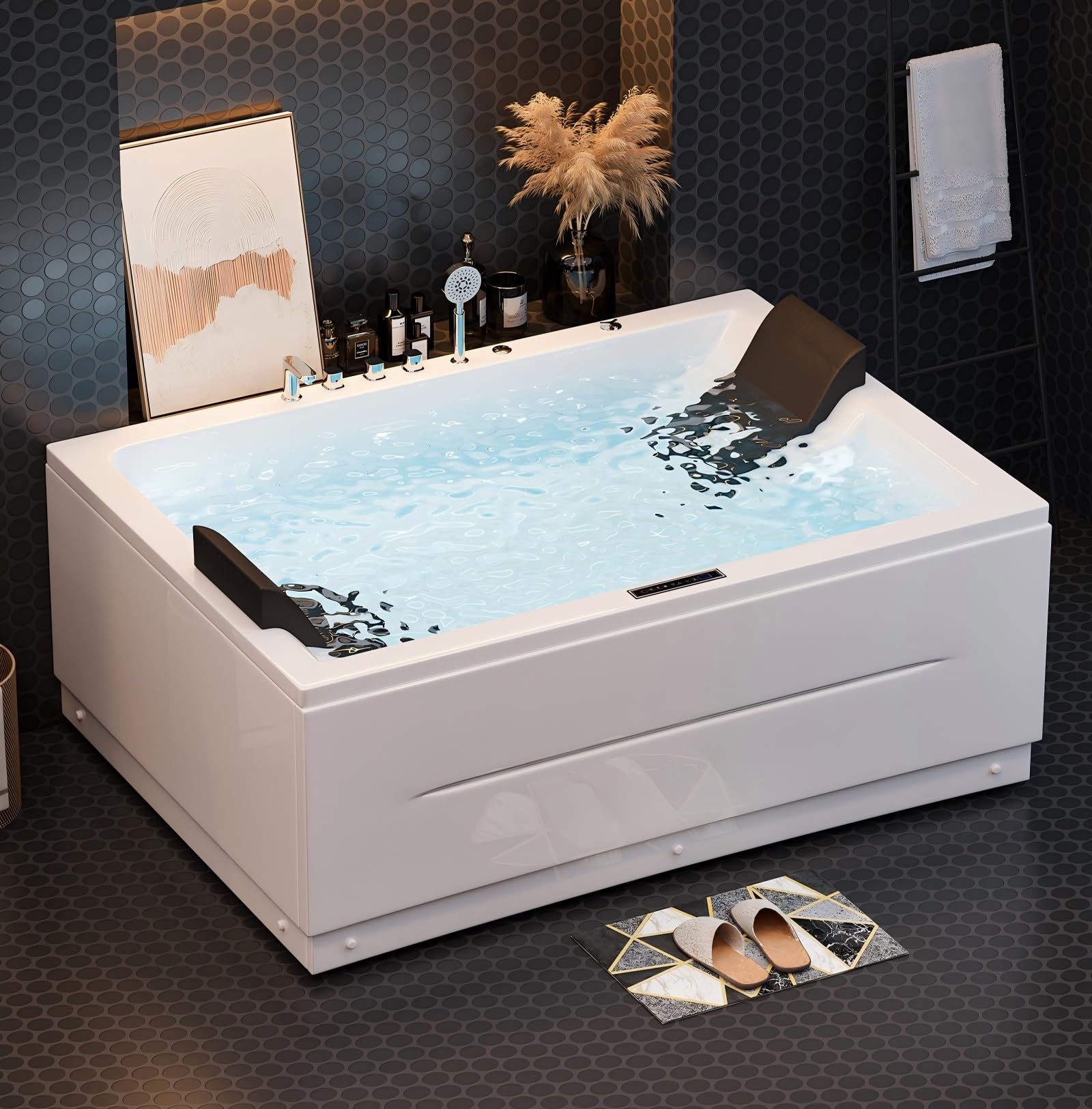

Figure 2.1: Homary 71-inch Whirlpool Bathtub with Heating.

Klíčové vlastnosti:

• 38 Jets for Hydrotherapy: Enjoy a comprehensive massage with 18 water jets and 20 air jets strategically placed for full-body relaxation.
• Heated Soaking Function: Maintains consistent water temperature, ensuring a continuously warm and luxurious soak without the need for refilling.
• Design pro dvě osoby: Spacious layout with a 120-degree reclined backrest and cushioned headrests accommodates two bathers comfortably.
• Odolná akrylová konstrukce: Made from high-gloss acrylic for durability, easy maintenance, and lasting aesthetic appeal.
• Chromatherapy LED: Integrated LED lighting offers a range of colors to enhance your bathing experience and soothe the mind.
• Right-Hand Drain: Integrated design simplifies installation and optimizes bathroom space.

Figure 2.2: Spacious design for two occupants.

Figure 2.3: Ergonomic design with PU pillows and 120-degree reclined backrest for comfort.

Video s ukázkou produktu:

3. Instalační příručka

Proper installation is crucial for the safe and efficient operation of your whirlpool bathtub. It is highly recommended that installation be performed by certified professionals (plumber and electrician).

3.1 Kontroly před instalací

• Zkontrolujte, zda jsou všechny součásti přítomny a nepoškozené.
• Ensure the installation area is clean, level, and has adequate structural support for the bathtub's weight when filled with water and occupants.
• Confirm access to hot and cold water lines, a drain connection, and a dedicated electrical outlet with GFCI protection.

3.2 Umístění a vyrovnání

• Position the bathtub in its desired corner location, ensuring the right-hand drain aligns with your plumbing.
• Use a level to check the bathtub's stability. Adjust the leveling feet as necessary to ensure the tub is perfectly level and stable.

3.3 Vodovodní připojení

• Connect the hot and cold water supply lines to the bathtub's faucet inlets. Use appropriate plumbing fittings and ensure all connections are watertight.
• Connect the bathtub's drain to the floor drain system. Test for leaks by filling the tub with water and observing the connections.

3.4 Elektrické připojení

• A qualified electrician must connect the bathtub to a dedicated 120V/20A (or as specified by local codes) GFCI-protected circuit.
• Ensure all wiring is properly insulated and secured, away from water sources.

4. Návod k obsluze

Familiarize yourself with the control panel and functions before operating the bathtub.

4.1 Filling the Bathtub

• Ujistěte se, že je odtok uzavřený.
• Turn on the hot and cold water supply using the faucet controls. You can use the waterfall water inlet or the handheld shower to fill the tub.
• Fill the tub to a level that covers the jets, but do not overfill.

4.2 Using the Smart Touch Control Panel

Figure 4.1: Smart Touch Control Panel.

The bathtub features an intuitive smart touch panel with an LED LCD display for easy operation of all functions.

4.3 Activating Jets and Heating

• Water Jets: Press the 'Water Jet' button on the control panel to activate the hydro-massage jets. Adjust intensity if available.
• Vzduchové trysky: Press the 'Air Jet' button to activate the bubble massage.
• Funkce topení: The built-in heater automatically maintains the set water temperature. Use the temperature controls on the panel to adjust as desired.

Figure 4.2: Water and Air Dual Spray System.

4.4 Chromatherapy LED Lighting

• Press the 'Light' button on the control panel to cycle through the 7 available chromatherapy colors or to set a specific color.

Figure 4.3: Built-in Chromatherapy Lights.

4.5 Waterfall Water Inlet and Handheld Shower

• Use the designated diverter knob to switch between the waterfall water inlet and the handheld shower for filling or rinsing.

Provozní video:

5. Údržba a péče

Regular maintenance ensures the longevity and optimal performance of your bathtub.

5.1 Pravidelné čištění

• Clean the acrylic surface with a soft cloth and a non-abrasive, mild bathroom cleaner. Avoid harsh chemicals, scouring pads, or abrasive sponges that can scratch the surface.
• Po čištění důkladně opláchněte, abyste odstranili veškeré zbytky.

5.2 Jet Cleaning

• Periodically fill the tub with warm water above the jets and add a small amount of a specialized jetted tub cleaner or a cup of white vinegar.
• Run the jets for 10-15 minutes, then drain the tub. Refill with clean water and run the jets again for a few minutes to rinse.

5.3 Vypouštění

• Always ensure the tub is completely drained after each use to prevent water stagnárod a hromadění nerostů.

5.4 Acrylic Surface Care

• To maintain the high-gloss finish, avoid dropping heavy or sharp objects into the tub.
• Minor scratches can often be buffed out with a fine automotive polishing compound.

6. Řešení problémů

Než kontaktujete zákaznickou podporu, prostudujte si prosím následující běžné problémy a jejich řešení.

7. Specifikace produktu

8. Záruka a podpora

Homary products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact Homary customer support.

Zákaznická podpora:

If you have any questions, require technical assistance, or need to report an issue, please contact our customer care center.

• E-mail: service@homary.com
• Please provide your order number when contacting us via email.

Figure 8.1: Homary Customer Support Contact Information.
