ID-COOLING FX360 LCD PE CPU Liquid Cooler

1. Bezpečnostní informace

Please read all safety instructions before installing or operating the ID-COOLING FX360 LCD PE CPU Liquid Cooler. Failure to follow these instructions may result in product damage, property damage, or personal injury.

• Ensure your computer system is powered off and disconnected from the power source before installation.
• S komponenty zacházejte opatrně, abyste předešli jejich poškození.
• Do not open the liquid cooler's sealed components (pump, radiator, tubing) as this may void the warranty and cause leaks.
• Udržujte výrobek mimo dosah dětí a domácích zvířat.
• Use only the provided mounting hardware and accessories.
• Ensure proper ventilation around your computer case to prevent overheating.

2. Obsah balení

Verify that all components are present in the package before beginning installation. If any items are missing or damaged, contact ID-COOLING support.

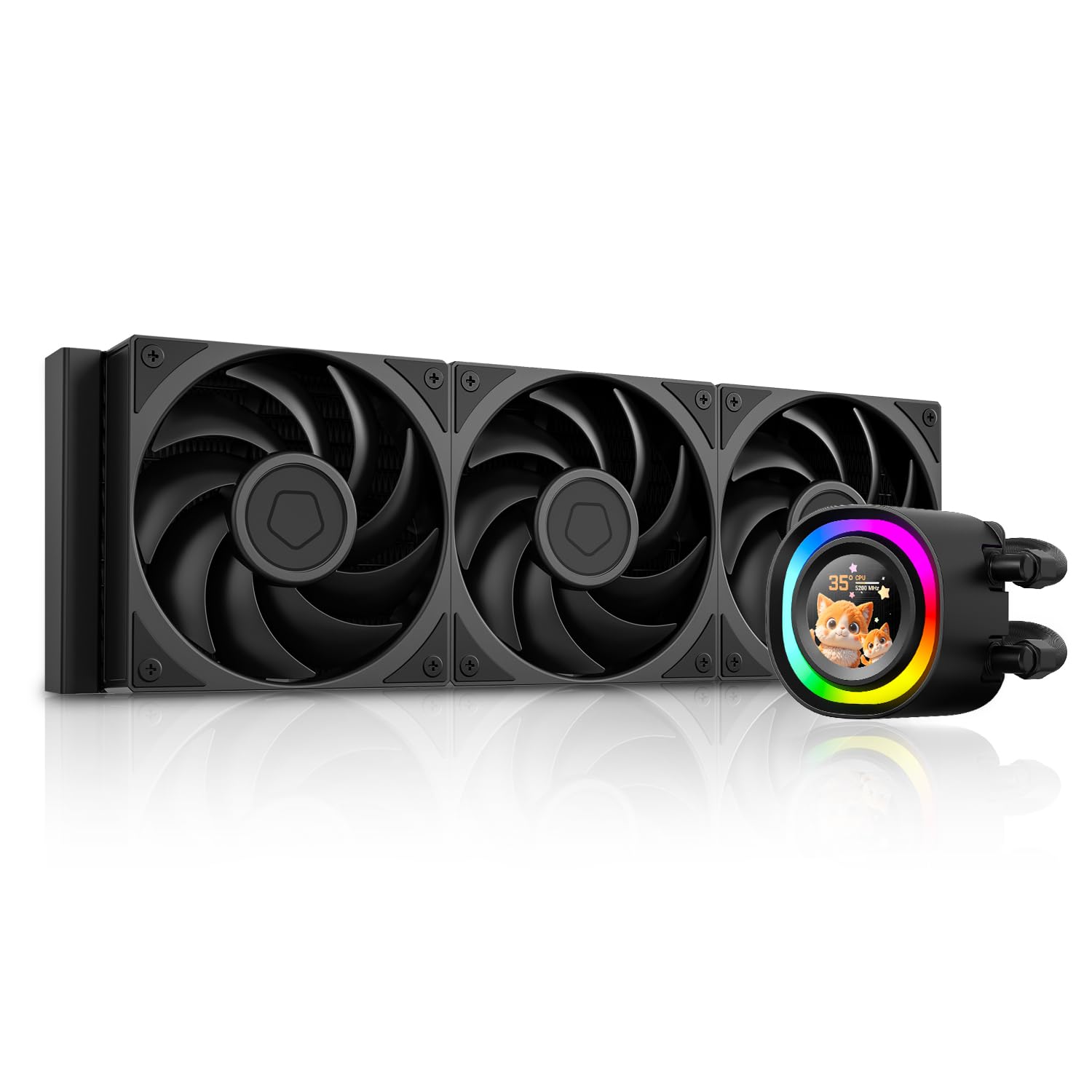

• FX360 LCD PE AIO Liquid Cooler (Radiator with 3x 120mm fans pre-installed, Pump with LCD display)
• Intel Mounting Brackets (LGA1851/1700/1200/115X)
• Montážní držáky AMD (AM5/AM4)
• Backplate for Intel Sockets
• Montážní šrouby a distanční sloupky
• Thermal Paste (ID-COOLING FROST X45)
• USB 2.0 Header Cable
• Kabel ARGB
• Uživatelská příručka

Image: All included installation hardware for the ID-COOLING FX360 LCD PE, including various mounting brackets, screws, thermal paste, and cables.

3. Nastavení a instalace

This section outlines the general steps for installing the liquid cooler. Refer to the detailed installation guide provided in the product packaging for specific instructions for your CPU socket type.

3.1 Připravte základní desku

• Install the appropriate backplate (for Intel) or retention clips (for AMD) onto your motherboard.
• Secure the standoffs for your CPU socket type.

3.2 Naneste teplovzdornou pastu

• Clean the CPU surface thoroughly.
• Apply a small amount of thermal paste (e.g., a pea-sized dot) to the center of the CPU's integrated heat spreader (IHS).

3.3 Mount the Pump

• Align the pump head with the mounting holes on the motherboard.
• Gently press the pump onto the CPU, ensuring even contact.
• Secure the pump with the provided thumb screws or nuts, tightening them in a diagonal pattern until snug. Do not overtighten.

3.4 Install the Radiator and Fans

• Mount the radiator to an available fan mounting location in your PC case (e.g., top, front, or side). Ensure adequate clearance.
• The three 120mm fans are typically pre-installed on the radiator. Ensure their airflow direction is optimal for your case's cooling configuration.

3.5 Připojení kabelů

• Připojte 3pinový nebo 4pinový napájecí kabel čerpadla ke konektoru CPU_FAN nebo AIO_PUMP na základní desce.
• Connect the fan power cable (daisy-chained from the radiator fans) to a SYS_FAN or CHA_FAN header on your motherboard.
• Connect the USB 2.0 header cable from the pump to an available USB 2.0 header on your motherboard. This is required for LCD display functionality and software control.
• Connect the ARGB cable from the pump to a 5V 3-pin ARGB header on your motherboard for lighting synchronization, if desired.

Image: The ID-COOLING FX360 LCD PE liquid cooler fully installed within a computer case, showing the pump head on the CPU and the radiator mounted at the top.

4. Návod k obsluze

Once installed, the ID-COOLING FX360 LCD PE will begin cooling your CPU. The LCD display and ARGB lighting offer customization options.

4.1 Počáteční zapnutí

• After completing installation and connecting all cables, power on your computer.
• The LCD display on the pump head should illuminate, and the ARGB ring will activate.
• Monitor CPU temperatures during initial operation to ensure proper function.

4.2 Přizpůsobení LCD displeje

The 1.48-inch (240x240 px) full-color LCD display can show system statistics, custom graphics, or personalized animations. To customize the display:

• Download and install the official ID-COOLING software from the manufacturer's webmísto.
• Connect the cooler's USB 2.0 cable to your motherboard.
• Use the software to select from preset themes, upload your own images (JPG, PNG), GIFs, or MP4 videos (240x240px resolution recommended).
• The software allows you to display real-time performance metrics such as CPU frequency, CPU/GPU usage, pump speed, fan speed, and temperature.

Obrázek: Přamples of the fully customizable LCD display on the pump head, showing different images, GIFs, and system stats.

Image: The ID-COOLING software interface for customizing the LCD display, showing options for themes, system monitoring, and custom uploads.

4.3 Ovládání osvětlení ARGB

The ARGB lighting ring on the pump head can be controlled via:

• Software základní desky: If connected to a 5V 3-pin ARGB header, you can synchronize the lighting with your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync).
• ID-COOLING Software: The dedicated software may also offer lighting control options.

5. Údržba

Pravidelná údržba pomáhá zajistit optimální výkon a dlouhou životnost vašeho chladiče kapalin.

• Čištění prachu: Periodically clean dust from the radiator fins and fans using compressed air. Ensure the fans are not spinning during cleaning to prevent damage.
• Správa kabelů: Ensure all cables are securely connected and not obstructing airflow.
• Vizuální kontrola: Occasionally inspect the tubing for any signs of wear, kinks, or leaks.
• Aktualizace softwaru: Keep the ID-COOLING software updated to ensure compatibility and access to new features.

6. Řešení problémů

If you encounter issues with your ID-COOLING FX360 LCD PE, refer to the following common problems and solutions:

If the issue persists after attempting these solutions, please contact ID-COOLING customer support for further assistance.

7. Specifikace

Key technical specifications for the ID-COOLING FX360 LCD PE CPU Liquid Cooler:

Obrázek: Explodoval view of the pump head, highlighting the micro-channel cold plate, high-flow pump, 2900 RPM speed, and ceramic bearing for extreme cooling.

Obrázek: Podrobný view of the AP-128 fan, showing its dimensions, speed, airflow, static pressure, noise level, and connector type.

8. Záruka a podpora

ID-COOLING products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty from the date of purchase.

• For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official ID-COOLING webmísto.
• For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact ID-COOLING customer service through their official webwebu nebo kontaktních informací uvedených v dokumentaci k produktu.
• Uschovejte si doklad o koupi (účtenku nebo fakturu) pro případ reklamace.
