Uživatelská příručka k elektrickému tlakovému čističi PowerSmart DB1002 2600 PSI

1. Konec produktuview

The PowerSmart DB1002 Electric Pressure Washer is designed for efficient and powerful cleaning of various outdoor surfaces. It features a durable induction brushless motor and delivers high pressure for effective dirt removal.

Figure 1: PowerSmart DB1002 Electric Pressure Washer with included accessories.

Klíčové vlastnosti:

• High-Efficiency Induction Brushless Motor: Offers quieter performance, greater durability, and better energy efficiency compared to traditional brushed motors.
• 2600 PSI & 1.2 GPM Powerful Cleaning: Delivers strong water pressure and flow for deep cleaning of siding, driveways, decks, and vehicles.
• 5 rychlopojitelné trysky: Includes 0°, 15°, 25°, 40°, and soap nozzles for versatile cleaning tasks, from spot cleaning to wide-area rinsing and detergent application.
• Built-In Detergent Tank & 8” Wheels: Integrated soap tank for efficient detergent use and large wheels for easy maneuverability across various terrains.
• Compact Design with Full Accessories: Comes with spray gun, hose, wand, siphoning tube, 5 nozzles, and quick assembly tools, designed for easy storage and home use.

2. Montážní návod

Follow these steps to assemble your PowerSmart DB1002 pressure washer. Assembly is designed to be quick and straightforward.

2.1 Vybalení a identifikace součástí

Carefully remove all components from the packaging. Verify that all parts listed in the manual are present before proceeding.

2.2 Attaching the Support Beam and Wheels

Secure the support beam to the base of the unit. Then, attach the shaft, collars, and wheels as shown. Ensure all locking nuts are tightened securely.

Figure 2: The pressure washer with its wheels and support beam securely attached, ready for further assembly.

2.3 Installing the Soap Reservoir and Top Handle

Place the soap reservoir onto its designated position. Attach the top handle and lock both sides in place using the provided red fasteners. These fasteners offer a secure and tool-free connection.

2.4 Connecting Hoses and Spray Gun

Connect the spray handle to the shaft. Attach the hose holder to the side of the unit for tidy storage. Connect the water inlet hose to the pump and the other end of the high-pressure hose to the trigger gun. Ensure all connections are tight to prevent leaks.

Figure 3: The fully assembled PowerSmart pressure washer, ready for operation.

3. Návod k obsluze

3.1 Kontrolní seznam před uvedením do provozu

• Ensure all hoses are securely connected and free from kinks.
• Verify the water supply is turned on and flowing freely.
• Select the appropriate quick-connect nozzle for your cleaning task.
• If using detergent, fill the built-in detergent tank.

3.2 Using Quick-Connect Nozzles

The pressure washer includes 5 quick-connect nozzles, each designed for specific applications:

• 0° (červená): For tough, concentrated cleaning on small areas.
• 15° (žlutá): For intense cleaning of hard surfaces with stubborn grime.
• 25° (zelená): Pro běžné čištění různých povrchů.
• 40° (bílá): For gentle rinsing and cleaning of delicate surfaces.
• Mýdlo (černé): Pro aplikaci pracího prostředku.

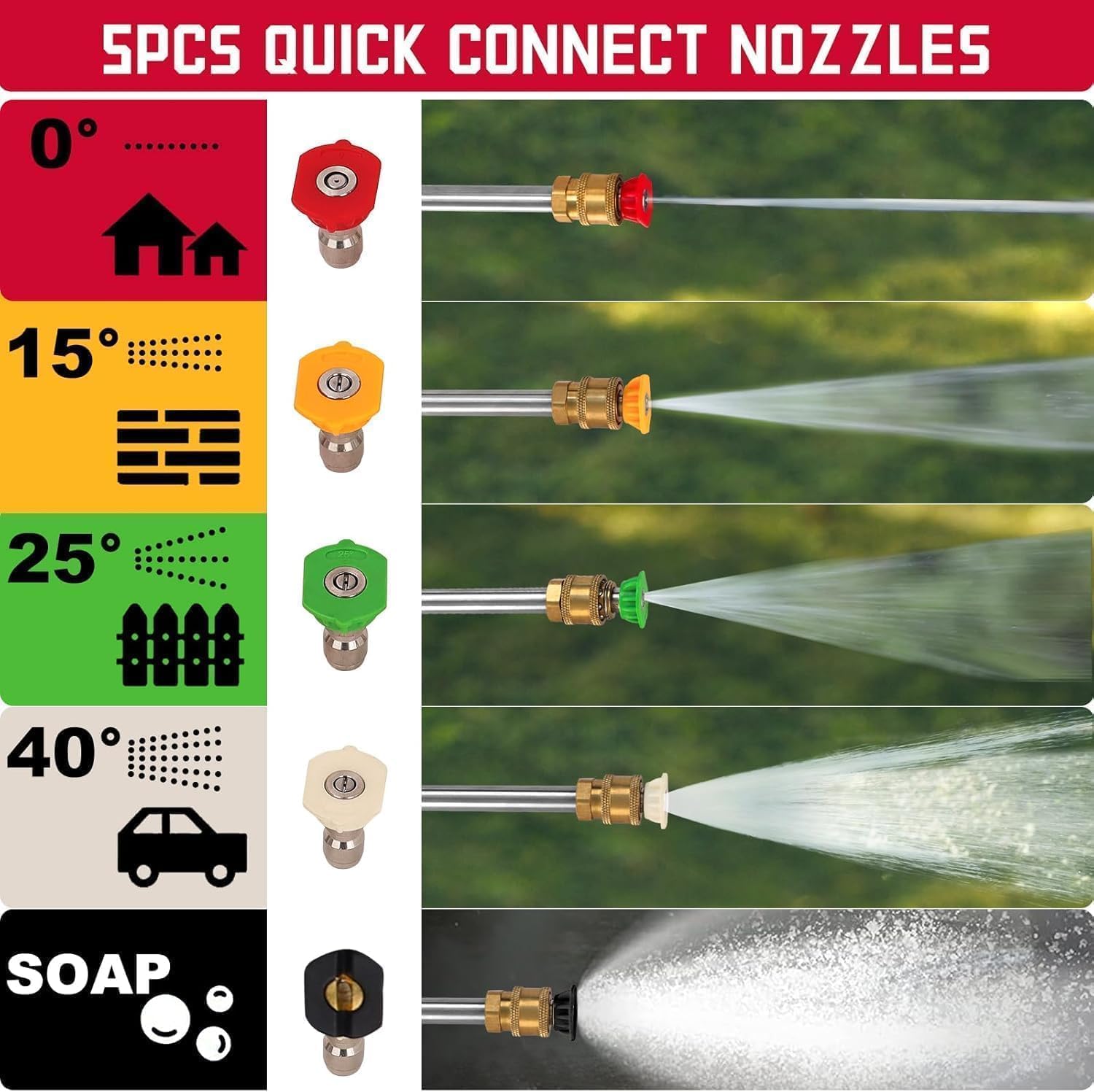

Figure 4: Visual guide to the 5 quick-connect nozzles and their recommended uses.

3.3 Detergent Application

Fill the built-in detergent tank with appropriate pressure washer detergent. Attach the black soap nozzle to the spray gun. The pressure washer will automatically mix the detergent with water for application.

3.4 Water Intake Methods

The pressure washer supports two water intake methods: direct connection to a garden hose (Method A) or drawing water from a static source like a bucket (Method B) using the siphoning tube.

Figure 5: Illustration of the two water intake methods for the pressure washer.

4. Údržba

4.1 Obecná údržba

• Regularly inspect hoses and connections for wear or damage.
• Clean nozzles after each use to prevent clogging.
• Ensure the water inlet filter is clean to maintain optimal performance.

4.2 Skladování

• Drain all water from the pump and hoses before storing to prevent freezing damage.
• Store the pressure washer in a dry, protected area away from extreme temperatures.
• Utilize the integrated hose holder and accessory storage for compact organization.

5. Řešení problémů

6. Specifikace

• Značka: PowerSmart
• Číslo modelu: DB1002
• Zdroj napájení: Elektrický střídavý proud
• Maximální tlak: 2600 PSI
• Maximální průtok: 1.2 GPM (galonů za minutu)
• Hmotnost položky: 35 libry
• Rozměry produktu: 14.19 cm D x 13.4 cm Š x 20.9 cm V
• Délka hadice: 27 Inches (High-Pressure Hose)
• kola: 8-palcový
• Motor: 14-Amp Induction Brushless Motor

7. Záruka a podpora

PowerSmart products are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official PowerSmart website. For technical support, replacement parts, or any questions, please contact PowerSmart customer service.

PowerSmart has 500+ certified repair centers in the U.S. and provides full replacement parts through its IL headquarters.
