UPPAbaby Cruz V3

Návod k obsluze kočárku UPPAbaby Cruz V3

Model: Cruz V3

Zavedení

This manual provides essential instructions for the safe assembly, operation, and maintenance of your UPPAbaby Cruz V3 Stroller. Please read all instructions carefully before use and retain this manual for future reference.

The UPPAbaby Cruz V3 Stroller is designed for versatile functionality, offering effortless maneuverability for children from birth up to 50 lbs. It features a full-size, lay-flat reversible seat, making it suitable for newborns and growing toddlers.

UPPAbaby Cruz V3 Stroller in Greyson color

Image: The UPPAbaby Cruz V3 Stroller, showcasing its sleek design and Greyson (charcoal mélange) fabric with a carbon frame and saddle leather accents.

Pokyny pro nastavení

Before first use, ensure all components are present and undamaged. Refer to the 'What's Included' section below for a list of standard items.

Vybalení a počáteční montáž

  1. Opatrně vyjměte všechny součásti z obalu.
  2. Unfold the stroller frame according to the quick-start guide included in the box. Ensure all locking mechanisms engage securely.
  3. Attach the wheels. Listen for a click to confirm they are properly secured.
  4. Install the toddler seat onto the frame. The seat can be installed facing forward or backward. Ensure it clicks into place.
  5. Attach the bumper bar to the toddler seat.

Co je zahrnuto

Your UPPAbaby Cruz V3 Stroller package typically includes the following items:

  • Rám kočárku
  • Batole Seat
  • Nárazník Bar
  • Infant Insert (for carriage mode)
  • Toddler Seat Bug Shield
  • Toddler Seat Rain Shield
Diagram showing included UPPAbaby Cruz V3 components

Image: A visual representation of the UPPAbaby Cruz V3 Stroller components, including the frame, toddler seat, bumper bar, infant insert, bug shield, and rain shield.

From Birth Ready Configuration (Carriage Mode)

The Cruz V3 can be configured for newborns using the integrated foot barrier and infant insert to create a carriage mode. This allows for a lay-flat position suitable from day one.

UPPAbaby Cruz V3 in carriage mode with infant insert

Image: The UPPAbaby Cruz V3 Stroller configured in carriage mode, demonstrating the lay-flat position suitable for newborns with the infant insert.

Návod k obsluze

Vlastnosti sedačky pro batolata

The toddler seat offers several adjustable features for your child's comfort and safety:

  • UPF 50+ Canopy & Sun Shield: Extend the canopy for sun protection. The integrated sun shield provides additional coverage.
  • Magnetic Buckle Harness System: Secure your child using the optimized infant-to-toddler tapered harness with a magnetic buckle. The no-rethread design simplifies adjustments.
  • Enhanced FlexRide Suspension: The all-wheel suspension system provides a smooth ride across various surfaces.
  • One-Hand Adjustable Leg Rest and Recline: Adjust the leg rest and seat recline with a single hand to find the most comfortable position for your child.
Diagram highlighting UPPAbaby Cruz V3 toddler seat features

Image: An annotated image of the UPPAbaby Cruz V3 toddler seat, pointing out the UPF 50+ canopy, magnetic harness system, FlexRide Suspension, and one-hand adjustable leg rest and recline.

Skládání kočárku

The Cruz V3 features a one-step, ultra-compact fold. Ensure the handlebar is in its lowest position and the seat is aligned with the handle. Pull the fold triggers on each side, then fold the footrest down and the handlebar down separately. The stroller stands independently when folded.

Kompatibilita cestovních systémů

The UPPAbaby Cruz V3 is designed to integrate seamlessly with UPPAbaby infant car seats (Mesa, Aria) without the need for additional adapters, creating a convenient travel system from birth.

Diagram showing UPPAbaby Cruz V3 accessories and configurations

Image: Illustrations demonstrating various configurations and accessories for the UPPAbaby Cruz V3, including single stroller mode, double with PiggyBack accessory, and bassinet accessory for use from birth.

Údržba

Pokyny pro čištění

  • Tkanina: Spot clean fabric with a mild detergent and cold water. Air dry completely. Do not bleach or machine wash.
  • Rám: Otřete rám měkkým hadříkemamp tkanina. Důkladně osušte.
  • kola: Regularly clean wheels and axles to remove dirt and debris. Lubricate moving parts with a silicone-based lubricant as needed.

Skladování

Store the stroller in a dry, well-ventilated area away from direct sunlight and extreme temperatures. Ensure the stroller is clean and dry before storing.

Odstraňování problémů

  • Stroller does not fold smoothly: Ensure the handlebar is in its lowest position and the seat is correctly aligned. Check for any obstructions in the folding mechanism.
  • Wheels squeak or are stiff: Clean the wheels and axles thoroughly. Apply a small amount of silicone lubricant to the moving parts of the wheels.
  • Postroj se obtížně nastavuje: Ensure the harness straps are not twisted. The no-rethread harness system should allow for smooth adjustment once the magnetic buckle is disengaged.
  • Kočárek se zdá být nestabilní: Verify that all locking mechanisms are fully engaged after unfolding. Ensure the wheels are securely attached.

If you encounter issues not covered here, please contact UPPAbaby customer support.

Specifikace

FunkceDetail
ZnačkaUPPAbaby
ModelCruz V3
BarvaGreyson (Charcoal Mélange)
Materiál rámuUhlíková ocel
Věkové rozmezí (popis)Baby (Suitable from birth to 50 lbs)
Typ postroje5 Point, Adjustable, Magnetic Buckle
Typ tkaniny100% Polyester
Materiál sedákuTkanina
Hmotnost položky26.5 libry
Doporučená maximální hmotnost50 libry
Rozměry v rozloženém stavu (D x Š x V)37.5 cm D x 22.5 cm Š x 41.8 cm V
Rozměry ve složeném stavu (D x Š x V)17 cm D x 22.5 cm Š x 32.4 cm V
Kompatibilní s autosedačkouAno

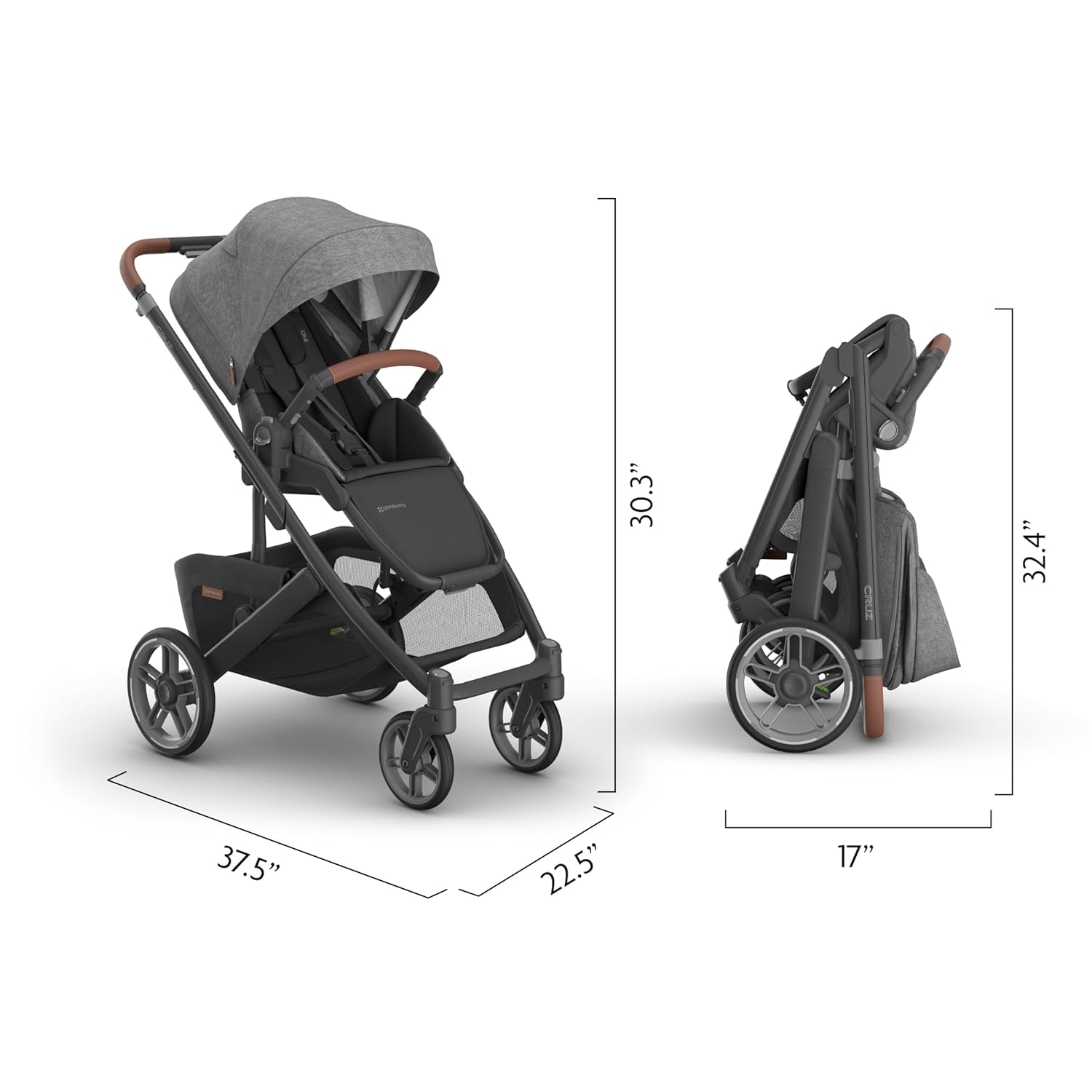

UPPAbaby Cruz V3 Stroller dimensions

Image: A visual guide to the UPPAbaby Cruz V3 Stroller's dimensions when unfolded and folded, showing length, width, and height measurements.

Záruka a podpora

Informace o záruce

UPPAbaby products are covered by a limited warranty against manufacturing defects. For specific warranty terms, registration, and claims, please refer to the official UPPAbaby webwebu nebo v záručním listu dodaném s vaším produktem.

Zákaznická podpora

For further assistance, spare parts, or to report any issues, please contact UPPAbaby customer service. You can find contact information and additional resources on the official UPPAbaby webmísto: Visit the UPPAbaby Store
