EF ECOFLOW Rapid Pro X Power Bank Instruction Manual

1. Konec produktuview & Klíčové vlastnosti

The EF ECOFLOW Rapid Pro X Power Bank is a high-capacity portable charging solution designed for efficiency and versatility. With a 27,650mAh capacity and 300W total output, it can simultaneously charge multiple devices, including laptops and smartphones, at high speeds.

Klíčové vlastnosti:

• Celkový výkon 300W: Power up to 4 devices concurrently with 1 x 140W USB-C port and 2 x 65W USB-C ports.
• Integrated Retractable Cable: Includes a 2 ft retractable USB-C cable with a magnetic block for convenient charging on the go.
• Ultrarychlé nabíjení: Achieve 80% charge in just 20 minutes with an EcoFlow 320W charging station. Single-port 140W input charges to 80% in 40 minutes, while 280W multi-port input reaches 80% in 26 minutes.
• High Capacity (27,650mAh): Capable of charging an iPhone 16 up to 4.5 times or a MacBook Air up to 1.3 times.
• TSA Compliant: At 99.54Wh, it meets TSA requirements for carry-on baggage.
• 3.9-Inch LCD Smart Display: Customize and monitor power usage data, standby patterns, clock themes, and animations via the display and companion app.
• X-Guard Advanced Safety Protection: Features UAV-grade battery cells, smart temperature control (reduces max temp by 46.4°F/8°C), and eco-mode to protect battery health.

2. Obsah balení

• EF ECOFLOW Rapid Pro X Power Bank

3. Nastavení

3.1 První nabití powerbanky

Before first use, fully charge your EF ECOFLOW Rapid Pro X Power Bank. Connect the power bank to a suitable power source using a USB-C cable. For the fastest charging, use an EcoFlow 320W charging station (sold separately) or a 140W USB-C power adapter.

3.2 Připojení zařízení

Use the appropriate USB-C ports or the integrated retractable USB-C cable to connect your devices to the power bank. The power bank will automatically detect and begin charging your connected devices.

4. Návod k obsluze

4.1 Nabíjení powerbanky

To recharge the power bank, connect it to a power outlet using a compatible USB-C charger. The 3.9-inch LCD display will show the charging status, input wattage, and estimated time to full charge. For optimal speed, utilize the 140W single-port input or 280W multi-port input. An EcoFlow 320W charging station can achieve 80% charge in just 20 minutes.

4.2 Nabíjení vašich zařízení

The power bank features 1 x 140W USB-C port, 2 x 65W USB-C ports, and a built-in 2 ft retractable USB-C cable. Connect your devices to the available ports. The power bank supports simultaneous charging of up to 4 devices with a total output of 300W. The smart display will indicate the output wattage for each port and the remaining runtime.

Image: EF ECOFLOW Rapid Pro X Power Bank simultaneously charging a laptop, smartphone, and other devices via its multiple USB-C ports and retractable cable.

4.3 Using the Smart Display

The 3.9-inch LCD screen provides real-time information about the power bank's status. You can view procenta baterietage, vstupní/výstupní hodnotatage for each port, estimated remaining runtime, and battery temperature. Navigate through different display modes using the physical buttons on the device.

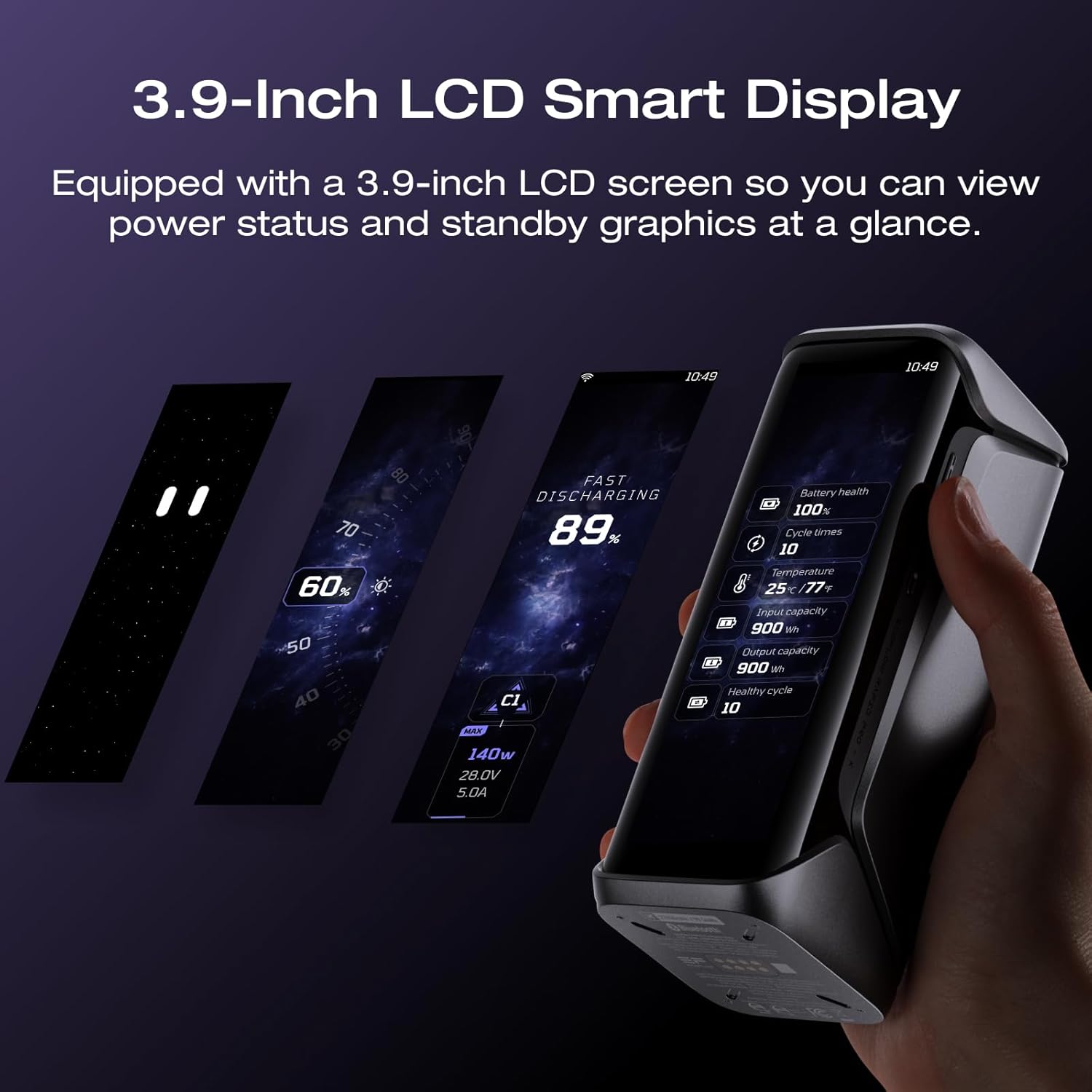

Image: Close-up of the EF ECOFLOW Rapid Pro X Power Bank's 3.9-inch LCD Smart Display showing various power status indicators and customizable standby graphics.

4.4 EcoFlow App Integration

Download the EcoFlow app to unlock advanced control and customization options. The app allows you to:

• Monitor power usage data in real-time.
• Create personalized standby patterns for the display.
• Adjust clock themes and activate the hourglass function.
• Enjoy dynamic animations while charging.
• Optimize charging settings and enable overheating protection for laptops via EcoFlow Power Manager software.

Image: Screenshot of the EcoFlow app interface showing real-time power monitoring, control options, battery optimization setup, and personalized screen display settings for the power bank.

5. Safety Features & X-Guard Protection

The EF ECOFLOW Rapid Pro X Power Bank is built with X-Guard Advanced Safety Protection to ensure maximum performance and device longevity.

• UAV-Grade Battery Cells: Equipped with high-quality battery cells for extended lifespan.
• Inteligentní ovládání teploty: Reduces maximum temperature by 46.4°F (8°C) during operation.
• Úsporný režim: The portable charger enters eco-mode at 111.2°F (44°C), stopping at 80% charge to protect battery health and prevent overheating.
• EcoFlow Power Manager Software: For laptops, use the dedicated software for optimized charging and overheating protection.
• Reduced Discharge Power & Slow-Charge Mode: Benefits other devices by preventing overcharging and ensuring stable power delivery.

Image: Diagram illustrating the X-Guard Advanced Safety Protection features, including 24/7 safety checks, 10 million daily temperature tests, V0-level fireproof shell, and Intelligent BMS & EMS systems.

6. Specifikace

7. Řešení problémů

7.1 Powerbanka se nenabíjí

• Ujistěte se, že je nabíjecí kabel bezpečně připojen k powerbankě i ke zdroji napájení.
• Ověřte, zda je zdroj napájení aktivní a dodává energii.
• Try using a different USB-C cable and power adapter to rule out faulty accessories.
• Check the power bank's display for any error messages.

7.2 Zařízení se nenabíjejí z powerbanky

• Ujistěte se, že je powerbanka dostatečně nabitá.
• Verify that the device is properly connected to the power bank's output ports or retractable cable.
• Try using a different port on the power bank or a different charging cable.
• Some devices may require specific charging protocols; ensure compatibility.

7.3 Displej nefunguje

• Press the power button briefly to activate the display.
• If the issue persists, try fully charging the power bank.
• Pokud displej stále nereaguje, kontaktujte zákaznickou podporu.

8. Záruka a podpora

The EF ECOFLOW Rapid Pro X Power Bank comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to access the EcoFlow Power Manager software, please visit the official EF ECOFLOW webnebo kontaktujte jejich zákaznický servis.
