Návod k obsluze multikytarového racku STRICH SMT-50

Zavedení

Thank you for choosing the STRICH SMT-50 Multi-Guitar Rack. This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your new guitar rack. Please read this manual thoroughly before assembly and use to ensure proper setup and to maximize the lifespan of your product.

The STRICH SMT-50 Multi-Guitar Rack provides organized storage for several instruments, featuring a top shelf for accessories.

Klíčové vlastnosti

• Versatile Instrument Storage: Ample height and design accommodate up to 5 electric/bass guitars or 2-3 acoustic guitars, catering to multi-instrumentalists.
• Odolná konstrukce: Features robust metal rack tubes with a 0.8mm wall thickness, ensuring rigidity and resistance to bending or deformation.
• Ochrana přístroje: All contact surfaces are covered with premium EVA foam padding to prevent scratches. A forward-shifting crossbar design prevents headstock contact with walls.
• Dekorativní prvek: Includes a rear suspension system for a decorative fabric panel (one supplied), allowing for personalization. Recommended fabric dimensions: 40x55 cm.
• Nastavitelná stabilita: Equipped with height-adjustable non-slip feet for stable placement on uneven surfaces and various floor types.
• Integrated Accessory Shelf: A high-density wood top shelf offers robust load-bearing capacity for guitar amplifiers, effects pedals, tuners, and other accessories.

Obsah balení

Před zahájením montáže ověřte, zda jsou všechny součásti přítomny. Pokud některé součásti chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.

• Metal Frame Components (various shapes and lengths)
• Wooden Top Storage Shelf
• Guitar Support Arms (EVA padded)
• Nastavitelné podložky na nohy
• Montážní šrouby
• Imbusový klíč
• Decorative Fabric Panel (optional)

This image illustrates the overall dimensions of the guitar rack, including height, width, and depth, along with the spacing of the guitar support arms.

Nastavení a montáž

Follow these steps carefully to assemble your STRICH SMT-50 Multi-Guitar Rack. For visual guidance, please refer to the official assembly video below.

1. Identifikujte komponenty: Lay out all parts and identify them according to the included diagram. Note that metal rod frames on both sides are similar, but distinguish left and right directions based on the angle of the outer segments.
2. Sestavte základní rámy: Connect the base frame components using the provided screws and Allen wrench. Ensure all connections are secure but do not overtighten initially.
3. Připevnění opěrek nohou: Screw the adjustable foot pads into the bottom of the base frames. These should not be fully tightened yet, as they will be adjusted for stability later.
4. Install Guitar Support Arms: Secure the EVA-padded guitar support arms to the designated points on the frame using screws. Ensure the padding faces upwards to protect instruments.
5. Prepare Decorative Fabric (Optional): If using the decorative fabric panel, thread the metal rod through the top loop of the fabric.
6. Attach Fabric and Top Shelf: Insert the metal rod with the fabric into the upper frame. Then, place the wooden top storage shelf onto the top frame, securing it with screws.
7. Final Tightening and Adjustment: Once all components are in place, carefully tighten all screws. Adjust the height of the screw foot pads to ensure the entire rack is stable and does not shake on uneven surfaces.

This image shows the EVA foam padding on the guitar support arms, designed to protect instruments from scratches, and the forward-shifting crossbar preventing headstock contact with walls.

Návod k obsluze

The STRICH SMT-50 Multi-Guitar Rack is designed for straightforward use.

• Placing Instruments: Carefully place your guitars into the designated slots, ensuring they rest securely on the EVA-padded support arms. The rack can hold up to 5 electric or bass guitars, or 2-3 acoustic guitars depending on their body size.
• Utilizing the Top Shelf: Use the high-density wood top shelf to store guitar amplifiers, effects pedals, tuners, picks, straps, or other musical accessories. Ensure items are placed stably to prevent falling.
• Umístění na stěnu: Position the rack with the inner side (vertical against the wall) against a flat surface to utilize the headstock protection feature.

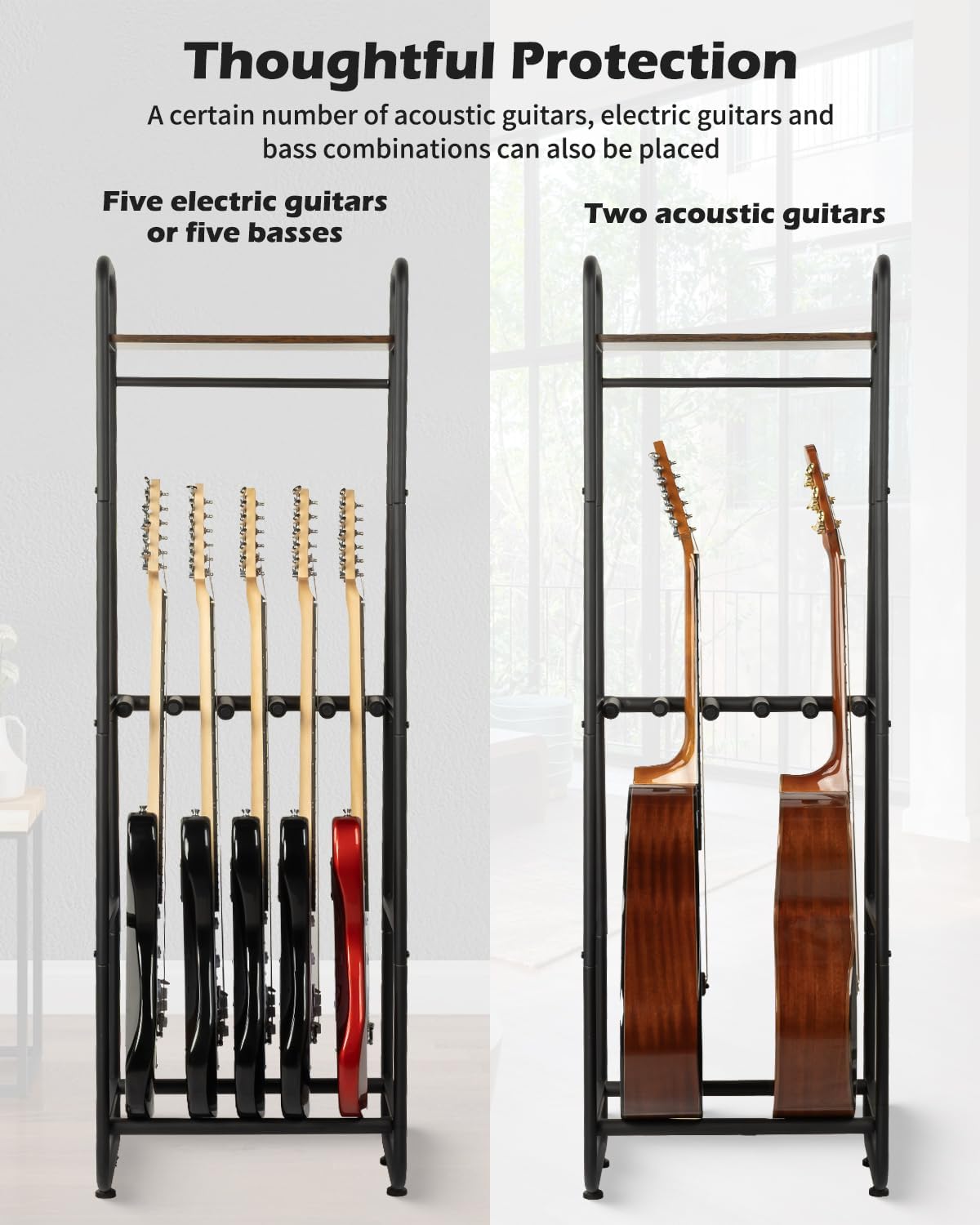

Illustrates the rack's capacity, capable of holding five electric or bass guitars, or two to three acoustic guitars depending on their size.

Údržba

Regular maintenance will help preserve the condition and functionality of your guitar rack.

• Čištění: Wipe down the metal frame and wooden shelf with a soft, dry cloth. Avoid abrasive cleaners or harsh chemicals.
• Zkontrolujte připojení: Periodically inspect all screws and connections to ensure they remain tight. Retighten if necessary.
• Kontrola polstrování: Ensure the EVA foam padding on the guitar support arms is intact and free from damage to continue protecting your instruments.

Odstraňování problémů

Issue: Rack is unstable or shakes.

Řešení: Adjust the height of the screw foot pads on the bottom of the rack. Turn them clockwise or counter-clockwise until all four feet make firm contact with the floor, eliminating any wobble.

Issue: Guitars are getting scratched.

Řešení: Ensure guitars are placed correctly on the EVA foam padded support arms. Verify that the padding is not damaged or missing. The forward-shifting crossbar design helps prevent headstock contact with the wall, but ensure the rack is positioned appropriately.

Problém: Chybějící nebo poškozené díly.

Řešení: Please contact STRICH customer support for assistance with replacement parts or further guidance.

Specifikace

Záruka a podpora

For any questions, concerns, or support needs regarding your STRICH SMT-50 Multi-Guitar Rack, please refer to the contact information provided with your purchase or visit the official STRICH webstránky. Uschovejte si prosím doklad o koupi pro případ reklamace.
