STRICH SEK-37

STRICH 37klávesový dětský mini digitální klavír SEK-37 Návod k obsluze

1. Úvod

Thank you for choosing the STRICH 37-Key Kids Mini Digital Piano Keyboard. This manual provides essential information for the safe and effective use of your new musical instrument. Please read it thoroughly before operation and retain it for future reference.

STRICH 37-Key Kids Mini Digital Piano Keyboard in pink

Figure 1.1: STRICH 37-Key Kids Mini Digital Piano Keyboard (Pink)

2. Bezpečnostní informace

  • Při používání vždy dohlížejte na děti.
  • Keep the piano away from water and moisture.
  • Nevystavujte extrémním teplotám ani přímému slunečnímu záření.
  • Používejte pouze dodaný napájecí adaptér nebo doporučené baterie.
  • Zabraňte pádu přístroje nebo jeho vystavení silným nárazům.
  • Zajistěte řádné větrání kolem jednotky.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

  • STRICH 37-Key Mini Digital Piano Keyboard
  • Napájecí adaptér (DC 6V)
  • Kid's Piano Course Music Book
  • Key Stickers for learning
  • Návod k použití
Package contents including piano, adapter, stickers, and music book

Figure 3.1: Included accessories with the STRICH piano.

4. Nastavení

4.1 Powering the Piano

The piano can be powered by either the included DC 6V power adapter or 4 AA batteries (not included).

4.1.1 Instalace baterie

  1. Najděte přihrádku na baterie na spodní straně klavíru.
  2. Pomocí šroubováku otevřete kryt prostoru pro baterie.
  3. Vložte 4 baterie AA, dbejte na správnou polaritu (+/-).
  4. Nasaďte kryt a zajistěte jej šroubem.

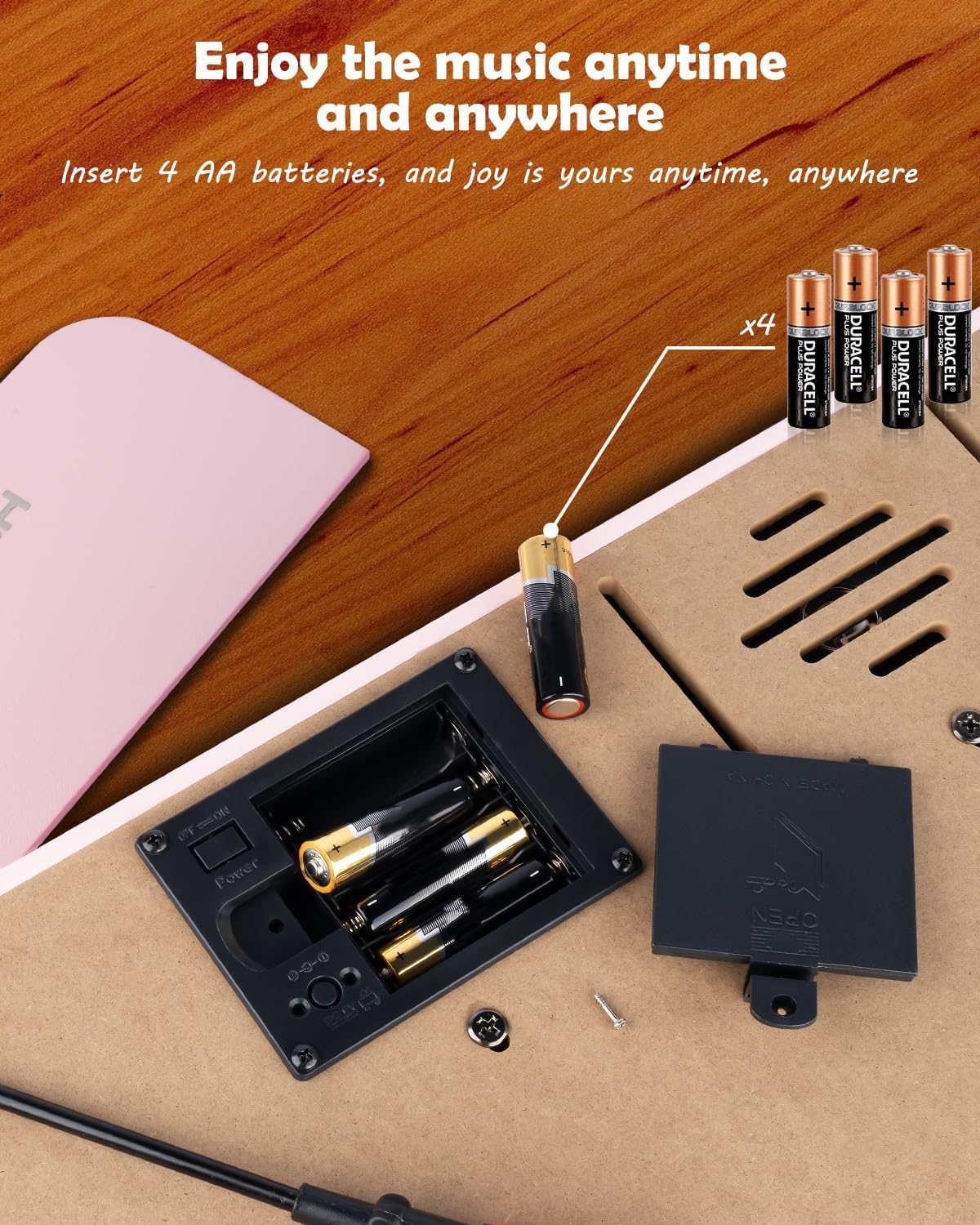

Battery compartment on the underside of the piano, showing 4 AA batteries being inserted.

Obrázek 4.1: Přihrádka na baterie pro 4 baterie typu AA.

4.1.2 Power Adapter Connection

Insert the DC 6V power adapter into the 'DC: 6V' port on the rear panel of the piano, then plug the adapter into a standard wall outlet.

4.2 Applying Key Stickers

The included key stickers are designed to assist with learning. Refer to the 'Kid's Piano Course' music book for guidance on proper placement.

Close-up of piano keys with colorful learning stickers applied, alongside the music book.

Figure 4.2: Key stickers applied to the piano keys.

4.3 Music Stand Placement

The detachable music stand can be inserted into the slot on the top panel of the piano to hold your music book or tablet.

5. Návod k obsluze

5.1 Zapnutí/vypnutí a ovládání hlasitosti

Locate the 'VOL' knob on the rear panel. Turn the knob clockwise to power on the piano and increase the volume. Turn it counter-clockwise to decrease the volume and power off the piano.

Hand adjusting the volume knob on the piano's rear panel, showing volume protection feature.

Figure 5.1: Volume and power control knob.

5.2 Připojení externích zařízení

The rear panel features various ports for enhanced functionality:

  • MIDI Port: Connect to MIDI-compatible devices for advanced musical applications.
  • USB port: Connect to a computer or other USB devices.
  • Telefonní port: Plug in headphones for private practice.
  • INPUT Port: Connect external audio sources (e.g., MP3 player) to play along.
  • SUSTAIN PEDAL Port: Connect an optional sustain pedal for extended note duration.
Rear panel of the piano showing various ports: Volume, MIDI, USB, DC 6V, Phone, Input, Sustain Pedal.

Obrázek 5.2: Připojení na zadním panelu.

5.3 Bezdrátové připojení

The piano supports wireless connection, allowing playback of songs and music from compatible mobile phones and tablets. Refer to your device's instructions for pairing with a Bluetooth audio device.

5.4 Learning with the Music Book and Stickers

The included 'Kid's Piano Course' music book provides simple tutorials and songs that correspond to the key stickers. Follow the color and shape codes to play basic melodies.

Music book open to a page showing color-coded notes and symbols for learning songs like 'Twinkle Twinkle Little Star'.

Figure 5.3: Learning to play using the music book and key stickers.

6. Údržba

  • Clean the piano surface with a soft, dry cloth. Avoid abrasive cleaners or solvents.
  • If not in use for an extended period, remove the batteries to prevent leakage.
  • Store the piano in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Řešení problémů

  • Žádný zvuk: Ensure the piano is powered on and the volume is turned up. Check battery installation or power adapter connection. Verify external devices (headphones, speakers) are correctly connected and powered.
  • Klávesy nereagují: Ensure the piano is powered on. If using batteries, check battery level.
  • Problémy s bezdrátovým připojením: Ensure the piano's wireless function is active and your external device's Bluetooth is enabled. Try re-pairing the devices.

8. Specifikace

FunkceSpecifikace
Číslo modeluSEK-37
Rozměry produktu21.65 x 11.02 x 3.54 palce
Hmotnost položky9.9 libry
Klíče37
Zdroj napájeníDC 6V Adapter or 4 AA Batteries
Doporučený věk36 měsíců - 8 roky

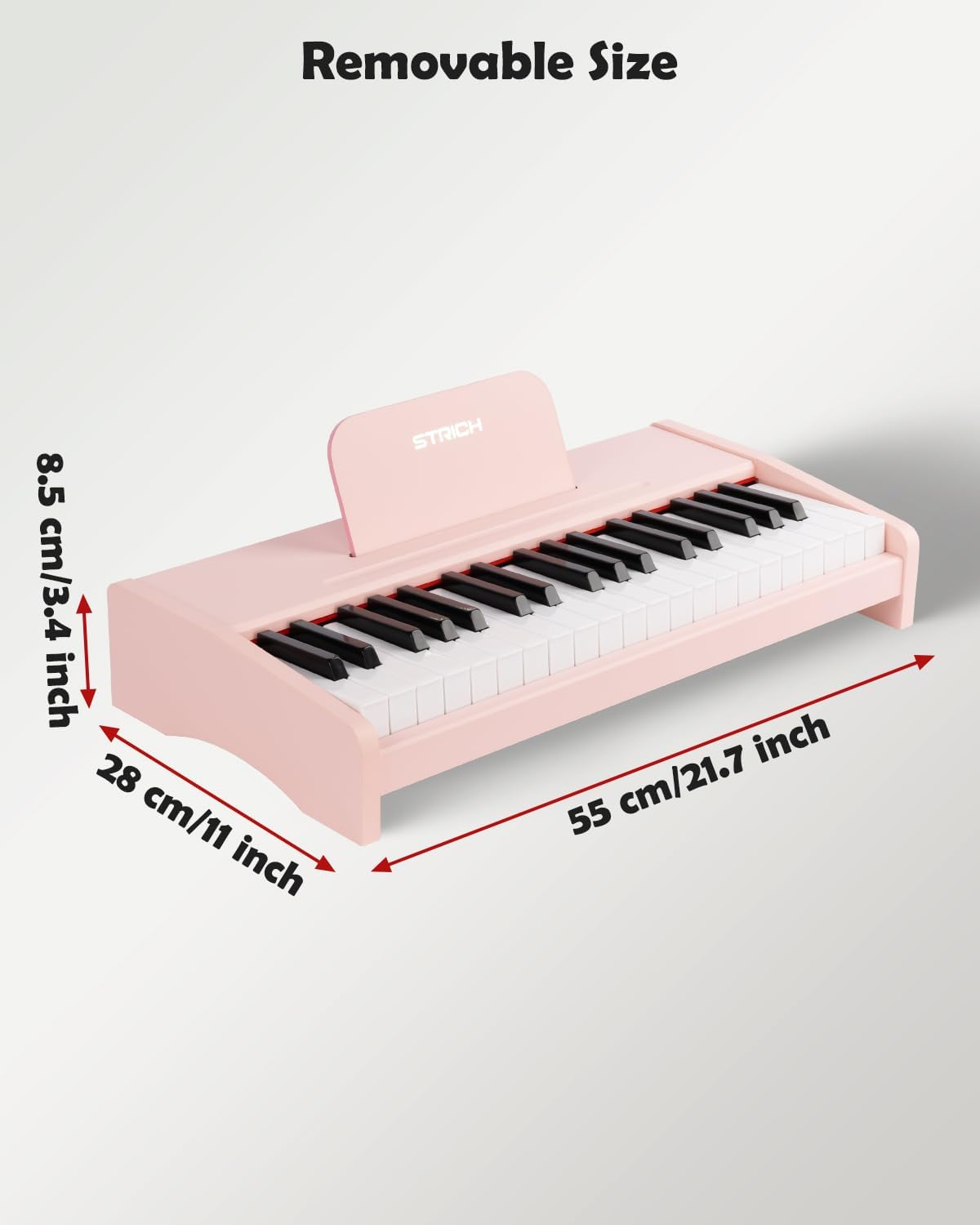

Diagram showing the dimensions of the STRICH 37-Key Mini Digital Piano Keyboard.

Obrázek 8.1: Rozměry produktu.

9. Záruka a podpora

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official STRICH webUschovejte si doklad o koupi pro případ reklamace.
