1. Úvod
Thank you for choosing the Dierya x TMKB M1 Wireless Gaming Mouse. This manual provides detailed instructions on how to set up, operate, and maintain your new gaming mouse. The M1 mouse offers versatile connectivity, high-precision tracking, and customizable features to enhance your gaming and productivity experience.
2. Konec produktuview
2.1 Součásti a ovládací prvky
Familiarize yourself with the various buttons and features of your Dierya M1 mouse:
This diagram illustrates the various components of the Dierya M1 wireless gaming mouse. It highlights the Levé tlačítko (1), Pravé tlačítko (2), Mouse Wheel (Middle Button) (3), DPI Adjustment Button (4) with 6 adjustable DPI levels, Tlačítko Vpřed (5), Tlačítko Zpět (6), Type-C Interface (7) for charging and wired connection, Přepínač režimu (8) for selecting connection type, Power & Light Switch (9)a 2.4G Receiver Storage Compartment (10) umístěný na spodní straně.
2.2 Klíčové vlastnosti
- Optický senzor s rozlišením 8 500 DPI: Adjustable DPI range from 200 to 24,000, with 6 preset levels (400-6400 DPI).
- Třírežimové připojení: Supports ultra-fast 2.4GHz wireless, energy-efficient Bluetooth 5.2, and stable USB-C wired connections.
- Dlouhá výdrž baterie: 1000mAh battery provides up to 180 hours in ECO mode or 48 hours with RGB lighting, with 1-hour fast charging.
- Lehký a ergonomický design: Weighs only 90g with a honeycomb shell for breathability and a symmetrical design (125x63x41 mm).
- Programovatelná tlačítka: 6 customizable buttons via the M1 Driver software (Windows only).
- Dynamické RGB osvětlení: 13 integrated RGB lighting effects with 16.8 million customizable colors.
- Vysoký výkon: 125-1000 Hz polling rate, 300 IPS tracking speed, and 35G acceleration.
- Odolné spínače: Equipped with Huano switches rated for 20 million clicks and 100% PTFE feet for smooth gliding.
3. Nastavení
3.1 Nabíjení myši
Before first use, it is recommended to fully charge the mouse. Connect the provided USB-C cable to the Type-C Interface (7) on the mouse and the other end to a USB power source (e.g., computer USB port, USB wall adapter).
- The mouse charges in approximately 1 hour.
- The scroll wheel LED will indicate charging status (e.g., red for charging, green for fully charged).
The Dierya M1 mouse features a 1000mAh battery, providing up to 180 hours of use in ECO mode or 48 hours with RGB lighting enabled. It supports fast charging, reaching full capacity in approximately 1 hour via the included USB-C cable. The mouse also includes a smart sleep mode to conserve power during inactivity.
3.2 Připojení myši
The Dierya M1 mouse offers three connection modes: 2.4GHz Wireless, Bluetooth 5.2, and USB-C Wired.
The Dierya M1 mouse supports three flexible connection modes: Bluetooth 5.2 for energy-efficient pairing with up to two devices, 2.4GHz Wireless via a USB dongle for ultra-fast response, and a stable USB-C Wired connection for charging and direct use. Each mode offers a different polling rate, with 2.4GHz and wired modes providing 1000Hz, and Bluetooth offering 125Hz.
3.2.1 Bezdrátové připojení 2.4 GHz
- Locate the 2.4G receiver in the storage compartment (10) on the underside of the mouse.
- Zapojte 2.4G přijímač do volného USB portu na vašem počítači.
- Set the Mode Switch (8) on the underside of the mouse to the '2.4G' position.
- The mouse should connect automatically. The polling rate for this mode is 1000 Hz.
3.2.2 Připojení Bluetooth 5.2
- Set the Mode Switch (8) on the underside of the mouse to the 'BT' position.
- V počítači nebo zařízení otevřete nastavení Bluetooth a vyhledejte nová zařízení.
- Select 'Dierya M1' from the list of available devices to pair.
- The mouse supports Bluetooth 5.2 and has a polling rate of 125 Hz in this mode.
3.2.3 Kabelové připojení USB-C
- Connect the USB-C cable to the Type-C Interface (7) on the mouse.
- Připojte druhý konec kabelu USB-C k volnému portu USB v počítači.
- The mouse will automatically switch to wired mode and begin charging. The polling rate for this mode is 1000 Hz.
4. Návod k obsluze
4.1 Nastavení DPI
The Dierya M1 mouse features a dedicated DPI Adjustment Button (4) to cycle through preset DPI levels. The scroll wheel LED color indicates the current DPI setting.

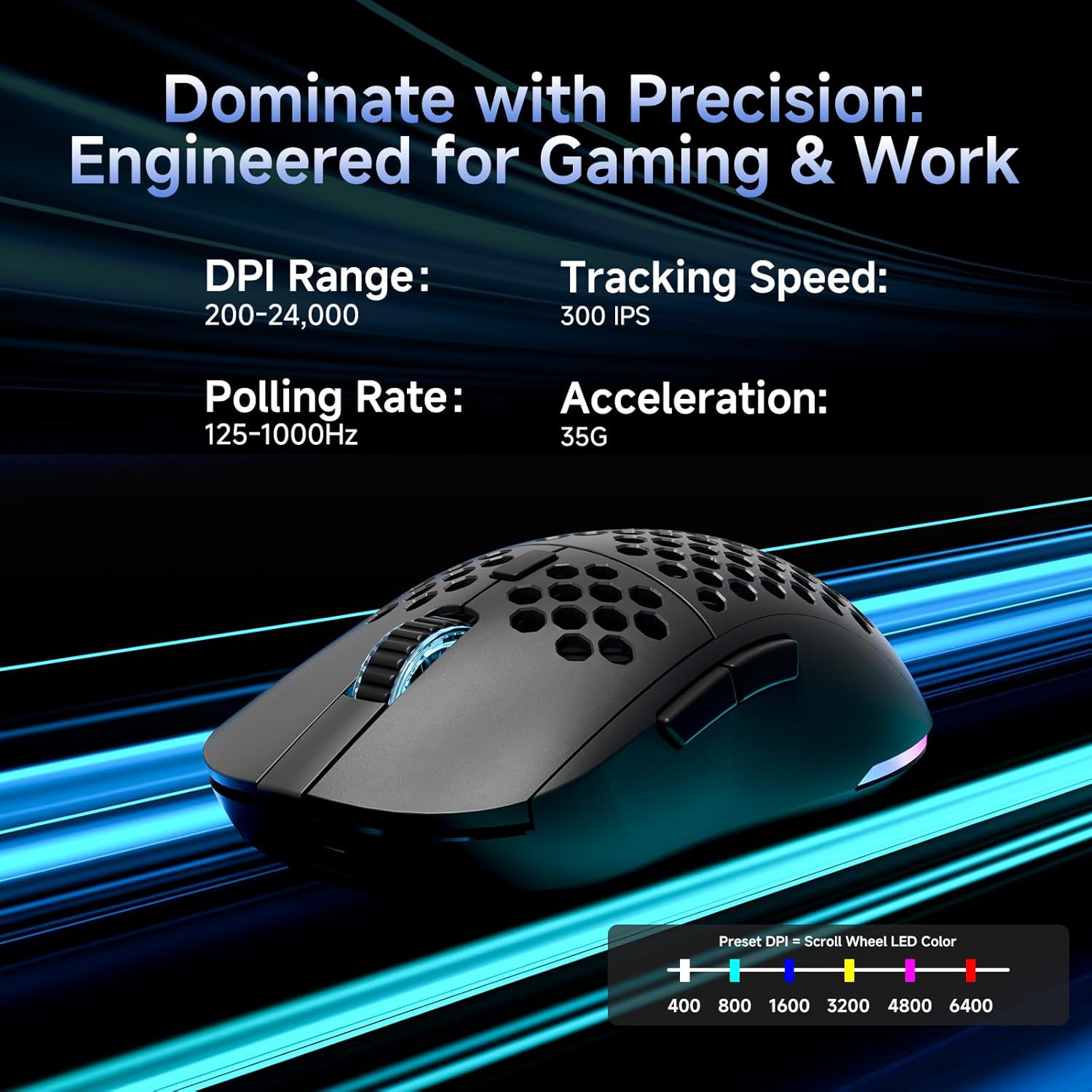

This image details the performance specifications of the Dierya M1 mouse, including a DPI range of 200-24,000, a tracking speed of 300 IPS, a polling rate of 125-1000Hz, and 35G acceleration. It also shows the preset DPI levels (400, 800, 1600, 3200, 4800, 6400) and the color indicators on the scroll wheel for each setting.
- Press the DPI Adjustment Button (4) to cycle through the 6 default DPI settings: 400, 800, 1600, 3200, 4800, and 6400 DPI.
- Each DPI level is indicated by a specific color on the scroll wheel LED.
- For custom DPI settings and a wider range (200-24,000 DPI), use the M1 Driver software.
4.2 Ovládání RGB osvětlení
The Dierya M1 mouse features dynamic RGB lighting. You can control the lighting effects and colors using the M1 Driver software.
- The mouse has 13 built-in RGB lighting effects.
- Use the M1 Driver software to customize colors (16.8 million options), brightness, and speed of the lighting effects.
- The Power & Light Switch (9) on the underside can be used to turn the lighting on or off.
4.3 Programovatelná tlačítka a software
The M1 mouse has 6 programmable buttons that can be customized using the dedicated M1 Driver software.
The Dierya M1 driver software, currently available for Windows, allows users to customize various aspects of the mouse. This includes reassigning the 6 programmable buttons, creating macros, adjusting DPI settings, modifying the polling rate, and personalizing the 13 dynamic RGB lighting effects with 16.8 million colors.
- Kompatibilita softwaru: The M1 Driver software is currently only available for Windows operating systems.
- Klíčové přiřazení: Reassign functions to any of the 6 programmable buttons (Left, Right, Middle, DPI, Forward, Back).
- Vytvoření makra: Create and assign complex macros to streamline in-game actions or productivity tasks.
- DPI & Polling Rate: Fine-tune DPI settings beyond the presets and adjust the polling rate.
- Přizpůsobení RGB: Personalize lighting effects, colors, and patterns.
- Profile Řízení: Ukládání a načítání různých profesionálůfilepro různé hry nebo aplikace.
4.4 Režimy úspory energie
The M1 mouse is designed with automatic power-saving features to extend battery life:
- The mouse will enter an automatic power-saving mode after 1-5 minutes of inactivity.
- This inactivity time can be adjusted via the M1 Driver software.
- Chcete-li myš probudit, jednoduše s ní pohněte nebo klikněte na libovolné tlačítko.
5. Údržba
Proper maintenance ensures the longevity and optimal performance of your Dierya M1 mouse.
- Čištění: K otření povrchu myši použijte měkký, suchý hadřík. V případě odolných nečistot použijte lehceamp Lze použít hadřík, ale dbejte na to, aby se do myši nedostala vlhkost. Nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky.
- Údržba senzoru: Udržujte optický senzor na spodní straně myši čistý a bez prachu nebo nečistot, abyste zajistili přesné sledování.
- Péče o baterie: Avoid fully discharging the battery frequently. For long-term storage, charge the mouse to about 50% and store it in a cool, dry place.
- Skladování: Pokud myš nepoužíváte, skladujte ji v čistém a suchém prostředí mimo dosah extrémních teplot.
6. Řešení problémů
If you encounter issues with your Dierya M1 mouse, refer to the following common troubleshooting steps:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Myš nereaguje (2.4 GHz) | Slabá baterie, odpojený přijímač, nesprávný režim, rušení. | Charge the mouse. Ensure 2.4G receiver is securely plugged in. Set Mode Switch to '2.4G'. Try a different USB port. Reduce distance to receiver. |
| Myš nereaguje (Bluetooth) | Low battery, incorrect mode, not paired, Bluetooth off on device. | Charge the mouse. Set Mode Switch to 'BT'. Ensure Bluetooth is enabled on your device. Re-pair the mouse in Bluetooth settings. |
| Myš nereaguje (kabelová) | Cable not connected, faulty cable/port. | Ensure USB-C cable is securely connected to both mouse and computer. Try a different USB port or cable. |
| Nepřesné sledování | Znečištěný senzor, nevhodný povrch, nesprávné DPI. | Clean the optical sensor. Use a mouse pad or a clean, non-reflective surface. Adjust DPI settings. |
| RGB podsvícení nefunguje | Lighting switched off, low battery, software issue. | Check Power & Light Switch (9). Charge the mouse. Check settings in M1 Driver software. |
| Tlačítka nejsou programovatelná | M1 Driver not installed/running, not on Windows. | Ensure M1 Driver software is installed and running (Windows only). Check software settings. |
7. Specifikace
| Název modelu | M1 |
| Značka | Dierya |
| Technologie připojení | Bezdrátové připojení 2.4 GHz, Bluetooth 5.2, kabelové USB-C |
| Technologie detekce pohybu | Optický |
| Rozsah DPI | 200 - 24,000 DPI (6 preset levels: 400, 800, 1600, 3200, 4800, 6400) |
| Míra hlasování | 125-1000 Hz |
| Rychlost sledování | 300 IPS |
| Akcelerace | 35G |
| Počet tlačítek | 6 (programovatelných) |
| Kapacita baterie | 1000 mAh Lithium-ion |
| Životnost baterie | Up to 180 hours (ECO mode), 48 hours (RGB mode) |
| Doba nabíjení | Přibl. 1 hodina |
| Hmotnost | 90 gramů |
| Rozměry | 125 x 63 x 41 mm |
| Typ přepínače | Huano (20 million clicks) |
| Materiál nohou | 100% PTFE |
| Kompatibilita operačního systému | Windows, MacOS, Linux, Chrome OS |
| Driver Software Compatibility | Pouze Windows |
8. Záruka a podpora
8.1 Záruka výrobce
The Dierya M1 Wireless Gaming Mouse comes with a 1letá záruka výrobceTato záruka se vztahuje na vady materiálu a zpracování při běžném používání. Uschovejte si prosím doklad o koupi pro případ uplatnění záruky.
8.2 Zákaznická podpora
For further assistance, technical support, or warranty inquiries, please refer to the official Dierya website or contact your retailer. Ensure you have your product model (M1) and proof of purchase ready when seeking support.
