Zavedení
The Tihebeyan MDB to RS232 Converter is designed to facilitate real-time data transmission between MDB (Multi-Drop Bus) devices and serial port boards such as PCs or PLCs. This adapter box enhances connectivity for various cashless devices, coin acceptors, and coin changers, streamlining data management and integration processes in vending machine interfaces and similar systems.
This manual provides detailed instructions for setting up, operating, and maintaining your MDB to RS232 Converter, ensuring optimal performance and longevity.
Klíčové vlastnosti
- Enhanced Data Transmission: Ensures real-time data transfers for efficient remote monitoring and tracking, improving data management accuracy.
- Expanded Device Support: Supports various MDB devices, including coin acceptors, changers, and cashless devices (08H, 30H, 10H, 60H, 40H) for future expansions.
- Multiple Version Compatibility: Upgraded converter extends adaptability to Raspi and USB versions, simplifying integration between devices.
- Snadná integrace: Wide compatibility reduces compatibility risks, saves time and effort for a seamless user experience.
- Zapoj a hraj: Connects MDB devices to serial port boards effortlessly, improving efficiency and control.
Konec produktuview
Obrázek 1: Přední view of the MDB to RS232 Converter main unit with connected cables.
Obrázek 2: Shora dolů view of the converter, highlighting the cable connections.
Obrázek 3: Another perspective of the converter, showing the RS232 and power input cables.
Obrázek 4: Close-up of the converter unit, showing the power input jack and RS232 connector.
Obrázek 5: View of the converter with both the MDB and RS232 cables clearly visible.
Obrázek 6: Strana view of the converter unit, showing its compact design.

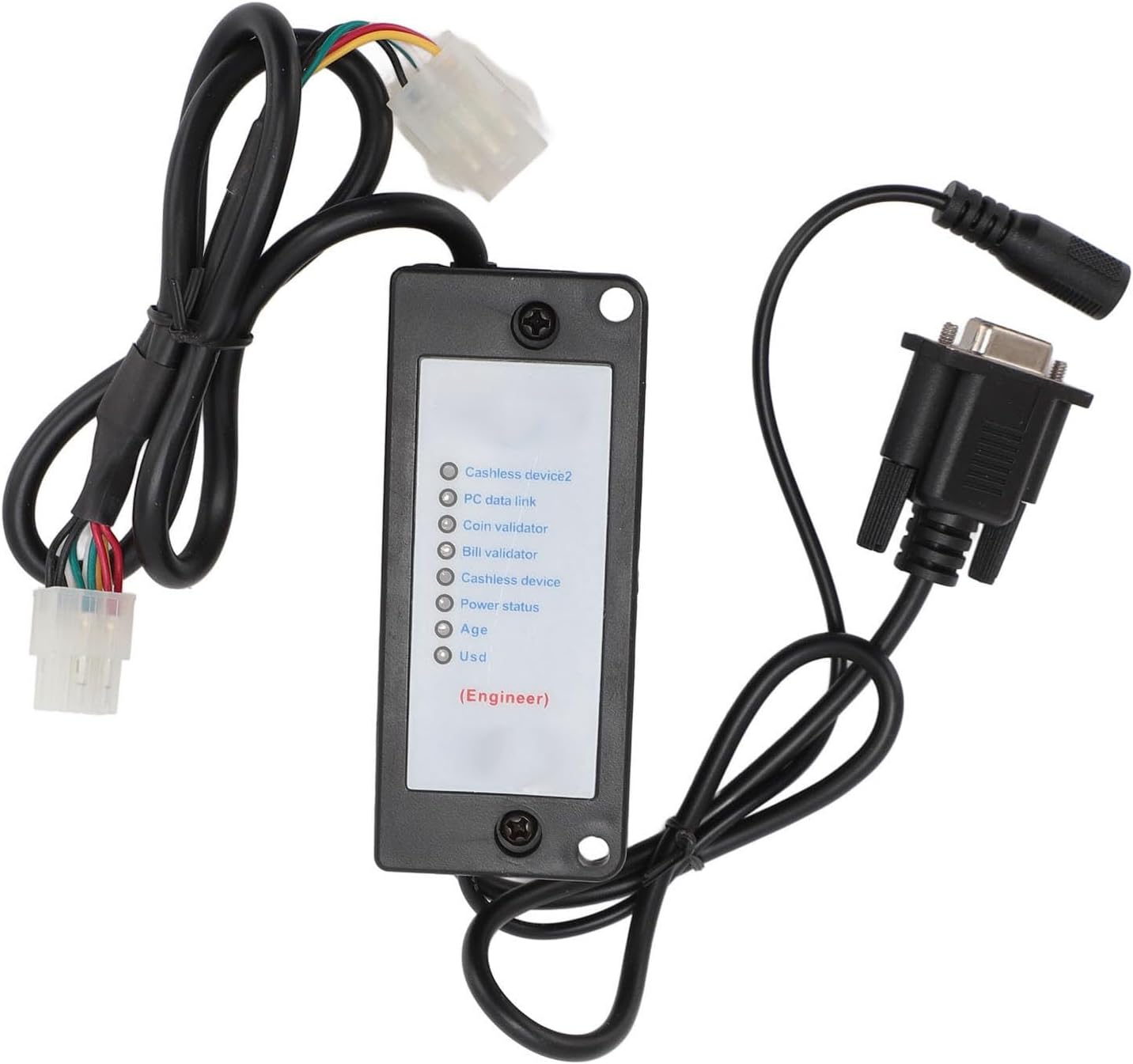

Obrázek 7: Dno view of the converter, showing labels for various device types (Cashless device 2, PC data link, Coin validator, Bill validator, Cashless device, Power status, Age, Usd).
Obrázek 8: Úhlové view of the converter, emphasizing the cable connections and overall form factor.
Obrázek 9: Detailní záběr view of the power input jack, showing its design.
Specifikace
| Atribut | Detail |
|---|---|
| Typ položky | MDB Invoice Acceptor to RS232 Interface |
| Materiál | Plast |
| Komunikační formát | Sériový (RS232) |
| Přenosová rychlost | 9600 BPS |
| Start Bit | 1 |
| Datové bity | 8 |
| Parita | Žádný |
| Stop bit | 1 |
| Supply Voltage (Minimum) | 20 V DC |
| Normal Supply Range | 24-34 VDC (or 24-30 VAC) |
| Datový kabel | Computer Standard Serial Communication Cable |
| Rozměry balení | 5.91 x 4.33 x 1.57 palce |
| Hmotnost položky | 7.2 unce |
| ASIN | B0FDJKC89N |
| Výrobce | tihebeyan |
| Typ konektoru | USB 1.0 (Note: Primary function is RS232, but specifications list USB 1.0 as a connector type.) |
Nastavení a instalace
The MDB to RS232 adapter is designed for straightforward connection to MDB devices and serial port boards. Follow these steps for proper installation:
- Identifikujte komponenty: Ensure you have the main MDB to RS232 converter unit, the necessary MDB cables, and an RS232 serial communication cable.
- Connect MDB Devices: Connect your MDB devices (e.g., coin acceptors, coin changers, cashless devices) to the MDB input ports on the converter. The converter supports various MDB devices, including those with device codes 08H (coin machine), 30H (invoice validator), 10H (cashless device), 60H (cashless device 2), and 40H (device).
- Připojení k hostitelskému systému: Connect the RS232 output of the converter to the serial port of your host system (PC, PLC, etc.) using a standard serial communication cable.
- Připojení napájení: Connect the power supply to the converter. Ensure the supply voltage is within the normal range of 24-34 VDC (or 24-30 VAC), with a minimum of 20 VDC.
- Ověřte připojení: Dvakrát zkontrolujte všechna kabelová připojení, abyste se ujistili, že jsou bezpečná a správně usazená.
The MDB to RS232 converter automatically communicates and manages MDB devices, sending valid MDB data to the host computer via the serial port. This reduces the complexity of host program design.
Návod k obsluze
Once the converter is set up, it operates largely autonomously. Here's how data flow and control work:
- Automatic Data Transmission: The converter does not require the host to conduct survey queries. It automatically communicates with and manages MDB devices, forwarding valid MDB data to the host system via the serial port.
- Host Control Commands: When the host system sends control or configuration commands to the MDB to RS232 box, these commands should directly follow the MDB protocol. The converter will receive these instructions, forward them to the MDB device, and then relay the device's response back to the host.
- Real-time Payment Data: Upon receiving real-time payment data from an MDB device, the converter immediately sends it to the host via the MDB-RS232.
- Identifikace zařízení: To differentiate between data from various MDB devices, a device code is added before the data. For exampten:
30 xxrepresents data from an acceptor (e.g., bill validator).08 xxrepresents data from a currency changer (e.g., coin changer).
08 09, it indicates that the currency changer is in a disabled state. - Formát dat: Data sent by the MDB box to the computer is in hexadecimal format. Refer to MDB V3.0 or MDB V4.0 instruction protocols for specific instruction meanings.
Údržba
The MDB to RS232 Converter is designed for low maintenance. Adhere to the following guidelines to ensure its continued reliable operation:
- Udržujte v čistotě: Regularly wipe the exterior of the unit with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
- Podmínky prostředí: Operate the converter within a stable environment, avoiding extreme temperatures, high humidity, or dusty conditions.
- Integrita kabelu: Periodically inspect all connected cables for any signs of wear, damage, or loose connections. Replace damaged cables immediately.
- Aktualizace firmwaru: While not typically user-serviceable, check the manufacturer's website (Tihebeyan) for any potential firmware updates that might enhance performance or compatibility.
- Napájení: Ensure a stable and correct power supply is always used. Fluctuations or incorrect voltagmůže poškodit jednotku.
Odstraňování problémů
If you encounter issues with your MDB to RS232 Converter, refer to the following common problems and solutions:
- Žádný přenos dat:
- Zkontrolujte napájení: Ensure the converter is properly powered and receiving the correct voltage.
- Zkontrolujte kabely: Verify that all MDB and RS232 cables are securely connected to both the converter and the respective devices/host.
- Nastavení sériového portu: Confirm that the host system's serial port settings (Baud Rate: 9600, Start Bit: 1, Data Bits: 8, Parity: None, Stop Bit: 1) match the converter's specifications.
- MDB Device Status: Ensure the connected MDB devices are operational and not in a disabled state.
- Incorrect Data Received:
- Neshoda protokolu: Verify that your host system's software is interpreting the MDB protocol correctly (refer to MDB V3.0 or V4.0 instruction protocols).
- Device ID: Ensure your software correctly parses the device ID byte (e.g.,
30 xxfor acceptor,08 xxfor changer) to identify the source of the data.
- Converter Not Recognized by Host:
- Problémy s ovladači: For USB versions, ensure the necessary USB drivers are installed on your host system.
- Výběr portu: Confirm that your application is attempting to communicate with the correct serial (COM) port.
If problems persist after attempting these solutions, please contact Tihebeyan customer support for further assistance.
Záruka a podpora
For warranty information and technical support, please refer to the official Tihebeyan webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případné reklamace.
