1. Úvod
This manual provides essential information for the safe and efficient operation of your Kismile 18L Beverage Refrigerator Cooler, Model JC-18. Please read all instructions carefully before use and retain this manual for future reference.
2. Bezpečnostní pokyny
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
- Ensure the unit is connected to a suitable power outlet (115 Volts, 15 Amps) with proper grounding. Do not use 2-prong adapters or cut off the third grounding prong.
- Avoid the use of extension cords. If an extension cord is necessary, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.
- Do not install your Beverage Center in any location not properly insulated or heated (e.g., garage).
- Do not operate in ambient temperatures below 55°F Fahrenheit.
- Select a suitable location for the Beverage Center on a hard, even surface away from direct sunlight or heat sources (e.g., radiators, baseboard heaters, cooking appliances).
- Vaše Beverage Center je navrženo pouze pro volně stojící instalaci. Není určen pro vestavěné aplikace.
- Tato jednotka je určena pouze pro vnitřní použití.
- Please ensure prompt discharge when the water in the drip tray reaches full.

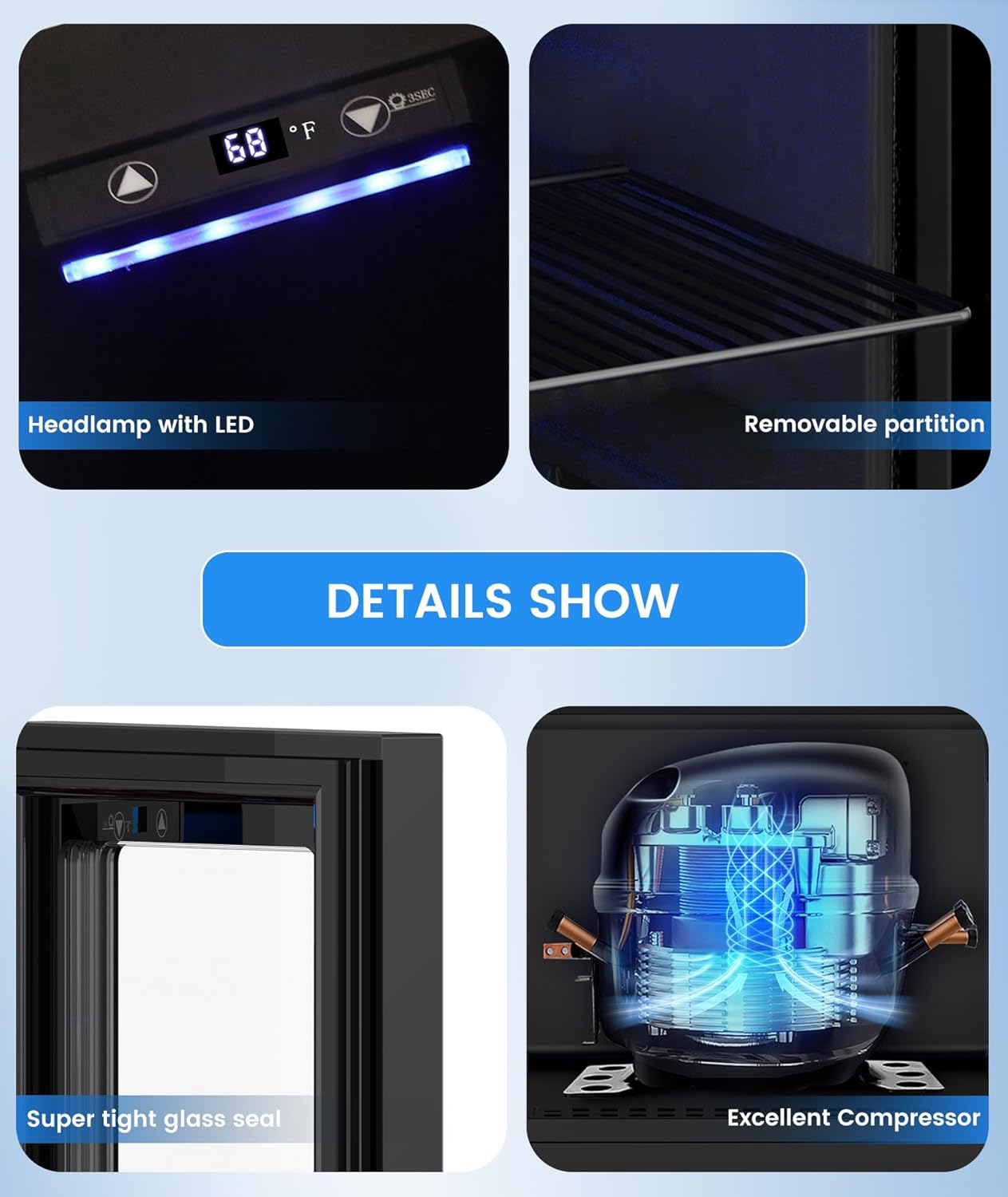

3. Části a vlastnosti
Familiarize yourself with the components of your Kismile Beverage Refrigerator Cooler.
- Drátěná police: A removable metal shelf for organizing beverages.
- Skleněné dveře: A sleek, transparent door allowing visibility of contents without opening, featuring an air-tight seal for temperature retention.
- Nohy: Provides stable support for the unit.
- Odkapávač: Located at the rear of the unit, collects condensation and requires periodic emptying.
- Ovládání termostatem: Digital electronic control panel for adjusting the internal temperature.
- Tichý kompresor: Advanced cooling system designed for low noise and vibration-free operation.
- LED osvětlení interiéru: Soft blue LED lights illuminate the interior, making it easy to view obsah.
4. Nastavení
4.1 Vybalení
- Remove all packaging materials, including the foam base and adhesive tape holding the beverage center accessories inside and outside.
- Inspect and remove any remaining packing, tape, or protective materials before powering on the Beverage Center.
4.2 Placement and Air Circulation
To ensure that your Beverage Center works at maximum efficiency, it is designed for good air circulation. Install it in a location where there is proper air circulation and electrical connections.
- Následující doporučené vzdálenosti kolem nápojového centra:
- Sides: 2" (50mm)
- Top: 2" (50mm)
- Back: 2" (50mm)
- Nápojové centrum nepřeplňujte, aby se správně chladilo.
Note: If your Beverage Center has been tilted for any reason, wait 24 hours before plugging it in.
4.3 První zapnutí
After placing the unit, plug it into a grounded electrical outlet. Allow the unit to cool for a minimum of two hours before loading beverages.
5. Návod k obsluze
5.1 Regulace teploty
The Kismile 18L Beverage Refrigerator Cooler features a digital electronic temperature control system. The working temperature range is 40°F to 61°F (4°C to 16°C).
- Použijte Šipka nahoru tlačítko pro zvýšení teploty.
- Použijte Šipka dolů tlačítko pro snížení teploty.
- The display will show the set temperature. The actual internal temperature may vary slightly depending on ambient conditions and how often the door is opened.
5.2 Loading Beverages
The unit has an 18L capacity, comfortably holding up to 24 standard-sized drink cans. The wire shelf is removable to accommodate taller bottles.
- When first loading the beverage center to full capacity, allow it to cool to the desired temperature before adding all beverages.
- To remove or replace a full-width slide-out shelf, gently lift the shelf up and slide forward until the shelf has been completely removed. To replace the shelf, gently slide the shelf back into position.
- For optimal cooling, avoid blocking the internal air circulation vents.
5.3 LED vnitřní osvětlení
The unit is equipped with a soft blue LED interior light. To turn the LED light on or off, long press the Šipka dolů tlačítko na 3 sekund.
6. Údržba
6.1 Čištění
- Před čištěním jednotku vždy odpojte.
- Clean the interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
- The removable wire shelf can be washed with soap and water.
6.2 odkapávací miska
The drip tray is located at the rear of the unit and collects condensation. Regularly check the drip tray and empty it when full to prevent overflow.
7. Řešení problémů
If you experience issues with your Kismile Beverage Refrigerator Cooler, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Jednotka nefunguje | No power, unit unplugged, circuit breaker tripped. | Zkontrolujte připojení napájení, resetujte jistič. |
| Jednotka není dostatečně studená | Temperature setting too high, door not closed properly, excessive door openings, poor air circulation. | Adjust temperature, ensure door is sealed, reduce door openings, ensure proper clearances. |
| Nadměrný hluk | Unit not level, objects touching the unit, normal compressor operation. | Adjust leveling feet, ensure no contact with other objects. Note that compressor makes operational sounds. |
| Kondenzace uvnitř | High humidity, frequent door openings, drip tray full. | Ensure door is sealed, reduce door openings, empty drip tray. |
8. Specifikace
- Značka: Kismile
- Model: JC-18
- Kapacita: 0.6 krychlových stop (18 litrů)

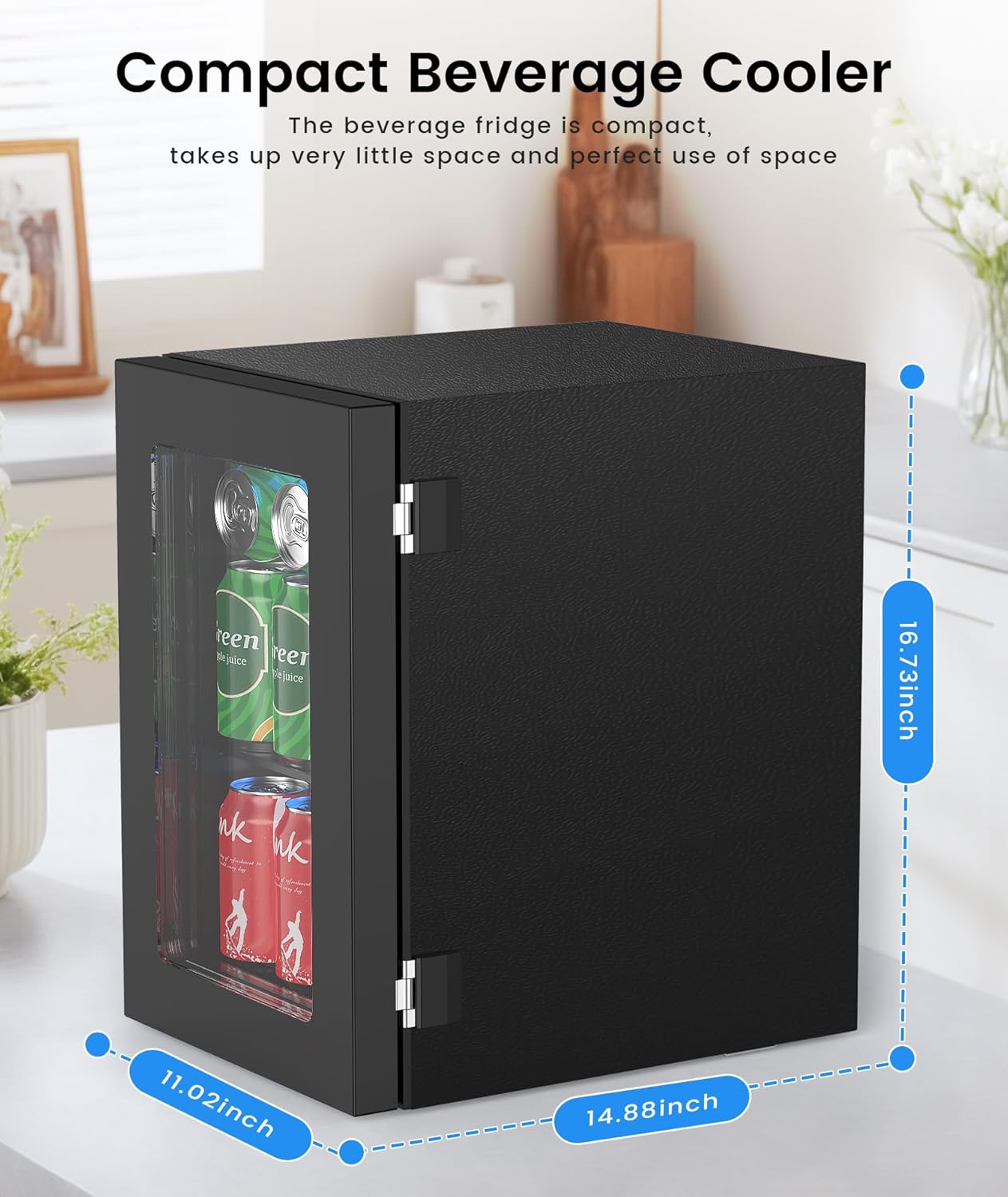

- Rozměry (D x Š x V): 14.88 x 11.02 x 16.73 palce
- Hmotnost položky: 25 libry
- Rozsah teplot: 4 °C až 16 °C
- svtage: 115 voltů
- Roční spotřeba energie: 199 kilowatthodiny
- Typ instalace: Pracovní deska
- Systém odmrazování: Manuál
- Počet dveří: 1
- Speciální vlastnosti: Compact, Low Noise, Portable, LED Light, Glass Door
9. Záruka a podpora
For warranty information or customer support, please refer to the documentation included with your product or contact Kismile Direct customer service. Ensure you have your model number (JC-18) and purchase details available.
