Scheppach DWP400 Dirty Water Submersible Pump

1. Úvod

Thank you for choosing the Scheppach DWP400 Dirty Water Submersible Pump. This powerful combination pump is designed for efficient water removal and transfer, suitable for both clear and dirty water applications. It is ideal for garden irrigation, emptying pools, or draining ponds and flooded basements. Please read this manual carefully before operating the pump to ensure safe and optimal performance.

Image: The Scheppach DWP400 Dirty Water Submersible Pump, featuring its black and red housing with integrated handle and float switch.

2. Bezpečnostní pokyny

Always observe the following safety precautions to prevent injury and damage to the pump:

• Ensure the power supply matches the specifications on the pump's rating plate.
• Do not operate the pump if the power cable or plug is damaged.
• Never lift or carry the pump by its power cable.
• Udržujte děti a neoprávněné osoby mimo provozní prostor.
• Nečerpejte hořlavé, výbušné nebo korozivní kapaliny.
• The maximum water temperature for operation is 35°C (95°F).
• Před prováděním jakékoli údržby nebo čištění vždy odpojte čerpadlo od napájení.
• The float switch must be able to move freely to ensure automatic shut-off and prevent dry running.
• The pump is equipped with overload protection to prevent overheating. If the pump stops, disconnect it from power and allow it to cool down before restarting.

3. Konec produktuview

Familiarize yourself with the main components of your Scheppach DWP400 pump:

• Těleso čerpadla: Robust and impact-resistant.
• Motor: Powerful 400 W motor.
• Plovákový spínač: Automatically switches the pump on/off based on water level. Can be fixed for continuous operation.
• Vybíjecí přípojka: G1" and G1½" connections for standard garden hoses.
• Základní deska: Designed to suck up dirt particles up to 30 mm.

Image: Diagram illustrating the applications of the Scheppach DWP400 pump, including garden irrigation, pool drainage, and pond emptying.

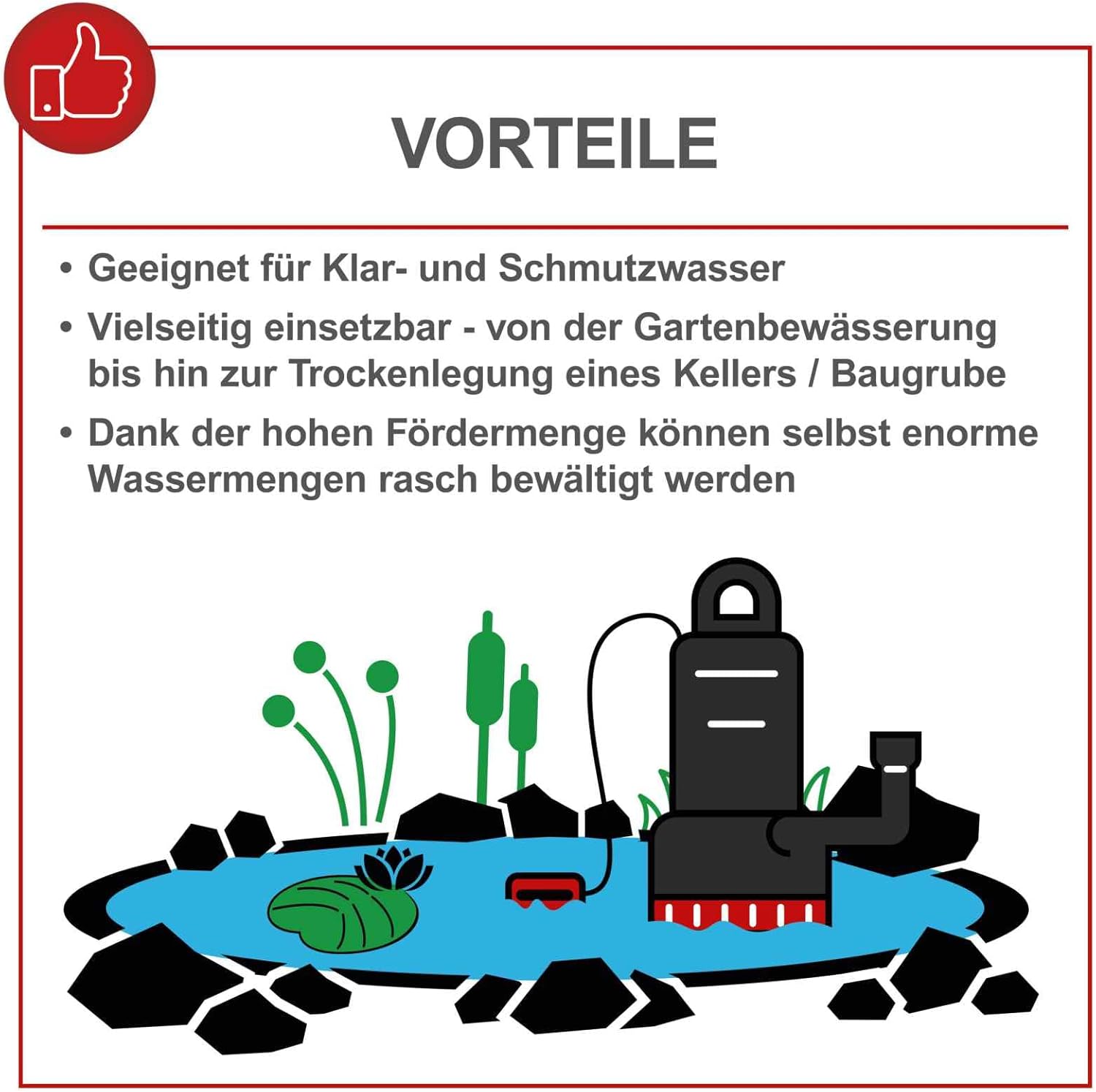

Image: Diagram highlighting the benefits of the Scheppach DWP400 pump, such as suitability for clear and dirty water, versatile use from garden irrigation to basement dewatering, and high flow rate for managing large water volumes quickly.

4. Nastavení

1. Rozbalení: Carefully remove the pump and all accessories from the packaging. Check for any damage.
2. Připojení hadice: Attach a suitable hose (G1" or G1½") to the discharge connection. Use a quick coupling for easy attachment. Ensure the connection is secure to prevent leaks.
3. Umístění: Place the pump on a stable, level surface in the water. Ensure the pump is fully submerged and not resting on soft sediment that could block the intake.
4. Nastavení plovákového spínače: Ensure the float switch has enough space to move freely. Its position determines the automatic on/off levels. For continuous operation, the float switch can be fixed in an upward position.
5. Připojení napájení: Connect the pump to a grounded power outlet (230 V AC).

Obrázek: Detail view of the Scheppach DWP400 pump showing the hose connection point (G1½" and G1") with a quick coupling, ready for a standard garden hose.

5. Provoz

1. Automatický provoz:
   • Ensure the float switch is free to move.
   • When the water level rises, the float switch will activate the pump.
   • When the water level drops to a certain point, the float switch will deactivate the pump, preventing dry running.
2. Manual/Continuous Operation:
   • To operate the pump continuously, fix the float switch in the upward position using the integrated holder.
   • Monitor the water level closely during manual operation to prevent the pump from running dry, which can cause damage.
3. Spuštění čerpadla: Once connected to power and submerged, the pump will start automatically if the float switch is in the "on" position (or fixed for continuous operation).
4. Zastavení čerpadla: In automatic mode, the pump stops when the water level drops. In manual mode, disconnect the power supply to stop the pump.

Image: Close-up of the Scheppach DWP400 pump's float switch, which automatically switches the pump off and protects against dry running.

Image: The Scheppach DWP400 pump submerged and operating in a pond, with a green hose attached, demonstrating its use in a natural water environment.

6. Údržba

Regular maintenance ensures the longevity and efficiency of your pump:

• Čištění: After each use, especially with dirty water, rinse the pump thoroughly with clean water. This prevents sediment buildup.
• Intake Area: Regularly check the intake area on the base plate for blockages (e.g., leaves, debris). Clear any obstructions to maintain optimal flow.
• Plovákový spínač: Ensure the float switch is clean and moves freely.
• Skladování: If storing for an extended period, clean the pump, drain all water, and store it in a dry, frost-free location.
• Kontrola kabelů: Periodically inspect the power cable and plug for any signs of damage. Do not use the pump if damage is found.

Obrázek: Detail view of the Scheppach DWP400 pump's base plate, designed to suck up dirt particles up to 30 mm in size.

7. Řešení problémů

8. Specifikace

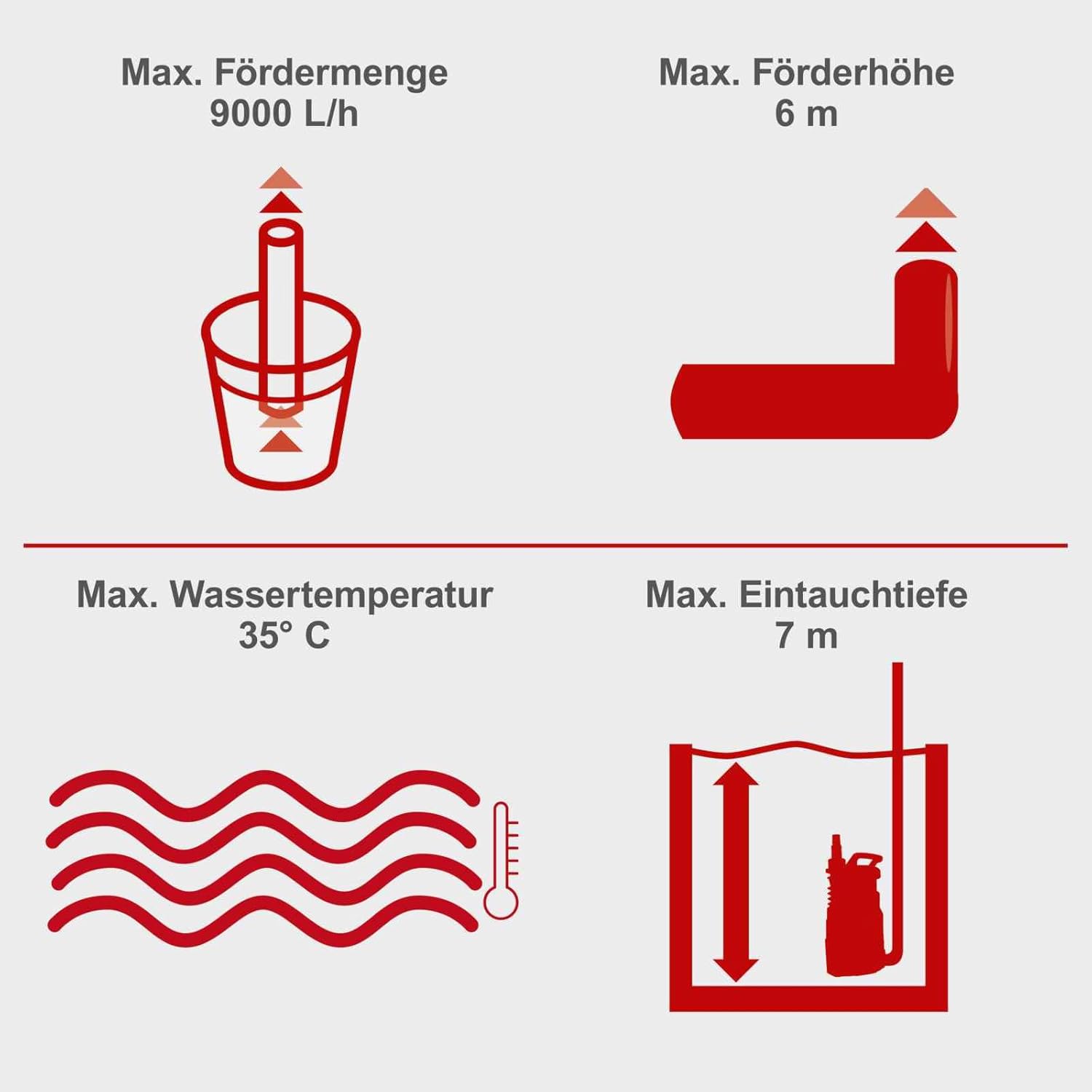

Image: Visual representation of key specifications: Max. Flow Rate 9000 L/h, Max. Head Height 6m, Max. Water Temperature 35°C, Max. Immersion Depth 7m.

Image: Visual representation of motor power (400 W) and maximum particle size (30 mm) for the Scheppach DWP400 pump.

9. Záruka a podpora

Scheppach products are manufactured with high-quality materials and undergo strict quality control. In the unlikely event of a defect, please refer to your purchase documentation for warranty terms and conditions. For technical support, spare parts, or service inquiries, please contact your authorized Scheppach dealer or visit the official Scheppach webstránky pro kontaktní informace.

Please have your model number (DWP400) and serial number (if applicable) ready when contacting support.
