1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Bkiyougo Self-Powered Wireless Light Switch and Receiver Kit. This system offers a convenient, battery-free, and wireless solution for controlling various lighting fixtures and appliances.

1.1 Obsah balení

  • 1 x Self-Powered Wireless Light Switch
  • 1 x Sada přijímače
  • Mounting accessories (e.g., double-sided adhesive, screws)
  • Uživatelská příručka

2. Důležité bezpečnostní informace

Před instalací a použitím si pečlivě přečtěte všechny bezpečnostní pokyny. Nedodržení těchto pokynů může vést k úrazu elektrickým proudem, požáru nebo jiným nebezpečím.

  • Elektrická bezpečnost: Always disconnect power at the circuit breaker before performing any electrical work. If you are unsure about electrical wiring, consult a qualified electrician.
  • svtage: Ensure the receiver's operating voltage (AC 110-230V) matches your electrical supply.
  • Aktuální hodnocení: Nepřekračujte maximální jmenovitý proud 10 Amps for the receiver.
  • Prostředí: While the switch is IP44 rated for wet environments, ensure the receiver is installed in a dry, protected location.
  • Děti: Uchovávejte výrobek mimo dosah dětí.

3. Konec produktuview

The Bkiyougo Wireless Light Switch system consists of two main components: the self-powered wireless switch and the compact receiver module.

Bkiyougo Wireless Light Switch and Receiver Kit components
Image: The self-powered wireless light switch and the receiver module with input/output terminals.

The wireless switch generates its own power through kinetic energy when pressed, eliminating the need for batteries. The receiver connects to your lighting fixture and responds to signals from the switch.

4. Nastavení a instalace

4.1 Zapojení přijímače

The receiver must be wired between the power source and the lighting fixture. Ensure power is OFF at the circuit breaker before proceeding.

  1. Vypněte hlavní napájení obvodu jističem.
  2. Connect the Live (L) and Neutral (N) wires from your power supply to the 'INPUT' terminals on the receiver.
  3. Connect the Live (L) and Neutral (N) wires of your lighting fixture to the 'OUTPUT' terminals on the receiver.
  4. Ujistěte se, že jsou všechna připojení bezpečná.
Wiring schematic for the Bkiyougo Wireless Light Switch Receiver
Image: Wiring diagram showing connections for Live (L) and Neutral (N) input from AC110-230V and output to a light bulb.

4.2 Mounting the Wireless Switch

The wireless switch can be mounted on various surfaces using the provided double-sided adhesive or screws. No in-wall wiring is required for the switch.

Examples of mounting locations for the wireless light switch
Image: Various mounting options for the wireless switch, including on a wall, glass, or bedside table, demonstrating its flexible placement.
  • Důkladně očistěte požadovaný montážní povrch.
  • Apply the double-sided adhesive to the back of the switch or use screws to secure it to a wall.
  • Ensure the switch is firmly attached.

5. Návod k obsluze

5.1 Pairing the Switch and Receiver

After wiring the receiver and restoring power, you need to pair the wireless switch with the receiver.

Step-by-step guide for pairing the wireless switch with the receiver
Image: Visual steps for pairing: 1. Press receiver button for 3 seconds. 2. Code indicator light turns on. 3. Press wireless switch once for successful pairing.
  1. Ensure the receiver is safely connected to the power supply.
  2. Press and hold the pairing button on the receiver for approximately 3 seconds. The code indicator light on the receiver will turn on.
  3. Within 10 seconds, press the wireless switch button once. The code indicator light on the receiver will flash once, indicating successful pairing.

5.2 Clearing the Signal (Unpairing)

To clear all paired switches from a receiver:

  1. Press and hold the pairing button on the receiver.
  2. Continue holding until the code indicator light flashes 3 times. This indicates that all previously paired switches have been cleared.

5.3 Metody řízení

Systém podporuje flexibilní konfigurace řízení:

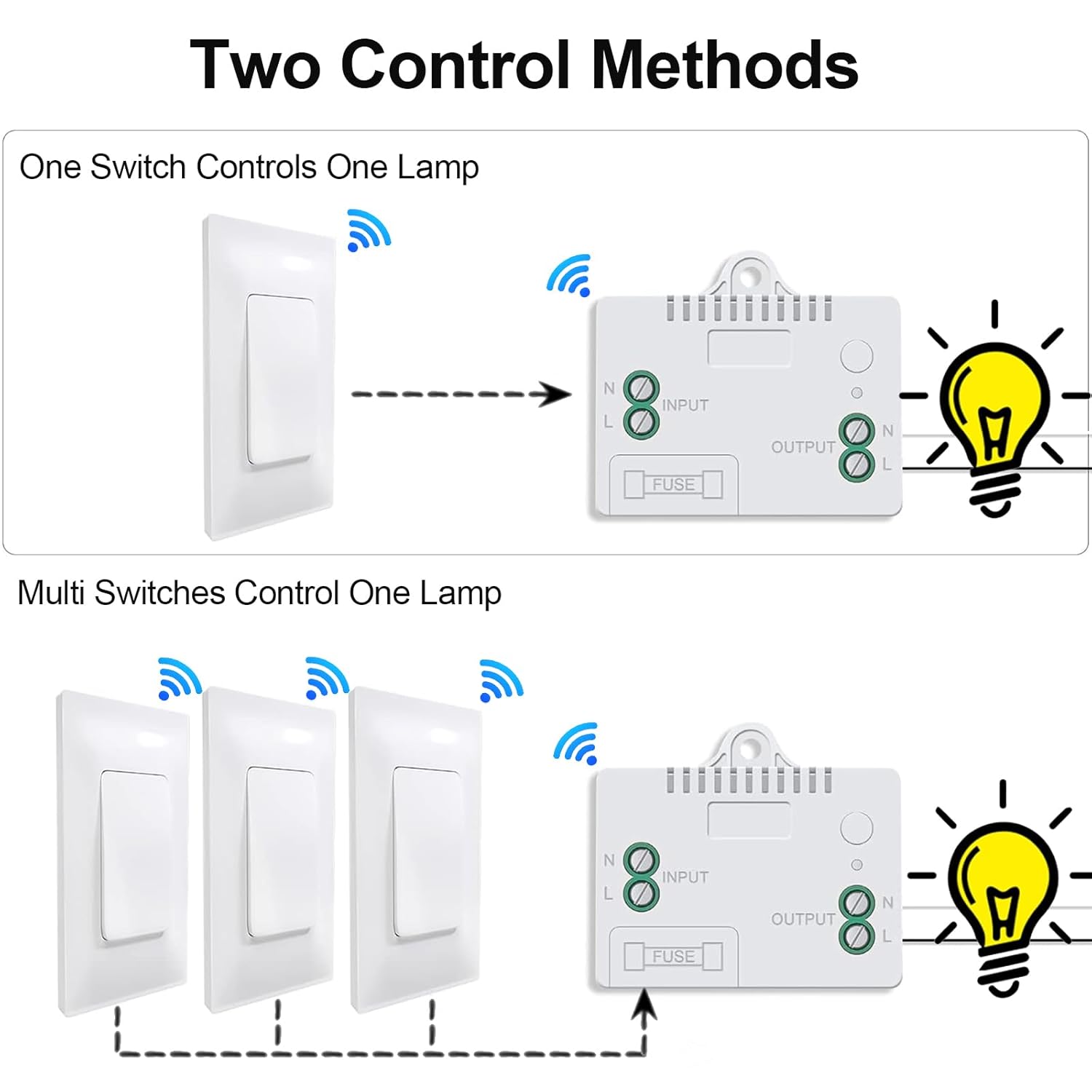

Diagram showing one switch controlling one lamp and multiple switches controlling one lamp
Image: Illustration of two control methods: a single wireless switch operating one lamp, and multiple wireless switches operating a single lamp.
  • One Switch Controls One Lamp: A single wireless switch can be paired with one receiver to control a single lighting fixture.
  • Multiple Switches Control One Lamp: Up to 15 wireless switches can be paired with a single receiver to create a multi-way switching system for one lighting fixture.
  • One Switch Controls Multiple Lamps: A single wireless switch can be paired with multiple receivers to control several lighting fixtures simultaneously.

6. Klíčové vlastnosti

The Bkiyougo Wireless Light Switch and Receiver Kit offers several advantages:

Nadview of wireless switch features including range, no interference, push button, simple installation, and no battery
Image: A summary of key features: 100ft indoor range, no interference, push button operation, simple installation, and no battery requirement.
  • Samonapájecí: The switch generates its own power kinetically, requiring no batteries or external power source.
  • Bezdrátový provoz: Eliminates the need for new wiring, simplifying installation and allowing flexible placement.
  • IP44 Rated Waterproof Switch: The wireless switch is designed to operate reliably in wet environments, such as bathrooms or courtyards, without risk of electric leakage.
Wireless switch in a bathroom setting, highlighting its waterproof design
Image: The wireless switch positioned in a bathroom, illustrating its IP44 waterproof rating and suitability for wet conditions.
  • Silný RF signál: The system utilizes a robust RF signal that can penetrate walls and doors.
  • Rozšířený rozsah: Offers an indoor control distance of up to 100 feet and an outdoor control distance of up to 330 feet in open areas.
Diagram illustrating the strong wireless signal and control range of the switch
Image: A visual representation of the strong wireless signal, showing indoor control up to 100 inches and outdoor control up to 330 inches, capable of passing through walls.

7. Řešení problémů

If you encounter issues with your Bkiyougo Wireless Light Switch and Receiver Kit, refer to the following table for common problems and solutions.

ProblémMožná příčinaŘešení
Světlo se nezapíná/nevypíná.No power to receiver; Receiver not paired with switch; Faulty wiring; Out of range.Check power supply to receiver; Re-pair switch and receiver (Section 5.1); Verify wiring connections; Reduce distance between switch and receiver.
Light turns on/off unexpectedly.Interference; Receiver picking up unintended signals.Clear the signal from the receiver (Section 5.2) and re-pair only the desired switches. Ensure no other RF devices are causing interference.
Spínač je ztuhlý nebo nereaguje.Mechanical issue; Debris under switch.Ensure the switch is clean and free of obstructions. If the issue persists, contact customer support.
Zmenšený rozsah regulace.Obstructions (thick walls, metal objects); Environmental interference.Relocate the switch or receiver to minimize obstructions. Avoid placing near large metal objects or other strong RF sources.

8. Technické specifikace

  • Číslo modelu: Self-power switch-01
  • Rozměry produktu: 2.36 x 1.57 x 0.79 inches (Switch); 2.36 x 1.57 x 0.79 inches (Receiver)
  • Hmotnost: 5.29 unce (celkové balení)
  • Provozní svtage: AC 110-230 voltů
  • Aktuální hodnocení: 10 Amps
  • Provozní režim: ON-OFF-ON
  • Typ kontaktu: Normálně otevřeno
  • Typ konektoru: Šroubový terminál
  • Typ obvodu: Vícesměrné
  • Typ pohonu: Stiskněte tlačítko
  • Indoor Control Range: Až 100 stop (přibližně 30 metrů)
  • Outdoor Control Range: Up to 330 feet (approx. 100 meters) in open areas
  • Switch Waterproof Rating: IP44

9. Péče a údržba

To ensure the longevity and optimal performance of your Bkiyougo Wireless Light Switch and Receiver Kit:

  • Clean the switch and receiver with a soft, dry cloth. Do not use abrasive cleaners or solvents.
  • Avoid exposing the receiver to excessive moisture or extreme temperatures.
  • Do not attempt to disassemble or repair the unit yourself. This may void the warranty and pose safety risks.

10. Záruka a podpora

10.1 Informace o záruce

Bkiyougo products are covered by a limited warranty against defects in materials and workmanship. Please refer to the product packaging or contact customer support for specific warranty terms and conditions.

10.2 Zákaznická podpora

For technical assistance, troubleshooting, or warranty claims, please contact Bkiyougo customer support through the retailer where the product was purchased or visit the official Bkiyougo webstránky pro kontaktní informace.
