Zavedení
This manual provides detailed instructions for the installation, operation, and maintenance of your Mysa Smart Thermostat LITE. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.
Obrázek: Přední strana view of the Mysa Smart Thermostat LITE, displaying a digital temperature.
Důležité bezpečnostní informace
WARNING: Risk of electrical shock. Installation must be performed by a qualified electrician or trained personnel. Always turn off power at the circuit breaker before beginning installation.
- Ensure power is disconnected at the main electrical panel before any wiring.
- Verify that the thermostat is compatible with your heating system (120V/240V line voltage electric baseboard, convector, fan-forced, or radiant heaters).
- Do not use with central heating/cooling systems.
- This thermostat requires a 3rd/live wire for operation. It does not support battery power.
- Při instalaci dodržujte všechny místní elektrické předpisy.
Nastavení a instalace
1. Zkontrolujte kompatibilitu
The Mysa Smart Thermostat LITE is designed for line voltage electric heating systems, including electric baseboard heaters, convector heaters, fan-forced heaters, and in-ceiling radiant heaters. It operates on 120V or 240V AC circuits with a maximum load of 16A (Breaker/Fuse Max. 20A).
Image: Diagram illustrating compatibility with various high voltagelektrické topné systémy.
2. Power Disconnection
Locate your circuit breaker panel and turn off the power to your heating system. Confirm the power is off by attempting to adjust your old thermostat or checking the heater.
3. Požadavky na elektroinstalaci
The Mysa Smart Thermostat LITE requires a 3rd/live wire for operation. It does not support battery power. Ensure your existing wiring includes a live wire in addition to the load wires.
Image: Wiring diagram comparing a current thermostat setup with the Mysa Thermostat setup, highlighting the requirement for a 3rd live wire.
4. Kroky instalace
- Opatrně sejměte starý termostat ze zdi.
- Disconnect the existing wires, noting their connections.
- Connect the wires from your wall to the corresponding terminals on the back of the Mysa thermostat using the included wire nuts. Refer to the wiring diagram on the back of the unit for specific connections (L1, Load, L2/Live Wire).
- Mount the Mysa thermostat to the wall using the provided screws.
- Obnovte napájení na jističi.
Obrázek: Zadní view of the Mysa Smart Thermostat LITE, showing wiring terminals and electrical specifications.
5. Párování aplikací
Download the Mysa app from your device's app store. Follow the in-app instructions to pair your thermostat with your Wi-Fi network and smart home system (HomeKit, Alexa, Google Assistant).
Návod k obsluze
Ruční ovládání
Adjust the temperature directly on the thermostat using the up and down arrows on the LCD display. The display shows the current set temperature.
Obrázek: Přední strana view of the Mysa Smart Thermostat LITE, showing the digital temperature display and up/down arrows for manual adjustment.
Ovládání aplikací
Use the Mysa app on your smartphone or tablet to control your thermostat remotely. The app allows you to:
- Adjust temperature settings from anywhere.
- Create custom heating schedules (Auto-Scheduling).
- Utilize Geofence Technology to adjust temperature based on your location.
- Activate Vacation Mode for energy savings when away.
- Monitor energy usage (Note: Mysa LITE does not display humidity or track usage like the premium version).

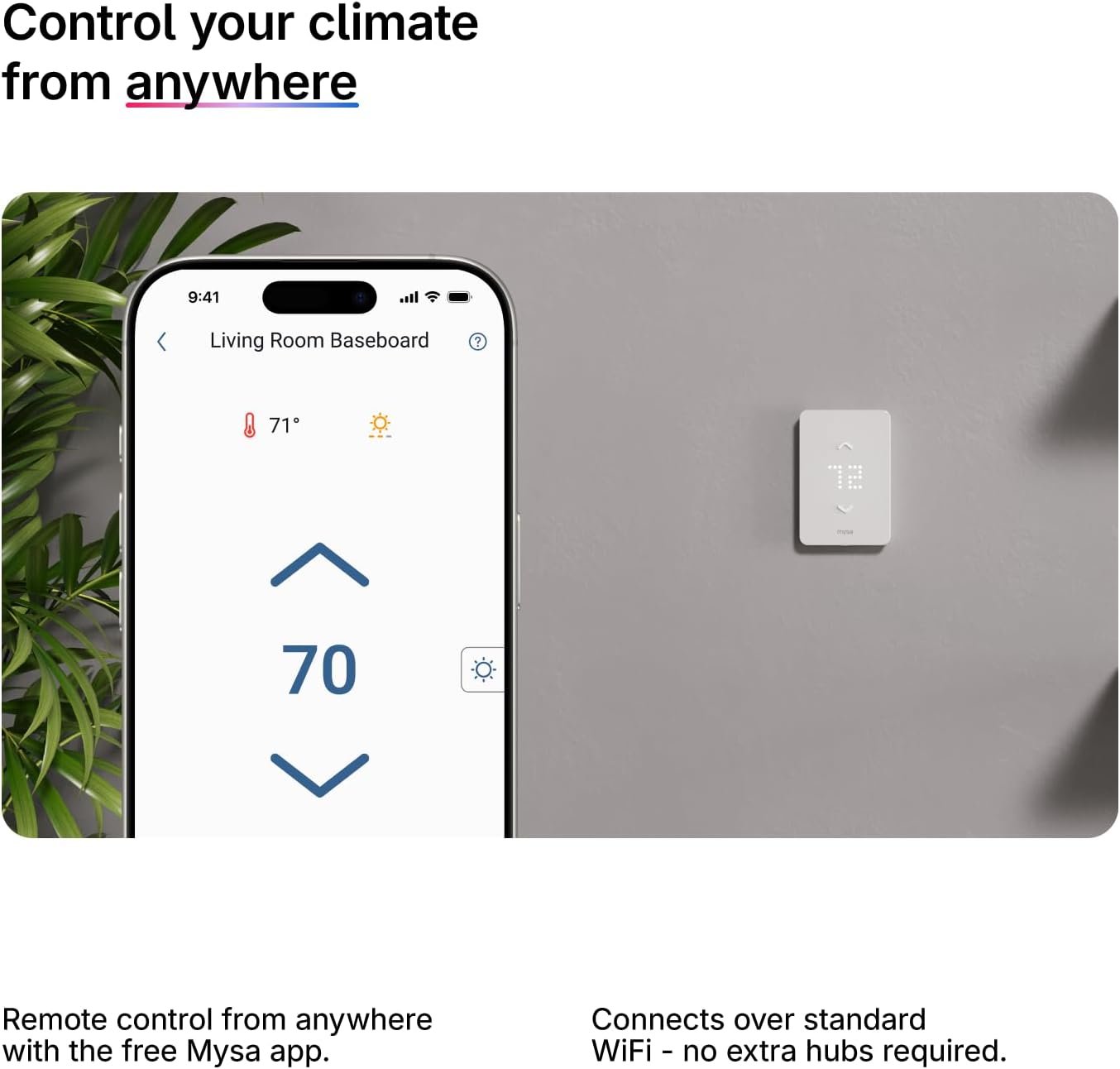

Image: A smartphone displaying the Mysa app interface, showing remote temperature control and scheduling options for multiple rooms.
Hlasové ovládání
Integrate your Mysa thermostat with Amazon Alexa, Apple HomeKit, or Google Assistant for convenient voice control. Follow the instructions within your smart home app to link your Mysa account.

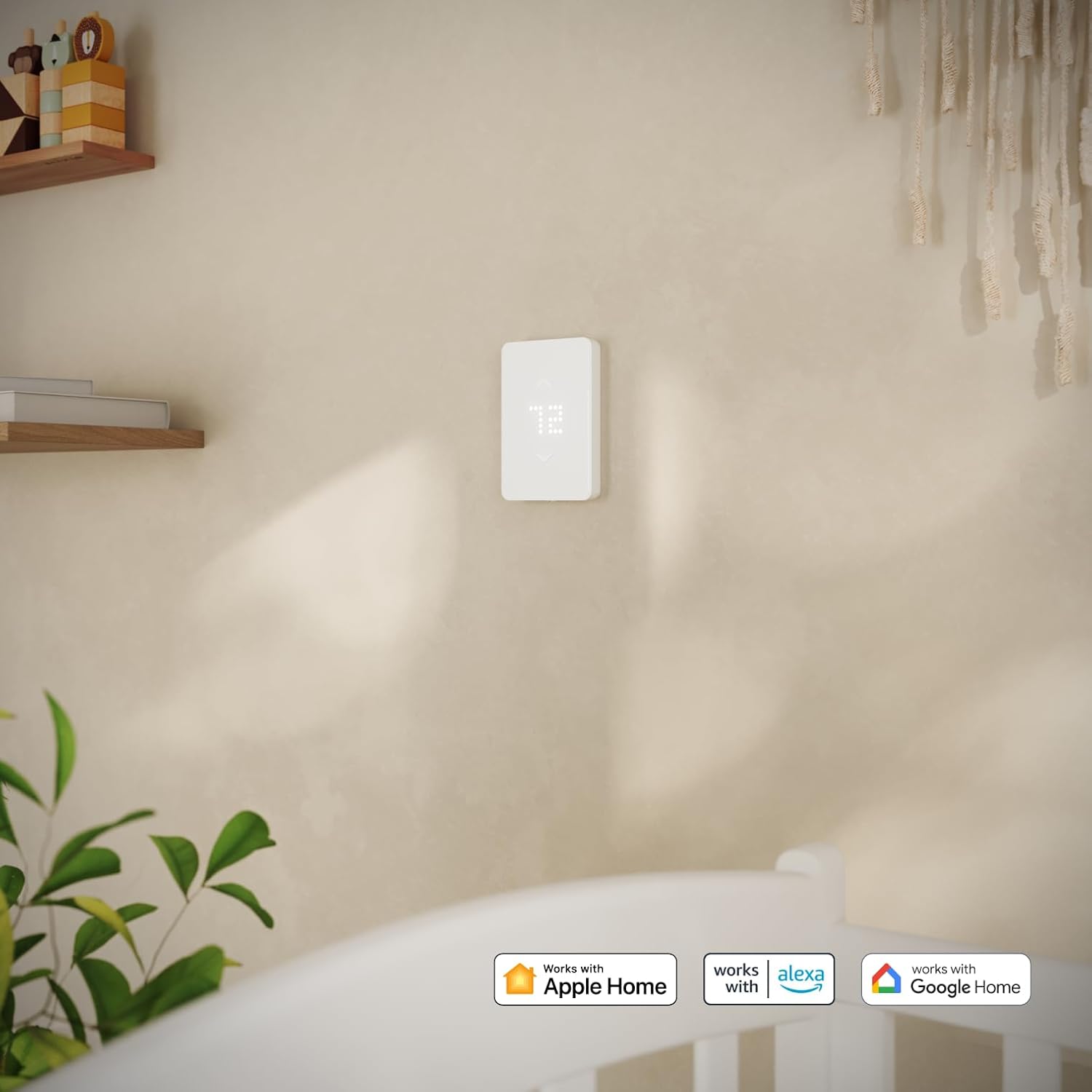

Image: Mysa Smart Thermostat LITE mounted on a wall, with logos indicating compatibility with Apple Home, Alexa, and Google Home.
Teplotní zámek
The thermostat features a temperature lock function, allowing you to restrict temperature adjustments directly on the unit. When activated, temperature can only be controlled via the Mysa app.
Image: Mysa Smart Thermostat LITE mounted on a wall, illustrating the temperature lock feature where control is limited to the app.
Údržba
- Čištění: Otřete povrch termostatu měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Aktualizace firmwaru: Ensure your thermostat's firmware is up to date through the Mysa app for optimal performance and new features.
- Wi-Fi připojení: Periodically check your Wi-Fi connection to ensure continuous remote access and smart features. The thermostat operates on 2.4 GHz Wi-Fi networks.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Termostat se nezapíná. | No power from circuit breaker, incorrect wiring, missing 3rd/live wire. | Check circuit breaker. Verify wiring connections according to the manual. Ensure a 3rd/live wire is present and correctly connected. |
| Nelze se připojit k Wi-Fi. | Nesprávné heslo k Wi-Fi, síť 5 GHz, slabý signál, problémy s routerem. | Ensure correct password. Mysa LITE only supports 2.4 GHz Wi-Fi. Move thermostat closer to router or use a Wi-Fi extender. Restart router. |
| Temperature not adjusting via app. | No Wi-Fi connection, app not synced, temperature lock enabled. | Check Wi-Fi connection. Open Mysa app to re-sync. Disable temperature lock if active. |
| Nepřesné údaje o teplotě. | Termostat vystavený přímému slunečnímu záření nebo průvanu. | Ensure thermostat is not in direct sunlight or near heat sources/drafts that could affect its sensor. |
For further assistance, please contact Mysa Support.
Specifikace
- Značka: Mysa
- Název modelu: Mysa Smart Thermostat LITE
- Číslo modelu: BB V2-0-L
- Rozměry produktu: 2.48"H x 4.65"Š x 6.02"V
- svtage: 120V/240V AC
- Maximální zatížení: 16A (Breaker/Fuse Max. 20A)
- Wattage: 3800 watts (at 240V)
- Technologie připojení: Bluetooth, Wi-Fi (pouze 2.4 GHz)
- Typ ovladače: Amazon Alexa, Android, Apple HomeKit, Google Assistant, iOS
- Speciální vlastnosti: Auto-Scheduling, Geofence Technology, Programmable, Temperature Display, Vacation Mode
- Typ displeje: LCD
- Způsob ovládání: Aplikace, dotyk, hlas
- Typ montáže: Držák na zeď
- Materiál: Plast
- Barva: Bílý
- Zahrnuté komponenty: Drátěné matice
- Zdroj napájení: Corded Electric (requires 3rd/live wire)
Záruka a podpora
For warranty information and technical support, please refer to the official Mysa webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si doklad o koupi pro případ reklamace.
Online podpora: getmysa.com/support
