Zavedení
Děkuji za nákupasing the QFX RETRO-1937 Vintage Bluetooth Rechargeable Radio. This device combines classic aesthetics with modern functionality, offering AM/FM/SW radio reception, Bluetooth wireless streaming, and media playback from USB drives and TF/microSD cards. It also features a built-in LED flashlight and a convenient rechargeable battery for portability. This manual provides essential information for the safe and efficient operation of your radio.
Obsah balení
Zkontrolujte prosím balení, zda neobsahuje následující položky:
- QFX RETRO-1937 Radio
- USB nabíjecí kabel
- Uživatelská příručka (tento dokument)
Konec produktuview
Familiarize yourself with the various parts and controls of your QFX RETRO-1937 radio.

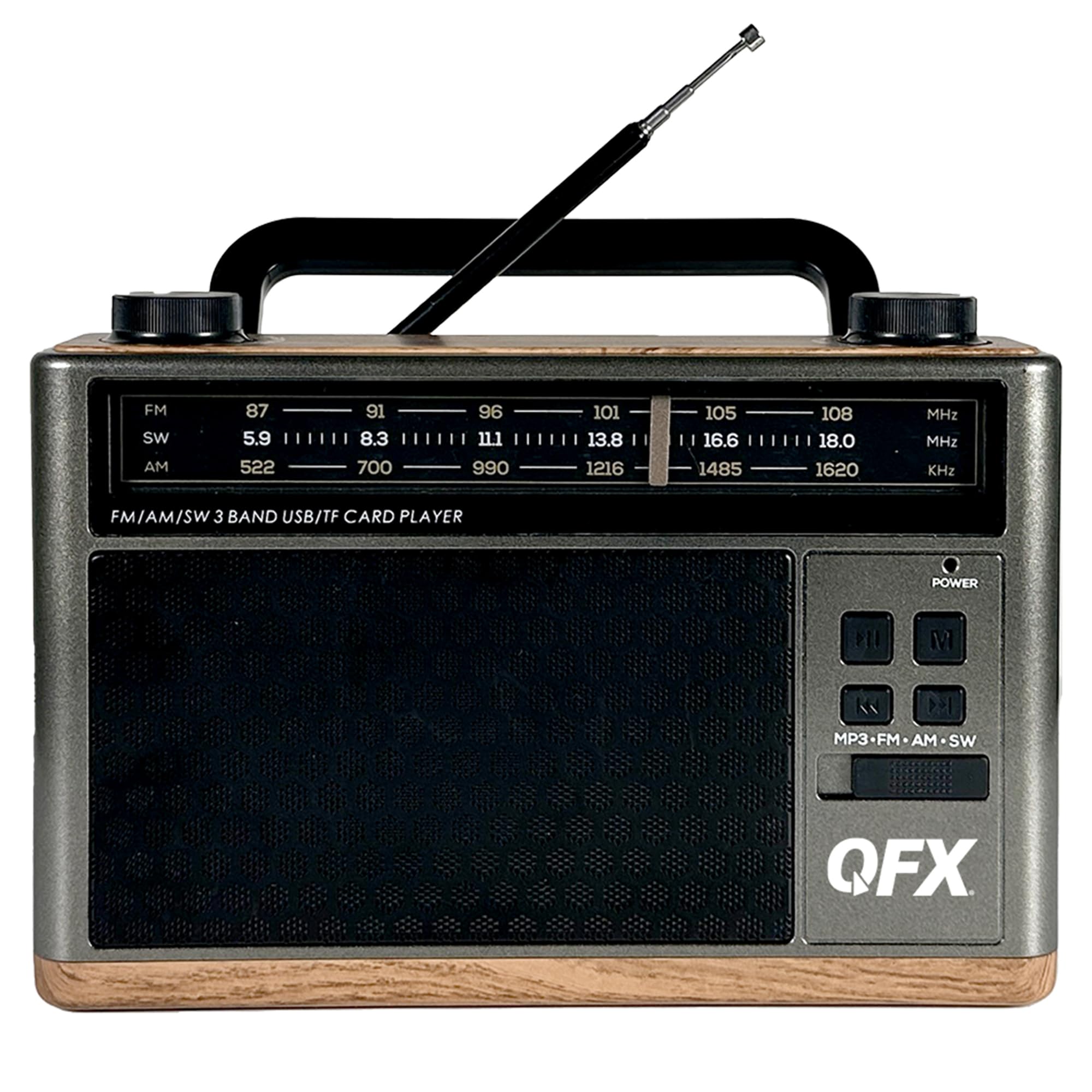

Obrázek 1: Přední strana View with Antenna Extended
This image shows the front of the radio, highlighting the speaker grille, frequency display, control buttons, and the fully extended telescoping antenna for optimal reception.
Figure 2: Top Controls
The top panel features the Volume knob on the left and the Tuning knob on the right, both designed for easy adjustment.
Obrázek 3: Připojení bočního panelu
This side of the radio includes the AUX input, USB port, TF/microSD card slot, DC 5V charging port, and the main Power ON/OFF switch.
Obrázek 4: Vestavěná LED svítilna
The opposite side of the radio features a powerful LED flashlight for illumination.
Obrázek 5: Přední strana View with Antenna Retracted
A general front view of the radio with the telescoping antenna in its retracted position.
Obrázek 6: Zkosená strana View
Tento obrázek poskytuje úhlový pohled view, showing both the front controls and the side panel connections.
Obrázek 7: Úhlové View s baterkou
Úhlové view highlighting the built-in LED flashlight on the side of the unit.
Obrázek 8: Zadní View
The rear panel shows the battery compartment cover and the base of the telescoping antenna.
Ovládací prvky a porty:
- Vypínač: Located on the side, slides to turn the unit ON or OFF.
- Knoflík hlasitosti: Otáčením upravíte úroveň zvukového výstupu.
- Knoflík ladění: Rotates to select radio frequencies.
- Mode Button (MP3-FM-AM-SW): Cycles through different operating modes (MP3/Bluetooth, FM, AM, SW).
- Tlačítko Přehrát/Pozastavit: Controls playback for MP3/Bluetooth modes.
- Tlačítka Předchozí/Další: Skips tracks in MP3/Bluetooth modes.
- USB port: Pro připojení USB flash disků pro přehrávání MP3.
- TF/microSD Card Slot: For inserting TF/microSD cards for MP3 playback.
- Vstup AUX: 3.5mm jack pro připojení externích audio zařízení.
- DC 5V nabíjecí port: Micro USB port pro nabíjení interní baterie.
- Teleskopická anténa: Prodlužuje se pro lepší příjem rádia.
- LED svítilna: Integrated light on the side of the unit.
- Přihrádka na baterie: Located on the rear for the removable rechargeable battery.
Nastavení
Instalace a nabíjení baterie
- Počáteční poplatek: Before first use, ensure the radio's internal rechargeable battery is fully charged. Connect the supplied USB charging cable to the DC 5V port on the side of the radio and the other end to a standard USB power adapter (not included) or a computer's USB port.
- The charging indicator light (if present) will illuminate during charging and turn off or change color when fully charged. A full charge typically takes approximately 8 hours.
- Výměna baterie (pokud je k dispozici): If replacing the battery, open the battery compartment on the rear of the unit. Insert the new nonstandard rechargeable battery, ensuring correct polarity. Close the compartment securely.
Zapnutí/vypnutí
- To turn the radio ON, slide the Power switch on the side of the unit to the 'ON' position.
- To turn the radio OFF, slide the Power switch to the 'OFF' position.
Návod k obsluze
Provoz rádia (AM/FM/SW)
- Slide the Power switch to 'ON'.
- Press the Mode button repeatedly until you reach the desired radio band (FM, AM, or SW).
- For FM and SW reception, extend the telescoping antenna fully and adjust its position for the best signal. For AM reception, the internal antenna is generally sufficient, but rotating the unit may improve reception.
- Rotate the Tuning knob to scan for radio stations.
- Nastavte knoflík hlasitosti na požadovanou úroveň poslechu.
Provoz Bluetooth
- Slide the Power switch to 'ON'.
- Press the Mode button repeatedly until the unit enters Bluetooth mode. You will hear an audible prompt indicating it is ready for pairing.
- Povolte Bluetooth na svém mobilním zařízení (chytrém telefonu, tabletu atd.) a vyhledejte dostupná zařízení.
- Select "QFX RETRO-1937" (or similar name) from the list of found devices to pair.
- Once paired, you will hear a confirmation tone. You can now stream audio wirelessly from your device to the radio.
- Use the Play/Pause and Previous/Next buttons on the radio or your connected device to control playback.
Přehrávání USB/TF karty
- Slide the Power switch to 'ON'.
- Insert a USB flash drive into the USB port or a TF/microSD card into the TF card slot. Ensure the card is inserted correctly.
- The radio should automatically switch to MP3 playback mode and begin playing audio files. If not, press the Mode button to select MP3 mode.
- K ovládání přehrávání použijte tlačítka Přehrát/Pozastavit a Předchozí/Další.
Ovládání vstupu AUX
- Slide the Power switch to 'ON'.
- Connect one end of a 3.5mm audio cable (not included) to the AUX input port on the radio and the other end to the headphone jack or audio output of your external audio device (e.g., MP3 player, CD player).
- Stisknutím tlačítka Mode vyberte režim AUX.
- Control playback and volume from your external audio device. Adjust the radio's volume as needed.
Provoz svítilny
- The LED flashlight is typically activated by a separate switch or button, often located near the flashlight itself. Refer to the physical unit for the exact control.
- Ensure the radio is powered on for the flashlight to function.
Údržba
- Čištění: K čištění vnějšího povrchu rádia používejte měkký, suchý hadřík. Nepoužívejte abrazivní čisticí prostředky, vosky ani rozpouštědla.
- Skladování: Pokud rádio delší dobu nepoužíváte, skladujte ho na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
- Péče o baterie: To prolong battery life, avoid fully discharging the battery frequently. Recharge the battery regularly, even if the unit is not in active use.
- Anténa: Handle the telescoping antenna carefully to prevent bending or breakage. Retract it when not in use.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádné napájení/Jednotka se nezapne. | Battery is discharged. Power switch is OFF. | Charge the battery using the USB cable. Ensure the Power switch is in the 'ON' position. |
| Špatný příjem rádia. | Anténa není vysunutá. Oblast se slabým signálem. Rušení. | Extend the telescoping antenna fully and adjust its direction. Try moving the radio to a different location. Avoid sources of electronic interference. |
| Zařízení Bluetooth se nespáruje. | Radio not in Bluetooth mode. Device too far. Bluetooth not enabled on device. | Ensure the radio is in Bluetooth mode. Keep devices within 30 feet (10 meters). Enable Bluetooth on your mobile device and rescan. |
| USB/TF karta nepřehrává. | Incorrect mode selected. Incompatible file format. Corrupted media. | Press the Mode button to select MP3 mode. Ensure files are in MP3 format. Try a different USB drive or TF card. |
| Z AUX vstupu nejde zvuk. | Incorrect mode selected. Cable not fully inserted. Volume too low. | Select AUX mode. Ensure the 3.5mm cable is securely connected. Increase volume on both the radio and the external device. |
Specifikace
- Model: RETRO-1937
- Rozměry produktu: 8 x 2.28 x 5.43 palce (20.32 x 5.79 x 13.79 cm)
- Hmotnost položky: 1.12 libry (0.51 kg)
- Rozhlasové kapely: AM, FM, SW (Shortwave)
- Konektivita: Bluetooth, USB, TF/microSD, AUX Input
- Zdroj napájení: Rechargeable Battery (included), DC 5V via USB cable
- Speciální vlastnosti: Built-in LED Flashlight, Folding Carry Handle, Telescoping Antenna
- Typ baterie: 1 nestandardní baterie (součástí balení)
- Doba nabíjení: Přibližně 8 hodiny
Záruka a podpora
QFX products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your purchase or visit the official QFX website. If you encounter any issues or require technical assistance, please contact QFX customer support through their official channels.
Online podpora: www.qfxusa.com
