Ibergrif MA201 Wall-Mounted Secure Key Box User Manual

1. Úvod

Thank you for choosing the Ibergrif MA201 Wall-Mounted Secure Key Box. This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your key box. Please read it thoroughly before use and retain it for future reference.

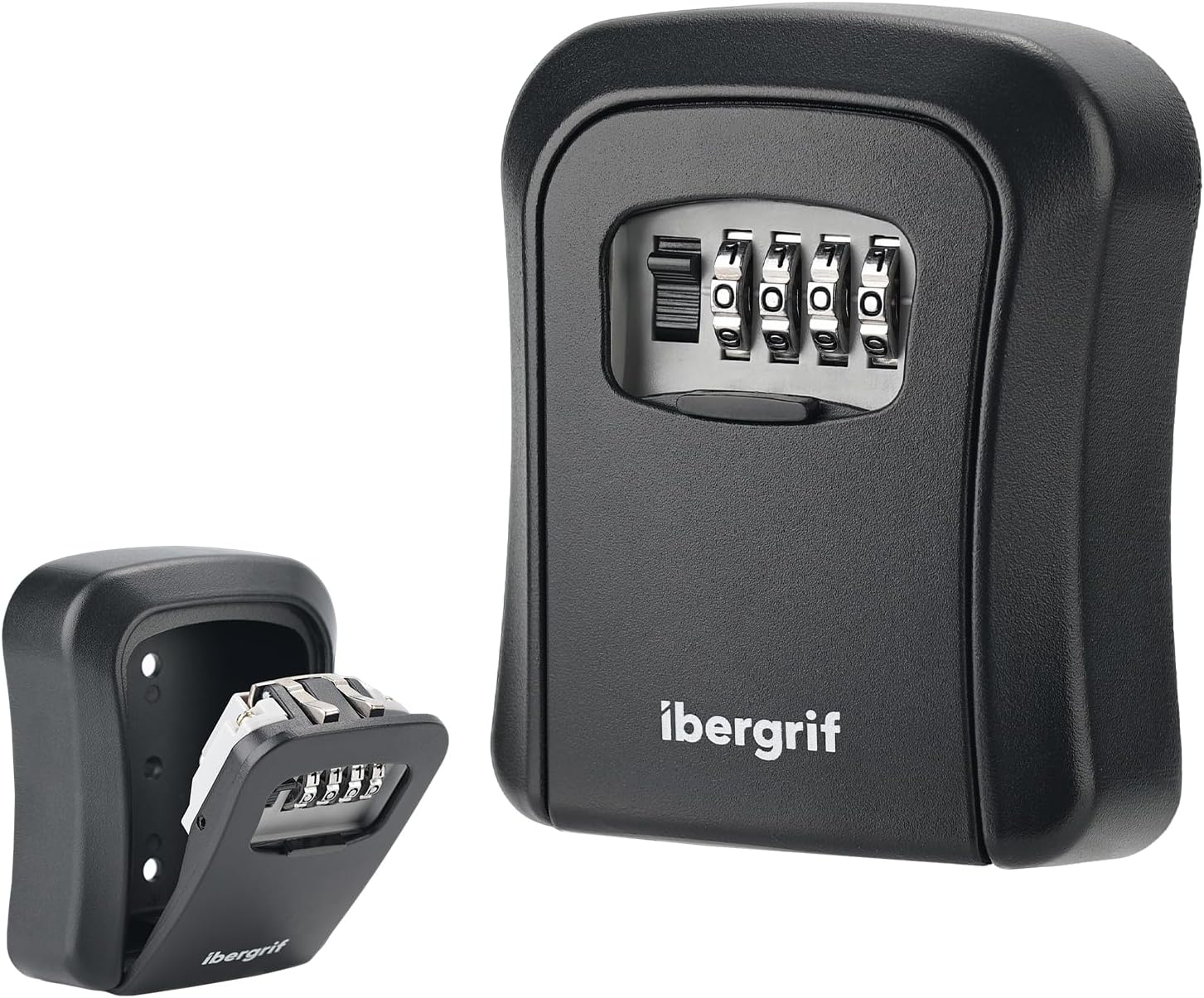

The Ibergrif MA201 is designed to securely store keys, key cards, and other small valuables. It features a robust zinc alloy construction, a 4-digit resettable combination lock, and is built to be weatherproof for outdoor use.

Klíčové vlastnosti:

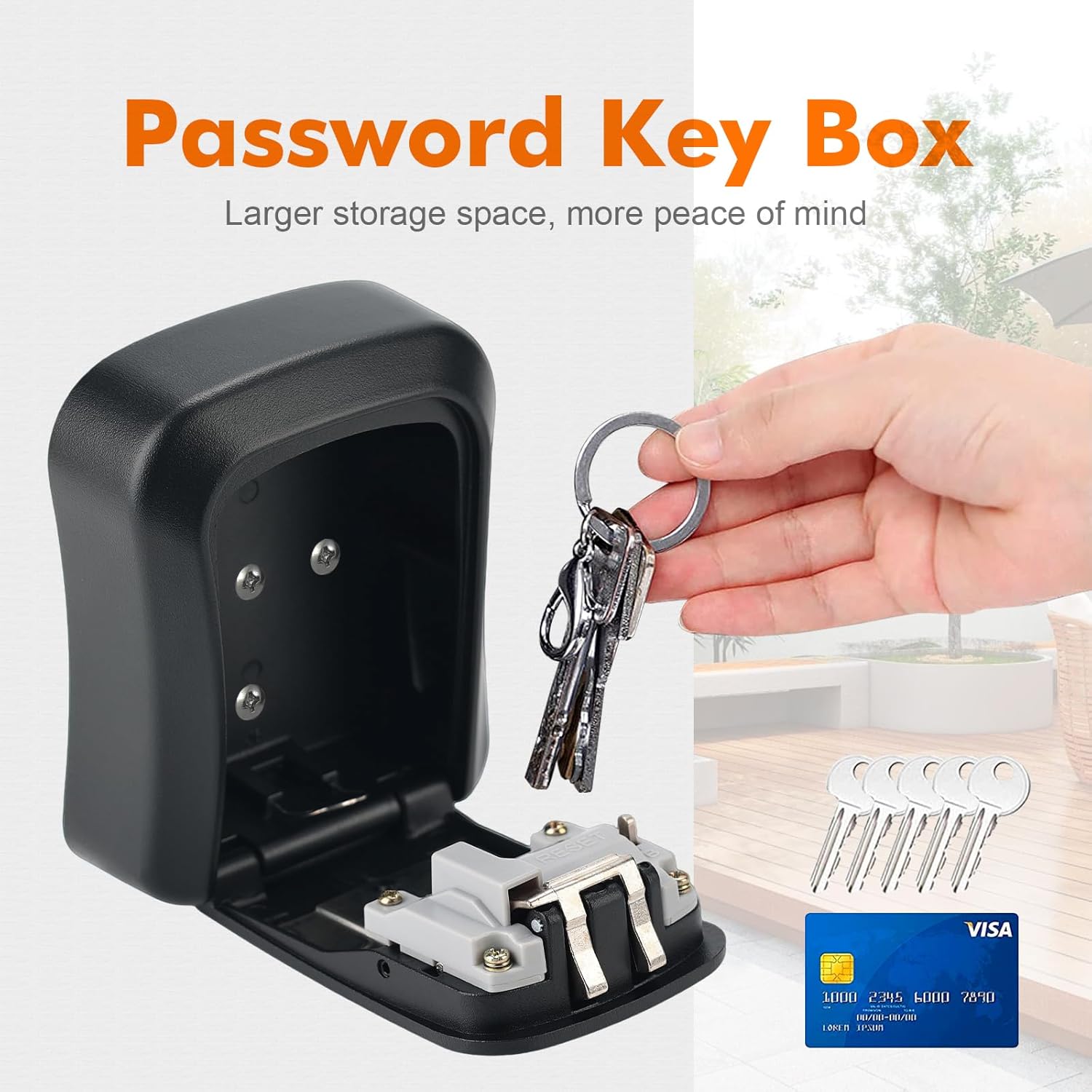

• Velká kapacita: Accommodates up to 5 keys and 1 card, or other small valuables.
• Vysoká bezpečnost: 4-digit resettable combination lock offers 10,000 possible combinations.
• Odolná konstrukce: Made from robust zinc alloy, resistant to weathering, freezing, hammering, and sawing.
• Design odolný vůči povětrnostním vlivům: Vhodné pro venkovní instalaci.
• Snadné použití: Simple code setting and operation.

2. Obsah balení

Po obdržení zkontrolujte prosím obsah balíku, abyste se ujistili, že jsou všechny položky přítomny a nepoškozené:

• 1 x Ibergrif MA201 Key Lock Box
• Mounting Screws and Wall Plugs (typically included for wall installation)
• Uživatelská příručka (tento dokument)

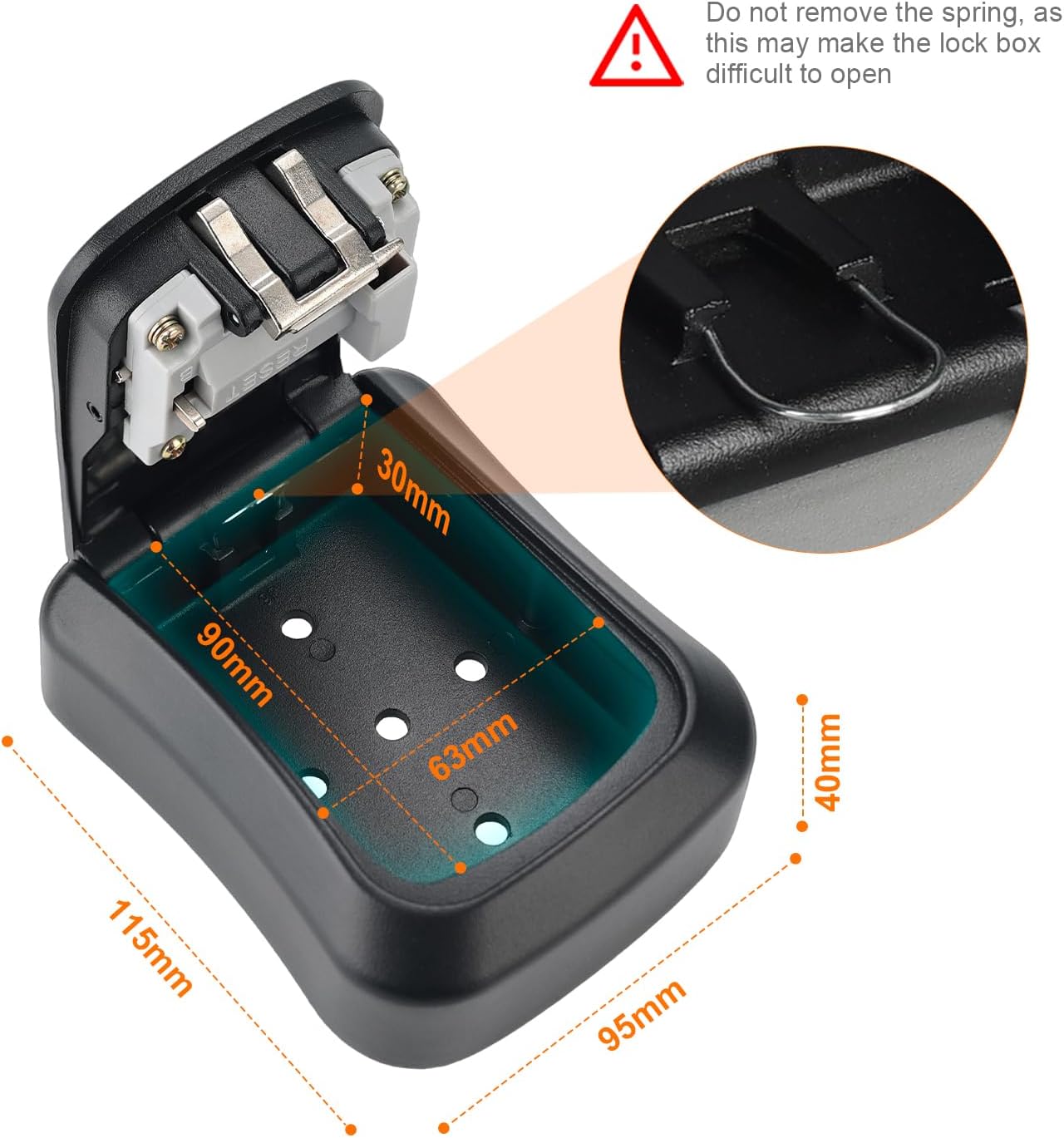

3. Specifikace produktu

4. Nastavení a instalace

4.1 Montáž na stěnu

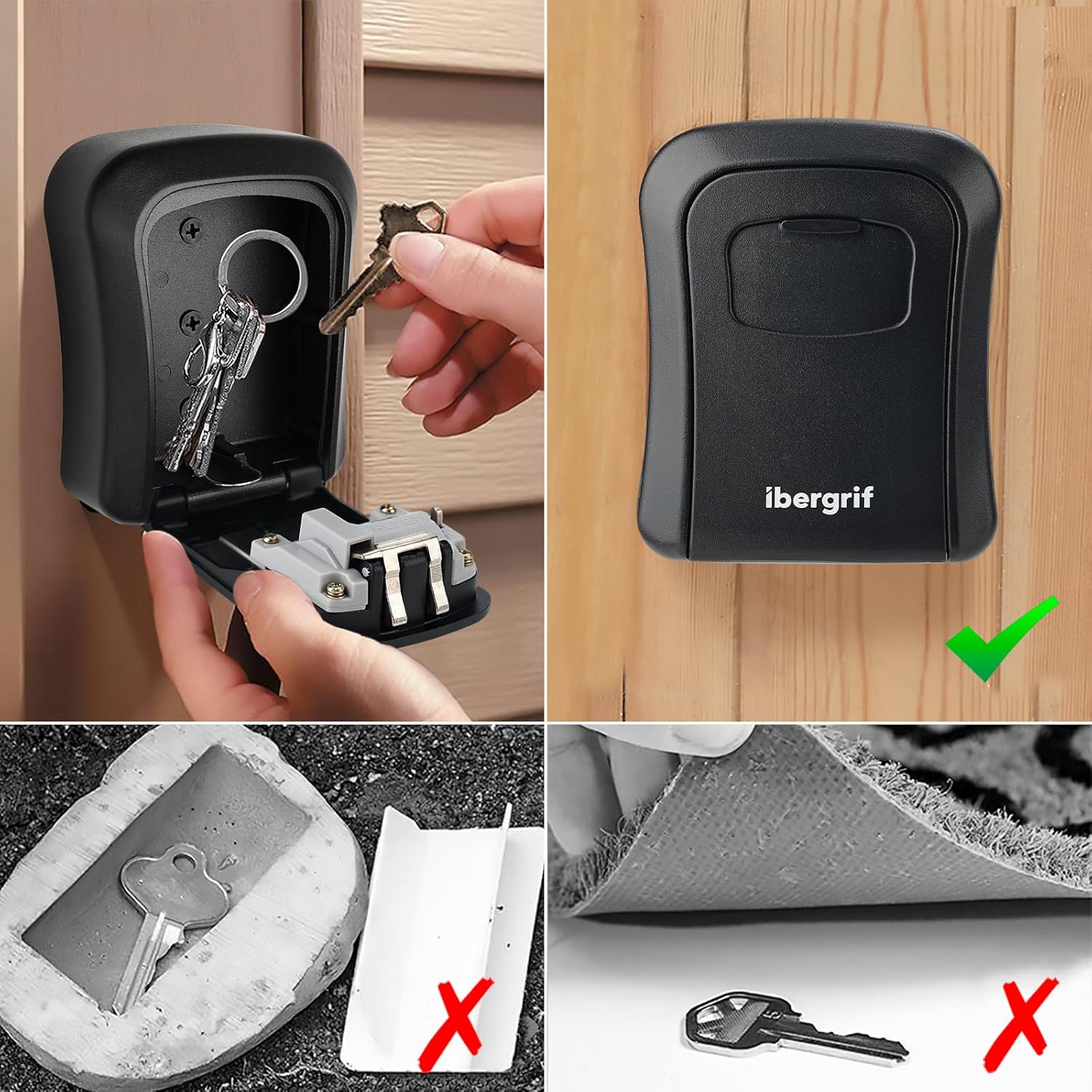

The key box is designed for wall mounting. Choose a discreet, secure, and easily accessible location. Ensure the surface is suitable for drilling and can support the weight of the key box and its contents.

1. Open the key box (initial code is 0000).
2. Hold the key box against the desired mounting surface and mark the positions for the mounting holes.
3. Drill pilot holes at the marked positions. The size of the drill bit should match the provided wall plugs.
4. Vložte hmoždinky do vyvrtaných otvorů.
5. Align the key box with the holes, insert the screws, and tighten them securely. Do not overtighten.

4.2 Setting Your Personal Combination Code

The factory default code is 0000. It is highly recommended to change this to a personal, memorable code immediately after installation.

1. Otevřete krabici: Enter the current code (default is 0000) and pull down the cover to open the key box.
2. Locate the reset lever: Inside the key box, on the back of the door mechanism, you will find a small lever. Move this lever from position "A" to position "B".
3. Set your new code: With the lever in position "B", rotate the combination dials to your desired 4-digit code. Choose a code that is easy for you to remember but difficult for others to guess.
4. Return the lever: Move the reset lever back from position "B" to position "A". This locks in your new code.
5. Test the new code: Close the key box, scramble the dials, and then enter your new code to ensure it opens correctly.

Important: Make sure to remember your new code. There is no master key or override function to reset a forgotten code. Write it down and store it in a secure, separate location.

5. Návod k obsluze

5.1 Opening the Key Box

1. Slide down the protective cover to reveal the combination dials.
2. Rotate the dials to align your 4-digit combination code with the indicator marks.
3. Pull down the front cover of the key box to open it.

5.2 Closing and Locking the Key Box

1. Place your keys or valuables inside the box.
2. Close the front cover firmly until it clicks shut.
3. Scramble the combination dials to lock the box and conceal your code.
4. Slide up the protective cover to shield the dials from weather and curious eyes.

6. Údržba

• Čištění: Wipe the exterior of the key box with a soft, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, která by mohla poškodit povrchovou úpravu nebo vnitřní mechanismy.
• Ochrana proti počasí: The key box is designed to be weatherproof. However, regularly check the protective cover for proper sealing to prevent water ingress, especially in harsh weather conditions.
• Kontrola mechanismu: Periodically check the combination dials and the opening mechanism for smooth operation. If they become stiff, a small amount of silicone-based lubricant can be applied (avoid oil-based lubricants).

7. Řešení problémů

• Key box will not open:
  • Ujistěte se, že jste zadali správnou třímístnou kombinaci. Každou číslici dvakrát zkontrolujte.
  • Make sure the dials are perfectly aligned with the indicator marks.
  • If the code was recently changed, ensure the reset lever was fully returned to position "A".
• Dials are stiff or difficult to turn:
  • Clean the dials and surrounding area to remove any dirt or debris.
  • Apply a small amount of silicone-based lubricant to the moving parts of the dials.
• Zapomenutá kombinace:

  Varování: There is no emergency key or master code to open the key box if the combination is forgotten. If you forget your code, the key box cannot be opened without destructive methods. It is crucial to keep a record of your code in a secure, separate location.

8. Záruka a podpora

Ibergrif products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Ibergrif webmísto.

If you encounter any issues or have questions regarding your Ibergrif MA201 Key Box, please contact Ibergrif customer support through their official website or the retailer from whom you purchased the product. Please have your model number (MA201) and purchase details ready when contacting support.
