1. Úvod
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your ASUS TUF Gaming VG27AQ5A 27-inch 1440P Gaming Monitor. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.
2. Bezpečnostní informace
Observe the following safety guidelines to ensure safe operation and to extend the lifespan of your monitor:
- Place the monitor on a stable, flat surface to prevent accidental falls.
- Do not block ventilation openings. Ensure adequate space around the monitor for heat dissipation.
- Používejte pouze napájecí adaptér a kabely dodané společností ASUS.
- Nevystavujte monitor vlhkosti, dešti nebo extrémním teplotám.
- Disconnect the power cable from the wall outlet before cleaning or if the monitor will not be used for an extended period.
- Nepokoušejte se monitor opravovat sami. Veškerý servis svěřte kvalifikovanému servisnímu personálu.
3. Co je v krabici
Ověřte, zda jsou v balení přítomny všechny níže uvedené položky:
- VG27AQ5A Gaming monitor
- Kabel DisplayPort
- HDMI kabel
- Šroubovák ve tvaru L
- Power cord (region-dependent)
- Průvodce rychlým startem
- Záruční list

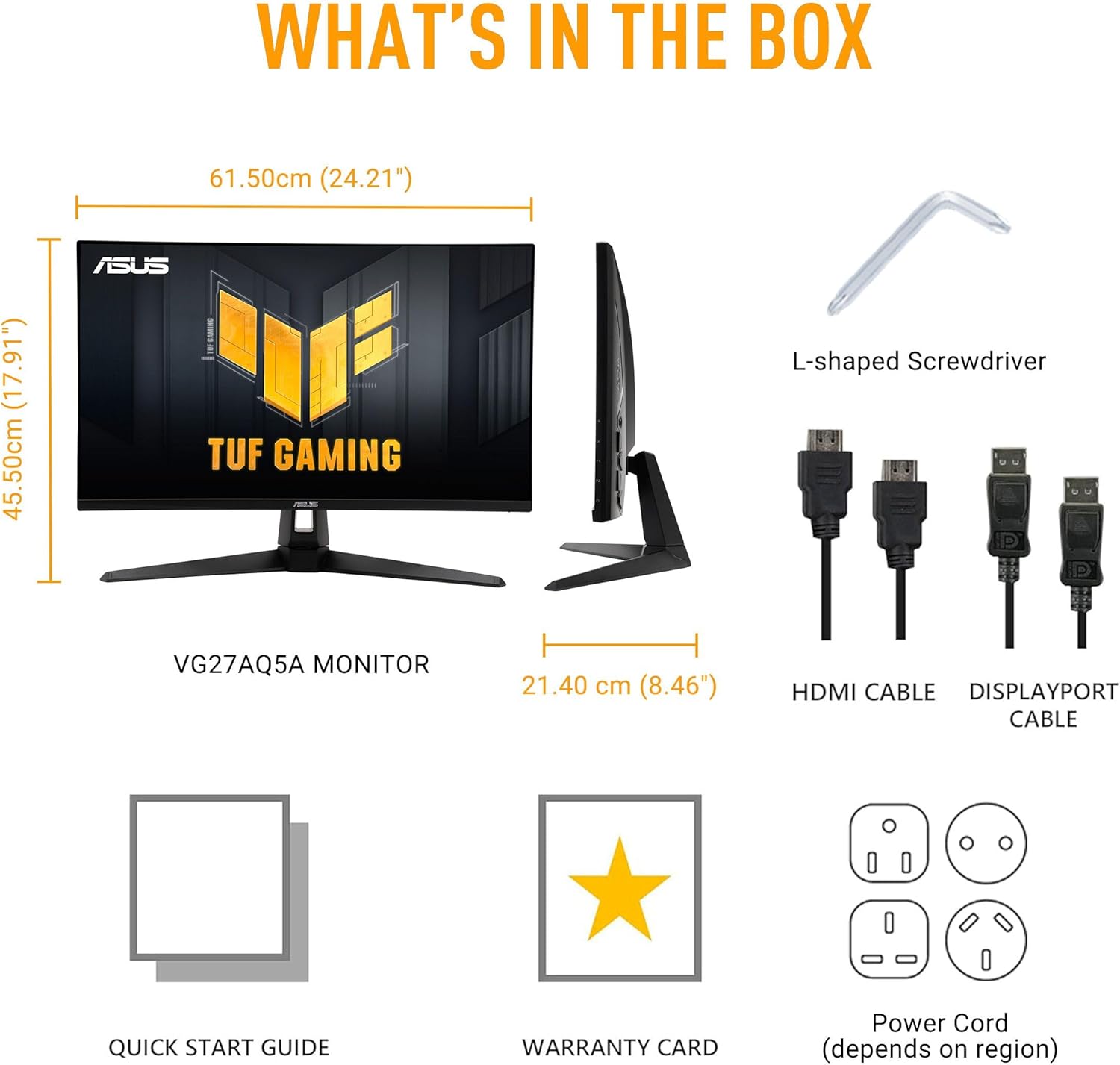

Obrázek 3.1: Package Contents. This image illustrates the monitor, DisplayPort cable, HDMI cable, L-shaped screwdriver, power cord, quick start guide, and warranty card.
4. Nastavení
4.1 Sestavení stojanu monitoru
- Monitor opatrně položte displejem dolů na měkký, čistý povrch, abyste zabránili poškrábání.
- Attach the stand base to the stand neck, securing it with the provided screw using the L-shaped screwdriver.
- Align the assembled stand with the mounting holes on the back of the monitor and secure it firmly.
4.2 Připojení monitoru
Connect the monitor to your computer and power source using the following steps:
- Připojení napájení: Připojte napájecí kabel k napájení monitoru a poté zapojte druhý konec do elektrické zásuvky.
- Připojení videa: Vyberte jednu z následujících možností:
- DisplayPort: Connect one end of the DisplayPort cable to the monitor's DisplayPort input and the other end to your computer's DisplayPort output.
- HDMI: Connect one end of an HDMI cable to one of the monitor's HDMI inputs and the other end to your computer's HDMI output.
- Připojení zvuku (volitelné): If using external speakers or headphones, connect them to the monitor's earphone jack.
Obrázek 4.1: Monitor Connectivity Ports. This image displays the rear of the monitor with labels for HDMI 2.0 (x2), DisplayPort, Earphone Jack, and Type-C (service port).
4.3 Nastavení monitoru
The monitor offers tilt adjustment for optimal viewpohodlí:
- Náklon: Gently hold both sides of the monitor and tilt it to your desired angle (from +20° to -5°).
Obrázek 4.2: Tilt Adjustment. This image demonstrates the monitor's ability to tilt upwards by 20 degrees and downwards by 5 degrees.
5. Obsluha monitoru
5.1 Zapnutí/vypnutí
Press the power button located on the monitor to turn it on or off. The power indicator light will illuminate when the monitor is on.
5.2 Navigace v nabídce OSD (On-Screen Display)
The monitor features an intuitive OSD menu for adjusting various settings. Use the joystick and buttons on the back or bottom of the monitor to navigate:
- Stisknutím joysticku otevřete nabídku OSD.
- Move the joystick up/down to navigate through menu options.
- Move the joystick left/right to adjust values or enter sub-menus.
- Opětovným stisknutím joysticku potvrdíte výběr.
5.3 Klíčové funkce a nastavení
The VG27AQ5A monitor is equipped with several features to enhance your viewherní zážitek:
5.3.1 Centrum DisplayWidget
The DisplayWidget Center software allows for easy adjustment of monitor settings directly from your computer using a mouse. Key functionalities include:
- Přizpůsobitelná nastavení: Adjust image, color, and gaming settings with a graphical interface.
- Oznámení o aktualizaci firmwaru: Receive alerts for available firmware updates.
- Ovládání více obrazovek: Manage settings for multiple ASUS monitors.
Obrázek 5.1: DisplayWidget Center Interface. This image shows the software's menu for adjusting display modes, image parameters like brightness and contrast, and color settings.
5.3.2 Herní funkce
Designed for professional gamers, the VG27AQ5A offers advanced gaming technologies:
- Rychlý IPS panel: Provides a 0.3ms (GTG) response time for sharp visuals and minimal ghosting.
- Vysoká obnovovací frekvence: Supports up to 210Hz (Overclocked) refresh rate for fluid motion.
- Synchronizace s extrémně nízkým rozmazáním pohybu (ELMB Sync): Enables ELMB and variable refresh rate (VRR) technologies to work simultaneously, reducing motion blur and tearing.
- AMD FreeSync™ Premium: Delivers a tear-free gaming experience by synchronizing the monitor's refresh rate with the GPU's frame rate.
- Gaming AI: Enhances gameplay with features such as:
- Dynamický zaměřovací kříž: Poskytuje zaměřovací kříž na obrazovce pro lepší míření.
- Dynamické zvýraznění stínů: Automatically brightens dark areas of the game without overexposing bright areas.
- Vizualizace s umělou inteligencí: Optimizes visual settings based on game content.
Obrázek 5.2: Series 5 Upgrades Overview. This image summarizes the monitor's enhanced speed, fluidity, gaming AI, colors, and user-friendly features.
Obrázek 5.3: Unstoppable Gaming Performance. This image highlights the monitor's high resolution, fast response time, and high refresh rate for an enhanced gaming experience.
Obrázek 5.4: Game Without Limits with VRR. This image illustrates the visual improvement when Variable Refresh Rate is enabled, eliminating screen tearing and improving fluidity.
Obrázek 5.5: Smarter Play, Greater Wins with Gaming AI. This image shows how Dynamic Crosshair and Dynamic Shadow Boost features enhance gameplay visibility and aiming.
5.3.3 Color and Visuals
The monitor provides accurate and vibrant colors, along with eye-care technologies:
- 95% DCI-P3 Gamut: Offers a wide color spectrum for rich and accurate color reproduction.
- Technologie nízkého modrého světla: Reduces harmful blue light emissions to minimize eye strain during prolonged use. Certified by TÜV Rheinland.
- Technologie Flicker-Free: Eliminates screen flickering, further reducing eye fatigue. Certified by TÜV Rheinland.
Obrázek 5.6: Low Blue Light Feature. This image demonstrates the effect of the monitor's Low Blue Light technology, which helps reduce eye strain. For more information, visit Certifikace TÜV Rheinland.
Obrázek 5.7: Flicker-Free Technology. This image illustrates the benefit of Flicker-Free technology in reducing screen flickering for improved visual comfort. For more information, visit Certifikace TÜV Rheinland.
6. Údržba
6.1 Čištění monitoru
- Před čištěním vždy odpojte monitor od elektrické zásuvky.
- Použijte měkký hadřík, který nepouští vlákna dampvodou nebo jemným, neabrazivním čističem obrazovek.
- Nestříkejte čisticí prostředek přímo na obrazovku.
- Nepoužívejte agresivní chemikálie, rozpouštědla nebo abrazivní materiály, protože by mohly poškodit obrazovku neboasing.
6.2 Skladování
If storing the monitor for an extended period, ensure it is clean, dry, and stored in its original packaging or a protective cover in a cool, dry place.
7. Řešení problémů
Běžné problémy a jejich řešení naleznete v tabulce níže:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádná síla | Power cable not connected; Power outlet faulty; Monitor power button off. | Ensure power cable is securely connected. Test power outlet with another device. Press the monitor's power button. |
| Žádný signál | Video cable not connected; Incorrect input source selected; Computer not powered on. | Check video cable connections (DisplayPort/HDMI). Select correct input source via OSD menu. Ensure computer is on and outputting video. |
| Obraz je rozmazaný nebo zkreslený | Incorrect resolution; Video cable issue; Graphics driver outdated. | Set display resolution to 2560x1440. Try a different video cable. Update graphics drivers on your computer. |
| Blikání obrazovky | Refresh rate mismatch; Cable issue; External interference. | Ensure refresh rate is set correctly in OS display settings. Check video cable. Minimize nearby electronic devices. |
| Barvy jsou nesprávné | Color settings incorrect; Monitor profile problém. | Adjust color settings via OSD or DisplayWidget Center. Calibrate monitor colors if necessary. |
8. Specifikace
Key technical specifications for the ASUS TUF Gaming VG27AQ5A monitor:
| Funkce | Specifikace |
|---|---|
| Velikost obrazovky | 27 palce |
| Typ panelu | Téměř IPS |
| Rezoluce | QHD (2560 1440 x XNUMX XNUMX) |
| Obnovovací frekvence | 210Hz (Overclocked) |
| Doba odezvy | 0.3 ms (GTG) |
| Poměr stran | 16:9 |
| Barevný gamut | 95 % DCI-P3 |
| Podpora HDR | Ano |
| Technologie adaptivní synchronizace | AMD FreeSync™ Premium, VESA AdaptiveSync |
| Konektivita | 2x HDMI 2.0, 1x DisplayPort, Earphone Jack, 1x Type-C (service port) |
| Vestavěné reproduktory | Ano |
| Rozměry (DxŠxV) | 8.4 x 24.2 x 17.9 palce |
| Hmotnost | 11.02 libry |
9. Záruka a podpora
9.1 Informace o záruce
This ASUS TUF Gaming VG27AQ5A monitor typically comes with a 3-year limited warranty. Please refer to the included Warranty Card in your product package for detailed terms, conditions, and regional specifics. Retain your proof of purchase for warranty claims.
9.2 Zákaznická podpora
For technical assistance, product inquiries, or warranty service, please visit the official ASUS support website or contact your local ASUS customer service center. You can find contact information and support resources at www.asus.com/support/.
