SRNE SL2410 PWM Solar Charge Controller User Manual

1. Úvod

This manual provides essential information for the safe and efficient operation of your SRNE SL2410 PWM Solar Charge Controller. The SL2410 is a 12V/24V auto-sensing, 10A Pulse Width Modulation (PWM) solar charge controller designed for various solar power systems, including street lights and monitoring devices. It features an IP67 waterproof rating and an aluminum shell for enhanced durability.

Klíčové vlastnosti:

• Napětí systému 12V/24Vtage auto-detection.
• LED numeric display and waterproof keys for easy operation.
• Pokročilé 3-stage PWM charging algorithm for battery health.
• Support for multiple battery types: sealed, GEL, flooded lead-acid, ternary-material lithium, and lithium iron phosphate.
• Five load working modes for diverse applications.
• External temperature sensor for precise temperature compensation.
• Power-down saving function for parameter retention.
• Comprehensive protections: overcharge, over-discharge, overload, short-circuit, reverse-connection, and TVS lighting protection.

Obrázek 1: Přední strana view of the SRNE SL2410 PWM Solar Charge Controller, showing the display, keys, and cable connections.

2. Bezpečnostní informace

Please read all instructions carefully before installation and operation to prevent damage to the controller, battery, or other components.

• Ensure all wiring is correct and connections are secure before applying power. Incorrect wiring can cause damage.
• Vždy nejprve připojte baterii, poté solární panel a nakonec zátěž. Odpojení provádějte v opačném pořadí.
• Do not attempt to disassemble or repair the controller. Contact qualified personnel for service.
• Regulátor instalujte v dobře větraném prostoru, mimo dosah hořlavých materiálů.
• Although the controller has an IP67 waterproof rating, avoid submerging it in water or exposing it to extreme conditions beyond its operating temperature range.
• Zajistěte, aby systém voltage (12V or 24V) matches the controller's auto-detection capability and your battery bank.
• Používejte vhodné jističe nebo pojistky pro solární panel, baterii a obvody zátěže.

3. Konec produktuview a Komponenty

The SRNE SL2410 controller features a compact design with clearly labeled connection points and indicators.

Figure 2: Diagram showing the main components and indicators of the SRNE SL2410 controller.

Identifikace součásti:

• Indikátor nabíjení: Displays the status of solar charging.
• Indikátor baterie: Shows the battery's charge level and status.
• Indikátor zatížení: Indicates the status of the connected load.
• Klíč: Používá se pro navigaci v menu a potvrzování výběrů.
• režim: Used for changing operating modes and settings.
• Připojovací vodiče: Pre-wired cables for solar panel, battery, and load connections.
• Teplotní senzor: External sensor for accurate battery temperature compensation.

4. Nastavení a instalace

Proper installation is crucial for the controller's performance and longevity.

4.1 Schéma zapojení

Follow the wiring sequence carefully to avoid damage.

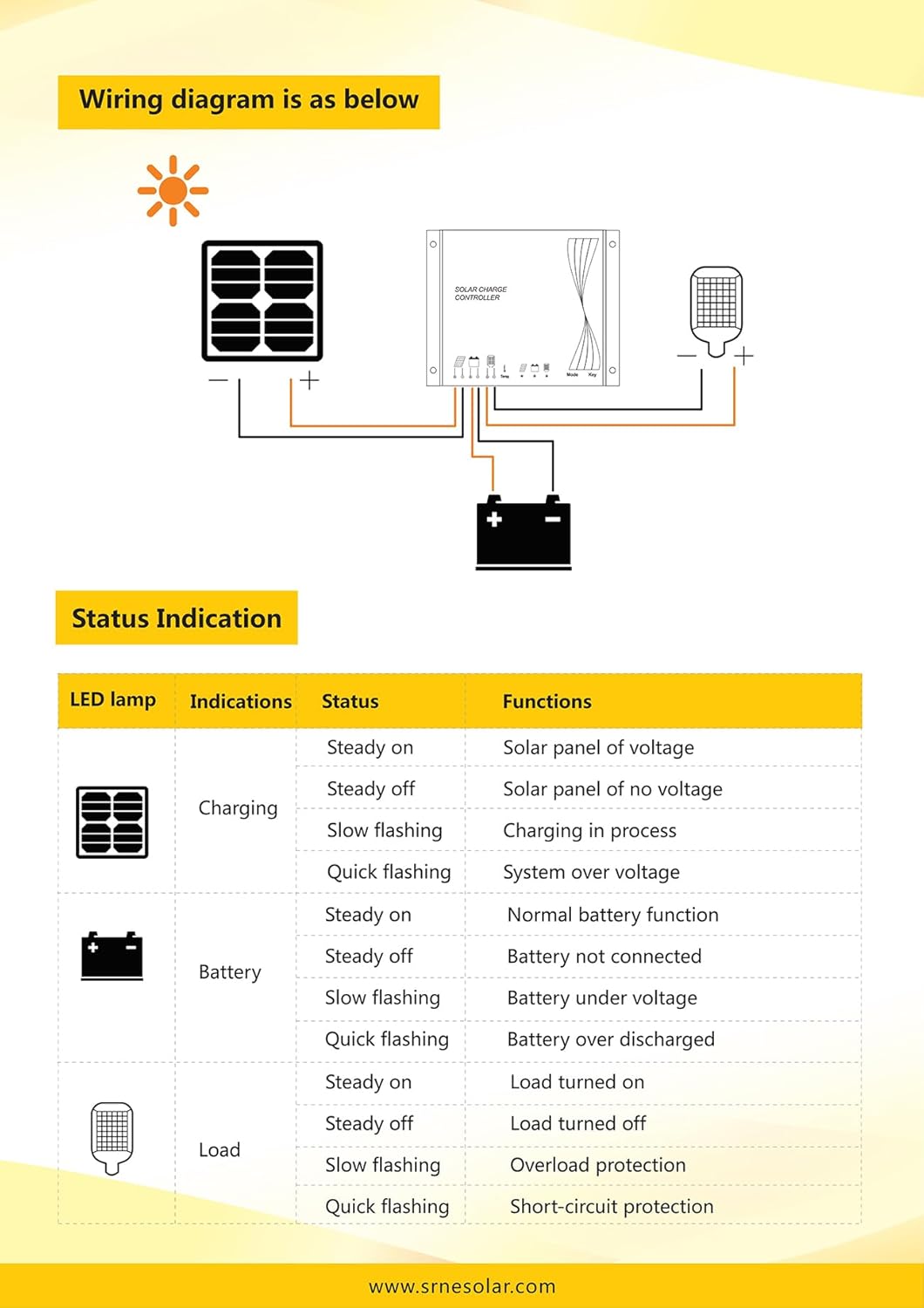

Figure 3: Wiring diagram illustrating connections for the solar panel, battery, and load.

Kroky zapojení:

1. Připojte baterii: Connect the battery's positive and negative terminals to the corresponding battery connection leads on the controller. Ensure correct polarity. The controller will automatically detect the system voltage (12V nebo 24V).
2. Připojte solární panel: Connect the solar panel's positive and negative terminals to the corresponding solar panel connection leads on the controller. Ensure correct polarity.
3. Připojení zátěže: Connect the load's positive and negative terminals to the corresponding load connection leads on the controller. Ensure correct polarity.

Důležité: Vždy nejdříve připojte baterii, poté solární panel a nakonec zátěž. Odpojujte v opačném pořadí: zátěž, poté solární panel a nakonec baterii.

4.2 Montáž

The controller should be mounted in a location that allows for adequate air circulation. Refer to the dimensions below for installation planning.

Figure 4: Installation dimensions for the SRNE SL2410 controller (dimensions in mm).

Rozměry ovladače: 82mm (length) x 58mm (width) x 20mm (height).

5. Návod k obsluze

The SRNE SL2410 controller is designed for user-friendly operation with its LED display and waterproof keys.

5.1 Indikace stavu LED

The controller provides visual feedback through its LED indicators:

5.2 Nastavení parametrů

The controller allows for various parameter settings using the 'Mode' and 'Key' buttons. The power-down saving function ensures that your settings are retained even after power loss.

• Výběr typu baterie: The controller supports sealed, GEL, flooded lead-acid, ternary-material lithium, and lithium iron phosphate batteries. Refer to the controller's display and manual for specific steps to select the correct battery type.
• Load Working Modes: Up to 5 load working modes are available, facilitating application to different types of road lamps and monitoring devices. Consult the detailed product documentation for instructions on configuring these modes.
• Teplotní kompenzace: The external temperature sensor ensures accurate charging voltage adjustments based on ambient temperature, optimizing battery life.

6. Údržba

The SRNE SL2410 is designed for low maintenance due to its robust IP67 rating and aluminum casing. However, periodic checks are recommended:

• Kontrola připojení: Pravidelně kontrolujte veškeré kabelové spoje, zda nejsou pevně utažené a zda nejsou zkorodované. Volné spoje mohou způsobit výbuch.tagkapky a přehřívání.
• Vyčistěte ovladač: While waterproof, ensure the controller's surface is clean from dust and debris to maintain optimal heat dissipation. Use a soft, dry cloth.
• Monitorování výkonu: Observe the LED indicators regularly to ensure the system is operating normally.

7. Řešení problémů

This section provides guidance for common issues. Refer to the LED Status Indication table in Section 5.1 for diagnostic help.

• Bez napájení/Vypnutí displeje: Check battery connections. Ensure the battery is charged above the controller's minimum operating voltage.
• No Charging (Charging LED off): Verify solar panel connections and ensure there is sufficient sunlight. Check for system over voltage (quick flashing Charging LED).
• Load Not Working (Load LED off): Check load connections. Ensure the battery is not under voltage (slow flashing Battery LED) or over-discharged (quick flashing Battery LED). Check for overload protection (slow flashing Load LED) or short-circuit protection (quick flashing Load LED).
• Battery Not Connected (Battery LED steady off): Recheck battery wiring and ensure secure connections.
• System Over Voltage (Charging LED quick flashing): Ensure the solar panel's open-circuit voltagnepřekračuje maximální vstupní hlasitost regulátorutage.

If issues persist, consult the manufacturer or a qualified technician.

8. Specifikace

Technical parameters for the SRNE SL2410 PWM Solar Charge Controller:

9. Záruka a podpora

Informace o záruce a technickou podporu naleznete v dokumentaci dodané s vaším nákupem nebo se obraťte přímo na prodejce/výrobce. Uschovejte si účtenku jako doklad o koupi.
