VEVOR FS800LBJF4 Ultra-Lightweight Transport Wheelchair

1. Úvod

This manual provides essential instructions for the safe and effective use, assembly, and maintenance of your VEVOR FS800LBJF4 Aluminum Alloy Ultra-Lightweight Transport Wheelchair. Please read this manual thoroughly before initial use and retain it for future reference.

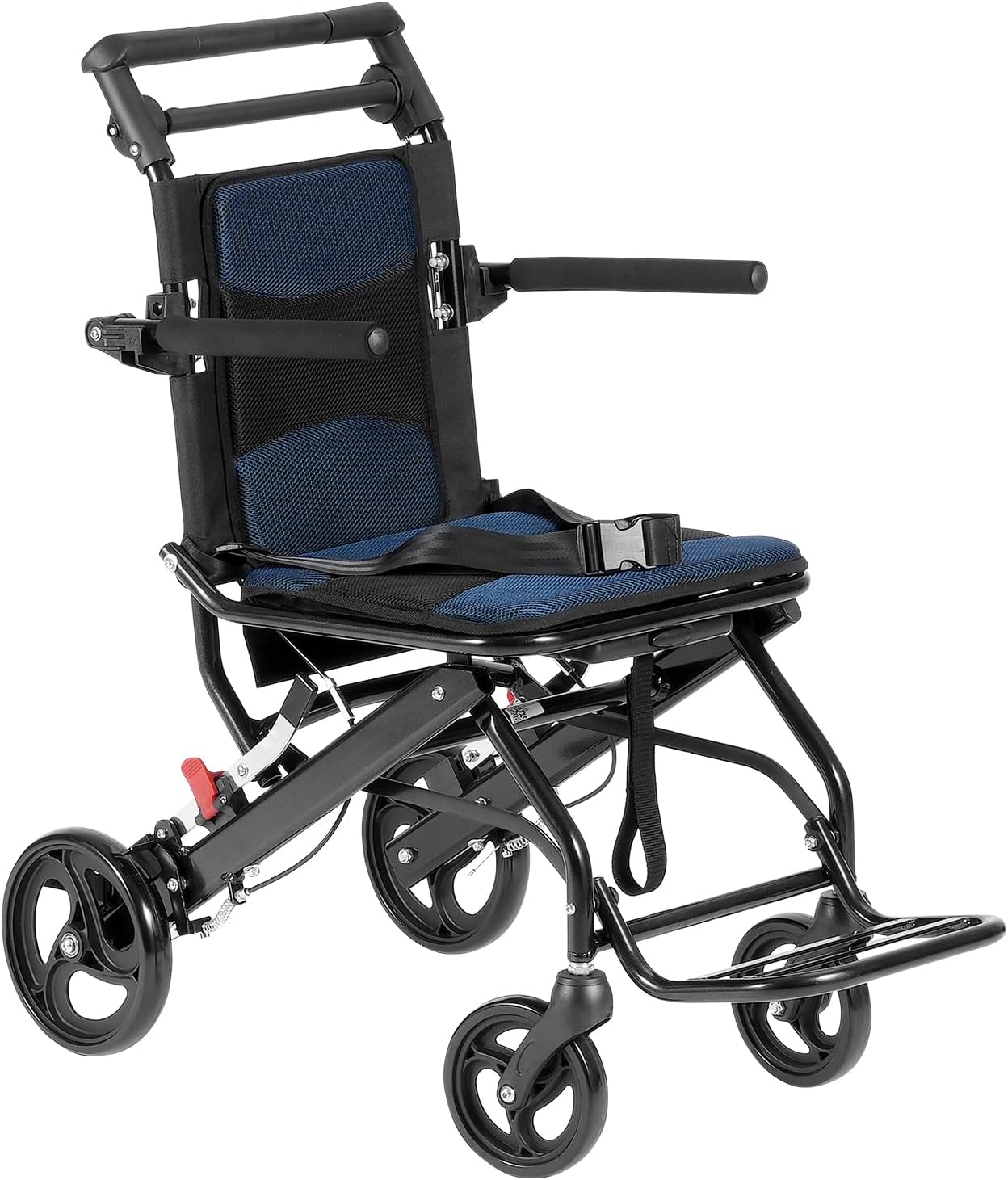

The VEVOR FS800LBJF4 is an ultra-lightweight transport chair designed for adults, featuring a foldable aluminum alloy frame, flip-back desk-length arms, self-locking brakes, and a 15.75-inch wide seat, supporting up to 220 lbs. Its compact design makes it suitable for travel and easy storage.

2. Bezpečnostní informace

• Přečtěte si všechny pokyny: Before operating the wheelchair, ensure you have read and understood all instructions in this manual.
• Nosnost: Do not exceed the maximum weight capacity of 220 lbs (100 kg). Exceeding this limit can compromise safety and product integrity.
• brzdy: Always engage the self-locking brakes when the wheelchair is stationary, during transfers, or when unattended to prevent accidental movement.
• Dozor: A caregiver must always be present to assist the user. This is a transport chair and is not designed for independent propulsion by the user.
• Nerovné povrchy: Exercise extreme caution on uneven terrain, inclines, or declines. Always approach obstacles slowly and with assistance.
• Převody: Ensure the wheelchair is stable and brakes are engaged before attempting any transfers into or out of the chair. Utilize the flip-up armrests for easier access.
• Údržba: Regularly inspect all components for wear, damage, or loose parts. Do not use the wheelchair if any part is damaged or malfunctioning.
• Modifikace: Do not modify the wheelchair in any way. Unauthorized modifications can void the warranty and create safety hazards.

3. Komponenty produktu

Familiarize yourself with the main components of your VEVOR transport wheelchair:

• Rám: Lightweight aluminum alloy construction.
• Sedák a opěradlo: Durable textile fabric with cushioning.
• Područky: Flip-back, desk-length design for easy transfers.
• Opěrky na nohy: Integrated, foldable footrests.
• kola: Solid, anti-puncture PU tires (front and rear).
• brzdy: Self-locking attendant brakes on the push handles.
• Safety Latch: Mechanism to secure the wheelchair in the unfolded position.
• Hook-and-Loop Straps: For securing the wheelchair in the folded position.

4. Nastavení a montáž

The VEVOR FS800LBJF4 wheelchair is designed for easy assembly with pre-installed components. Follow these simple steps to prepare your wheelchair for use:

1. Rozložte invalidní vozík: Release the hook-and-loop straps that secure the wheelchair in its folded position. Gently pull the sides of the wheelchair apart until the frame is fully extended.
2. Lower the Footrests: Swing the footrests down into their operational position.
3. Position Armrests: Ensure the flip-back armrests are in the down and locked position for use.
4. Zapnutí bezpečnostní západky: Locate the red locking buttons on both sides of the leg frame. Fasten these to secure the wheelchair in the open position. You should hear a click, indicating it is locked.

5. Návod k obsluze

5.1. Používání brzd

The VEVOR wheelchair is equipped with self-locking brakes on the push handles to ensure safety and prevent accidental movement.

• To Engage Brakes: Push the crossbar on the push handles backward until you hear a crisp "click." This locks the wheels.
• Uvolnění brzd: Pull the red switch (or red ball) on the push handles forward to unlock the wheels.

5.2. Maneuvering Steps and Obstacles

To safely navigate small steps or obstacles:

1. Lift Front Wheels: Press down with your foot on the arrow-marked point near the rear wheels to lift the front wheels slightly.
2. Mount Obstacle: Push the wheelchair forward to mount the step with the rear wheels.
3. Lower Front Wheels: Release your foot to lower the front wheels onto the step and continue moving.

5.3. Adjusting Armrests and Footrests

The wheelchair features flip-back armrests and openable footrests for enhanced user access and comfort during transfers.

• Flip-Back Armrests: To facilitate transfers, the armrests can be flipped up and out of the way.
• Openable Footrests: The footrests can be opened to the left and right, providing clear access for the user to get in and out of the chair.

5.4. Folding for Storage and Transport

The wheelchair features a one-touch folding design for simple and quick operation, making it compact for storage and travel.

1. Release Safety Latch: Disengage the red safety latch buttons on the leg frame.
2. Fold Armrests and Footrests: Fold the armrests upwards and the footrests inwards.
3. Collapse Wheelchair: Lift the seat upwards, allowing the frame to collapse inward.
4. Zajistit: Pull out the handle and use the hook-and-loop straps to secure the folded wheelchair frame, ensuring it remains compact.

6. Údržba

Regular maintenance ensures the longevity and safe operation of your VEVOR wheelchair.

• Čištění: Vyčistěte rám reklamouamp cloth and mild detergent. The textile fabric seat and backrest are easy to clean; wipe with a damp hadříkem dle potřeby. Nepoužívejte abrazivní čisticí prostředky.
• Kontrola pneumatik: Periodically check the solid PU tires for any signs of wear or damage. While puncture-proof, ensure they are free from debris that could affect traction.
• Kontrola brzd: Regularly test the self-locking brakes to ensure they engage securely and hold the wheelchair in place. If brakes feel loose or ineffective, consult a professional.
• Frame and Fasteners: Inspect the aluminum alloy frame for any cracks, bends, or signs of stress. Check all screws, bolts, and fasteners for tightness and re-tighten if necessary.
• Pohyblivé části: Ensure all moving parts, such as armrest hinges and footrest pivots, operate smoothly. Lubricate with a silicone-based spray if needed.
• Skladování: Store the wheelchair in a dry, clean environment away from direct sunlight and extreme temperatures.

7. Řešení problémů

If you encounter any issues with your VEVOR wheelchair, refer to the following common troubleshooting tips:

• Wheelchair Does Not Unfold/Fold Smoothly:
  - Check for any obstructions in the folding mechanism.
  - Ensure all safety latches and straps are disengaged before unfolding, and engaged after folding.
• Brakes Not Engaging/Releasing:
  - Inspect the brake cables for damage or kinks.
  - Ensure the brake lever is fully pushed or pulled. If the issue persists, professional adjustment may be required.
• Kola se neotáčejí hladce:
  - Check for debris caught in the wheels or axles.
  - Inspect wheels for damage or excessive wear.
• Nestabilní pocit:
  - Ensure all frame connections are secure and the safety latch is fully engaged.
  - Verify that the maximum weight capacity is not exceeded.

V případě problémů, které se vám nepodaří vyřešit pomocí těchto kroků, kontaktujte zákaznickou podporu VEVOR.

8. Specifikace

9. Záruka a podpora

For specific warranty information regarding your VEVOR FS800LBJF4 Ultra-Lightweight Transport Wheelchair, please refer to the warranty card included with your purchase or visit the official VEVOR webZáruční podmínky se mohou lišit.

If you require technical assistance, have questions about product operation, or need to report a defect, please contact VEVOR customer support through their official channels. Ensure you have your model number (FS800LBJF4) and purchase details available when contacting support.
