1. Úvod
This manual provides detailed instructions for the installation, operation, and maintenance of your 5 CORE CS 05 2W 5-inch 2-way coaxial car speakers. Please read this manual thoroughly before using the product to ensure proper setup and optimal performance. These speakers are designed to deliver clear, powerful audio for an enhanced in-car listening experience.
2. Klíčové vlastnosti
- Výkonný zvukový výstup: 350W maximum power and 35W RMS for loud, distortion-free sound.
- 2-cestný koaxiální design: Features an 88dB sensitivity rating for balanced highs, mids, and lows, providing enhanced stereo clarity.
- Široká frekvenční odezva: Covers 75Hz to 20KHz, ensuring rich bass and crisp treble.
- Impedance 4 ohmy: Compatible with most car audio systems, reducing distortion for high-quality sound.
- Odolná konstrukce: Built with a rubber edge and injection cone for long-lasting performance.
- Snadná instalace: Compact 58 ±1.0mm mounting depth for versatile fit in car doors and trucks.

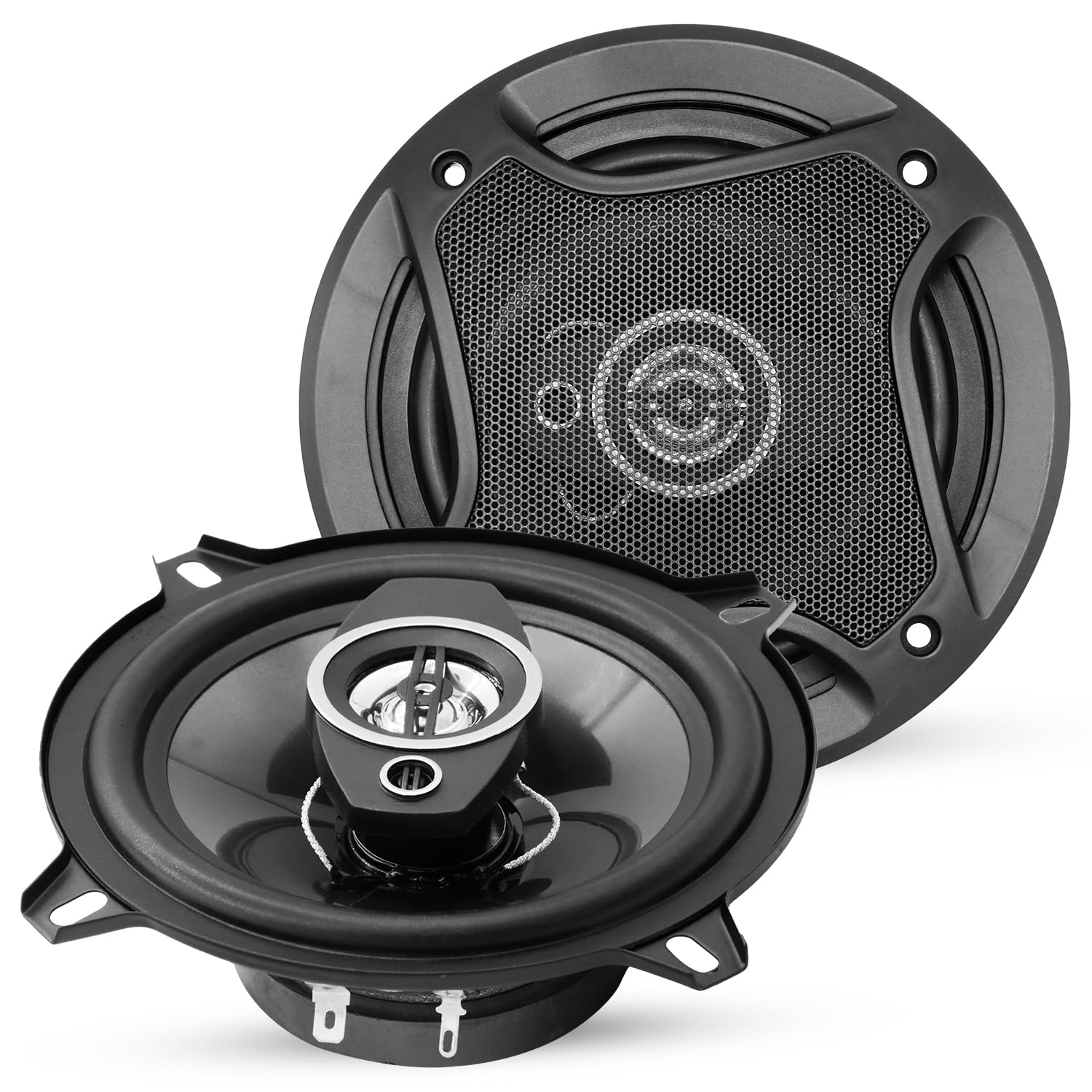

Obrázek 2.1: Přesview of the 5 CORE CS 05 2W car speaker.
Figure 2.2: Key power specifications including 350W Max Power, 1-inch Voice Coil Size, and 4 Ohm Impedance.
Figure 2.3: Details on the 5.2 oz magnet and 1-inch ASV voice coil for robust bass performance.
Figure 2.4: Visual representation of highlighted features: built-in super tweeter, aluminum voice coil, flexible rubber surround, 75-20KHz frequency, and rubber edge injection cone.
Figure 2.5: Diagram illustrating the internal components of the car speaker, including the rubber edge, built-in metal basket, 2-way system with built-in tweeter, sturdy metal frame, and pre-drilled holes.
3. Obsah balení
Po vybalení se ujistěte, že jsou všechny položky přítomny:
- 2x 5 CORE CS 05 2W Car Speakers
4. Technické specifikace
Obrázek 4.1: Vizuální shrnutí klíčových technických specifikací.
| Specifikace | Hodnota |
|---|---|
| Název modelu | 5 Inch 2 Way |
| Velikost reproduktoru | 5 palce |
| Typ reproduktoru | 2cestný koaxiální |
| Maximální výstupní výkon reproduktoru | 350 wattů |
| Impedance | 4 ohmů |
| Frekvenční odezva | 75Hz - 20KHz |
| Citlivost | 88 ± 3dB |
| Hlasová cívka | 1 Inch ASV Voice Coil |
| Stupeň magnetu | Y25 |
| Materiál | Metal, Rubber Edge Injection Cone |
| Typ montáže | Držák na dveře |
| Montážní hloubka | 58 ± 1.0 mm |
| Rozměry produktu | 6.3"H x 1.8"Š x 5"V |
| Hmotnost položky | 2.7 libry |
| Technologie připojení | Kabelové |
| Režim zvukového výstupu | Stereo |
Figure 4.2: SPL vs. Frequency graph illustrating the speaker's audio performance across different frequencies.

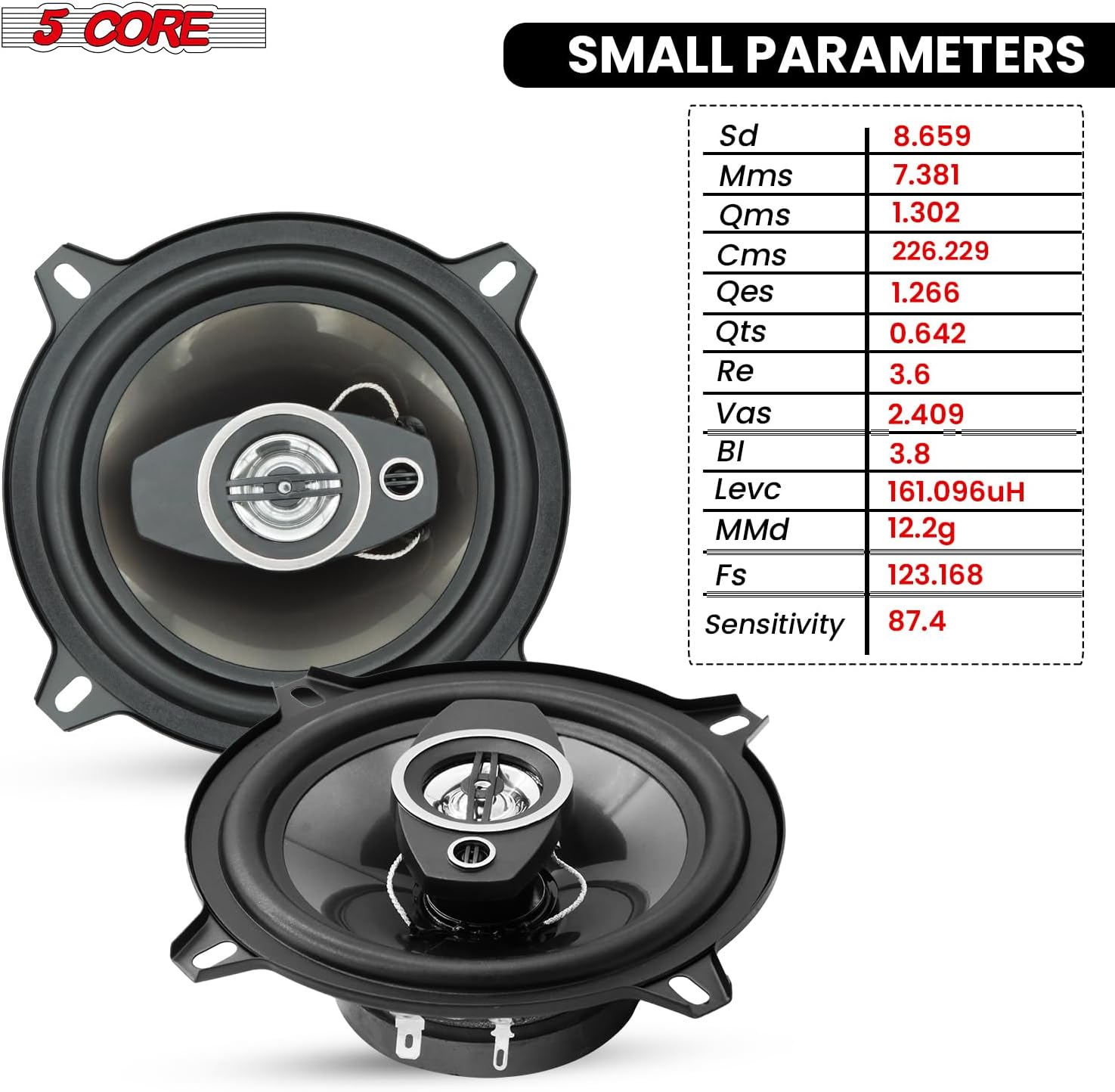

Figure 4.3: Small Parameters (Thiele-Small parameters) providing detailed electro-mechanical characteristics of the speaker.
5. Nastavení a instalace
Proper installation is crucial for optimal sound quality and speaker longevity. If you are unsure about any steps, it is recommended to seek professional assistance.
5.1 Než začnete
- Disconnect the car battery's negative terminal to prevent electrical shorts.
- Gather necessary tools: screwdriver set, wire strippers, crimping tool, electrical tape, mounting hardware (if not included).
- Ensure the mounting location (e.g., car door) has sufficient depth (58 ±1.0mm) and clearance for the speaker.
5.2 Montáž reproduktorů
- Carefully remove the existing car speakers or access panels from the desired mounting location.
- Position the 5 CORE CS 05 2W speaker in the opening. The speaker features pre-drilled holes for easy alignment.
- Secure the speaker using appropriate screws and mounting hardware. Do not overtighten.
5.3 Zapojení kabeláže
The speakers are designed for hassle-free connections. Ensure correct polarity (+ to + and - to -) to avoid phase issues and ensure proper sound reproduction.
Obrázek 5.1: Zadní view of the speaker showing quick-connect wiring terminals.
- Connect the positive (+) speaker wire from your car's audio system to the positive terminal on the 5 CORE speaker.
- Connect the negative (-) speaker wire from your car's audio system to the negative terminal on the 5 CORE speaker.
- Ensure all connections are secure and insulated with electrical tape or heat shrink tubing to prevent short circuits.
5.4 Závěrečné kroky
- Znovu nainstalujte všechny odstraněné panely nebo mřížky.
- Znovu připojte záporný pól autobaterie.
- Test the audio system to ensure both speakers are functioning correctly and producing clear sound.
6. Návod k obsluze
Once installed, your 5 CORE CS 05 2W speakers will operate as part of your car's existing audio system. Follow these general guidelines for optimal listening:
- Ovládání hlasitosti: Upravte hlasitost pomocí hlavní jednotky vašeho vozu. Vyhněte se příliš vysoké hlasitosti po delší dobu, abyste předešli poškození reproduktorů.
- Nastavení ekvalizéru: Experiment with your head unit's equalizer settings to fine-tune the sound to your preference. The wide frequency response of these speakers allows for versatile sound customization.
- Vyvážení a fader: Adjust the balance (left/right) and fader (front/rear) to create an optimal sound stage ve vašem vozidle.
Video 6.1: Overview of the 5 CORE 2 Way 5 Inch Car Stereo Speakers, demonstrating features and potential use cases. This video is provided by the seller, Kaneer Ent.
7. Údržba
To ensure the longevity and performance of your 5 CORE CS 05 2W speakers, follow these simple maintenance tips:
- Čištění: Gently wipe the speaker grilles and surrounds with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the speaker materials.
- Ochrana: Keep the speakers free from excessive dust, dirt, and moisture. If your car is exposed to extreme conditions, consider additional protection for the speakers.
- Inspekce: Periodically check the speaker connections to ensure they remain secure. Loose connections can lead to intermittent sound or reduced performance.
8. Řešení problémů
Pokud narazíte na problémy s reproduktory, podívejte se na následující běžné problémy a jejich řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádný zvuk z reproduktorů | Uvolněné nebo nesprávné připojení vodičů | Check all speaker wire connections at both the speaker and the head unit. Ensure correct polarity. |
| Hlavní jednotka nebo ampproblém s lifikátorem | Verify the head unit is powered on and functioning. Test with another known-good speaker if possible. | |
| Zkreslený nebo nejasný zvuk | Volume too high or improper equalizer settings | Reduce volume. Adjust equalizer settings to a flatter response and gradually fine-tune. |
| Volné uchycení reproduktoru | Ensure speakers are securely mounted and not vibrating against the car panel. | |
| Jeden reproduktor nefunguje | Faulty wiring or speaker | Check wiring for the specific speaker. Swap speakers (if possible) to determine if the issue is with the speaker or the wiring/head unit channel. |
Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu.
9. Informace o záruce
The 5 CORE CS 05 2W speakers come with a Omezená záruka. Please refer to the warranty card included with your purchase or visit the official 5 CORE website for detailed terms and conditions regarding coverage, duration, and claims procedures. Keep your proof of purchase for warranty validation.
10. Zákaznická podpora
For further assistance, technical support, or inquiries regarding your 5 CORE CS 05 2W speakers, please contact 5 CORE customer service through their official website or the contact information provided with your product. When contacting support, please have your product model number (CS 05 2W) and proof of purchase readily available.
