COMFEE' CBO60M80M1-BK Built-in Oven User Manual

1. Bezpečnostní informace

Před použitím spotřebiče si pečlivě přečtěte všechny pokyny. Uschovejte si tento návod pro budoucí použití.

• Elektrická bezpečnost: Ensure the appliance is properly earthed. Do not use extension cords. Disconnect from power before cleaning or maintenance.
• Bezpečnost dětí: Keep children away from the appliance during operation. The oven surfaces become hot.
• Horké povrchy: The oven and its accessible parts become very hot during use. Use oven mitts.
• Větrání: Zajistěte dostatečné větrání kolem spotřebiče dle pokynů k instalaci.
• Čištění: Always allow the oven to cool down before cleaning. Do not use harsh abrasive cleaners or sharp metal scrapers.
• Obecné použití: Neskladujte hořlavé materiály v troubě ani v její blízkosti. Nevykládejte troubu alobalem.

2. Konec produktuview

The COMFEE' CBO60M80M1-BK is a 60cm, 60-liter built-in electric oven designed for modern kitchens. It features 8 versatile cooking functions, including a dedicated air fryer function, and offers easy cleaning with its steam cleaning capability and removable door.

2.1. Klíčové vlastnosti

• 60L velká kapacita: Poskytuje ample space for family-sized meals.
• Všestrannost 8 v 1: Offers multiple cooking modes including fan-assisted grill, air fryer, defrost, and energy-saving functions.
• Funkce vzduchové fritézy: Circulates multi-thermal air for crispy, golden fried foods with less oil. Includes an air fryer basket.
• Uniform Cooking: W-shaped heating elements and additional accessories ensure even heat distribution.
• Parní čištění: Loosens grease and residue for effortless cleaning.
• Odnímatelné dveře: Facilitates thorough cleaning of the oven interior and glass panels.
• LED displej: For easy control and monitoring.

2.2. Komponenty produktu

Obrázek 1: Přední view of the Comfee CBO60M80M1-BK Built-in Oven, showcasing its sleek black design and control knobs.

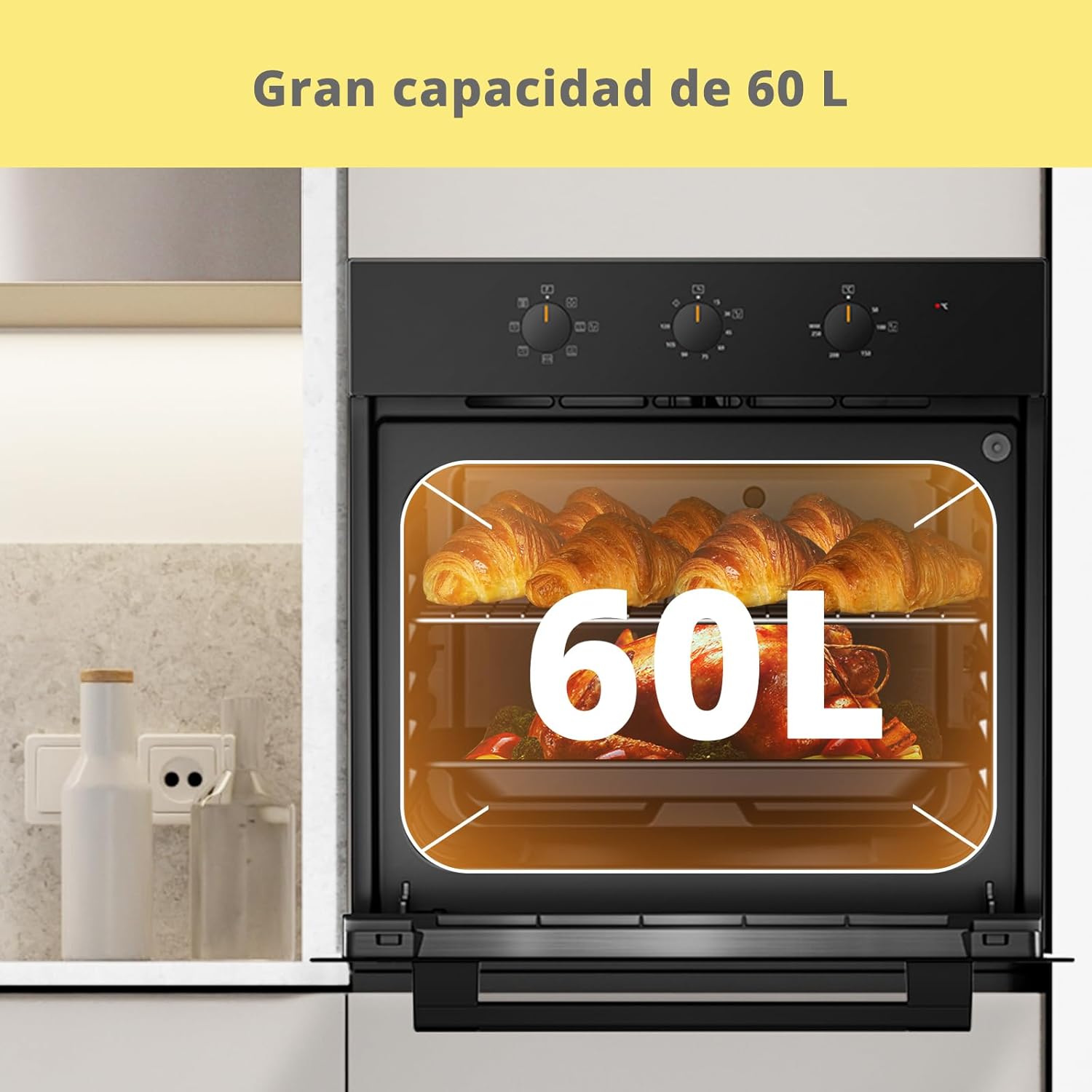

Obrázek 2: Illustration of the oven's spacious 60-liter interior, capable of accommodating large dishes like a whole chicken and multiple pastries.

Obrázek 3: Visual representation of the oven's 7 primary cooking functions, including air frying, defrosting, various grill and fan combinations, and energy-efficient cooking.

Obrázek 4: Depiction of the oven's uniform heating system, showing heat circulating from both top and bottom elements for consistent cooking results.

Obrázek 5: Image illustrating the healthy air frying capability, producing crispy results like french fries with minimal oil.

Obrázek 6: Comparison showing the oven interior before and after using the steam cleaning function, highlighting its effectiveness in loosening grime.

Obrázek 7: Diagram demonstrating the process of removing the oven door and glass panels for easier and more thorough cleaning.

Obrázek 8: Nadview of the included oven accessories: a grill rack, an air fryer basket, and a baking tray, along with labeled parts of the oven like the control panel and ventilation openings.

3. Instalace

This section provides guidelines for installing your COMFEE' built-in oven. Professional installation is recommended.

3.1. Dimensions and Cut-out Requirements

• Product Dimensions (L x H x D): 595 mm x 595 mm x 421 mm (23.4 x 23.4 x 16.6 inches).
• Minimum Cut-out Dimensions (W x H x D): 595 mm x 600 mm x 450 mm (23.4 x 23.6 x 17.7 inches).

Ensure your kitchen cabinet meets these dimensions for proper fit and ventilation.

Obrázek 9: Detailed diagram illustrating the oven's external dimensions and the required minimum cut-out dimensions for cabinet installation, emphasizing its suitability for compact kitchens.

Obrázek 10: Installation schematics for both standing and floor cabinets, providing guidance on ventilation requirements and precise measurements for proper integration.

3.2. Elektrické připojení

The oven requires a dedicated electrical circuit. Consult a qualified electrician for connection to ensure compliance with local regulations and safety standards.

• svtage: 220V
• Moc: 2050W

4. Návod k obsluze

Před prvním použitím se seznamte s ovládacím panelem a jeho funkcemi.

4.1. Ovládací panel Overview

The oven features three main control knobs:

1. Knoflík pro výběr funkcí: Used to select the desired cooking mode (e.g., Air Fry, Grill, Conventional).
2. Knoflík časovače: Nastaví dobu vaření.
3. Knoflík teploty: Adjusts the oven temperature (50°C - 250°C).

4.2. Funkce vaření

The COMFEE' CBO60M80M1-BK oven offers 8 distinct cooking functions:

• Vzduchová fritéza: Ideal for achieving crispy results on foods like chicken nuggets, fish, and fries with minimal oil. Use the included air fryer basket.
• Odmrazování: Jemně rozmrazuje zmrazené potraviny.
• Simple Grill + Fan: Combines grilling with fan circulation for even browning and cooking.
• Conventional + Fan: Uses both top and bottom heating elements with fan assistance for general baking and roasting.
• Upper Heating + Fan: Concentrates heat from the top element with fan assistance, suitable for browning the top of dishes.
• Lower Heating + Fan: Concentrates heat from the bottom element with fan assistance, ideal for baking pizzas or dishes requiring a crispy base.
• ECO (Energy-saving): Optimized setting for energy-efficient cooking.
• Funkce osvětlení: Illuminates the oven interior for better visibility during cooking.

4.3. První použití

1. Before first use, wipe the oven interior with a damp tkanina.
2. Heat the empty oven at maximum temperature (250°C) for approximately 30 minutes to burn off any manufacturing residues. A slight odor may be present; ensure good ventilation.
3. Nechte troubu úplně vychladnout.

4.4. General Cooking Procedure

1. Place food in the appropriate oven accessory (tray, rack, or air fryer basket).
2. Insert the accessory into the desired shelf position.
3. Select the desired cooking function using the Function Selector Knob.
4. Set the temperature using the Temperature Knob.
5. Set the cooking time using the Timer Knob. The oven will begin heating.
6. Trouba se automaticky vypne po uplynutí nastaveného času.

5. Čištění a údržba

Pravidelné čištění a údržba zajistí dlouhou životnost a optimální výkon vaší trouby.

5.1. Steam Cleaning Function

1. Ujistěte se, že trouba vychladla.
2. Pour approximately 200ml of water into a heat-resistant bowl and place it on the bottom rack of the oven.
3. Select the steam cleaning function (refer to your control panel for the specific symbol, often indicated by a water droplet icon).
4. Run the cycle for the recommended duration (usually 15-20 minutes).
5. Once the cycle is complete and the oven has cooled, wipe away loosened grease and food residues with a soft cloth.

5.2. Removable Door for Cleaning

The oven door can be removed for easier access to the interior and for cleaning the glass panels.

1. Zcela otevřete dvířka trouby.
2. Locate the hinges and lift the locking levers on both hinges.
3. Partially close the door until the levers hook into place.
4. Gently lift the door upwards and pull it away from the oven.
5. To clean the glass panels, refer to the specific instructions for disassembling the inner glass (usually involves unscrewing clips).
6. Clean glass with a non-abrasive glass cleaner.
7. Reassemble the glass panels and reattach the door by reversing the steps. Ensure the hinges are properly seated before closing the door.

5.3. Generální úklid

• Před čištěním vždy odpojte troubu od elektrické sítě.
• Vnější povrch očistěte měkkýmamp hadříkem a jemným čisticím prostředkem. Vyhněte se abrazivním čisticím prostředkům.
• Clean the interior with a soft cloth and warm soapy water after each use, once the oven has cooled.
• For stubborn stains, use a specialized oven cleaner, following the product's instructions carefully.
• Clean oven racks and trays in warm soapy water or in a dishwasher.

6. Řešení problémů

Než kontaktujete zákaznický servis, zkontrolujte prosím následující běžné problémy a jejich řešení:

7. Technické specifikace

Obrázek 11: EU Energy Label for the Comfee CBO60M80M1-BK Oven, indicating an A energy efficiency class and a 60-liter capacity with 0.76 kWh/cycle consumption.

Podrobné informace o produktech a údaje o energetické účinnosti naleznete v databázi EPREL:

EPREL Product Database Link

8. Záruka a podpora

Your COMFEE' CBO60M80M1-BK Built-in Oven comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

8.1. Zákaznická podpora

For technical assistance, spare parts, or warranty claims, please contact Comfee customer service:

• Poskytovatel: MIDEA ITALIA S.R.L (Importer)
• Customer Service Name: Midea Italia Srl a socio unico
• E-mail: assistenza@midea.com
• Webmísto: https://www.midea.com/it
• Telefon: +390296193015 XNUMX XNUMX XNUMX
• Adresa: Viale Luigi Bodio 29/37, 20158 Milan, Italia

When contacting support, please have your product model number (CBO60M80M1-BK) and purchase date ready.
