Návod k obsluze dětské houpačky Outsunny 5 v 1 s robustním A-rámem

1. Úvod

This manual provides essential information for the safe assembly, operation, and maintenance of your Outsunny 5-in-1 Heavy-Duty A-Frame Kids Swing Set. Please read all instructions carefully before assembly and use to ensure the safety of all users and the longevity of the product.

Figure 1: The Outsunny 5-in-1 Heavy-Duty A-Frame Kids Swing Set, featuring a slide, two swings, a saucer swing, a glider, and a seesaw.

2. Bezpečnostní informace

Your safety and the safety of others are paramount. Adhere to the following guidelines:

• Dohled dospělých: Always ensure children are supervised by a responsible adult while using the swing set.
• Doporučený věk: This swing set is designed for children aged 3-8 years.
• Nosnost: Each individual play component (swing seat, glider seat, seesaw seat) has a maximum weight capacity of 99 lbs (45 kg). The overall maximum weight capacity for the entire swing set is 693 lbs (314 kg). Do not exceed these limits.
• Správná instalace: Ensure the swing set is assembled correctly and securely anchored to the ground using the provided ground stakes. Failure to do so may result in instability and injury.
• Vyklízecí plocha: Maintain a safe clearance area around the swing set, free from obstacles such as fences, trees, or other structures.
• Pravidelná kontrola: Inspect all components regularly for wear, damage, or loose parts. Replace any damaged parts immediately.
• Povětrnostní podmínky: Do not use the swing set during strong winds, heavy rain, or other adverse weather conditions.
• Ochranné polstrování: The A-frame legs are equipped with foam padding to minimize impact. Ensure these are in place and in good condition.

This product complies with ASTM F963 and CPSIA safety standards.

3. Obsah balení

Verify that all parts listed below are present before beginning assembly. If any parts are missing or damaged, contact customer support.

Figure 2: Visual representation of the five distinct play features included in the set.

• Heavy-Duty A-Frame Stand (Alloy Steel, Powder Coated)
• 29.5" Saucer Swing (Mesh material for drainage)
• Skluzavka
• Seesaw (with safety legs to prevent slamming)
• Two-person Glider
• Single Swing Seat
• Veškerý potřebný spojovací materiál (šrouby, matice, podložky)
• 4 zemní kolíky
• Foam padding for A-frame legs

4. Nastavení a montáž

Assembly typically requires two adults and can be completed in approximately 1.5 to 2 hours. Follow the detailed instructions provided in the separate assembly guide for step-by-step visual and textual instructions.

Klíčové body montáže:

• Konstrukce rámu: The swing set utilizes a heavy-duty A-frame design with powder-coated steel tubes for durability. Ensure all connections are tight and secure.
• Zemní kotvení: It is crucial to use the 4 provided ground stakes to firmly anchor the swing set into the ground. This prevents tipping and ensures stability, especially during active play.
• Component Attachment: Attach each play component (swings, slide, seesaw, glider) according to the assembly guide, ensuring all hooks, chains, and fasteners are correctly installed.

Figure 3: Details of the swing set's robust construction, highlighting the A-frame, steel tubes, and ground stakes.

5. Návod k obsluze

The Outsunny 5-in-1 Swing Set offers multiple activities for varied play experiences:

5.1. Saucer Swing

The 29.5-inch saucer swing allows multiple children to sit or lie down comfortably. Its mesh design ensures water drains quickly, preventing pooling after rain.

Figure 4: The saucer swing, designed for comfort and quick drying.

5.2. Single Swing Seat

The traditional single swing seat provides classic swinging fun. Ensure children hold onto the ropes securely while swinging.

5.3. Two-Person Glider

The glider allows two children to swing together, promoting cooperative play. Users should sit facing each other and push off the ground simultaneously.

5.4. Seesaw

The seesaw features safety legs beneath each seat to prevent the seats from slamming directly onto the ground, reducing the risk of pinched fingers or injuries.

Figure 5: The seesaw with its integrated safety features.

5.5. Snímek

The slide provides a smooth and enjoyable descent. Ensure children slide down feet first and that the landing area is clear.

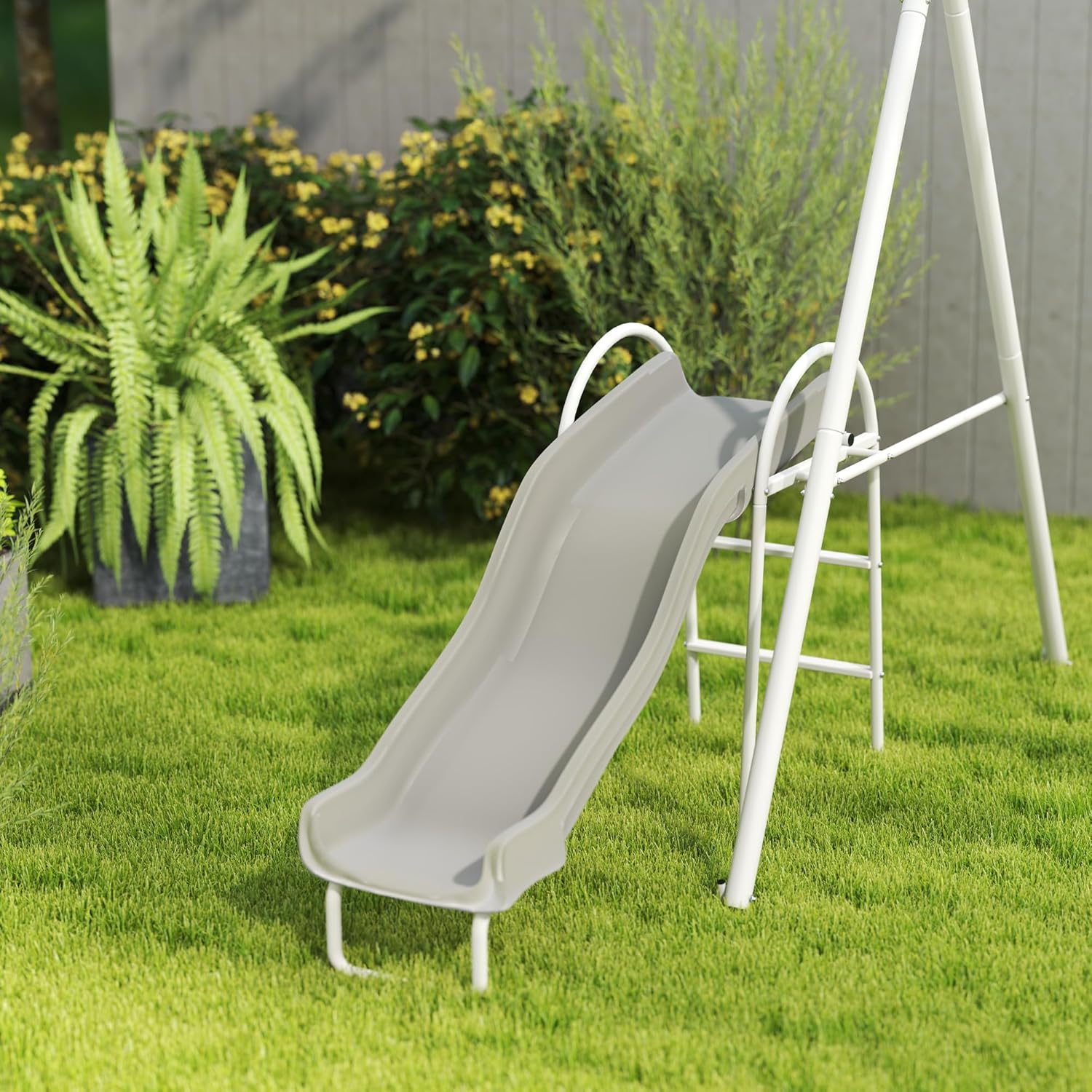

Figure 6: The slide component of the swing set.

6. Údržba

Regular maintenance ensures the safety and longevity of your swing set.

• Denní/týdenní kontrola: Check all nuts, bolts, and fasteners for tightness. Tighten as necessary. Inspect ropes, chains, and seats for signs of wear, fraying, or cracks.
• Čištění: Clean plastic and metal surfaces with mild soap and water. Avoid abrasive cleaners that could damage the finish.
• Prevence rzi: The steel frame is powder-coated for rust resistance. However, inspect for any chips or scratches in the coating and touch up with rust-inhibiting paint if needed to prevent corrosion.
• Zemní kolíky: Periodically check that the ground stakes remain firmly embedded and the swing set is stable. Re-secure if any movement is detected.
• Zimní péče: While the heavy-duty construction is designed to withstand various weather conditions, consider covering the swing set or storing smaller components indoors during harsh winter months to extend its lifespan.

7. Řešení problémů

7.1. Instability/Wobbling

If the swing set feels unstable or wobbles during use:

• Ujistěte se, že všechny spoje rámu jsou bezpečně utažené.
• Verify that all 4 ground stakes are fully inserted into the ground and providing adequate anchoring. If the ground is soft, consider additional anchoring solutions.
• Confirm the swing set is placed on a level surface.

7.2. Vrzavé zvuky

Squeaking from moving parts can often be resolved by applying a small amount of lubricant (e.g., silicone spray) to the pivot points of the swings, glider, and seesaw.

7.3. Chybějící nebo poškozené díly

If you discover any missing or damaged parts during assembly or use, please refer to the Warranty & Support section for contact information.

8. Specifikace

Figure 7: Overall dimensions and key measurements of the swing set components.

9. Záruka a podpora

For warranty information, missing parts, or technical support, please contact Aosom Direct, the seller and manufacturer of this Outsunny product. Refer to your purchase documentation for specific contact details or visit the official Outsunny webmísto.

Výrobce: Aosom LLC
