1. Úvod
The Yasola RC Drone Car Model 828 is a versatile 2-in-1 remote control vehicle designed for both ground driving and aerial flight. This manual provides essential instructions for safe operation, setup, and maintenance to ensure an enjoyable experience.
2. Bezpečnostní opatření
- Dohled dospělých: Always ensure adult supervision when children are operating the drone car.
- Letové prostředí: Operate the drone in open, clear areas, away from people, animals, buildings, and other obstacles. Avoid flying in strong winds or rain.
- Bezpečnost baterie:
- Používejte pouze dodaný nabíjecí kabel a baterie.
- Nepřebíjejte ani nezkratujte baterie.
- Nevystavujte baterie extrémním teplotám ani ohni.
- If batteries swell or leak, discontinue use immediately.
- Bezpečnost vrtule: Udržujte prsty, vlasy a volné oblečení v dostatečné vzdálenosti od rotujících vrtulí.
- Vyhýbání se nárazům: Avoid collisions with objects or people to prevent damage to the drone car and potential injury.
- Vystavení vodě: Do not expose the drone car to water or moisture.
3. Obsah balení
Prosím, ověřte, zda jsou v balení přítomny všechny položky:
- 1 x Yasola RC Drone Car (Model 828)
- 1 x Dálkové ovládání
- 2 x Lithium Batteries (for drone car)
- 1 x USB nabíjecí kabel
- 4 x náhradní vrtule
- 1 x Uživatelská příručka (tento dokument)
4. Průvodce nastavením
4.1 Instalace baterie
For the Drone Car:
- Locate the battery compartment on the underside of the drone car.
- Opatrně otevřete kryt bateriového prostoru.
- Connect the drone battery to the drone's power connector.
- Vložte baterii do přihrádky a bezpečně zavřete kryt.
- Use a small screwdriver to turn the battery cover screw to secure it.
Pro dálkové ovládání:
- Otevřete přihrádku na baterie na zadní straně dálkového ovladače.
- Insert 2 LR44 batteries (included) according to the polarity markings.
- Zavřete přihrádku na baterie.
4.2 Nabíjení baterie dronu
- Připojte nabíjecí kabel USB k baterii dronu.
- Zapojte konec USB do kompatibilního zdroje napájení USB (např. počítače, síťového adaptéru USB).
- The indicator light on the USB cable will show charging status (refer to charger for specific light indications).
- Charging typically takes approximately 60-90 minutes. Do not leave unattended while charging.
4.3 Pairing the Remote Control with the Drone Car
- Ensure the drone car battery is installed and fully charged.
- Long press the power button on the drone car to turn it on. The LED lights will begin to flash.
- Zapněte dálkový ovladač. Kontrolka na dálkovém ovladači bude blikat.
- Move the left joystick (throttle) on the remote control up and then down. The remote control will beep, and the drone car's lights will become solid, indicating successful pairing.
- The default mode after pairing is typically Flight Mode.
5. Návod k obsluze

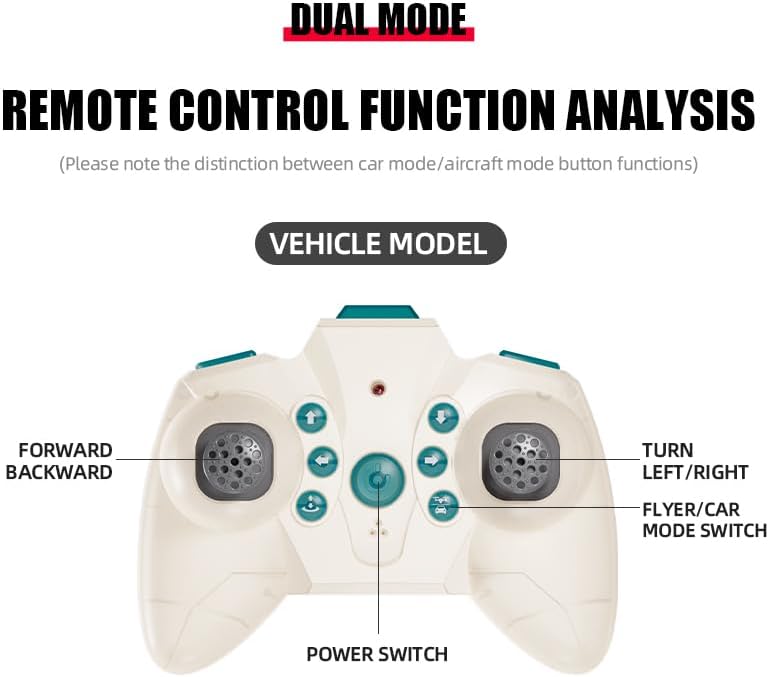

5.1 Dálkové ovládání Overview
The remote control features dual modes for car and flight operation. Familiarize yourself with the controls:
- Levý joystick (plyn): Controls forward/backward movement in car mode, and ascent/descent in flight mode.
- Right Joystick (Steering/Direction): Controls left/right turns in car mode, and directional flight (forward, backward, left, right) in flight mode.
- Tlačítko pro přepnutí režimu: Toggles between Flight Mode and Car Mode.
- One-Key Take Off/Landing Button: Initiates automatic take-off or landing in flight mode.
- Speed Shift Button: Adjusts the speed setting (low/high).
- Tlačítko režimu bez hlavy: Activates headless mode for simplified flight control.
- Tlačítko spínače světla: Přepíná a zapíná LED světla.
5.2 Switching Between Flight Mode and Car Mode
- After pairing, the drone car is typically in Flight Mode.
- Chcete-li přejít na Režim auta: Ensure the drone car has landed and propellers have stopped spinning. Press the Mode Switch button on the remote control. The lights on the drone car will turn red to indicate Car Mode.
- Chcete-li přejít na Letový režim: Press the Mode Switch button again. The lights on the drone car will turn blue to indicate Flight Mode.
5.3 Letový provoz
- One-Key Take Off: With the drone car in Flight Mode, press the One-Key Take Off/Landing button. The drone will automatically ascend to a stable hovering altitude.
- Ovládání nadmořské výšky: Stisknutím levého joysticku nahoru vystoupáte a dolů pro sestup.
- Directional Flight: Push the right joystick forward to fly forward, backward to fly backward, left to fly left, and right to fly right.
- Otáčení: Push the left joystick left or right to rotate the drone car.
- Nastavení rychlosti: Press the Speed Shift button to toggle between low and high-speed modes.
- Bezhlavý režim: Press the Headless Mode button to activate. In this mode, the drone's orientation is relative to the pilot, regardless of the drone's front direction. Press again to exit.
- Přistání jedním klíčem: Press the One-Key Take Off/Landing button again to initiate an automatic landing. The drone will slowly descend and land.
5.4 Car Operations
- Dopředu Dozadu: Push the left joystick up to drive forward and down to drive backward.
- Soustružení: Push the right joystick left to turn left and right to turn right.
- Nastavení rychlosti: Press the Speed Shift button to toggle between low and high-speed modes.
6. Údržba
- Čištění: Use a soft, dry cloth to clean the drone car. Do not use water or chemical cleaners.
- Výměna vrtule: If a propeller is damaged, carefully remove it and replace it with a spare propeller, ensuring correct orientation.
- Péče o baterie:
- Pokud baterie nepoužíváte, skladujte je na chladném a suchém místě.
- Do not store fully charged or completely depleted batteries for extended periods.
- Charge batteries at least once every three months to maintain their health.
7. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Drone car does not respond to remote control. | Not paired; low battery in drone or remote; drone not powered on. | Ensure drone and remote are powered on. Re-pair the remote control (Section 4.3). Charge drone battery. Replace remote control batteries. |
| Drone car cannot take off or flies unstably. | Low drone battery; damaged propellers; incorrect calibration; operating in windy conditions. | Charge drone battery. Check and replace damaged propellers. Perform "Outer eight calibration" (refer to video demonstration). Operate in calm conditions. |
| Short flight time (e.g., 3-5 minutes). | Normal battery capacity for mini drones; battery not fully charged. | Ensure battery is fully charged before use. Utilize the second included battery for extended play. |
| Drone car drifts during flight. | Needs fine-tuning/trimming; environmental factors (e.g., slight breeze). | Use the direction fine-tuning buttons on the remote control to correct drift. Ensure operation in a calm environment. |
8. Specifikace
- Značka: Yasola
- Název modelu: 828
- Rozměry produktu: 9.56 cm D x 5.11 cm Š x 3.54 cm V
- Hmotnost položky: 9.4 unce (0.59 libry)
- Materiál: Plast
- Barva: Modrý
- Technologie připojení: Remote control 2.4G
- Kapacita baterie: 600 miliamp Hodiny (lithium-iontová)
- Věkové rozmezí (popis): Kid (recommended for ages 8-12)
- Speciální vlastnosti: Drone car, UFO, flying and running RC drone, flying car, One-Key Take Off/Landing, LED Lights, 2 Mode Control, Headless Mode, High-Low Speed Shift.
9. Záruka a podpora
For warranty information, technical support, or any inquiries regarding your Yasola RC Drone Car Model 828, please refer to the contact information provided on the product packaging or visit the official Yasola webmísto.
