Uživatelská příručka k inteligentnímu zámku dveří s čtečkou otisků prstů RAYKUBE M5 TT

1. Úvod

This user manual provides detailed instructions for the installation, operation, and maintenance of your RAYKUBE M5 TT Smart Fingerprint Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Bezpečnostní opatření

• Do not expose the lock to direct water or extreme temperatures.
• Use only specified battery types (4x AAA).
• Keep keys and passcodes in a secure location.
• Zajistěte správnou instalaci, abyste předešli poškození nebo poruše.

2. Konec produktuview

The RAYKUBE M5 TT Smart Fingerprint Door Lock offers multiple unlocking methods and smart features for enhanced security and convenience in various living spaces.

Klíčové vlastnosti:

• Touch Screen Interface for easy operation.
• Numeric Code Keyboard for secure access.
• Multi-functional Use, ideal for families, hotels, and apartments.
• Fingerprint Lock Function using biometric authentication.
• Multiple unlocking methods: Fingerprint, Passcode, IC Card, Key, and TTLock App.
• Emergency USB Type-C charging port.

Komponenty a design:

Figure 2.1: RAYKUBE M5 TT Smart Fingerprint Door Lock (Black and Silver models). This image displays both the black and silver versions of the smart lock, highlighting their sleek design and integrated keypad.

Figure 2.2: Silver M5 TT Lock with Bluetooth and TT Lock App compatibility. The silver model is shown with indicators for Bluetooth connectivity and compatibility with the TT Lock application.

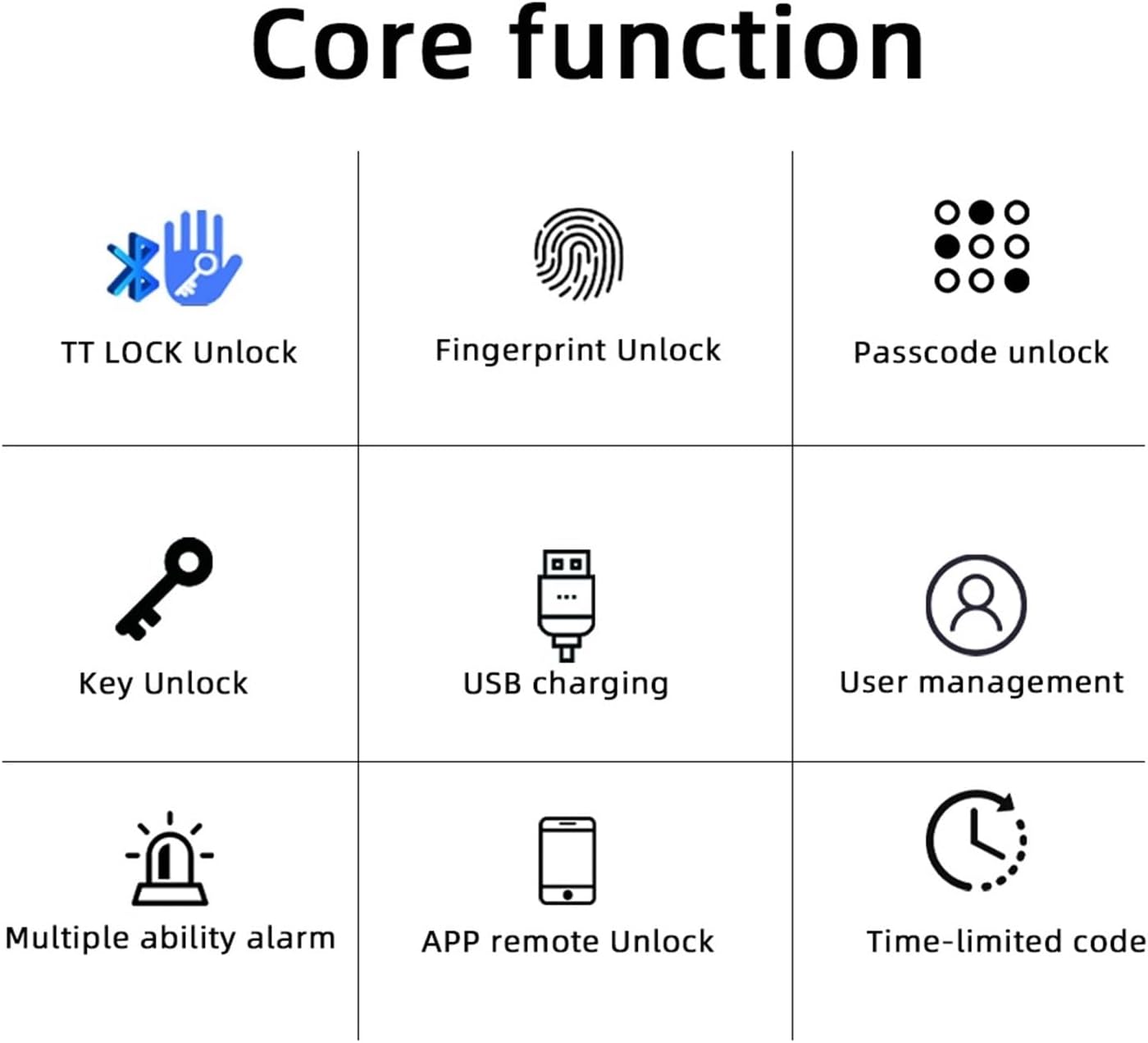

Figure 2.3: Core Functions. This diagram illustrates the various unlocking methods and features: TT LOCK Unlock, Fingerprint Unlock, Passcode Unlock, Key Unlock, USB Charging, User Management, Multiple Ability Alarm, APP Remote Unlock, and Time-limited Code.

Figure 2.4: TT LOCK APP Control and G2 Gateway. This image shows how the lock can be controlled via the TT Lock app and connected to Wi-Fi using an optional G2 Gateway for remote access.

Figure 2.5: Power Supply. The lock is powered by 4x AAA batteries, offering approximately 8 months of battery life. It includes a low battery reminder and a Type-C port for emergency power in case of full battery depletion.

Figure 2.6: Product Dimensions and Component Identification. This diagram provides key measurements (e.g., 58mm width, 160mm length) and labels important components such as the fingerprint sensor, card sensing area, keypad, keyhole, and Type-C charging port.

3. Průvodce nastavením

Follow these steps for a smooth installation of your smart lock.

Kontrolní seznam před instalací:

• Ensure your door thickness is compatible with the lock.
• Verify all components are present in the package.
• Připravte si potřebné nástroje (např. šroubovák).

Kroky instalace:

1. Remove your existing door handle/lock.
2. Install the new latch and strike plate into the door frame.
3. Attach the exterior and interior lock assemblies, ensuring cables are properly connected.
4. Secure the lock with screws.
5. Insert 4x AAA batteries into the battery compartment.
6. Test the lock's functionality with the mechanical key.

Figure 3.1: Easy and Convenient Installation. This image demonstrates the simple replacement process, showing a standard door handle before and after installation of the RAYKUBE M5 TT Smart Lock.

4. Návod k obsluze

The RAYKUBE M5 TT Smart Lock offers multiple convenient ways to unlock your door.

Způsoby odblokování:

• Odemknutí otisků prstů: Place your registered finger on the fingerprint sensor. The lock will unlock upon successful verification.
• Passcode Unlock: Enter your registered passcode on the numeric keypad, followed by the '#' key.
• Odemknutí IC karty: Tap your registered IC card on the card sensing area.
• Mechanical Key Unlock: Insert the physical key into the keyhole and turn to unlock. This is for emergency use.
• TTLock App Unlock: Open the TTLock app on your smartphone, ensure Bluetooth is enabled, and tap the unlock icon.

Režim průchodu:

Passage mode allows the door to remain unlocked for continuous access without requiring authentication. This mode is useful for high-traffic periods. Refer to the TTLock app for instructions on how to activate and deactivate Passage Mode.

5. Údržba

Proper maintenance ensures the longevity and optimal performance of your smart lock.

Výměna baterie:

• The lock is powered by 4x AAA batteries.
• When the battery is low, the lock will provide a low battery reminder (audible alert or indicator light).
• To replace, open the battery cover on the interior handle and replace all four batteries with new ones.

Nouzové napájení:

In case the batteries are completely depleted, you can use a portable power bank connected to the Type-C port on the exterior handle for emergency power to unlock the door.

Čištění:

Wipe the lock surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents that may damage the finish or electronic components.

6. Řešení problémů

This section addresses common issues you might encounter with your smart lock.

7. Specifikace

8. Záruka a podpora

Pro informace o záruce nebo technickou podporu se prosím obraťte přímo na prodejce nebo výrobce. Uschovejte si účtenku jako doklad o koupi.

If you have any questions or require assistance, please refer to the contact information provided at the point of purchase or on the product packaging.
