Zavedení
This manual provides detailed instructions for the GODIYMODULES TPA3116D2 Digital Power Amplifier Board. Designed for ease of use and high performance, this compact mono amplifier board features a TPA3116 digital power amplifier chip and an integrated volume potentiometer, making it suitable for a wide range of audio applications. Please read this manual thoroughly before operation to ensure proper setup and optimal performance.
Vlastnosti
- Utilizes the TPA3116 digital power amplifier chip for efficient audio ampzvedání.
- Compact design, ideal for space-constrained projects.
- Integrated volume potentiometer for convenient audio level adjustment.
- Supports a wide working voltage rozsah DC 5V až 24V.
- Delivers a maximum output power of 100W in mono configuration.
Specifikace
| Parametr | Hodnota |
|---|---|
| Pracovní svtage | DC 5V-24V |
| Board Dimensions (L x W) | 45 mm x 33 mm (1.77 x 1.30 palce) |
| Overall Height (approx.) | 22 mm (0.87 palce) |
| Maximální výstupní výkon | 100 W (mono) |
| Čipová sada | TPA3116D2 |
| Typ montáže | Povrchová montáž |
| Číslo modelu položky | BTL-100WFYY-002 |
Nastavení
Follow these steps to set up your TPA3116D2 Digital Power AmpDeska čističe:
- Připojení napájení: Connect a DC power supply within the 5V-24V range to the VCC and GND terminals. Ensure correct polarity to prevent damage.
- Zvukový vstup: Connect your audio source (e.g., smartphone, MP3 player) to the IN+ and IN- terminals.
- Výstup reproduktoru: Connect your mono speaker to the OUT+ and OUT- terminals. Ensure the speaker impedance is compatible with the ampživější.
Obrázek: Nahoře view z amplifier board, highlighting the input (IN), output (OUT), and power (VCC) connection points.
Image: A pair of TPA3116D2 amplifier boards, showcasing their compact size and integrated volume control.
Návod k obsluze
Once the board is correctly wired and powered on, you can begin operation:
- Nastavení hlasitosti: Use the integrated potentiometer knob to adjust the output volume. Rotate clockwise to increase volume and counter-clockwise to decrease it.
- Přehrávání zvuku: Start playing audio from your connected source. The amplifier will output the sound through the connected speaker.

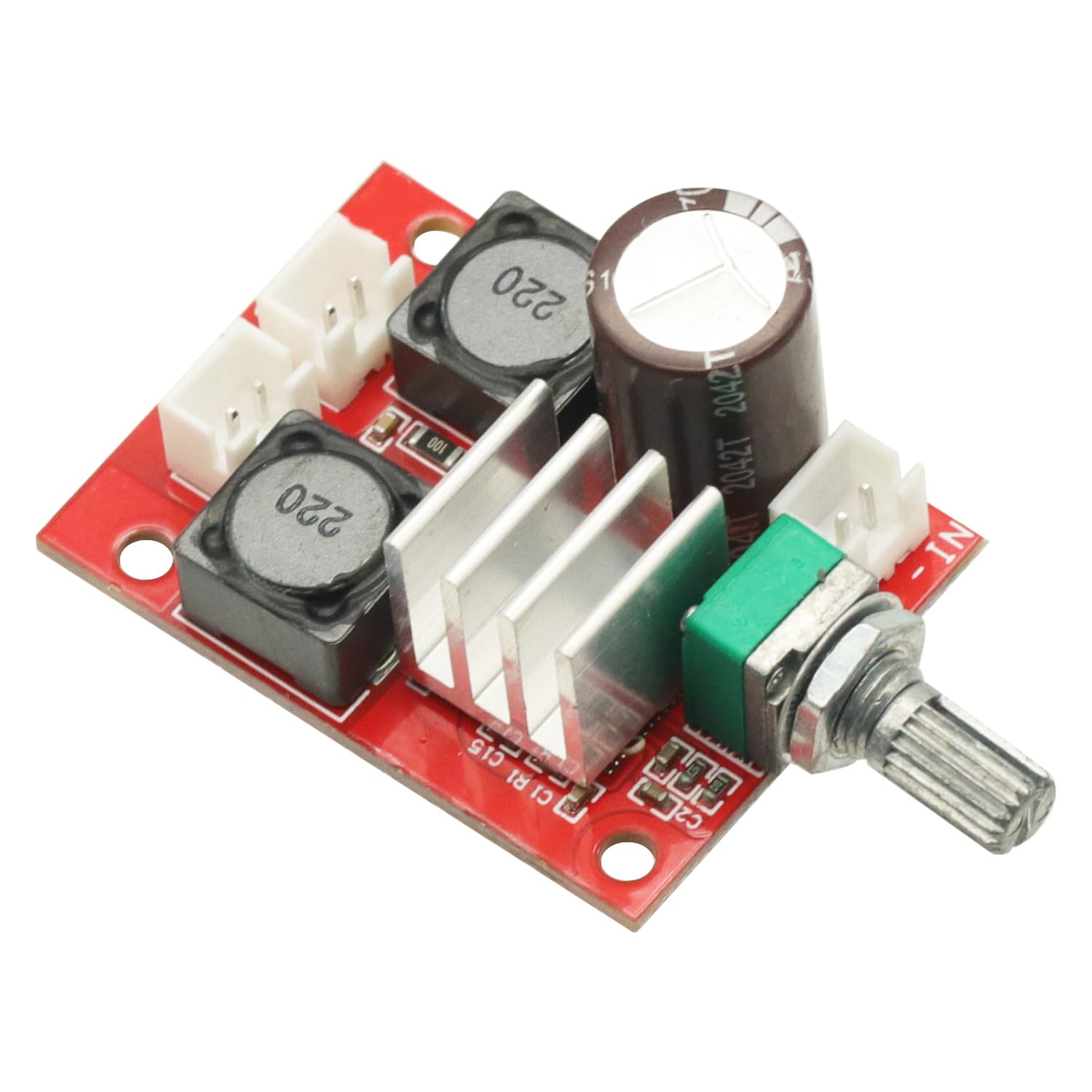

Obrázek: Úhlový view z amplifier board, clearly showing the volume adjustment potentiometer.
Údržba
Pro zajištění dlouhé životnosti a optimálního výkonu vašeho amplifier board, follow these maintenance guidelines:
- Udržujte v suchu: Avoid exposing the board to moisture or liquids, which can cause short circuits and damage.
- Jemně čistěte: If cleaning is necessary, use a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
- Zacházejte opatrně: Avoid dropping or subjecting the board to strong impacts. When handling, minimize contact with electronic components to prevent static discharge.
- Větrání: Ensure adequate airflow around the board, especially during extended operation, to prevent overheating.
Odstraňování problémů
Pokud narazíte na problémy s vaším amplifier board, refer to the following common problems and solutions:
- Bez napájení:
- Check if the DC power supply is connected correctly and providing voltage within the 5V-24V range.
- Verify power supply polarity.
- Žádný zvukový výstup:
- Ensure the audio input source is active and connected properly to IN+ and IN-.
- Check speaker connections to OUT+ and OUT-.
- Confirm the volume potentiometer is not set to minimum.
- Zkreslený zvuk:
- Verify that the input audio signal is not too strong, causing clipping.
- Check the power supply for stability; insufficient current can cause distortion.
- Ujistěte se, že impedance reproduktoru odpovídá amppožadavky záchranáře.
Záruka a podpora
This product is covered by a standard return policy. If you are not satisfied with your purchase, you may be eligible for a return or replacement within 30 days of receipt, subject to the seller's terms and conditions.
For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please contact the seller directly through the platform where the product was purchased. Provide your order details and a clear description of the issue for prompt assistance.
