SOLFART LED Dimmable Black Vanity Light Instruction Manual

1. Úvod

Thank you for choosing the SOLFART LED Dimmable Black Vanity Light. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new lighting fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

Klíčové vlastnosti:

• Snadná instalace: Designed for a 15-minute hardwired installation with a USA standard back plate.
• Široká aplikace: Suitable for bathrooms, restrooms, hallways, cabinets, over mirrors, powder rooms, bedrooms, and living rooms.
• High-Quality & Durable: Constructed with a high-end aluminum matte black frame, advanced electroplate craft, and sealing technology for anti-corrosion and moisture-proof properties. Features a durable rugged acrylic lampodstín.
• Úspora energie: Utilizes LED technology (24 watts, 6000K Cool White) to save up to 80% electricity.
• Stmívatelné: Offers 0%-100% brightness dimmability for adjustable ambiance.
• Otočná Lamp hlavy: Each light head can be rotated 355° to adjust the angle of illumination.

2. Konec produktuview & Komponenty

Familiarize yourself with the components of your SOLFART vanity light fixture.

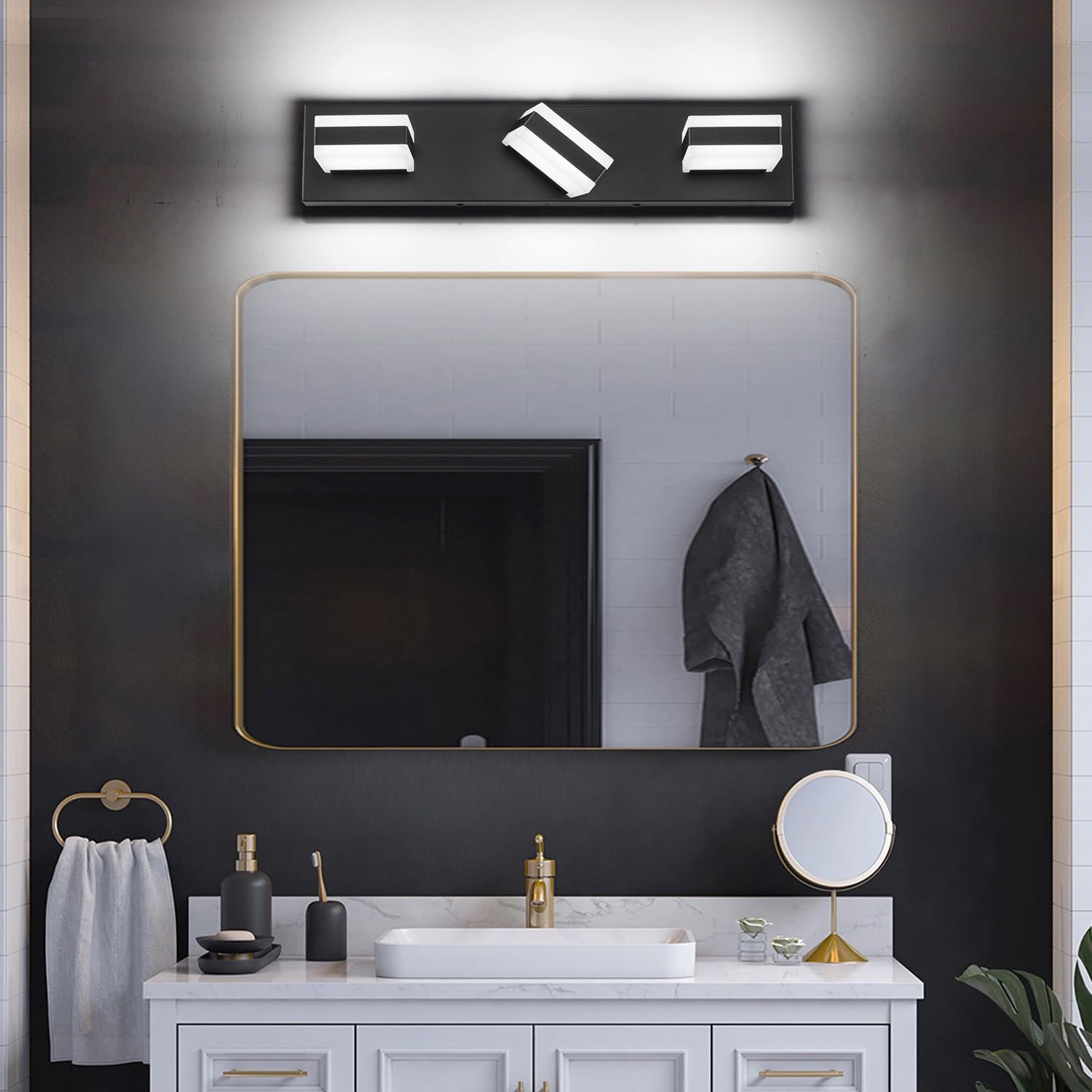

Figure 2.1: SOLFART LED Dimmable Black Vanity Light Fixture (21.6 inch model).

Obrázek 2.2: Rozložené view showing internal components including acrylic shades, LED chips, aluminum substrate, fixed frame, and mounting metal sheet.

The fixture consists of a sturdy matte black aluminum chassis and individual light heads with thick frosted acrylic lampshades. The integrated LED chips provide efficient and uniform illumination.

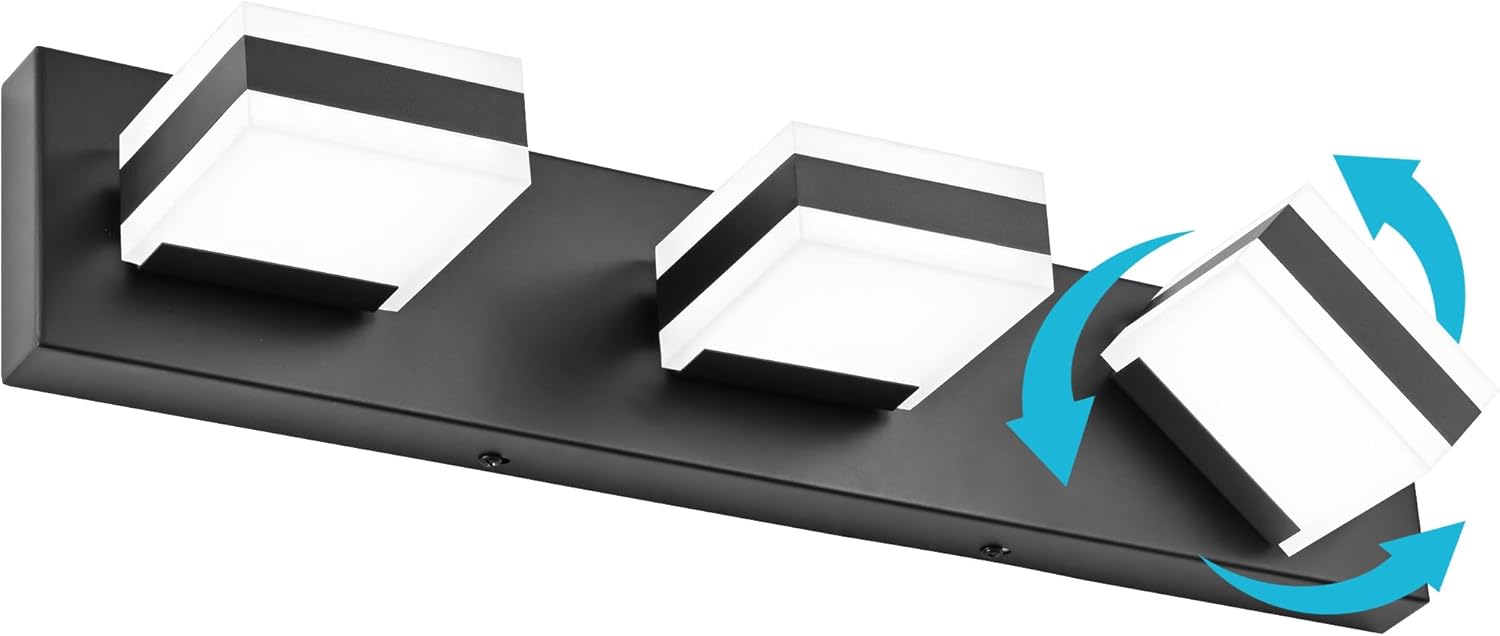

Figure 2.3: Each light head can be rotated 355 degrees to direct light as desired.

Figure 2.4: Detail of the black metal accessories and thick acrylic lampshade, highlighting the robust and durable construction.

3. Nastavení a instalace

Bezpečnost především: Before beginning any electrical work, ensure the power to the circuit is turned off at the circuit breaker or fuse box. It is recommended to have installation performed by a qualified electrician if you are unsure.

Kroky instalace:

1. Rozbalení a kontrola: Carefully remove all components from the packaging. Inspect for any damage. Ensure all parts listed in the packing list are present.
2. Samostatná montážní deska: The main fixture is attached to a mounting plate. Unscrew the retaining screws on the sides of the fixture to detach the mounting plate. This plate will be secured to your wall's electrical box.
3. Montáž montážní desky: Position the mounting plate over your electrical box. Use a level to ensure it is straight. Secure the plate to the electrical box using the provided screws. For older installations, additional screws may be needed to secure the plate to wall studs for stability.
4. Připojení kabeláže: Připojte vodiče svítidla k domácí elektroinstalaci.
   • Připojte green or bare copper ground wire from the fixture to the ground wire from the electrical box.
   • Připojte black (hot) wire from the fixture to the black (hot) wire from the electrical box.
   • Připojte white (neutral) wire from the fixture to the white (neutral) wire from the electrical box.
   Use appropriate wire nuts to secure all connections. Ensure connections are tight by gently tugging on them.
5. Připevněte přípravek k montážní desce: Carefully align the main fixture body with the mounting plate. Tuck all wires neatly into the electrical box. Secure the fixture to the mounting plate using the retaining screws removed in step 2.
6. Obnovit napájení: Jakmile je svítidlo bezpečně nainstalováno, obnovte napájení jističem.

Figure 3.1: Product dimensions for planning installation space (21.6 inches length).

4. Návod k obsluze

Your SOLFART LED Vanity Light is designed for ease of use and customizable lighting.

Funkce stmívání:

This fixture is 0%-100% dimmable. To utilize the dimming feature, you must connect it to a compatible dimmer switch (not included). Once connected, you can adjust the brightness level to suit your preference and create the desired ambiance.

Figure 4.1: Illustration of 0%-100% smooth dimmable function with no flicker or noise. Consult the chart for recommended dimmer model numbers from Lutron, Leviton, and Legrand.

Nastavení směru světla:

Each individual light head on the fixture can be rotated 355 degrees. This allows you to direct the light precisely where it's needed, providing versatile illumination for your space.

Figure 4.2: The 355° rotatable design allows for flexible lighting angles.

5. Údržba

To ensure the longevity and optimal performance of your SOLFART LED Vanity Light, follow these simple maintenance guidelines:

• Čištění: Always turn off power before cleaning. Use a soft, dry cloth to wipe down the fixture. For more stubborn marks, a slightly damp cloth with mild soap can be used, followed by a dry cloth. Avoid abrasive cleaners, solvents, or harsh chemicals as they may damage the finish or acrylic shades.
• Trvanlivost: The fixture's high-end aluminum frame and durable acrylic lampshade are designed for long-lasting use and resistance to corrosion and moisture, making it ideal for humid environments like bathrooms.
• Bez výměny žárovky: This fixture uses integrated LED technology, meaning there are no bulbs to replace. The LEDs are designed for a long lifespan.

6. Řešení problémů

If you encounter any issues with your vanity light, please refer to the following common troubleshooting steps:

• Světlo se nerozsvítí:
  • Zkontrolujte jistič a ujistěte se, že je zapnuté napájení.
  • Verify all wire connections are secure and correctly matched (hot to hot, neutral to neutral, ground to ground).
  • Ujistěte se, že je nástěnný vypínač v poloze „ZAPNUTO“.
• Light Flickers or Dims Incorrectly:
  • Ensure you are using a compatible LED dimmer switch. Not all dimmer switches are designed for LED fixtures.
  • Check for loose wire connections at the fixture or the dimmer switch.
• Nerovnoměrné osvětlení:
  • Adjust the rotatable light heads to ensure they are positioned for optimal light distribution.

If these steps do not resolve the issue, please contact SOLFART customer support for assistance.

7. Specifikace

8. Záruka a podpora

Your SOLFART bathroom light comes with a 2-letá záruka.

If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact us. We are committed to customer satisfaction.

To Contact Seller:

1. Přihlaste se ke svému účtu Amazon.
2. Go to 'Your Orders'.
3. Locate the order ID for your SOLFART vanity light.
4. Click 'Contact Seller'.

We aim to reply within 24 hours.
