Ortis Automatic Vacuum Switch ETC-088 User Manual

1. Úvod

The Ortis Automatic Vacuum Switch ETC-088 is designed to enhance efficiency and safety in workshops by automating dust collection for power tools. This device features multiple tool outlets, configurable actuation thresholds, and adjustable shut-off delays to prevent circuit overload and ensure a cleaner working environment.

Figure 1: Ortis Automatic Vacuum Switch ETC-088. This image shows the main unit with its power cord and multiple outlets.

2. Bezpečnostní informace

VAROVÁNÍ: Před použitím tohoto výrobku si přečtěte všechna bezpečnostní varování a pokyny. Nedodržení varování a pokynů může vést k úrazu elektrickým proudem, požáru a/nebo vážnému zranění.

• Ensure the total power consumption of connected tools and vacuum does not exceed 120V/15A (1875W).
• Use only with UL-certified American Standard 14AWG power cords or equivalent.
• The device incorporates a 1-second delay to turn on the vacuum when a tool starts, helping to prevent circuit overload.
• The unit is constructed with PC+ABS V0 grade flame retardant material for enhanced safety.
• Always disconnect power before performing any maintenance or making adjustments.

3. Obsah balení

Po otevření balíku zkontrolujte, zda jsou všechny položky přítomny a nepoškozené:

• Ortis Automatic Vacuum Switch ETC-088 Unit
• Remote Control (requires 23A battery, not included)
• Uživatelská příručka (tento dokument)

4. Konec produktuview

The Ortis Automatic Vacuum Switch features a user-friendly design with clear LED indicators and multiple outlets for efficient dust control.

Obrázek 2: Přesview of the Automatic Vacuum Switch showing its three tool outlets, configurable actuation threshold (30W/60W), configurable shut-off delay (3s/7s/10s), and three vacuum run modes (Auto, Off, On).

Klíčové komponenty:

• Vacuum Power Outlet: Connect your dust collector or shop vacuum here.
• Tool Outlets (x3): Connect up to three power tools.
• Přepínač režimů (M): Toggles between AUTO, OFF, and ON vacuum modes.
• Overrun Delay (OD) Button: Adjusts the vacuum shut-off delay (3s, 7s, 10s).
• Actuation Threshold (AT) Button: Sets the power threshold for vacuum activation (30W, 60W).
• LED indikátory: Display current mode, delay time, and actuation threshold settings.

Figure 3: Highlighting the superior quality of the Ortis Automatic Vacuum Switch, featuring V0-rated flame-retardant materials, UL-certified American Standard 14AWG power cords, and UL-certified American Standard outlets.

Figure 4: A comparison image showing the Ortis Automatic Vacuum Switch with its three tool outlets, contrasting it with other models that may only offer one tool outlet, emphasizing its enhanced connectivity.

Figure 5: Physical dimensions of the Ortis Automatic Vacuum Switch, showing its compact size for easy mounting.

5. Nastavení

Follow these steps to set up your Ortis Automatic Vacuum Switch:

1. Montáž: The unit can be mounted to a wall or workbench using the integrated mounting holes. Ensure it is in a stable location, away from excessive dust or moisture.
2. Connect Vacuum: Plug your dust collector or shop vacuum into the "VACUUM POWER" outlet on the switch.
3. Connect Tools: Plug your power tools (e.g., miter saw, table saw, sander, router, planer) into the "TOOL" outlets. The switch supports up to three tools.
4. Zapnutí: Plug the main power cord of the Ortis Automatic Vacuum Switch into a standard 120V/15A wall outlet.
5. Baterie dálkového ovládání: Insert a 23A battery into the remote control (battery not included).

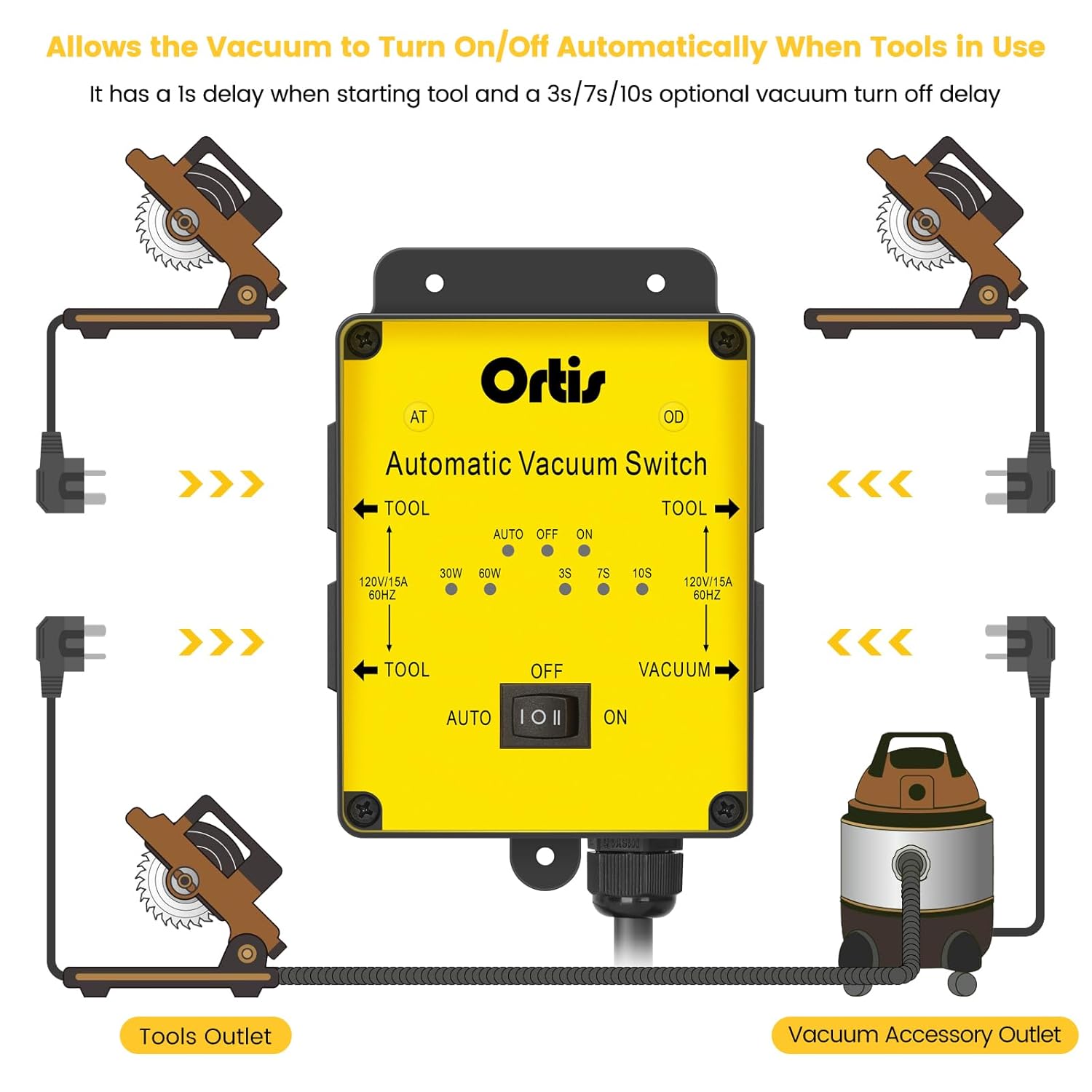

Figure 6: Diagram illustrating how to connect power tools to the tool outlets and the vacuum to the vacuum accessory outlet for automatic operation.

6. Návod k obsluze

The Ortis Automatic Vacuum Switch offers three operating modes and adjustable settings for optimal dust control.

6.1. Provozní režimy

Use the 'M' (Mode) button on the unit or remote to cycle through the modes:

• AUTO režim: The vacuum automatically turns on when a connected power tool is activated and turns off after a set delay once the tool stops.
• Režim VYPNUTO: The vacuum remains off, regardless of tool operation.
• Režim ON: The vacuum remains continuously on.

6.2. Adjusting Shut-off Delay (Overrun Delay - OD)

The vacuum can continue running for a short period after the tool is turned off to clear remaining debris. Use the 'OD' button on the unit or remote to select the desired delay:

• 3 seconds (3S)
• 7 seconds (7S)
• 10 seconds (10S)

6.3. Adjusting Actuation Threshold (AT)

This setting determines the minimum power draw from a tool that will trigger the vacuum to turn on. Use the 'AT' button on the unit or remote to select:

• 30W: Suitable for lower-power tools or when a more sensitive trigger is desired.
• 60W: Suitable for higher-power tools or to prevent accidental vacuum activation from minor power fluctuations.

7. Kompatibilita

The Ortis Automatic Vacuum Switch is compatible with a wide range of power tools, including but not limited to:

• Pokosové pily
• Table Saws
• Power Sanders
• Směrovače
• Truhláři
• Hoblíky

Maximum motor rating for connected tools should not exceed 120V/15A 50/60Hz, 1875W.

Figure 7: A worker using the Ortis Automatic Vacuum Switch with a miter saw, demonstrating its application in a workshop setting for improved efficiency and dust control.

8. Údržba

To ensure optimal performance and longevity of your Ortis Automatic Vacuum Switch, follow these maintenance guidelines:

• Čištění: Regularly wipe the unit with a dry, soft cloth to remove dust and debris. Do not use liquid cleaners or immerse the unit in water.
• Kontrola kabelu: Periodically inspect the power cords for any signs of damage, fraying, or wear. Replace damaged cords immediately.
• Skladování: When not in use for extended periods, store the unit in a clean, dry place.

9. Řešení problémů

If you encounter issues with your Ortis Automatic Vacuum Switch, refer to the following common problems and solutions:

10. Specifikace

11. Záruka a podpora

Specific warranty details are not provided in this manual. For warranty information, technical support, or service inquiries, please refer to the product packaging or contact Ortis customer service directly.
