1. Konec produktuview
The PAC SR-TAC16HX RadioPRO Kit is designed to facilitate the seamless integration of Stinger's HORIZON10 (iX210) or HEIGH10 (UN1810) infotainment system into 2016-2021 Toyota Tacoma vehicles. This kit enables the replacement of the factory radio while retaining essential vehicle features and adding advanced multimedia capabilities such as Apple CarPlay and Android Auto.
The design ensures a flush-fitted, OEM-like appearance, providing a clean and integrated look within your vehicle's dashboard.
2. Bezpečnostní informace
Always disconnect the vehicle's battery before beginning any electrical installation to prevent short circuits and damage. Ensure all connections are secure and properly insulated. Consult a professional installer if you are unsure about any steps. Do not operate the vehicle while performing installation or troubleshooting. This kit is intended for use by qualified individuals.
3. Obsah balení
The SR-TAC16HX kit includes all necessary components for installation, designed for a complete plug-and-play experience. Please verify that all items listed below are present in your package:
- Factory-Matched Radio Mounting Panels (for HORIZON10 or HEIGH10)
- RP4.2-TY11 RadioPro Interface for Toyota Vehicles
- Complete Plug-N-Play Installation Harnesses
- Adapters for AM/FM Antenna
- Adapters for GPS Antenna
- Adapters for USB Port
- Adapters for Sirius XM (SXV Module Required, not included)

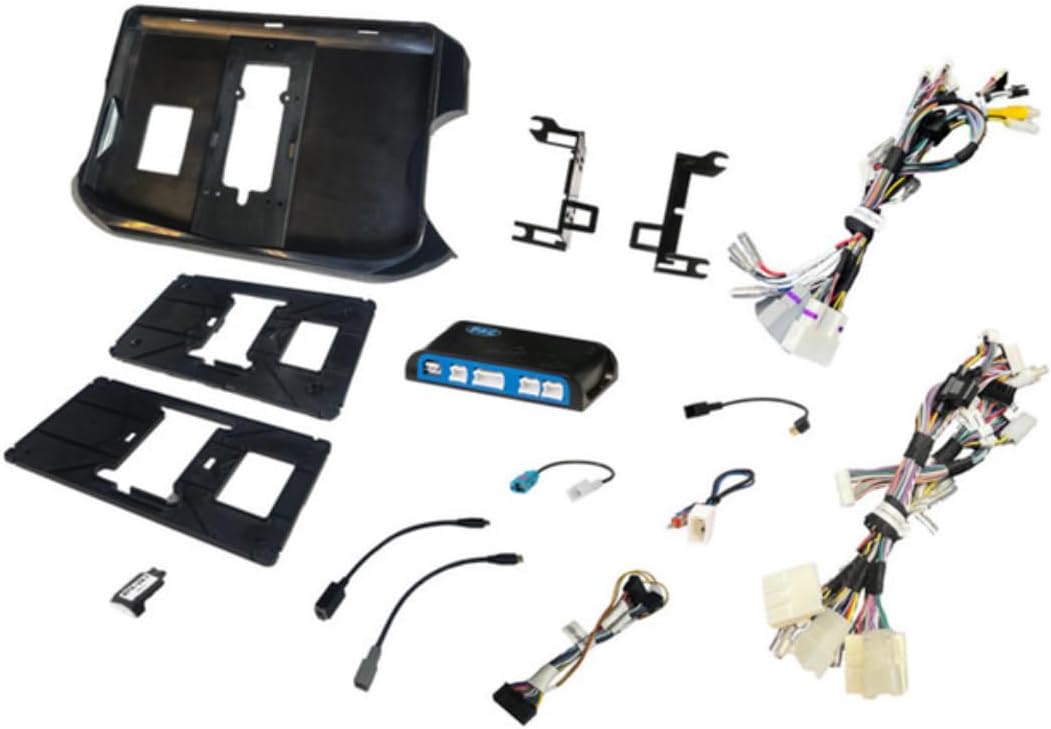

Figure 3.1: Complete PAC SR-TAC16HX Kit Components. This image displays all parts included in the installation kit, such as the dash mounting panels, the main interface module, and various wiring harnesses and adapters.
4. Kompatibilita
This kit is compatible with 2016-2021 Toyota Tacoma vehicles. It is designed for use with Stinger HORIZON10 (iX210) and HEIGH10 (UN1810) head units. Please note that the HORIZON10/iX210 and HEIGH10/UN1810 head units are sold separately and are not included with this kit.
Důležitá poznámka: Tato sada je ne compatible with vehicles equipped with a Panoramic View Monitor (PVM) camera system.
5. Nastavení a instalace
The PAC SR-TAC16HX kit is designed for a plug-and-play installation, minimizing the need for vehicle modifications. However, basic automotive electrical and trim panel removal knowledge is recommended. Always refer to your vehicle's service manual for specific trim removal instructions.
5.1. Kontrolní seznam před instalací
- Ujistěte se, že je baterie vozidla odpojena.
- Gather all necessary tools (e.g., trim removal tools, screwdrivers, wire cutters/strippers if custom wiring is needed for accessories).
- Confirm all kit components are present and undamaged.
- Have the Stinger HORIZON10 or HEIGH10 head unit ready for installation.
5.2. Kroky instalace (obecný návod)
- Carefully remove the factory radio and surrounding trim panels from your Toyota Tacoma. Refer to your vehicle's service manual for precise instructions.
- Disconnect all wiring harnesses and antenna cables from the factory radio.
- Connect the PAC RP4.2-TY11 RadioPro interface to the vehicle's factory wiring harnesses using the provided plug-n-play harnesses. Ensure all connections are secure.
- Connect the other end of the PAC harnesses to the Stinger HORIZON10/HEIGH10 head unit.
- Connect the AM/FM, GPS, and USB adapters from the vehicle to the corresponding inputs on the new head unit or PAC interface, as per the wiring diagram provided with the Stinger unit.
- Mount the Stinger head unit into the provided factory-matched radio mounting panels.
- Carefully route all wiring to ensure it does not interfere with moving parts or get pinched.
- Install the new head unit assembly into the dashboard opening, securing it with the appropriate screws or clips.
- Reinstall all trim panels, ensuring they snap securely into place.
- Znovu připojte baterii vozidla.
- Test the functionality of the new head unit, including audio, steering wheel controls, Apple CarPlay/Android Auto, and all retained vehicle features.
Figure 5.1: Before and After Installation. This image illustrates the visual transformation of the dashboard from the original factory radio to the integrated Stinger infotainment system.
6. Provoz
Once installed, the PAC SR-TAC16HX kit allows your Stinger HORIZON10/HEIGH10 head unit to seamlessly integrate with your Toyota Tacoma's existing systems. The kit ensures the retention of several key factory features:
- Výstražné zvonkohry: All factory warning chimes (e.g., seatbelt, door ajar) will be retained.
- Ovládání na volantu: Factory steering wheel audio controls (volume, track, mode) will function with the new head unit.
- Továrna Ampživější: If your vehicle is equipped with a factory amplifier, its functionality will be maintained.
- Vehicle-to-Radio Connectivity: Signals such as vehicle speed, illumination, reverse gear, and parking brake status are provided to the new head unit for proper operation of features like navigation and video playback.
For detailed operation of the Stinger HORIZON10 or HEIGH10 infotainment system, please refer to the user manual provided with your Stinger head unit.

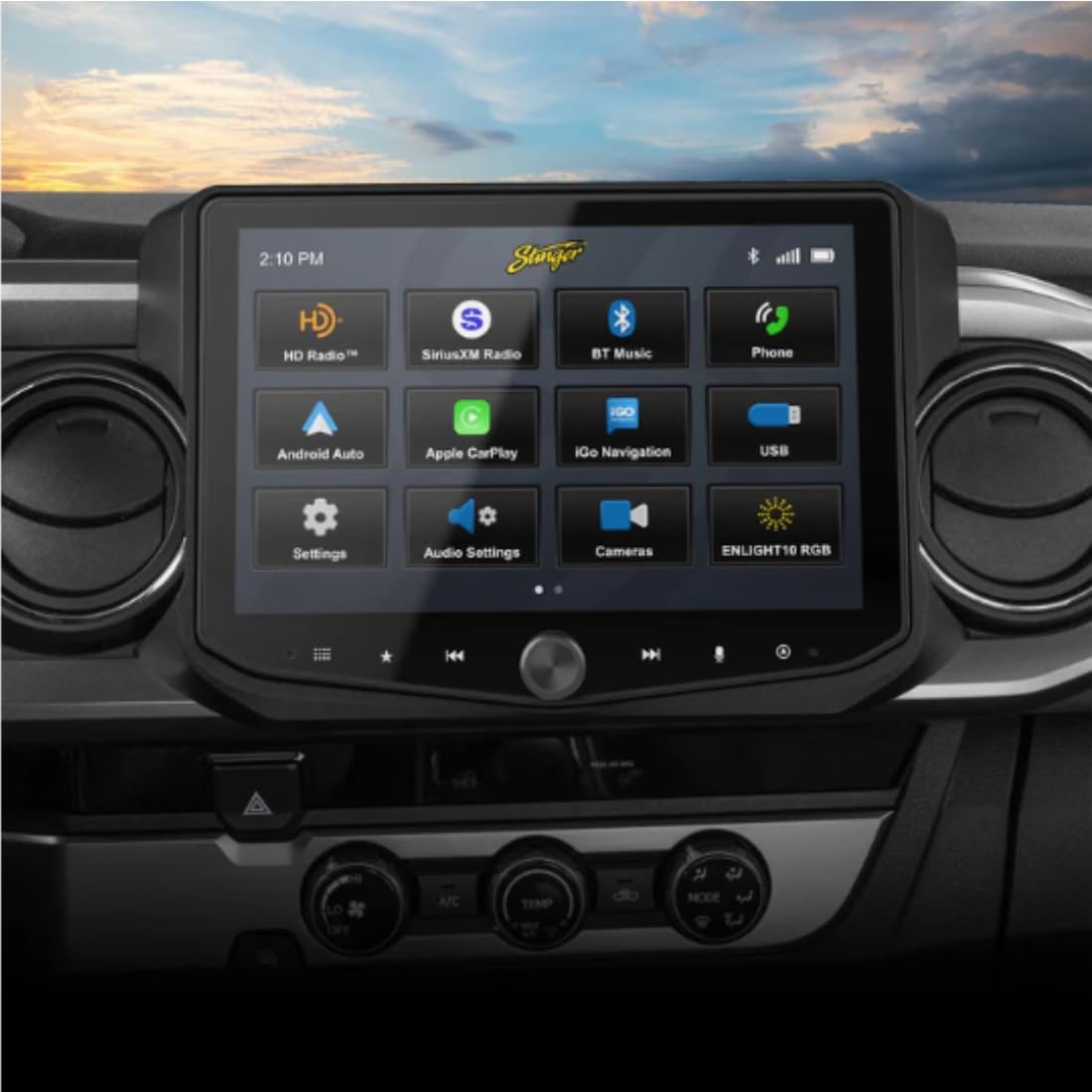

Figure 6.1: Stinger Head Unit in Operation. This image shows the user interface of the Stinger infotainment system after successful installation, highlighting its various functions and seamless integration into the vehicle's interior.
7. Údržba
The PAC SR-TAC16HX kit requires minimal maintenance. Keep the connections clean and free from debris. Avoid exposing the components to extreme temperatures or moisture. Periodically check wiring for any signs of wear or damage. For cleaning the head unit screen, refer to the Stinger head unit's manual.
8. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| No power to head unit. | Loose power connection; Blown fuse; Vehicle battery disconnected. | Check all power connections. Inspect vehicle fuses and replace if necessary. Ensure vehicle battery is properly connected. |
| Žádný zvuk z reproduktorů. | Loose speaker connections; Amplifier not powered (if equipped); Head unit volume too low or muted. | Verify all speaker wire connections. Check amplifier power and connections. Adjust head unit volume and ensure it's not muted. |
| Ovládání na volantu nefunguje. | PAC interface not properly connected; Incorrect programming (if applicable). | Ensure the PAC RP4.2-TY11 interface is securely connected. Refer to the PAC interface manual for any specific programming steps. |
| Apple CarPlay/Android Auto not launching. | USB cable issue; Phone compatibility; Head unit software issue. | Try a different USB cable. Ensure your phone is compatible and updated. Consult the Stinger head unit manual for troubleshooting CarPlay/Android Auto. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact PAC technical support or a certified installer.
9. Specifikace
- Číslo modelu: SR-TAC16HX-UOB
- Hmotnost položky: 2 libry
- Rozměry balení: 14 x 10 x 4 palce
- Kompatibilita: 2016-2021 Toyota Tacoma (non-PVM camera vehicles)
- Supported Head Units: Stinger HORIZON10 (iX210), Stinger HEIGH10 (UN1810)
- Retained Features: Warning Chimes, Steering Wheel Controls, Factory Amplifier (if equipped), Vehicle Speed, Illumination, Reverse, Parking Brake Signals.
10. Informace o záruce
Specific warranty details for the PAC SR-TAC16HX kit are typically provided by the manufacturer or the point of purchase. Please refer to the documentation included with your product or contact PAC directly for current warranty terms and conditions.
11. Podpora
For technical assistance, installation questions, or troubleshooting support, please contact PAC customer service. You can typically find their contact information on the official PAC webwebu nebo prostřednictvím prodejce, u kterého jste produkt zakoupili.
Note: Due to continuous product development, features and specifications are subject to change without prior notice.
