DAYBETTER 100FT Solar String Lights User Manual

1. Konec produktuview

The DAYBETTER 100FT Solar String Lights are designed for outdoor use, providing ambient lighting for patios, gardens, yards, and pathways. These lights are solar-powered, waterproof, and feature 50 LED bulbs with dimmable and timer functions, controllable via a remote.

Obrázek 1.1: Konecview of the DAYBETTER 100FT Solar String Lights, including the string of 50 LED bulbs, the solar panel, and the remote control.

2. Obsah balení

• 100FT String Lights with 50 G40 LED Bulbs
• Solar Panel with integrated battery
• Dálkové ovládání
• Mounting Accessories (Clip, Ground Stake, Wall Mount Screws, Zip Ties)
• Náhradní LED žárovky
• Uživatelská příručka

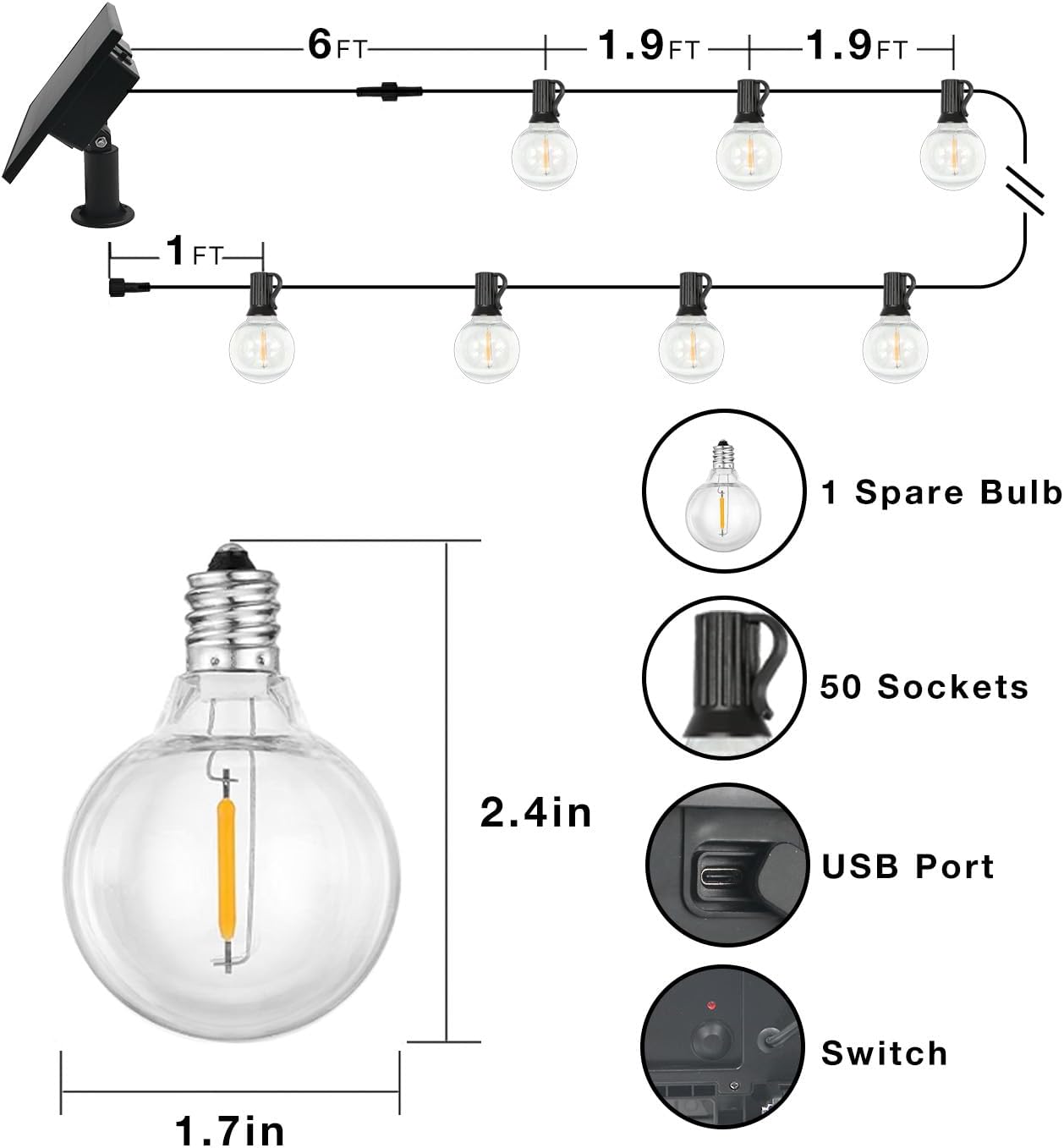

Obrázek 2.1: Detailní view of the string light components, including a G40 LED bulb with dimensions, 50 sockets, a USB charging port on the solar panel, and the main power switch.

3. Nastavení a instalace

Follow these steps to set up your solar string lights:

1. Rozbalte komponenty: Opatrně vyjměte všechny položky z obalu.
2. Počáteční poplatek: Before first use, ensure the solar panel is placed in direct sunlight for at least 8 hours to fully charge the internal battery. Alternatively, use the USB charging port for a faster 4-hour charge, especially useful on cloudy days.
3. Montáž solárního panelu: Choose a location that receives maximum direct sunlight throughout the day. The solar panel can be mounted using one of the following methods:
   • Montáž klipu: Attach the clip to a fence, railing, or other suitable edge.
   • Pozemní kůl: Insert the stake into soft ground.
   • Montáž na stěnu: Use the provided screws to secure the panel to a wall or solid surface.


   Image 3.1: Visual guide demonstrating three installation methods for the solar panel: using a simple clip, mounting to a wall, or inserting an in-ground stake.



   Image 3.2: The solar panel features a 180-degree adjustable angle for optimal sunlight exposure.



   Image 3.3: The solar panel offers two charging methods: 8-hour solar charging and 4-hour fast USB charging for rainy days.
4. Umístění světelných řetězů: Drape or hang the 100FT string lights in your desired outdoor area. Use the included zip ties or chains to secure them. Ensure the solar panel is connected to the string lights.
5. Aktivujte světla: Locate the On/Off button on the back of the solar panel and press it to turn the lights on. The lights will automatically activate at dusk and turn off at dawn.

4. Návod k obsluze

The DAYBETTER Solar String Lights feature automatic operation and remote control functionality.

4.1 Automatický provoz

• The integrated light sensor automatically turns the lights ON at sunset and VYPNUTO at sunrise.
• A full day's solar charge provides 8-12 hours of illumination.

Image 4.1: The solar panel's light sensor enables automatic activation of lights at night and deactivation during the day for charging.

4.2 Funkce dálkového ovládání

The included remote control allows for manual adjustment of various settings:

Image 4.2: The remote control features buttons for setting timers (6H, 8H), adjusting brightness (25%, 50%, 75%, 100%), controlling speed for dynamic modes, and selecting lighting modes (Breath, Flash, Steady On).

• ON/OFF: Manually turn the lights on or off.
• Stmívání: Adjust brightness levels to 25%, 50%, 75%, or 100%.
• Časovač: Nastavte si světla tak, aby se automaticky vypnula po 6 nebo 8 hodinách.
• Režimy osvětlení: Select from three modes:
  • Dech: Lights gently fade in and out.
  • Blikat: Světla blikají přerušovaně.
  • Trvale zapnuto: Světla zůstávají nepřetržitě rozsvícená.
• Rychlost +/-: Adjust the speed of the 'Breath' and 'Flash' lighting modes.

5. Údržba

Regular maintenance ensures optimal performance and longevity of your string lights.

• Čistý solární panel: Solární panel pravidelně otírejte měkkým hadříkemamp hadříkem, abyste odstranili prach, nečistoty nebo úlomky. Čistý panel zajišťuje efektivní nabíjení.
• Výměna žárovky: If a bulb fails, replace it with one of the included spare G40 LED bulbs. Gently twist the old bulb counter-clockwise to remove and twist the new bulb clockwise to install. Ensure the power is off before replacing bulbs.
• Odolnost vůči počasí: The lights have an IP65 waterproof rating, making them resistant to rain and splashes. However, avoid submerging the solar panel or string lights in water.
• Skladování: During prolonged periods of non-use or extreme weather conditions, it is recommended to store the lights indoors in a cool, dry place.

Image 5.1: The lights are designed for all-weather durability, featuring waterproof, sunproof, windproof, and snowproof construction.

6. Řešení problémů

If you encounter issues with your DAYBETTER Solar String Lights, refer to the following common problems and solutions:

7. Specifikace

8. Záruka a podpora

Specific warranty details and direct support contact information are not provided within this manual. Please refer to the product packaging or the manufacturer's official webstránky s nejaktuálnějšími informacemi o záruce a možnostmi zákaznické podpory.
