Uživatelská příručka k přenosnému výrobníku mlhy COLBOR CF5

1. Úvod

The COLBOR CF5 Portable Fog Machine is a compact and powerful device designed to produce atmospheric fog effects for various applications, including photography, film shoots, stage performances, parties, and events. Featuring a 40-watt output and a 12 ml oil chamber, it delivers significant smoke volume with precise control over density and flow. Its portable design, adjustable body, and remote control functionality offer versatility and ease of use.

Image: The COLBOR CineFlare CF5 Portable Fog Machine, highlighting its compact design and branding, with a subtle smoke effect in the background.

2. Bezpečnostní informace

Please read and understand all safety instructions before operating the COLBOR CF5 Fog Machine. Failure to follow these instructions may result in injury or damage to the device.

• Use Approved Fog Liquid Only: The CF5 uses food-grade plant glycerin, which is colorless and odorless. Do not use any other liquids, as this may damage the machine or produce harmful fumes.
• Větrání: Ensure adequate ventilation when operating the fog machine, especially in enclosed spaces.
• Ovládání teploty: The device features an intelligent temperature control sensor to prevent overheating. Do not obstruct air vents.
• Vyhněte se přímému kontaktu: Do not touch the nozzle or emitted fog directly, as it may be hot.
• Uchovávejte mimo dosah dětí: This device is not a toy. Store it safely away from children and pets.
• Zdroj napájení: Používejte pouze určený nabíjecí kabel a napájecí adaptér.
• Skladování: Store the fog machine and liquid in a cool, dry place, away from direct sunlight and extreme temperatures.

Image: The COLBOR CF5 Fog Machine demonstrating its built-in magnetic RGB light with 360-degree color ring adjustments and 3-level fan speed adjustment, crucial for safe and controlled operation.

3. Obsah balení

Verify that all items are present in your COLBOR CF5 package:

• COLBOR CF5 Portable Fog Machine
• Bezdrátové dálkové ovládání
• Flexibilní trubka
• Kryt trysky
• Various Adapters/Nozzles
• Bottle of Fog Liquid (Food-grade plant glycerin)
• USB nabíjecí kabel
• Pouzdro na míru

Image: The COLBOR CF5 Portable Fog Machine displayed with its full set of accessories, including the remote control, various nozzles, flexible tube, and carrying case.

4. Konec produktuview

Familiarize yourself with the main components of the COLBOR CF5 Fog Machine:

• Hlavní jednotka: Contains the heating element, oil chamber, battery, and control panel.
• Adjustable Body: The main unit can be adjusted up to 60 degrees for precise smoke direction.
• Ovládací panel: Features buttons for power, density adjustment, fan speed, and cycle settings.
• Nozzle/Output Port: Where fog is emitted. Magnetic attachment for accessories.
• Magnetic RGB Light: Integrated light ring for adding color to fog effects.
• Magnetic Fan: Built-in fan with adjustable speed for shaping smoke flow.
• Oil Chamber: 12 ml capacity for fog liquid.
• Port USB-C: Pro nabíjení zařízení.

Image: The COLBOR CF5 Fog Machine demonstrating its foldable and flexible body, which allows for a 60-degree angle adjustment to precisely direct smoke flow for various applications.

5. Nastavení

Follow these steps to set up your COLBOR CF5 Fog Machine for first use:

1. Nabijte zařízení: Before initial use, fully charge the CF5 using the provided USB charging cable. The charging indicator will show progress.
2. Fill the Oil Chamber: Locate the oil chamber port. Carefully pour the food-grade fog liquid into the 12 ml chamber. Avoid overfilling.
3. Připojit příslušenství: Depending on your desired effect, attach the appropriate nozzle, flexible tube, or nozzle cover to the magnetic output port. Ensure it is securely seated.
4. Zapnutí: Press and hold the power button on the control panel to turn on the device.

Obrázek: Podrobný view of the external accessories for the COLBOR CF5, including various adapters, a flexible tube for 360-degree smoke dispersion, and a nozzle cover, all designed for broader smoke control.

6. Návod k obsluze

The COLBOR CF5 offers versatile control options for various fog effects.

6.1. Základní obsluha

• Zapnutí/vypnutí: Press and hold the power button on the device or the remote control.
• Smoke Emission: Once powered on, press the dedicated smoke button to emit fog.

6.2. Adjusting Smoke Density and Fan Speed

The CF5 features 25 levels of smoke density and 3 levels of fan speed for precise control.

• Hustota kouře: Use the '+' and '-' buttons on the control panel or remote to cycle through 25 density levels. Higher levels produce thicker fog.
• Rychlost ventilátoru: Use the fan speed button to adjust the internal fan's intensity (3 settings). This influences how quickly and widely the fog disperses.

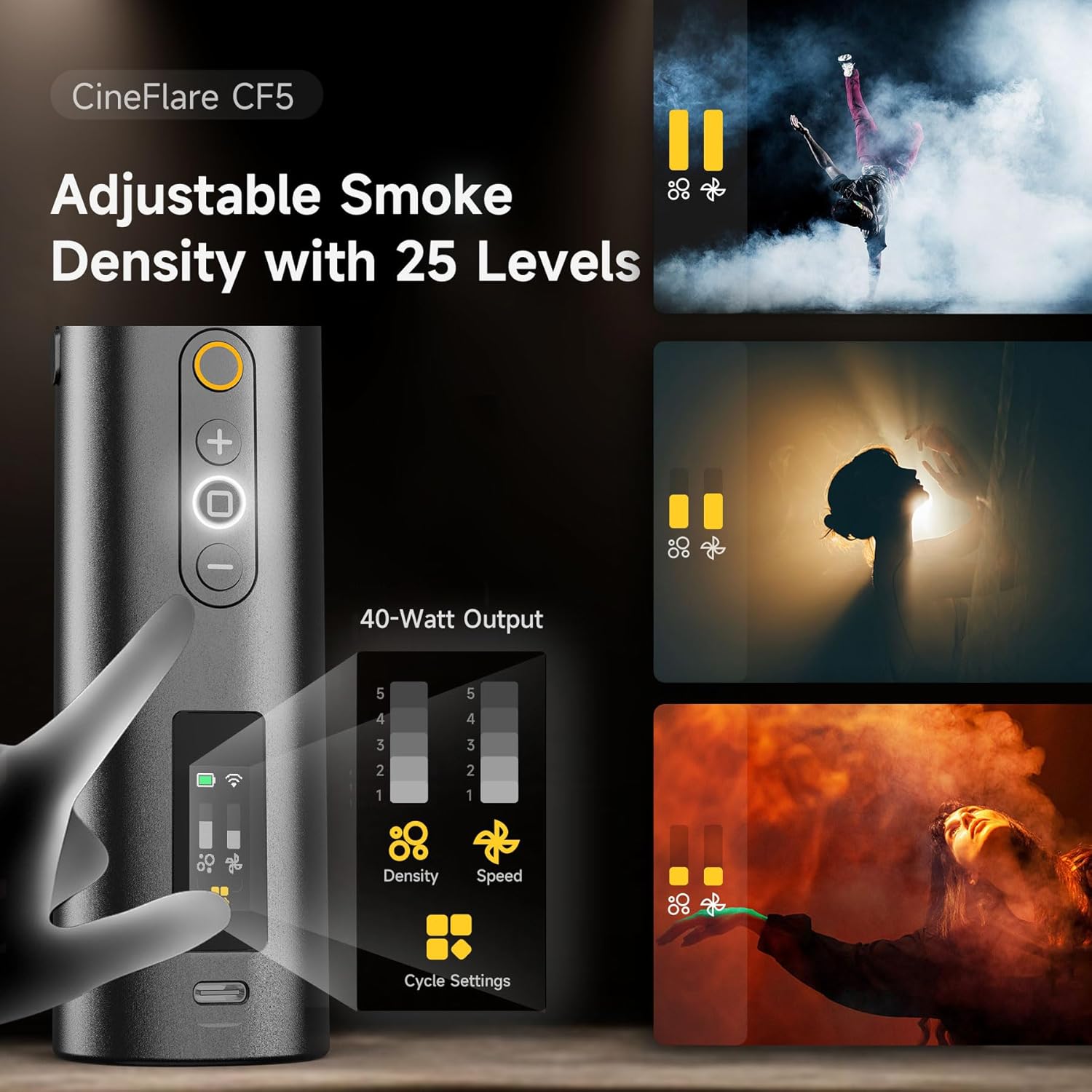

Image: The control panel of the COLBOR CF5, illustrating the 25 levels of adjustable smoke density and options for continuous smoke duration, interval timing, and number of smoke bursts.

6.3. Pomocí dálkového ovládání

The included remote control allows wireless operation up to 10 meters, providing greater flexibility during use.

• Párování: The remote is typically pre-paired. If not, refer to the full manual for pairing instructions.
• Funkce: The remote mirrors the main control panel functions, allowing you to adjust smoke density, fan speed, and trigger smoke emission remotely.

6.4. RGB Light Function

The built-in magnetic RGB light offers 360-degree color ring adjustments to enhance your fog effects with vibrant hues.

• Aktivace: Press the light button on the device or remote to cycle through color options or turn off the light.
• Výběr barvy: Adjust colors to match your creative needs for photography, events, or stage osvětlení.

6.5. Advanced Cycle Settings

The CF5 supports custom settings for continuous smoke duration, interval timing, and the number of smoke bursts.

• Přístup k nastavení: Refer to the device's display and control panel for navigating these advanced options.
• Přizpůsobení: Set specific durations for continuous fog, define intervals between bursts, and specify the number of bursts for automated effects.

7. Údržba

Proper maintenance ensures the longevity and optimal performance of your COLBOR CF5 Fog Machine.

• Čištění: After each use, especially if using different types of fog liquid (though only food-grade glycerin is recommended), run the machine with a small amount of distilled water to clear any residue.
• Čištění exteriéru: Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
• Skladování: When not in use, store the CF5 in its custom carrying case in a cool, dry place. Ensure the oil chamber is empty or securely sealed to prevent leaks.
• Péče o baterie: For long-term storage, charge the battery to approximately 50% to prolong its lifespan. Recharge every few months if not in use.

8. Řešení problémů

If you encounter issues with your COLBOR CF5, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact COLBOR customer support for further assistance.

9. Specifikace

• Model: CF5
• Výstupní výkon: 40 wattů
• Oil Chamber Capacity: 12 ml
• Smoke Density Levels: 25
• Nastavení rychlosti ventilátoru: 3
• Dosah dálkového ovládání: Až 10 metrů
• Typ baterie: 1 lithium-iontová baterie (součástí balení)
• Hmotnost položky: 2 libry
• Rozměry balení: 11.59 x 5.5 x 3.7 palce
• Výrobce: COLBOR
• První k dispozici: 6. prosince 2024

10. Záruka a podpora

COLBOR products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or visit the official COLBOR website. Please have your model number (CF5) and purchase details ready when contacting support.
