1. Úvod
Thank you for choosing the HOSOM Entry Door Handle. This manual provides detailed instructions for the installation, operation, and maintenance of your new door handle. Please read this manual thoroughly before installation and keep it for future reference to ensure proper function and longevity of your product.
This heavy-duty satin brass keyed door handle is designed for secure front entrances and bedrooms, offering both security and a modern aesthetic.
2. Konec produktuview
The HOSOM Entry Door Handle features a robust design with dual safety mechanisms, suitable for various door types.
Obrázek 2.1: Nahoře a dole view of the HOSOM Entry Door Handle, showcasing its elegant satin brass finish and robust construction.
Klíčové vlastnosti:
- Dual Safety: Suitable for locking two sides of exterior door handles, with one side locked by a turn-button and the other by a key, providing enhanced security.
- Kompatibilita dveří: Adjustable latches fit 2-3/8'' (60mm) or 2-3/4'' (70mm) backsets. The door lock set fits 1-3/8" (35mm) to 1-3/4" (40mm) thickness doors.
- Prémiový materiál: Crafted from heavy-duty and rustproof zinc alloy with ANSI Grade 3 certification for lasting durability.
- Moderní design: Features a trendy slim look with slightly rounded edges and wave-style handles, adding a stylish touch to your home.
- Snadná instalace: Designed for quick and user-friendly assembly with just a screwdriver.
Figure 2.2: Detailed product size diagram, showing key measurements for the handle and latch components.
Figure 2.3: Diagram illustrating door thickness and backset compatibility, ensuring the handle fits most standard doors.
Figure 2.4: Illustration of the universal adjustable latch, showing settings for 2-3/8" (60mm) and 2-3/4" (70mm) backsets.
Figure 2.5: The reversible handle design allows for installation on both left-handed and right-handed doors, providing versatile application.
3. Specifikace
| Atribut | Hodnota |
|---|---|
| Značka | HOSOM |
| Model | 1 Pack Entry-Satin Brass |
| Materiál | Mosaz, zinek |
| Barva | Entry-Satin Brass |
| Vnější povrch | Zlato |
| Rozměry produktu | 6.89"D x 5.91"Š |
| Zahrnuté komponenty | Screw, Installation Hardware |
| Typ zámku | Zámek kláves |
| Materiál rukojeti | Zinek |
| Orientace rukou | Obouruký |
| Hmotnost položky | 1.87 libry |
| Velikost | 1 balení |
| Dokončit | satén |
4. Instalace
The HOSOM Entry Door Handle is designed for easy installation. Follow these steps carefully to ensure a secure and functional setup.
4.1. Obsah balení
Before you begin, verify that all components are present in the package:

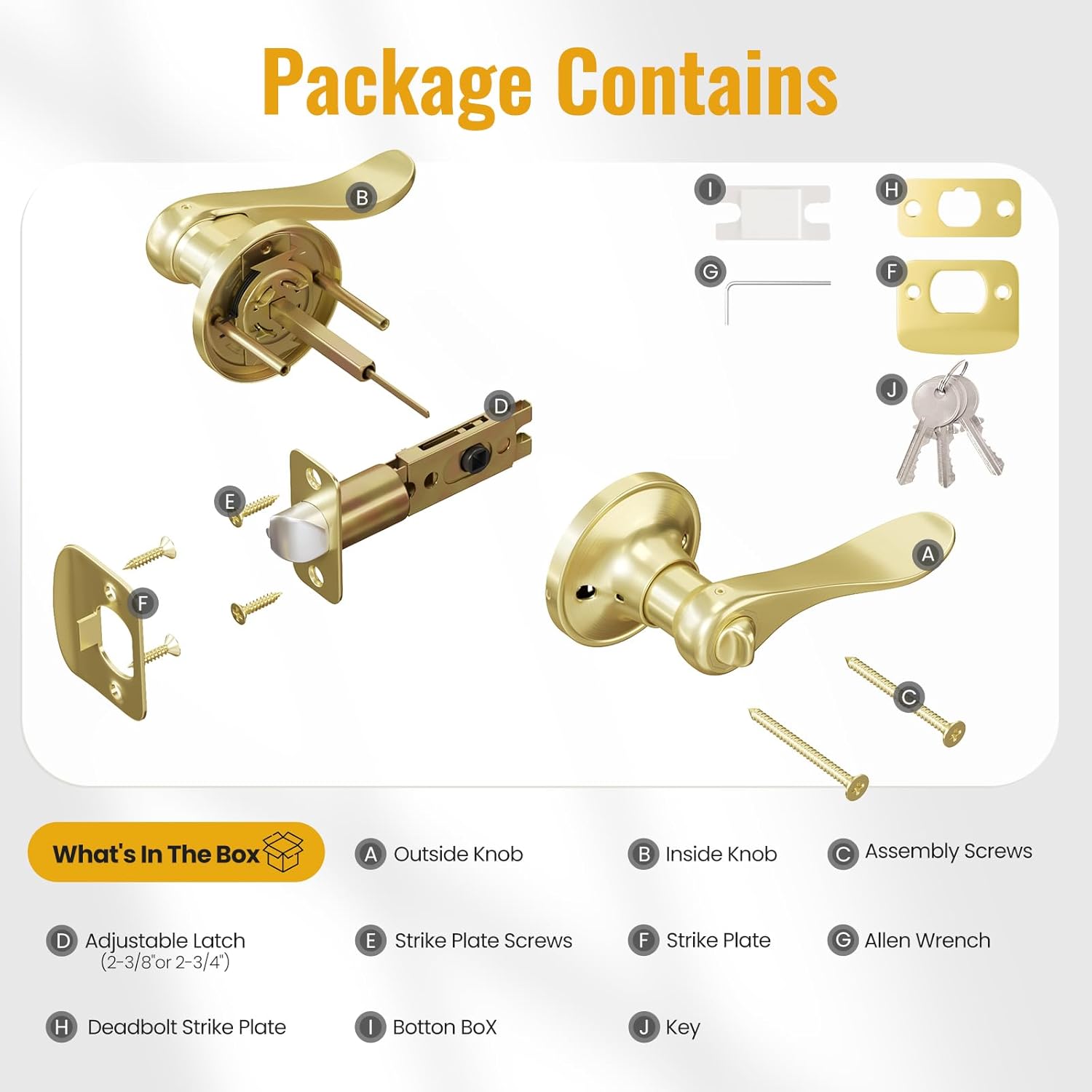

Figure 4.1: Contents of the HOSOM Entry Door Handle package, including all necessary hardware for installation.
- A: Vnější knoflík
- B: Inside Knob
- C: Assembly Screws
- D: Adjustable Latch (2-3/8" or 2-3/4")
- E: Strike Plate Screws
- F: Strike Plate
- G: Allen Wrench
- H: Deadbolt Strike Plate
- I: Botton Box (likely a typo for "Bolt Box" or similar component)
- J: Key
4.2. Kroky instalace
A screwdriver is the only tool required for assembly.
Figure 4.2: Visual guide for key installation tips, showing component alignment and securing.
- Připravte dveře: Ensure your door has the correct bore holes and backset. The adjustable latch can be set for either 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Nainstalujte západku: Insert the adjustable latch (D) into the door edge. Ensure the bevel of the latch bolt faces the door frame. Secure with screws.
- Nainstalujte vnější kliku: Place the outside knob (A) through the bore hole, ensuring the spindle aligns with the latch mechanism.
- Install the Interior Handle: Position the inside knob (B) on the interior side, aligning it with the exterior handle and latch.
- Secure the Handles: Use the assembly screws (C) to firmly connect the interior and exterior handles through the door. Tighten securely but do not overtighten.
- Instalace protiplechu: Attach the strike plate (F) and deadbolt strike plate (H) to the door frame using the strike plate screws (E). Ensure they align perfectly with the latch bolt when the door is closed.
- Test funkčnosti: Close the door and test the handle's operation from both sides. Ensure the latch retracts smoothly and the lock engages properly with the key and thumb-turn.
Note: The striker plate is typically round. Avoid strong impact or distortion during installation to prevent damage.
5. Provoz
Operating your HOSOM Entry Door Handle is straightforward, providing secure access and privacy.
5.1. Zamykání a odemykání
Figure 5.1: The exterior side features a keyhole for locking/unlocking, while the interior side has a thumb-turn button for convenient locking.
- Z exteriéru: Insert the provided key into the keyhole and turn to lock or unlock the handle. Remove the key after operation.
- Z interiéru: Use the thumb-turn button located on the interior handle. Rotate the button to engage or disengage the lock.
5.2. Emergency Unlock Feature
Figure 5.2: The door lock features an emergency unlock on the exterior and a thumb-turn on the interior for easy access from both sides.
In case of an emergency or accidental lockout from the exterior, the handle is equipped with an emergency unlock feature. A small tool (such as a paperclip or the provided Allen wrench) can be inserted into the small hole on the exterior knob to disengage the lock. This feature is primarily for privacy handles but is noted for entry handles as well for emergency access.
6. Údržba
Proper maintenance will ensure the longevity and smooth operation of your HOSOM Entry Door Handle.
- Čištění: Rukojeť pravidelně čistěte měkkým hadříkemamp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the satin brass finish.
- Mazání: Periodically apply a small amount of graphite lubricant or a silicone-based spray to the latch mechanism and key cylinder to ensure smooth operation. Do not use oil-based lubricants as they can attract dust and grime.
- Utahovací šrouby: Over time, screws may loosen. Periodically check and tighten all visible screws, especially the assembly screws, to maintain stability and prevent wobbling.
- Inspekce: Inspect the handle for any signs of wear, damage, or corrosion. Address any issues promptly to prevent further deterioration.
7. Řešení problémů
If you encounter any issues with your HOSOM Entry Door Handle, refer to the following common troubleshooting tips:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Rukojeť je uvolněná nebo se kymácí. | Upevňovací šrouby jsou uvolněné. | Tighten the assembly screws (C) that connect the interior and exterior handles. |
| Západka se nezasouvá hladce. | Nedostatek mazání nebo nečistoty v mechanismu. | Apply graphite lubricant or silicone spray to the latch mechanism. Clean any visible debris. |
| Key is difficult to turn or stuck. | Key cylinder needs lubrication or is obstructed. | Apply graphite lubricant into the key cylinder. Ensure the key is fully inserted and not bent. |
| Door does not latch or lock properly. | Strike plate misalignment or incorrect backset setting. | Check the alignment of the strike plate on the door frame. Adjust the latch backset if necessary (2-3/8" or 2-3/4"). Ensure the door frame is not warped. |
| Handle does not return to horizontal position. | Internal spring issue or improper installation. | Recheck installation steps, ensuring all components are correctly aligned and screws are not overtightened. If the issue persists, contact customer support. |
8. Záruka a podpora
HOSOM is committed to providing high-quality products. While specific warranty details are not provided in this manual, we recommend retaining your proof of purchase for any warranty claims.
For technical assistance, replacement parts, or any questions regarding your HOSOM Entry Door Handle, please contact HOSOM customer support through the retailer where the product was purchased or visit the official HOSOM brand store online.
