ARRMA Typhon GROM 4X4 223S BLX Brushless Buggy Instruction Manual

Zavedení

This manual provides comprehensive instructions for the safe and effective operation, setup, and maintenance of your ARRMA Typhon GROM 4X4 223S BLX Brushless Small Scale Buggy. Please read this entire manual carefully before operating the product to ensure proper function and to prevent damage or injury. This product is a sophisticated hobby item and requires careful handling and basic mechanical understanding.

Obrázek 1: Přední strana view of the ARRMA Typhon GROM 4X4 223S BLX Brushless Buggy.

Bezpečnostní informace

VAROVÁNÍ: Před použitím si přečtěte CELÝ návod k obsluze, abyste se seznámili s funkcemi produktu. Nesprávné používání produktu může vést k poškození produktu, osobního majetku a způsobit vážná zranění. Jedná se o sofistikovaný hobby produkt. Musí být obsluhován s opatrností a selským rozumem a vyžaduje určité základní mechanické dovednosti. Nebezpečné a zodpovědné používání tohoto produktu může vést ke zranění nebo poškození produktu či jiného majetku. Tento produkt není určen k používání dětmi bez přímého dohledu dospělé osoby. Nepoužívejte jej s nekompatibilními součástmi ani jej žádným způsobem neupravujte mimo pokyny poskytnuté společností Horizon Hobby, LLC. Návod k obsluze produktu obsahuje pokyny pro bezpečnost, provoz a údržbu. Před montáží, nastavením nebo použitím je nezbytné si přečíst a dodržovat všechny pokyny a varování v návodu, aby produkt fungoval správně a nedošlo k poškození nebo vážnému zranění.

Co je v krabici

Your ARRMA Typhon GROM 4X4 223S BLX Brushless Buggy package includes the following components:

• (1) TYPHON GROM 223S BLX 4X4 Small-Scale Buggy RTR
• (1) Spektrum SLT 25A 2-in-1 Brushless Waterproof ESC & Receiver 2S/3S with DSC
• (1) Spektrum 2838 4500Kv Brushless Motor
• (1) Spektrum SLT2 2-Channel 2.4GHz Transmitter with DSC
• (1) Spektrum Smart 7.4V 1400mAh 2S 30C Hard Case LiPo Battery w/IC2 Connector
• (1) Spektrum S10 Smart G2 Mini 2S USB-C Charger
• (4) AA baterie do vysílače
• (1) Šestihranný klíč
• (1) Návod k použití

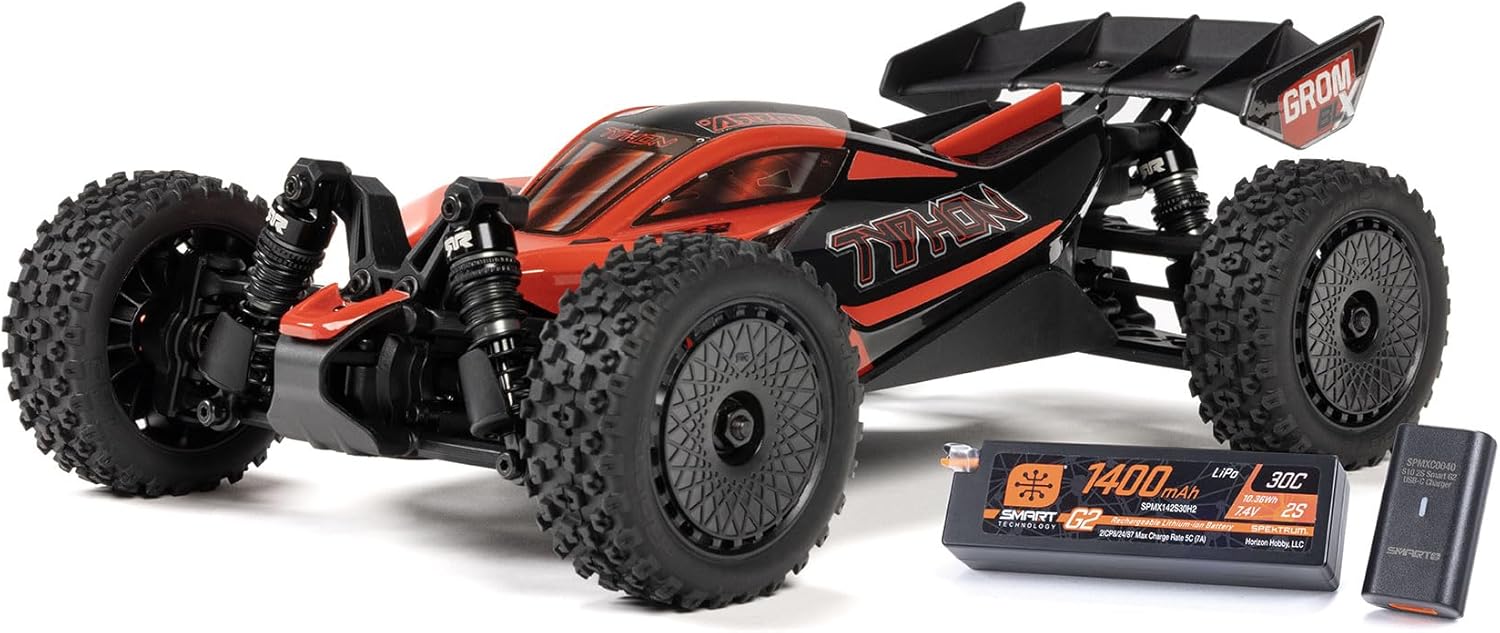

Figure 2: The ARRMA Typhon GROM Buggy shown with its included 2S LiPo battery and USB-C charger.

Nastavení

Follow these steps to prepare your ARRMA Typhon GROM for its first use:

1. Rozbalte komponenty: Carefully remove the RC car and all included items from their packaging. Inspect for any visible damage.
2. Nabijte baterii: Charge the included 2S LiPo battery using the provided USB-C charger. Refer to the charger's specific instructions for charging times and safety precautions.
3. Instalace autobaterie: Once charged, insert the 2S LiPo battery into the RC car's battery compartment. Secure it according to the vehicle's design.
4. Instalace baterií vysílače: Install the four AA batteries into the Spektrum SLT2 2-Channel 2.4GHz Transmitter. Ensure correct polarity.
5. Zapnutí: Turn on the transmitter first, then turn on the RC car. This sequence helps establish a proper connection.
6. Kontrola před spuštěním: Before operating, ensure all components are securely fastened, wheels are properly attached, and steering and throttle respond correctly to transmitter inputs.

Obrázek 3: Shora dolů view of the ARRMA Typhon GROM chassis, showing the battery compartment and internal electronics.

Operating Your RC Car

The ARRMA Typhon GROM 4X4 223S BLX is designed for versatile performance, offering both 2S and 3S LiPo battery compatibility for varying speed potentials. It features Spektrum DSC (Dynamic Stability Control) and throttle limiting, which are beneficial for new drivers to maintain control.

Dynamická kontrola stability (DSC)

The integrated Spektrum DSC system assists in maintaining vehicle stability, especially during high-speed maneuvers or on loose surfaces. This feature can be adjusted or disabled via the transmitter settings, allowing drivers to customize the handling characteristics to their preference and skill level.

Figure 4: Dynamic Stability Control (DSC) icon, indicating the stability feature.

Throttle Limiting

For beginners, the transmitter includes a throttle limiting feature. This allows you to reduce the maximum throttle output, making the vehicle easier to control while learning. Gradually increase the throttle limit as your skills improve.

Prostředí pro řízení

Operate your RC car in open, clear areas free from obstacles, pedestrians, and other vehicles. Avoid public roads. The Typhon GROM is suitable for various terrains, including asphalt, concrete, and hard-packed dirt. Be mindful of small rocks or thick grass, which can affect performance and potentially cause damage.

Údržba

Regular maintenance is crucial for the longevity and performance of your ARRMA Typhon GROM. After each use, perform the following:

• Vyčistěte vozidlo: Remove dirt, dust, and debris from the chassis, suspension, and drivetrain using a soft brush or compressed air.
• Kontrola poškození: Check for any broken or worn parts, such as suspension arms, shocks, wheels, or body components. Replace damaged parts promptly.
• Zkontrolujte spojovací prvky: Ensure all screws and nuts are tight. Loose fasteners can lead to component failure.
• Namažte pohyblivé části: Apply appropriate lubricant to moving parts like universal joints and bearings as needed, following manufacturer recommendations.
• Péče o baterie: LiPo baterie skladujte na chladném a suchém místě při skladovací teplotětage. Never leave batteries fully charged or fully discharged for extended periods.

Obrázek 5: Přample of optional parts for maintenance and upgrades, such as shocks and suspension links.

Odstraňování problémů

If you encounter issues with your ARRMA Typhon GROM, consider the following common troubleshooting steps:

• Bez napájení: Ensure the battery is fully charged and correctly connected. Check that both the transmitter and vehicle are powered on.
• Ztráta kontroly/rušení: Verify that the transmitter and receiver are properly bound. Check for strong interference sources in the operating area.
• Špatný výkon: Inspect the motor, ESC, and battery for signs of damage or overheating. Ensure all gears are free of debris and properly meshed.
• Problémy s řízením: Check the servo for proper function and ensure all steering linkages are free from obstruction and correctly adjusted.
• Neobvyklé zvuky: Investigate any grinding or clicking sounds, which may indicate worn gears, bearings, or a foreign object in the drivetrain.

For more detailed troubleshooting or persistent issues, refer to the full instruction manual included with your product or contact ARRMA customer support.

Specifikace

Figure 6: Vehicle dimensions for the ARRMA Typhon GROM 4X4 223S BLX Buggy.

Záruka a podpora

For warranty information, technical support, or to purchase replacement parts, please visit the official ARRMA website or contact Horizon Hobby customer service. Keep your proof of purchase for warranty claims.

Online zdroje: ARRMA Official Webmísto
