Dell Precision 5560 Laptop User Manual

1. Úvod

This manual provides essential information for setting up, operating, and maintaining your Dell Precision 5560 laptop. The Dell Precision 5560 is a high-performance mobile workstation designed for demanding tasks, featuring an Intel Core i7-11850H processor, 32GB RAM, a 1TB Solid State Drive, and an Nvidia RTX A2000 4GB graphics card. It comes pre-installed with Windows 11 Pro 64-bit, offering a user-friendly interface and advanced features for an optimal computing experience.

2. Co je v krabici

• Dell Precision 5560 Laptop
• AC adaptér

3. Konec produktuview

3.1 Exterior Features

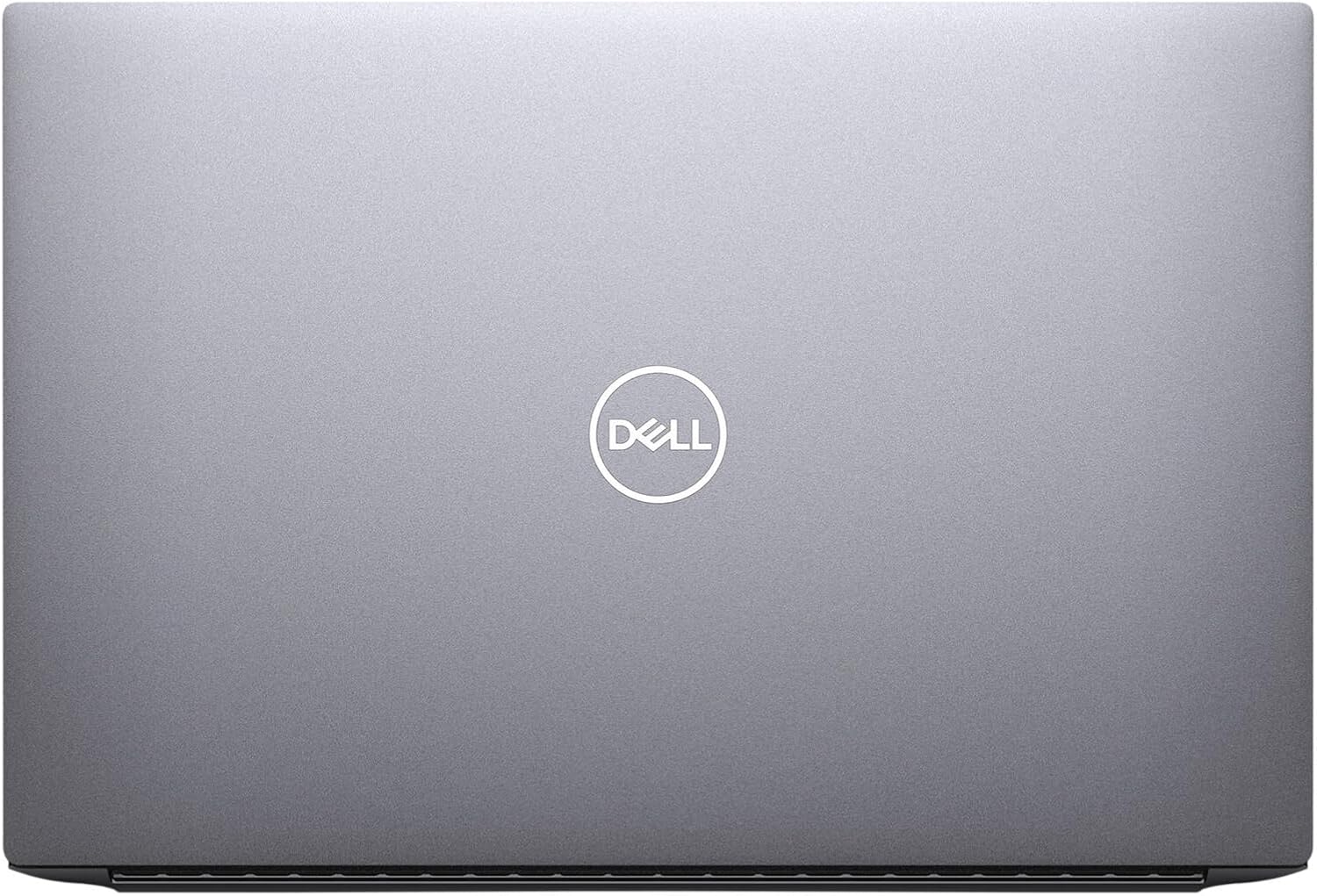

Obrázek 3.1.1: Nahoru view of the Dell Precision 5560 laptop when closed, showcasing its sleek design and Dell logo.

Obrázek 3.1.2: OTEVŘENO view of the Dell Precision 5560, displaying the full-size keyboard, large touchpad, and the 15.6-inch display.

• Zobrazit: 15.6-inch LED Backlight Display with 1920 x 1080 pixels resolution.
• Klávesnice: Full-size keyboard with tactile keys.
• Touchpad: Large, multi-gesture trackpad for precise navigation.

3.2 Porty a konektory

Obrázek 3.2.1: Left side of the Dell Precision 5560, showing the security cable lock slot and two Thunderbolt 4 ports with Power Delivery.

Obrázek 3.2.2: Right side of the Dell Precision 5560, featuring a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, a Secure Digital card slot, and a headphone jack.

• Levá strana:
  • Security Cable Lock Slot
  • 2x Thunderbolt 4 ports with Power Delivery
• Pravá strana:
  • 1x USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode
  • Secure Digital (SD) Card Slot
  • Kombinovaný konektor pro sluchátka/mikrofon

3.3 Vnitřní komponenty

Obrázek 3.3.1: Interiér view of the Dell Precision 5560, showing the dual M.2 hard drive slots, two DDR4 memory slots, and the 86Wh battery.

• Skladování: Two M.2 hard drive slots, both supporting PCIe Gen 4x4.
• Paměť: Two DDR4 memory slots, supporting up to 3200MHz, with a maximum capacity of 64GB RAM.
• Baterie: 86Wh Standard battery.

4. Nastavení

1. Rozbalení notebooku: Carefully remove the laptop and AC adapter from the packaging.
2. Připojte napájení: Plug the AC adapter into a power outlet and then into the laptop's Thunderbolt 4 port (either on the left side).
3. Počáteční zapnutí: Open the laptop lid and press the power button located on the top-right of the keyboard.
4. Nastavení operačního systému: Postupujte podle pokynů na obrazovce a dokončete nastavení systému Windows 11 Pro, včetně jazyka, regionu, síťového připojení a vytvoření uživatelského účtu.
5. Připojení periferií: Connect any external devices such as a mouse, keyboard, or external monitor to the available ports.

5. Ovládání notebooku

5.1 Klávesnice a touchpad

• The keyboard provides a comfortable typing experience. Utilize the function keys (F1-F12) for quick access to system controls like volume, brightness, and external display options.
• The large touchpad supports multi-touch gestures for scrolling, zooming, and navigating. Refer to Windows 11 settings for customizing touchpad gestures.

5.2 Nastavení zobrazení

To adjust display resolution or scaling:

1. Right-click on an empty area of the desktop.
2. Select 'Display settings'.
3. Under 'Scale & layout', you can change the size of text, apps, and other items (scaling) and adjust the 'Display resolution'. The recommended resolution for the 15.6-inch display is 1920x1080 pixels.

5.3 Využití portů

• Porty Thunderbolt 4: Use these for high-speed data transfer, connecting external displays, or charging the laptop.
• Port USB 3.2 Gen 2 typu C: Connect compatible USB-C devices or external displays using DisplayPort Alt Mode.
• Slot pro SD kartu: Insert Secure Digital cards for transferring photos and other media.
• Kombinovaný konektor pro sluchátka/mikrofon: Připojte sluchátka, externí reproduktory nebo náhlavní soupravu s mikrofonem.

6. Údržba

• Čištění: K čištění obrazovky a vnějších částí používejte měkký hadřík, který nepouští vlákna. Nepoužívejte agresivní chemikálie. V případě klávesnice použijte k odstranění prachu a nečistot stlačený vzduch.
• Péče o baterie: To prolong battery life, avoid extreme temperatures and fully discharging the battery frequently. For optimal performance, keep the laptop plugged in when possible, especially during intensive tasks.
• Aktualizace softwaru: Regularly update your Windows operating system and Dell drivers to ensure optimal performance and security.
• Správa úložiště: Pravidelně uklízejte nepotřebné files and applications to maintain sufficient storage space and system speed.

7. Řešení problémů

If you encounter issues with your Dell Precision 5560, consider the following basic troubleshooting steps:

• Bez napájení: Ensure the AC adapter is securely connected to both the laptop and a working power outlet. Check the power light indicator.
• Problémy se zobrazením: If the screen is blank or flickering, try adjusting the display brightness using the function keys. If using an external monitor, ensure cables are connected correctly and check display settings.
• Pomalý výkon: Close unnecessary applications, check for background processes, and ensure sufficient free space on your SSD. Restarting the laptop can often resolve temporary performance issues.
• Periferní zařízení nebylo detekováno: Ensure the peripheral is properly connected to the correct port. Try connecting it to a different port or restarting the laptop.

For more detailed troubleshooting or persistent issues, refer to Dell's official support resources.

8. Specifikace

9. Záruka a podpora

This Dell Precision 5560 is a Certified Refurbished product. It has been tested and certified to look and work like new. The refurbishing process includes functionality testing, basic cleaning, inspection, and repackaging. The product ships with all relevant accessories and a minimum 90-day warranty.

For warranty claims, technical support, or additional product information, please visit the official Dell support webnebo kontaktujte svého prodejce.
