Zavedení
Thank you for choosing the VEVOR LD03 French Fry Cutter. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions thoroughly before first use and retain them for future reference.

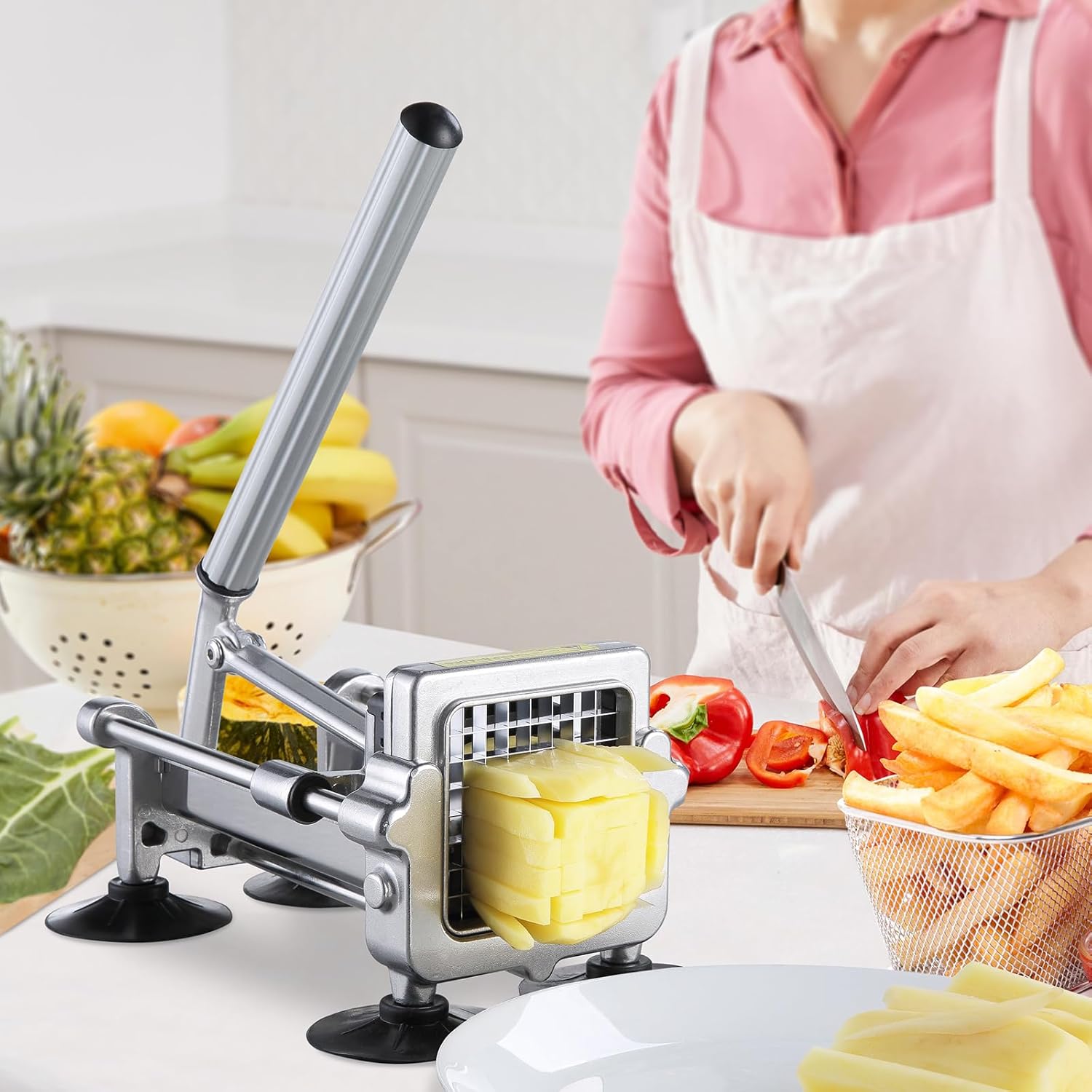

Image: The VEVOR LD03 French Fry Cutter in action, demonstrating its primary function of cutting potatoes into fries.
Bezpečnostní pokyny
- Ostré čepele: The cutting blades are extremely sharp. Handle with extreme care to prevent injury. Always use the push plate to guide vegetables.
- Udržujte ruce čisté: Never place fingers or hands near the blades or the cutting area during operation.
- Stabilní povrch: Always operate the cutter on a clean, dry, and stable surface. Ensure the suction cup feet are securely attached before use.
- Děti a domácí mazlíčci: Keep the appliance out of reach of children and pets. This is not a toy.
- Zamýšlené použití: Use this appliance only for cutting vegetables as described in this manual. Do not attempt to cut frozen foods, meat, or other hard items.
- Čištění: Disassemble blades carefully for cleaning. Use the provided cleaning brush to remove food residue.
- Inspekce: Before each use, inspect the blades and frame for any damage. Do not use if any parts are damaged.
Obsah balení
Po obdržení zkontrolujte prosím obsah balíku, abyste se ujistili, že jsou všechny položky přítomny a nepoškozené:
- 1 x VEVOR LD03 French Fry Cutter Unit
- 2 x Cutting Blades (1/2 inch and 3/8 inch)
- 1 x čisticí kartáček
- 4 x Suction Cup Feet (pre-attached or separate)
- 1 x Návod k obsluze (tento dokument)
Vlastnosti produktu
The VEVOR LD03 French Fry Cutter is designed for efficiency and durability:
- Odolné čepele: Equipped with two sets of 420J2 stainless steel blades (1/2 inch and 3/8 inch) for cutting various vegetables.
- Ergonomická rukojeť: The lever handle is designed for comfortable, non-slip operation, reducing effort.
- Stabilní provoz: Features 4 non-slip suction cup feet (75mm diameter each) to ensure strong adhesion and stability on countertops.
- Robustní konstrukce: Made from high-strength aluminum and stainless steel for durability and corrosion resistance.
- Snadno se čistí: Blades are detachable for thorough cleaning, simplifying maintenance.
Image: Illustration of the two interchangeable blade sizes, 1/2 inch and 3/8 inch, showing the different cut dimensions for vegetables.
Nastavení
- Rozbalit: Opatrně vyjměte všechny součásti z obalu.
- Čistý: Wash all parts that will come into contact with food (blades, push plate, chute) with warm, soapy water before first use. Rinse thoroughly and dry.
- Připevněte přísavky: Ensure the 4 suction cup feet are firmly attached to the base of the cutter. Place the cutter on a smooth, clean, and dry countertop. Press down firmly on the cutter to engage the suction cups, ensuring maximum stability.

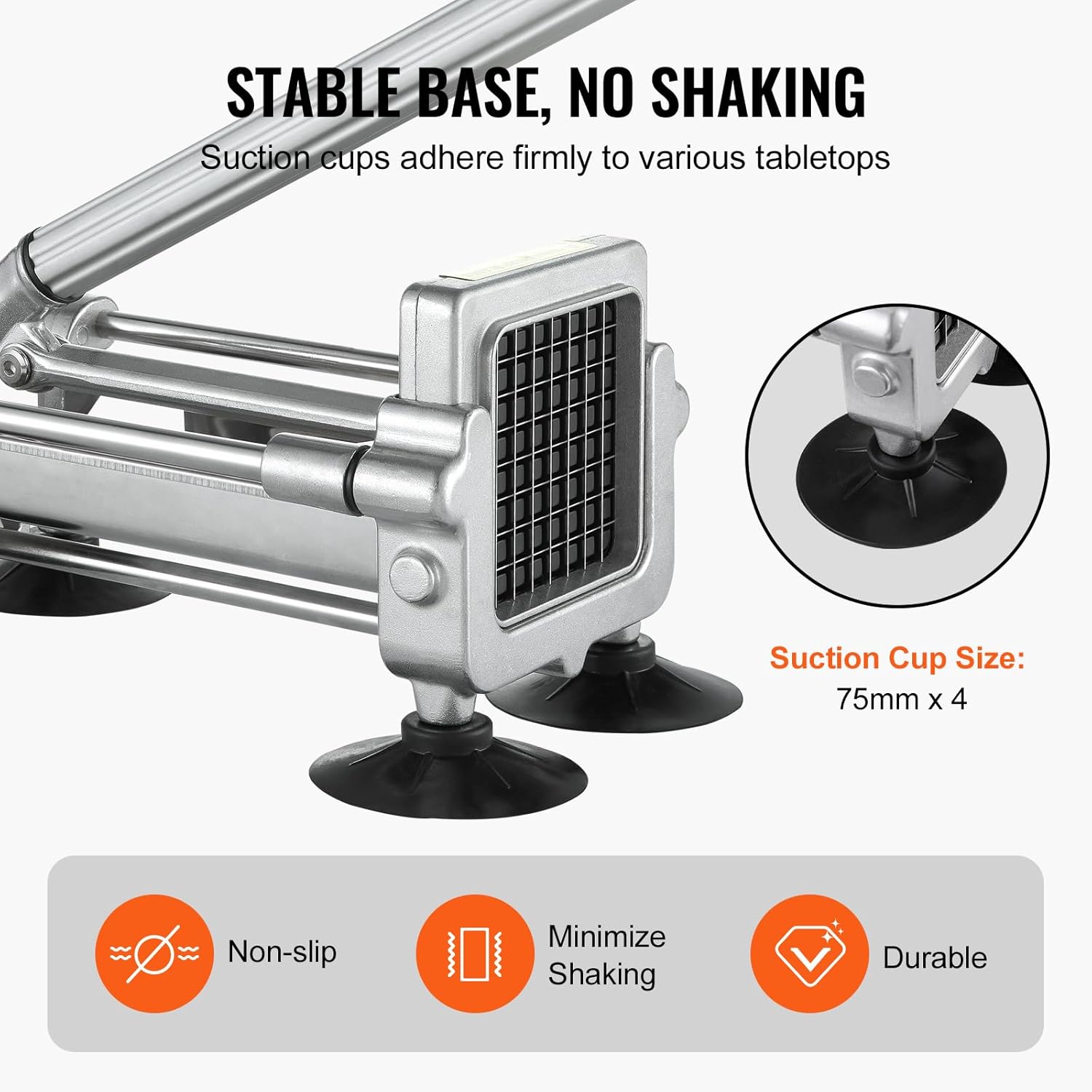

Image: Detail of the stable base with four suction cup feet, highlighting their role in securing the cutter to the countertop.
- Instalace čepele: Select the desired blade size (1/2 inch or 3/8 inch).
Instalace nebo výměna čepele:
- Remove the two locking nuts from the cutting blade assembly.
- Keep the handle downward, loosen the two buckles on the push plate bracket. Then lift the handle and remove the push plate.
- Replace the push plate and secure it with two buckles.
- Replace the cutting blade and secure it using two locking nuts. Ensure the blade is seated correctly and firmly secured.
Image: Step-by-step guide illustrating the process of removing and replacing the interchangeable cutting blades.
Návod k obsluze
- Připravte zeleninu: Wash and peel vegetables (e.g., potatoes, carrots, cucumbers, sweet potatoes). For optimal results, cut larger vegetables to a size that fits comfortably into the cutting chamber without forcing. For tougher vegetables like sweet potatoes, it is recommended to heat them for 2-3 minutes to soften them slightly, easing the cutting process.
- Position Vegetable: Place a prepared vegetable piece vertically into the cutting chamber, ensuring it is centered against the blade.
- Operate Lever: With one hand holding the base for extra stability if needed, firmly and steadily push the ergonomic lever handle downwards. The push plate will press the vegetable through the sharp blades.
- Collect Cut Pieces: The cut vegetable pieces will emerge from the bottom of the blade assembly. Place a bowl or container underneath to collect them.
- Opakovat: Lift the lever handle back to its original position and repeat the process for the next vegetable piece.
Image: The French fry cutter being used to process potatoes, demonstrating the ease of operation for preparing various vegetables.
Údržba a čištění
Regular cleaning and maintenance will prolong the life of your VEVOR LD03 French Fry Cutter.
- Demontáž: After each use, carefully disassemble the cutting blade and push plate as described in the "Setup" section.
- Mytí: Wash the blades, push plate, and other food-contact parts with warm, soapy water. Use the provided cleaning brush to remove any stubborn food particles from the blades. The unit is designed for easy disassembly to facilitate thorough cleaning.
- Máchání: Rinse all parts thoroughly under running water to remove soap residue.
- Sušení: Dry all components completely before reassembly or storage to prevent rust and maintain hygiene.
- Skladování: Store the clean and dry cutter in a safe place, away from children.
Image: The cutter's components laid out, emphasizing its easy-to-disassemble design for comprehensive cleaning and maintenance.
Obrázek: Podrobný view of the non-slip handle, anti-slip suction cups, and the included cleaning brush, all contributing to ease of use and maintenance.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Difficulty pushing vegetables through blades. | Vegetable is too large or too hard. Blades are dull or clogged. | Cut vegetables to a smaller size. For tough vegetables (e.g., sweet potatoes), pre-heat for 2-3 minutes. Clean blades thoroughly. Ensure blades are correctly installed. |
| Cutter slides on countertop during use. | Suction cups not properly engaged or surface is wet/dirty. | Ensure countertop is clean and dry. Press down firmly on the cutter to activate suction cups. |
| Unevenly cut pieces. | Vegetable not centered or pushed unevenly. | Ensure vegetable is centered in the chamber. Apply even pressure on the lever. |
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | LD03 |
| Značka | VEVOR |
| Materiál těla | Hliník, Nerezová ocel |
| Materiál čepele | SUS420J2 Stainless Steel |
| Velikosti čepelí | 1/2 palce (12.7 mm), 3/8 palce (9.52 mm) |
| Rozměry produktu (D x Š x V) | 31 x 17 x 24 cm (12.2 x 6.7 x 9.4 palce) |
| Hmotnost produktu | 2.2 kg (4.85 lb) |
| Speciální funkce | Interchangeable blades, Non-slip suction cup feet |
| Doporučené použití | Vegetables (Potatoes, Carrots, Cucumbers, Sweet Potatoes) |
| Pokyny pro péči | Hand wash only, Dishwasher safe (blades) |
Image: Visual representation of the product dimensions and a summary of key specifications for the VEVOR LD03 cutter.
Záruka a podpora
VEVOR products are designed for durability and performance. For warranty information, technical support, or to inquire about replacement parts, please refer to the contact information provided with your purchase or visit the official VEVOR website. Please have your model number (LD03) ready when contacting support.
Poznámka: Informace o dostupnosti náhradních dílů nejsou v detailech produktu uvedeny.
