1. Konec produktuview
The Baseus Nomos Qi2 Magsafe Power Bank is a versatile portable charger designed for efficient and safe power delivery. It features a 10000mAh high-capacity battery, Qi2 certified 15W magnetic wireless charging for compatible iPhone models, and 45W USB-C fast wired charging. Its compact design includes a foldable stand, an intelligent digital display, and an integrated USB-C cable for convenience.
- Model: Nomos Qi2 Magsafe Power Bank 10000mAh
- Kapacita: 10000 XNUMX mAh
- Barva: Černý
- Speciální vlastnosti: Integrated cable, Digital display, Fast charging, Wireless charging, Slim design.

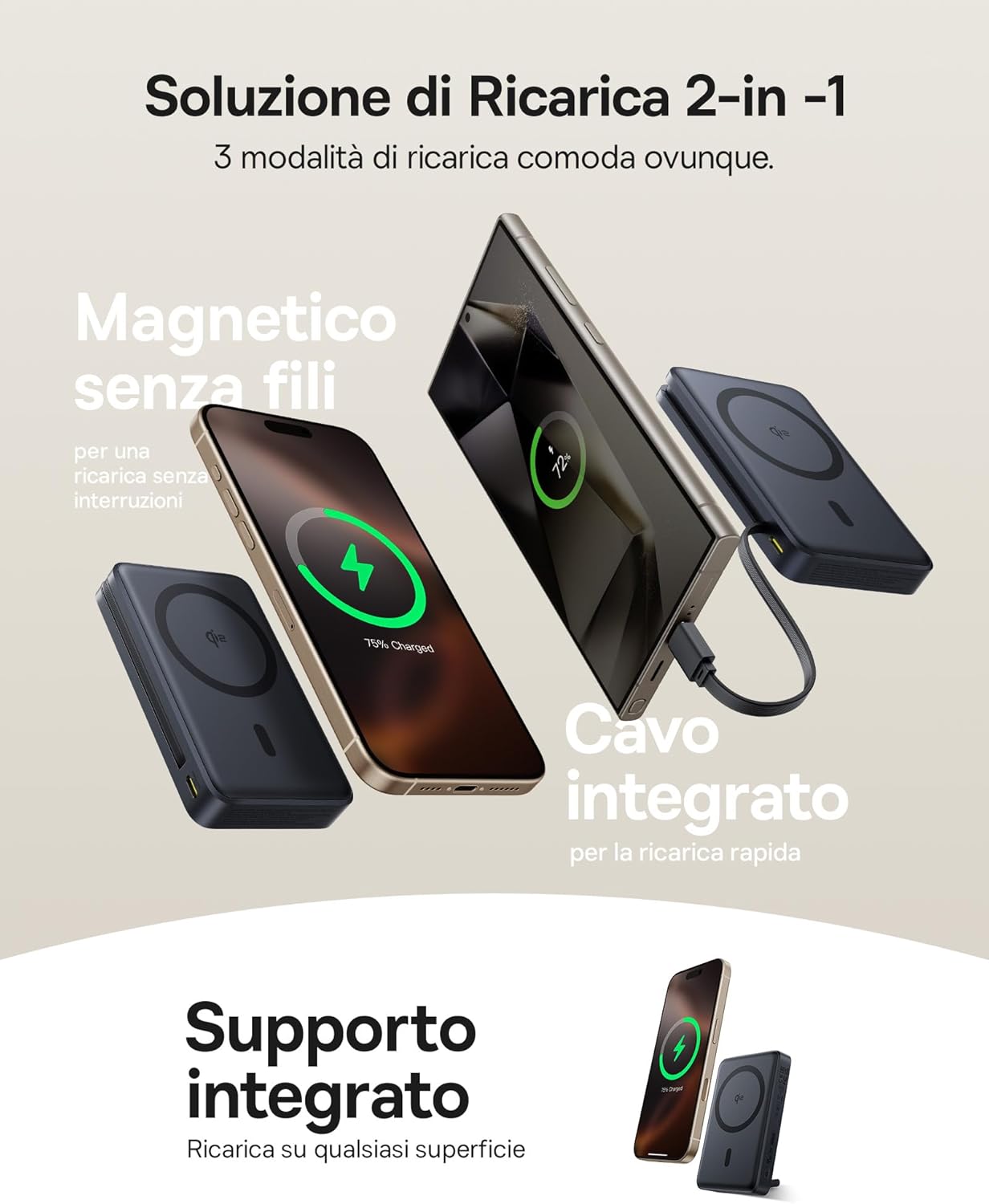

Figure 1: The Baseus Nomos Qi2 Magsafe Power Bank demonstrating its magnetic wireless charging, integrated USB-C cable, and foldable stand for versatile charging options.
2. Nastavení a první použití
2.1 Obsah balení
Before using your power bank, please ensure all items are present:
- Baseus Nomos Qi2 Magsafe Power Bank (10000mAh)
- Kabel USB-C na USB-C
- Uživatelská příručka (tento dokument)
2.2 První nabití powerbanky
For optimal performance, fully charge the power bank before its first use.
- Připojte dodaný kabel USB-C na USB-C k portu USB-C powerbanky.
- Druhý konec kabelu připojte ke kompatibilní nabíječce s USB-C (není součástí balení).
- The intelligent digital display will show the charging progress. The power bank is fully charged when the display shows 100%.
Figure 2: The intelligent digital display provides real-time charging information, including battery level, wattage, and charging indicators.
3. Návod k obsluze
3.1 Magnetic Wireless Charging (Qi2)
The power bank supports 15W Qi2 magnetic wireless charging for compatible iPhone models (iPhone 16/15/14/13/12 series).
- Ensure your iPhone is Magsafe compatible.
- Align the back of your iPhone with the magnetic charging area of the power bank. The magnets will snap into place, securing the connection.
- Charging will begin automatically. The power bank's display will indicate wireless charging activity.

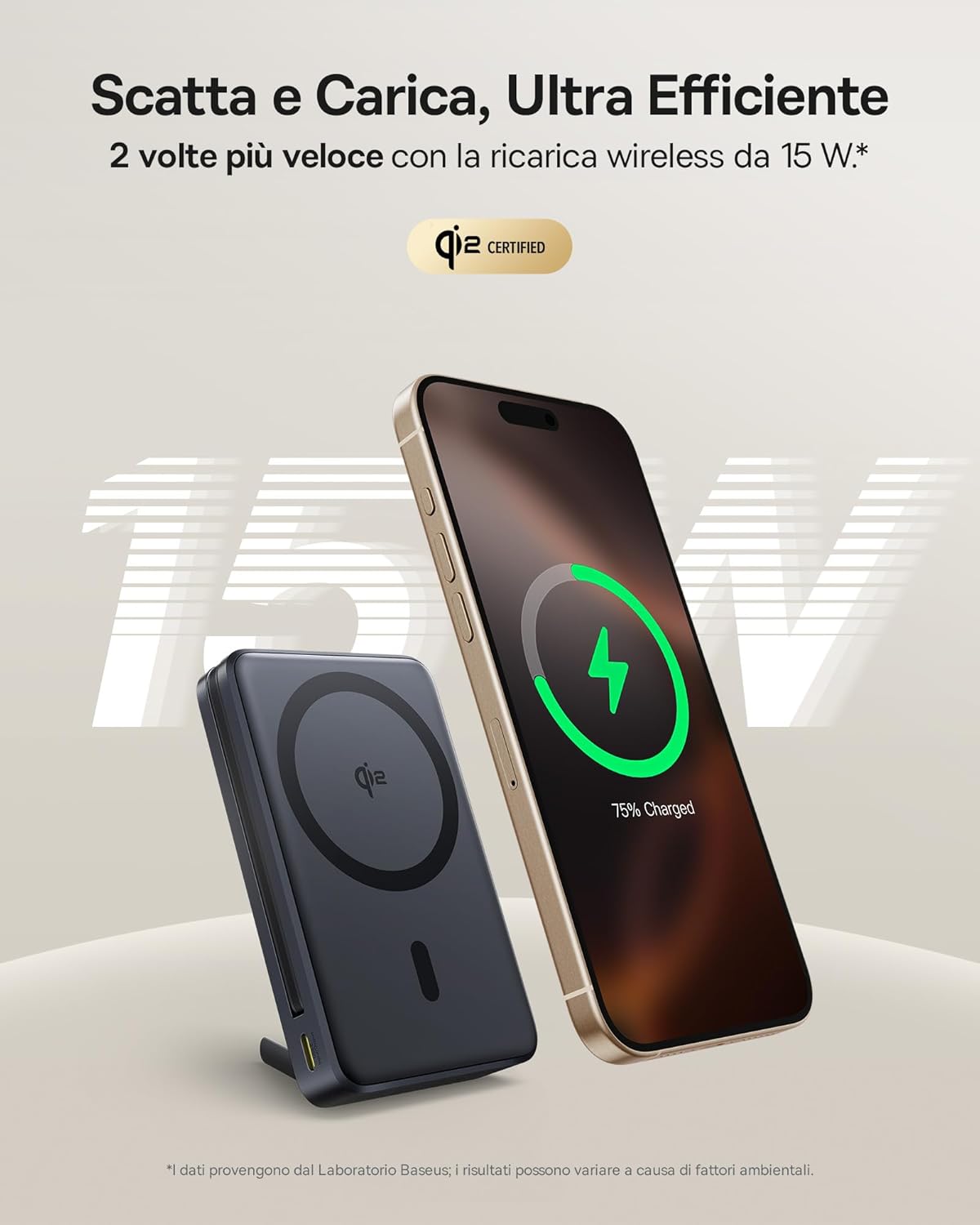

Figure 3: Magnetic wireless charging in action, providing 15W power to a compatible iPhone.
3.2 Wired Fast Charging (USB-C)
The power bank offers 45W wired fast charging via its USB-C port and an integrated USB-C cable.
- For devices with a USB-C port: Use the integrated USB-C cable or your own USB-C to USB-C cable to connect your device to the power bank's USB-C port.
- For devices with other port types (e.g., Lightning): Use an appropriate cable (not included) to connect your device to the power bank's USB-C port.
- Charging will commence automatically. The digital display will show the charging wattage.
Figure 4: Wired fast charging using the integrated USB-C cable, capable of delivering up to 45W.
3.3 Používání skládacího stojanu
The integrated foldable stand allows for convenient hands-free viewpři nabíjení.
- Opatrně vytáhněte skládací stojánek ze zadní strany powerbanky.
- Place the power bank on a flat surface.
- Attach your Magsafe-compatible iPhone to the power bank magnetically for wireless charging, or connect any device via cable, and position it for optimal viewIng.
4. Maintenance and Safety Information
4.1 Obecná péče
- Chraňte powerbanku před vodou, vlhkostí a extrémními teplotami.
- Zabraňte pádu zařízení nebo jeho vystavení silným nárazům.
- Povrch čistěte měkkým, suchým hadříkem. Nepoužívejte agresivní chemikálie ani abrazivní materiály.
- Pokud powerbanku nepoužíváte, uchovávejte ji na chladném a suchém místě.
4.2 Bezpečnostní opatření
The Baseus Nomos Qi2 Power Bank incorporates multiple safety features to protect your devices and the power bank itself. These include protection against overcharge, over-discharge, and over-temperature. Integrated digital algorithms continuously monitor charging status for safe operation.
- Zařízení sami nerozebírejte, neupravujte ani neopravujte.
- Do not expose the power bank to fire or high temperatures.
- Uchovávejte mimo dosah dětí.
- Používejte pouze certifikované nabíjecí kabely a adaptéry.
- If the power bank swells, emits smoke, or shows other abnormal behavior, discontinue use immediately and contact customer support.
Figure 5: The power bank's internal design includes advanced circuitry for continuous charging monitoring and safety protection.
5. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Powerbanka se nenabíjí | Low battery; Faulty cable or adapter; Loose connection. | Ensure the power bank is connected to a working power source with a functional cable and adapter. Check connections. |
| Zařízení se nenabíjí z powerbanky | Power bank battery depleted; Incorrect cable; Device incompatibility; Loose connection. | Recharge the power bank. Use the correct cable for your device. Ensure your device supports the charging method (wired/wireless). Check all connections. |
| Bezdrátové nabíjení nefunguje | Device not Magsafe compatible; Misalignment; Obstruction (e.g., thick case); Power bank battery low. | Ensure your device is Magsafe compatible. Realign the device on the charging pad. Remove any thick cases. Recharge the power bank. |
| Pomalé nabíjení | Cable not supporting fast charging; Device not supporting fast charging; High ambient temperature. | Use a fast-charging compatible cable. Ensure your device supports fast charging. Charge in a cooler environment. |
6. Specifikace
- Značka: Baseus
- Model: Nomos Qi2 Magsafe Power Bank
- Kapacita baterie: 10000 XNUMX mAh
- Výstup bezdrátového nabíjení: Up to 15W (Qi2 certified for iPhone 16/15/14/13/12 series)
- Wired Charging Output: Až 45 W (USB-C)
- Vstupní objemtage: 5 Volts (typical, actual input depends on adapter)
- Speciální vlastnosti: Integrated USB-C cable, Digital display, Foldable stand, Fast charging, Wireless charging, Slim design.
- Barva: Černý
7. Záruka a podpora
Baseus offers a comprehensive 24-month protection plan for this product, along with lifetime support and personalized assistance.
If you encounter any issues with your Baseus Nomos Qi2 Magsafe Power Bank, please contact Baseus customer support for prompt resolution. You can find contact information on the official Baseus webwebu nebo prostřednictvím vaší nákupní platformy.
