1. Úvod
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VARMINPOOL 16000 BTU Smart Inverter WiFi Pool Heat Pump. This unit is designed to provide stable temperature regulation for above-ground pools up to 5,400 gallons, extending your swimming season with minimal energy cost.

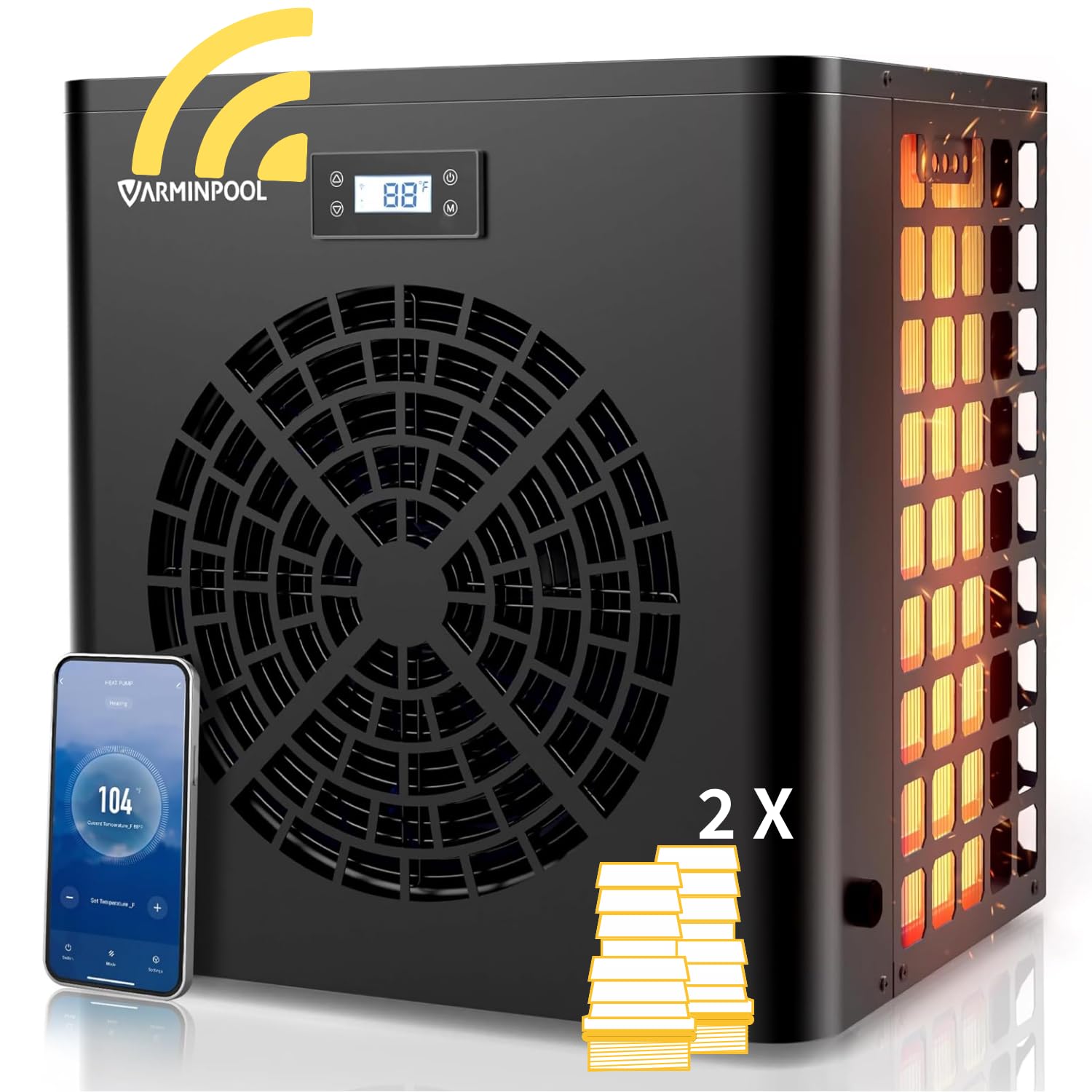

Image: The VARMINPOOL 16000 BTU Smart Heat Pump unit, highlighting its variable power, energy efficiency, and smart WiFi control capabilities.
2. Bezpečnostní informace
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, serious injury, or death.
- Elektrická bezpečnost: The unit operates on 110-120V / 60 Hz. Ensure proper grounding and use a leakage protection plug. All electrical connections should comply with local codes and regulations.
- Bezpečnost vody: Always ensure the pool pump is running when the heat pump is operating to prevent damage.
- Profesionální instalace: While designed for easy installation, consult a qualified professional for any complex plumbing or electrical work.
- Prevence proti zamrznutí: In winter or cold conditions, drain all water from the heat pump and pipelines to prevent freezing damage.
3. Vlastnosti produktu
- Engineered for Above Ground Pools: Suitable for pools up to 5,400 gallons (e.g., 14 feet in diameter).
- Variable Power Inverter Technology: Dynamically adjusts power output for up to 40% energy cost reduction.
- Dálkové ovládání přes aplikaci: WiFi-enabled for remote temperature adjustment, scheduling, and performance monitoring.
- Corrosion-Resistant Titanium Exchanger: Built for durability and efficient heat transfer, even in saltwater conditions.
- Weather-Resilient Design: Galvanized steel outer housing and reinforced evaporator shield protect against environmental stressors.
- Smart Protection and Monitoring: Features a leakage protection plug, integrated flow switch, and automatic temperature sensors.
- Tichý provoz: Operates at a low noise level for a peaceful pool environment.
Image: Graph illustrating the energy saving capabilities of the Smart Inverter technology, showing up to 40% energy reduction.
Image: Close-up of the reinforced evaporator, highlighting its extra thick galvanized steel shell for prolonged optimal performance.
4. Obsah balení
Po vybalení se ujistěte, že jsou všechny součásti přítomny a nepoškozené:
- VARMINPOOL 16000 BTU Heat Pump Unit
- Návod k použití
- 2x 1.5" Hose Fittings
- Ochranná zátka proti úniku
Image: A hand attaching a 1.5-inch hose fitting to the water outlet of the heat pump, demonstrating the included accessories.
5. Instalace
5.1 Umístění a montáž
Place the heat pump on a stable, level concrete pad or similar sturdy surface near your pool and existing filtration system. Ensure adequate clearance around the unit for proper airflow.
Image: The heat pump unit positioned on a concrete slab beside an above-ground pool, with plumbing connections visible.
5.2 Připojení vodovodního potrubí
The heat pump should be installed after the pool filter and before the water returns to the pool. Use the provided 1.5-inch hose fittings. A suggested flow rate of 1000-1200 GPH is recommended for optimal performance.
Image: A diagram illustrating the correct plumbing setup, showing the heat pump connected in line with the pool's filtration system.
5.3 Elektrické připojení
Connect the heat pump to a dedicated 110-120V / 60 Hz power supply. Utilize the integrated leakage protection plug for safety. Ensure all wiring is secure and protected from the elements.
5.4 Instalační videoprůvodce
Video: A detailed guide on how to install the VARMINPOOL pool heat pump, covering plumbing and electrical connections.
6. Provoz
6.1 Ovládací panel
The heat pump features an intuitive control panel for direct adjustments. Use the up/down arrows to set the desired temperature, and the mode button to switch between heating and cooling functions.
Obrázek: Detailní záběr view of the heat pump's digital control panel, indicating temperature display and control buttons.
6.2 Ovládání pomocí aplikace WiFi
Download the dedicated Smart Life app from your smartphone's app store. Connect the heat pump to your home WiFi network to enable remote control and monitoring. The app allows you to:
- Adjust temperature settings from anywhere.
- Naplánujte si provozní dobu.
- Monitor real-time performance and status.
Image: A smartphone displaying the WiFi control app interface, showing temperature settings and scheduling features for the heat pump.
Video: An official VARMINPOOL video demonstrating the smart app control features, including timing functions and heating/cooling modes.
6.3 Provozní režimy
The heat pump supports both heating and cooling modes, allowing you to maintain your desired pool temperature year-round.
7. Údržba
- Pravidelný úklid: Keep the evaporator coils clean and free of debris to ensure efficient operation.
- Zima: Before freezing temperatures, ensure all water is drained from the heat pump and associated plumbing to prevent ice damage. Consult the full user guide for detailed winterization steps.
8. Řešení problémů
The unit features a built-in auto-diagnostic system for operational checks and protection. If you encounter issues, refer to the detailed user guide for specific error codes and troubleshooting steps. Common issues may include:
- Insufficient water flow (check pool pump and filter).
- Nesprávné nastavení teploty.
- Electrical supply interruptions.
Image: An illustration of the heat pump's intelligent control system, featuring auto-diagnostic capabilities for system checks and protection.
9. Specifikace
| Funkce | Specifikace |
|---|---|
| Číslo modelu | KSPF-005L3R1A2 |
| Výstup BTU | 16000 XNUMX BTU |
| svtage | 110-120V / 60 Hz |
| Doporučená velikost bazénu | Až 5,400 XNUMX galonů |
| Hmotnost produktu | 59 liber |
| Rozměry produktu (D x Š x V) | 16.5'' x 14.2'' x 17.8'' |
| Materiál | Titanium, Galvanized Steel |
| Řízení | Smart Inverter, WiFi App Control |
Image: A visual guide detailing recommended and maximum fit pool sizes (in gallons and square feet) for the KSPF-5KW 16000BTU heat pump, including equivalent pool shapes.
10. Záruka a podpora
Your VARMINPOOL heat pump comes with a 36-month product protection. For any inquiries, technical assistance, or warranty claims, please contact VARMINPOOL customer support.
- Zákaznická podpora: Available for pre-sale and after-sale consultations.
- Professional Support Team: 7-24 support via email service, including holidays.
Image: Graphic highlighting the 36-month product protection and warranty offered by VARMINPOOL.
Image: Icons representing available consultants for pre- and after-sale support, and a professional 7/24 support team via email.
