Uživatelská příručka k bezdrátovému systému přenosu videa Shimbol TP Max

1. Úvod

The Shimbol TP Max is a high-performance wireless video transmission system designed for professional video production. It enables reliable, long-distance transmission of 1080p60 HDMI signals with ultra-low latency, making it ideal for live broadcasting, monitoring, and various shooting scenarios. This manual provides essential information for the safe and effective use of your TP Max system.

Obrázek 1.1: Konecview of the Shimbol TP Max system highlighting its wireless capabilities, 1080p resolution, aluminum alloy build, and fanless design.

2. Bezpečnostní informace

• Nevystavujte zařízení vodě ani nadměrné vlhkosti.
• Zabraňte pádu zařízení na zem nebo jeho vystavení silným nárazům.
• Use only approved power adapters and batteries.
• Nepokoušejte se zařízení rozebírat nebo upravovat.
• Udržujte zařízení mimo dosah silných elektromagnetických polí.
• Zajistěte řádné větrání během provozu.

3. Obsah balení

Prosím, ověřte, zda jsou v balení přítomny všechny položky:

• Shimbol TP Max Transmitter (TX) Unit: 1
• Shimbol TP Max Receiver (RX) Unit: 1
• Návod k použití: 1
• Sticker (Panda Design): 2
• USB nabíjecí kabel: 2

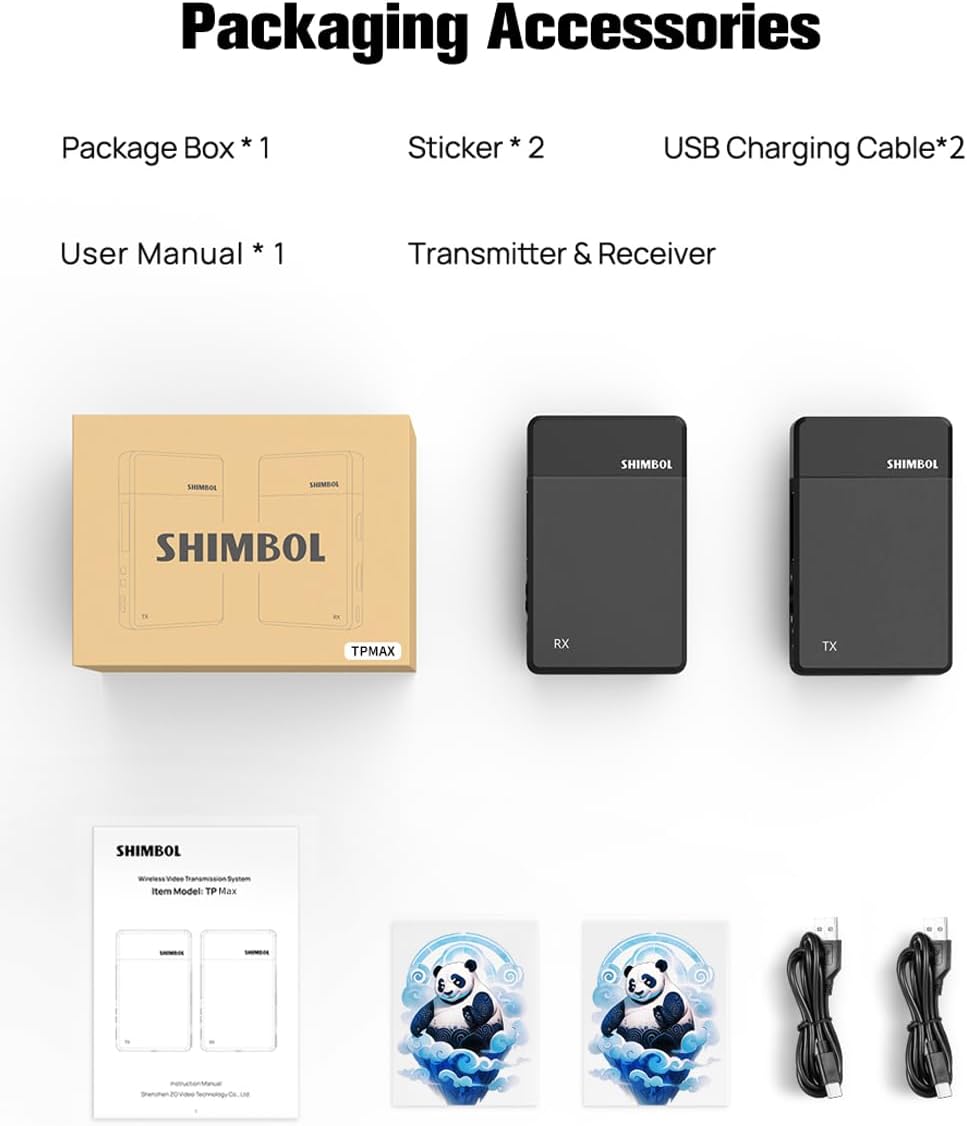

Image 3.1: Contents of the Shimbol TP Max package, including the transmitter, receiver, user manual, stickers, and USB cables.

4. Konec produktuview

The Shimbol TP Max system consists of a Transmitter (TX) and a Receiver (RX) unit. Both units feature a compact design with essential ports and indicators for easy operation.

4.1. Transmitter (TX) Unit

• HDMI vstup: Connects to your video source (e.g., camera, camcorder).
• USB 5V / Type-C: Port napájení.
• Vypínač: Ovládání zapnutí/vypnutí.
• Kontrolky: Display power status and connection status.

4.2. Receiver (RX) Unit

• HDMI VÝSTUP: Connects to your display device (e.g., monitor, TV).
• USB 5V / Type-C: Port napájení.
• Vypínač: Ovládání zapnutí/vypnutí.
• Kontrolky: Display power status and connection status.

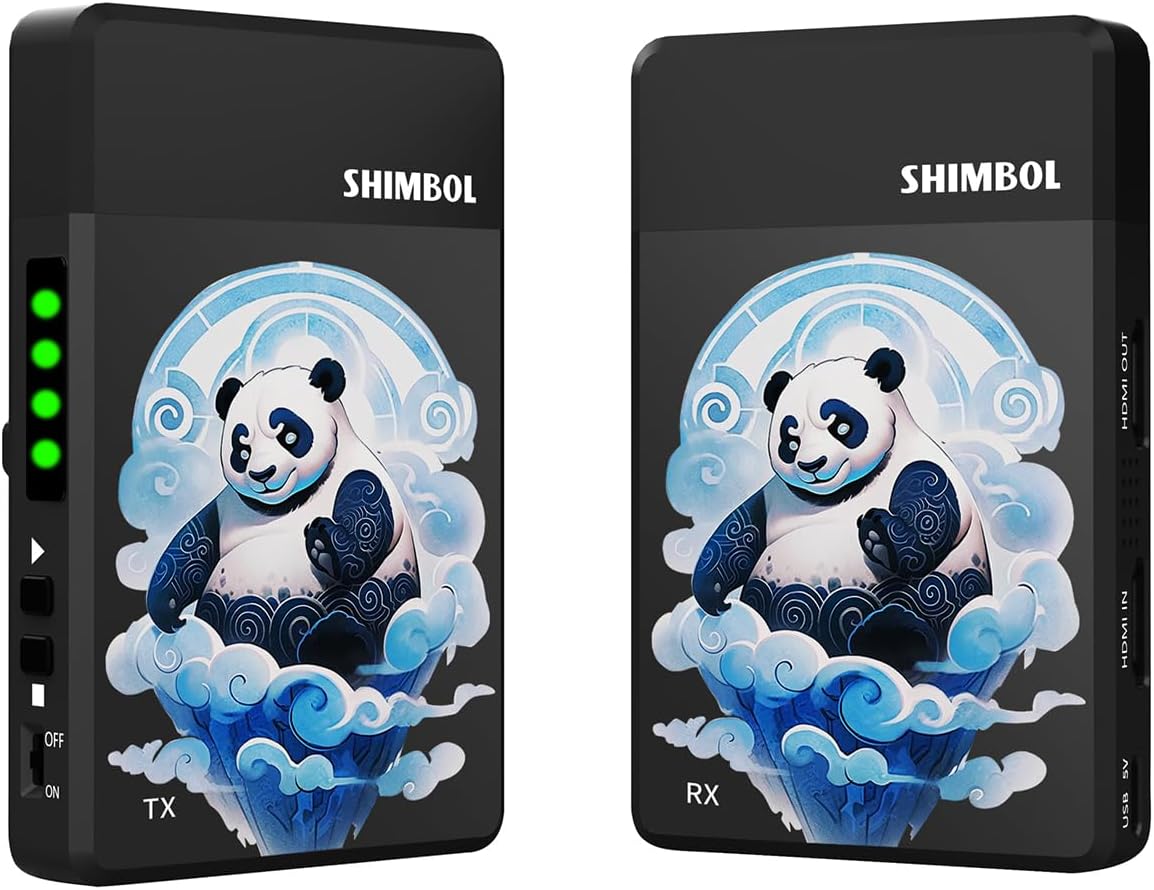

Obrázek 4.1: Přední strana view of the Shimbol TP Max Transmitter (TX) and Receiver (RX) units, showing their compact form factor and indicator lights.

Obrázek 4.2: Boční strana view of the Shimbol TP Max Receiver (RX) unit, illustrating the HDMI IN/OUT ports and USB-C power input.

5. Pokyny k nastavení

Follow these steps to set up your Shimbol TP Max wireless video transmission system:

1. Napájení jednotek:
   • Using NPF Batteries: Attach a compatible NPF battery (e.g., NPF550, NPF970) to the battery plate on the back of both the TX and RX units.
   • Použití USB typu C: Connect a 5V power source (e.g., power bank, USB adapter) to the USB Type-C port on both the TX and RX units using the provided USB cables.


   Image 5.1: The Shimbol TP Max unit with an NPF battery attached, demonstrating one of the power supply options.

2. Connecting the Transmitter (TX): Connect an HDMI cable from your video source (e.g., camera HDMI output) to the HDMI-IN port on the Shimbol TP Max Transmitter unit.
3. Connecting the Receiver (RX): Připojte kabel HDMI z HDMI OUT port on the Shimbol TP Max Receiver unit to your display device (e.g., monitor HDMI input).
4. Zapnutí: Flip the power switch on both the TX and RX units to the 'ON' position. The indicator lights will illuminate.
5. Automatické párování: The TX and RX units are designed to pair automatically. Once powered on, they will establish a connection, and the indicator lights will show a stable connection status. This process typically takes a few seconds.

6. Návod k obsluze

Once the setup is complete and the units are paired, the Shimbol TP Max system will begin transmitting video. Ensure both units have a clear line of sight for optimal performance, especially over longer distances.

• Stav sledování: Observe the indicator lights on both units. A stable light typically indicates a successful connection and active transmission.
• Kvalita signálu: If the video signal is unstable or drops, try reducing the distance between the TX and RX units or ensuring there are no obstructions.
• HDMI Loop-out: The TX unit supports an HDMI loop-out function, allowing you to connect a local monitor to the transmitter while simultaneously sending the signal wirelessly to the receiver.

7. Klíčové vlastnosti

• Long-distance Transmission: The system supports wireless video transmission up to 1000 feet (350 meters), providing extensive coverage for various production environments.
• Ultra nízká latence: Experience real-time video monitoring with a latency as low as 0.07 seconds (70ms), ensuring minimal delay between source and display.
• Video ve vysokém rozlišení: Supports video resolutions up to 1080p at 60 frames per second (1080p60), delivering clear and crisp images.
• Dva porty HDMI: Equipped with both HDMI IN and HDMI OUT ports, facilitating flexible connectivity and an HDMI loop-out function.
• Design bez ventilátoru: The system operates without a fan, ensuring silent performance crucial for audio-sensitive recording environments.
• Multiple Power Supply Options: Can be powered by NPF series batteries (NPF550, NPF970) for portability or via a USB Type-C power source.
• Intelligent Frequency Hopping: Utilizes advanced technology to maintain a stable connection and minimize interference in complex wireless environments.
• Durable Aviation Aluminum Alloy Shell: Constructed with an integrated die-casting process, providing a robust and lightweight housing capable of handling demanding usage.
• Lehký a přenosný: Each unit weighs approximately 120g, making the system easy to transport and mount.

Image 7.1: Visual representation of key performance features including 1000ft transmission, fanless design, aluminum shell, intelligent frequency hopping, and low power consumption.

Image 7.2: Illustration of the system's 70ms low latency, enabling real-time audio and video transmission.

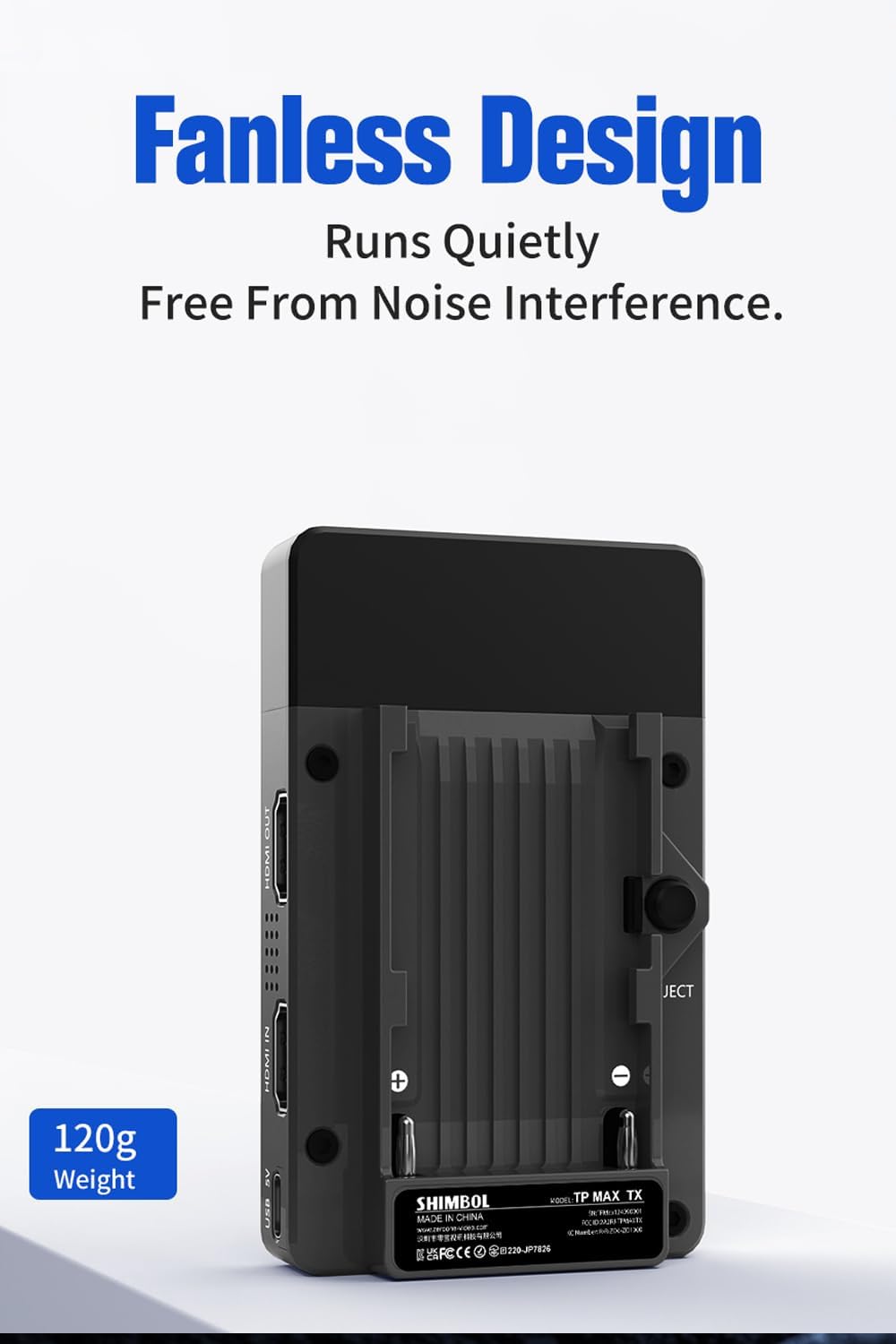

Image 7.3: The fanless design of the Shimbol TP Max, emphasizing quiet operation and its lightweight of 120g.

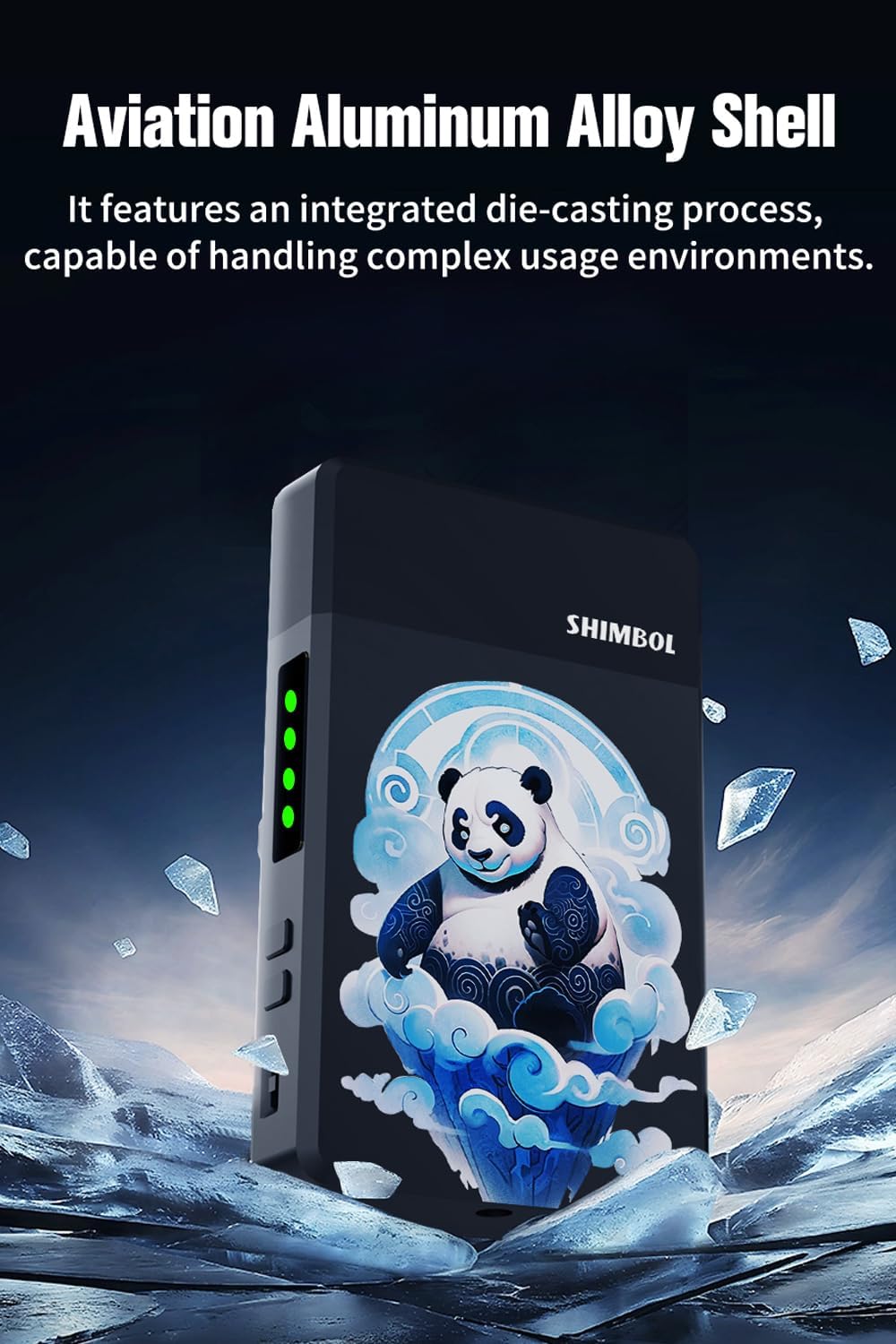

Image 7.4: Close-up of the Shimbol TP Max's aviation aluminum alloy shell, highlighting its durable construction.

8. Údržba

Proper maintenance ensures the longevity and optimal performance of your Shimbol TP Max system:

• Čištění: Use a soft, dry cloth to clean the exterior of the units. Avoid using liquid cleaners or solvents.
• Skladování: Pokud jednotky nepoužíváte, skladujte je na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Péče o baterie: If using NPF batteries, follow the manufacturer's guidelines for charging and storage to maximize battery life. Remove batteries if the units will not be used for an extended period.
• Správa kabelů: Ensure HDMI and USB cables are not kinked or strained to prevent damage to the ports.

9. Řešení problémů

If you encounter issues with your Shimbol TP Max, refer to the following common problems and solutions:

10. Specifikace

11. Záruka a podpora

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Shimbol website. If you require assistance, please contact Shimbol customer service with your product model and purchase details.
