PowerSmart 80V 21palcový jednoduchý Stage Cordless Snow Blower User Manual

Zavedení

This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your PowerSmart 80V 21-Inch Single Stage Cordless Snow Blower. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.

Bezpečnostní informace

Always prioritize safety when operating power equipment. Familiarize yourself with all safety decals on the snow blower and in this manual. Failure to follow safety instructions can result in serious injury or property damage.

Obecná bezpečnostní opatření

• Před použitím si přečtěte a pochopte celý návod k obsluze.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and non-slip footwear.
• Udržujte kolemjdoucí, děti a domácí zvířata v dostatečné vzdálenosti od provozní oblasti.
• Inspect the area to be cleared for foreign objects that could be thrown by the auger.
• Never operate the snow blower indoors or in poorly ventilated areas.
• Do not operate the snow blower under the influence of drugs, alcohol, or medication.

Bezpečnost baterie

• Use only PowerSmart 80V 6.0Ah Lithium-ion batteries and chargers.
• Nevystavujte baterie vodě ani extrémním teplotám.
• Baterie skladujte na chladném a suchém místě mimo dosah přímého slunečního záření.
• Nezkratujte kontakty baterie.
• Baterie likvidujte správným způsobem v souladu s místními předpisy.

Obsah balení

Při vybalení ověřte, zda jsou všechny položky přítomny:

• PowerSmart 80V 21palcový jednoduchý Stage Cordless Snow Blower Unit
• 80V 6.0Ah Lithium-ion Battery (1x)
• Battery Charger (1x)
• Návod k použití

Nastavení a montáž

Follow these steps to assemble your snow blower. Refer to the included video for visual guidance.

1. Instalace rukojeti: Attach the lower and upper handle sections to the main unit using the provided hardware. Ensure all connections are secure.
2. Sestava žlabu: Secure the snow discharge chute to the main unit. Ensure it can rotate freely for directional control.
3. Smykové boty: Install the skid shoes on the bottom of the auger housing. These are adjustable to control the clearing height.
4. Vložení baterie: Open the battery compartment cover and firmly insert the 80V 6.0Ah battery until it clicks into place. Close the cover securely.

Figure 1: Fully assembled PowerSmart 80V 21-Inch Single Stage Cordless Snow Blower.

Návod k obsluze

Před provozem se ujistěte, že je baterie plně nabitá.

1. Starting the Snow Blower: Press and hold the safety button, then pull the main trigger lever towards the handle to engage the auger.
2. Adjusting Chute Direction: Use the chute control lever on the handle to rotate the discharge chute up to 180 degrees, directing the snow away from cleared areas.
3. Adjusting Chute Deflector: The deflector on the chute can be adjusted to control the height and distance of the snow throw.
4. Odklízení sněhu: Push the snow blower forward at a steady pace. For optimal performance, especially in deeper snow, clear in narrower passes rather than attempting to clear the full 21-inch width at once. This model is designed for light to medium snow conditions (up to 6 inches).
5. LED světlomety: Activate the dual LED headlights for improved visibility during low-light conditions.
6. Stopping the Snow Blower: Release the trigger lever to stop the auger.

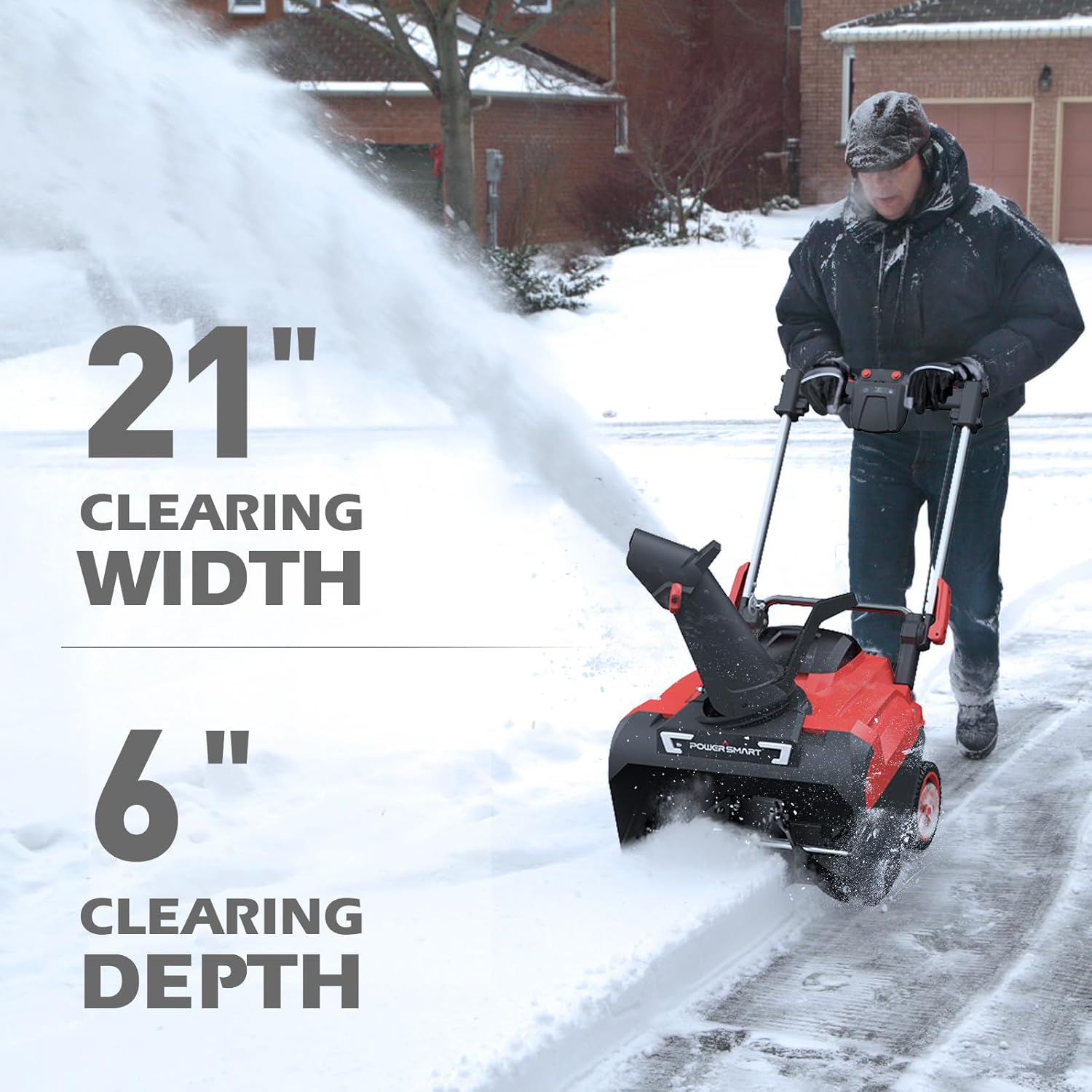

Figure 2: Snow blower in operation, demonstrating its 21-inch clearing width and 6-inch clearing depth.

Figure 3: Illustration of the snow blower's throwing distance, capable of reaching up to 35 feet.

Figure 4: The 180-degree rotating chute allows for precise snow direction.

Údržba

Pravidelná údržba zajišťuje optimální výkon a prodlužuje životnost vaší sněhové frézy.

• Nabíjení baterie: Charge the 80V 6.0Ah battery using the provided charger. A single charge can clear up to 16 parking spaces in 5 inches of snow (approximately 30 minutes). An additional battery can extend operating time.
• Čištění: After each use, remove any snow, ice, or debris from the auger housing, chute, and exterior surfaces. Do not use water directly on electrical components.
• Skladování: Store the snow blower in a dry, protected area. Remove the battery before long-term storage. The quick-folded handle allows for compact storage.
• Kontrola šneku: Periodically inspect the rubber auger for wear or damage. Replace if necessary to maintain effective snow clearing.

Odstraňování problémů

Pokud narazíte na problémy, postupujte podle následujících běžných kroků pro řešení potíží:

• Snow Blower Not Starting:
  • Ujistěte se, že je baterie plně nabitá a správně vložena.
  • Verify the safety button is pressed before pulling the trigger lever.
  • Check for any obstructions in the auger or chute.
• Reduced Snow Throwing Distance/Clogging:
  • Clear snow in narrower passes to avoid overloading the unit.
  • Ensure the chute and deflector are free of snow and ice buildup.
  • This model performs best with light, fluffy snow. Heavy, wet snow may reduce throwing distance.
• Baterie se nenabíjí:
  • Ensure the charger is properly plugged into a working outlet.
  • Verify the battery is correctly seated in the charger.

Specifikace

Záruka a podpora

PowerSmart offers free lifetime technical support for your snow blower. Additionally, repair and service centers are available in the U.S. For assistance, please contact PowerSmart customer service.
