XSDTS F8 Smart Digital Door Lock User Manual

Zavedení

The XSDTS F8 Smart Digital Door Lock offers advanced security and convenience for your home or office. This intelligent lock integrates multiple unlocking methods and smart features, providing flexible access control and enhanced monitoring capabilities. Designed for durability and ease of use, it is suitable for various door types.

This manual provides detailed instructions for installation, operation, and maintenance of your XSDTS F8 Smart Digital Door Lock. Please read it thoroughly before use to ensure proper functionality and safety.

Konec produktuview

Obrázek 1: Nadview of the XSDTS F8 Smart Digital Door Lock, showing the front and back panels, and the mortise lock mechanism.

Obrázek 2: Detailed diagram labeling the various components of the XSDTS F8 Smart Digital Door Lock, including the HD screen, camera, fingerprint sensor, and USB port.

Klíčové vlastnosti:

• Více způsobů odblokování: Supports fingerprint, password, RFID card, Tuya app, and physical key access.
• Vzdálený přístup: Unlock the door from anywhere using the free mobile application.
• Temporary Access Granting: Conveniently provide time-limited access permissions, ideal for guests or service providers.
• Integrated Peephole Camera: Monitor the exterior of your door and receive images on your mobile app when the doorbell is pressed.
• Nastavitelná rukojeť: Universal design allows for left or right-hand door configurations.
• Dětská pojistka: Prevents accidental opening by children or pets.
• Upozornění na vybitou baterii: Automatic audio alert for low battery levels.
• Nouzové napájení: Type-C port for emergency charging in case of complete battery depletion.
• Jazyk systému: Arabština.

Průvodce instalací

Správná instalace je klíčová pro optimální výkon a zabezpečení vašeho chytrého zámku. Pečlivě dodržujte tyto kroky.

1. Pre-Installation Measurements:

Před nákupemasing and installing, ensure your door meets the following specifications. The lock is suitable for doors with a thickness between 30mm and 75mm.

Obrázek 3: Essential door measurements required before installation, including door thickness, guide piece dimensions, and handle center distance.

1. Measure the thickness of the door frame.
2. Measure the length of the guide piece.
3. Measure the width of the guide piece.
4. Measure the distance from the door edge to the handle center.
5. Measure the screw hole distance of the rear panel.

Obrázek 4: Mortise lock dimensions (22mm x 240mm) and backset measurements (50mm and 85mm) for compatibility.

2. Component Checklist:

Před zahájením instalace se ujistěte, že jsou přítomny všechny komponenty:

• Přední panel (x1)
• Zadní panel (x1)
• Mortise Lock (x1, optional)
• Smart Cards (x4)
• Mechanické klávesy (x2)
• Screw Set (x1)

Poznámka: K provozu jsou potřeba 4 AA baterie, které nejsou součástí balení.

3. Postup instalace:

Detailed installation steps are typically provided in a separate installation template or video. Please refer to the included installation template for precise drilling and mounting instructions. General steps include:

1. Prepare the door by drilling necessary holes according to the template.
2. Nainstalujte zámek do okraje dveří.
3. Mount the front and rear panels, ensuring cables are properly connected.
4. Zajistěte zámek dodanými šrouby.
5. Install 4 AA batteries into the battery compartment on the rear panel.
6. Test the lock's functionality with a mechanical key before programming.

Návod k obsluze

The XSDTS F8 Smart Digital Door Lock offers multiple convenient ways to unlock your door.

1. Metody odemykání:

Obrázek 5: Visual representation of the six available unlocking methods for the smart lock.

• Odemknutí otisků prstů:

  Place your registered fingerprint on the sensor located on the handle. The lock will unlock in approximately 0.5 seconds if the fingerprint is recognized. Ensure your finger covers the entire sensor for accurate reading.



  Obrázek 6: The fingerprint sensor provides fast and accurate recognition, with a low false recognition rate.

• Odemknutí heslem:

  Enter your registered password on the keypad. Press the '#' key to confirm. You can also set temporary passwords for one-time or limited-time access.

• Odemknutí RFID karty:

  Present a registered RFID card to the card reader area on the lock's front panel. The lock will unlock automatically.
• Tuya App Unlock (Remote & Local):

  Download the Tuya Smart app from your mobile app store. Follow the in-app instructions to pair your lock. Once paired, you can:

  • Dálkové odemknutí: Unlock the door from anywhere with an internet connection.
  • Udělit dočasný přístup: Generate and send time-limited access codes to guests.
  • View Přístup k záznamům: Check who entered and when.
  • Přijímat oznámení: Get alerts for doorbell presses or other events.


  Obrázek 7: The Tuya Smart app provides comprehensive remote control and monitoring capabilities for your lock.
• Mechanické odemknutí klíčem:

  In case of emergency or battery depletion, insert the mechanical key into the keyhole and turn to unlock the door manually.

2. Peephole Camera and Doorbell Function:

The integrated peephole camera allows you to see who is at your door. When a visitor presses the doorbell button on the lock, the camera captures an image of the person outside and sends it to your paired mobile app. This feature enhances security and convenience, allowing you to screen visitors remotely.

Obrázek 8: The camera features automatic light adjustment and a wide-angle lens for clear visibility.

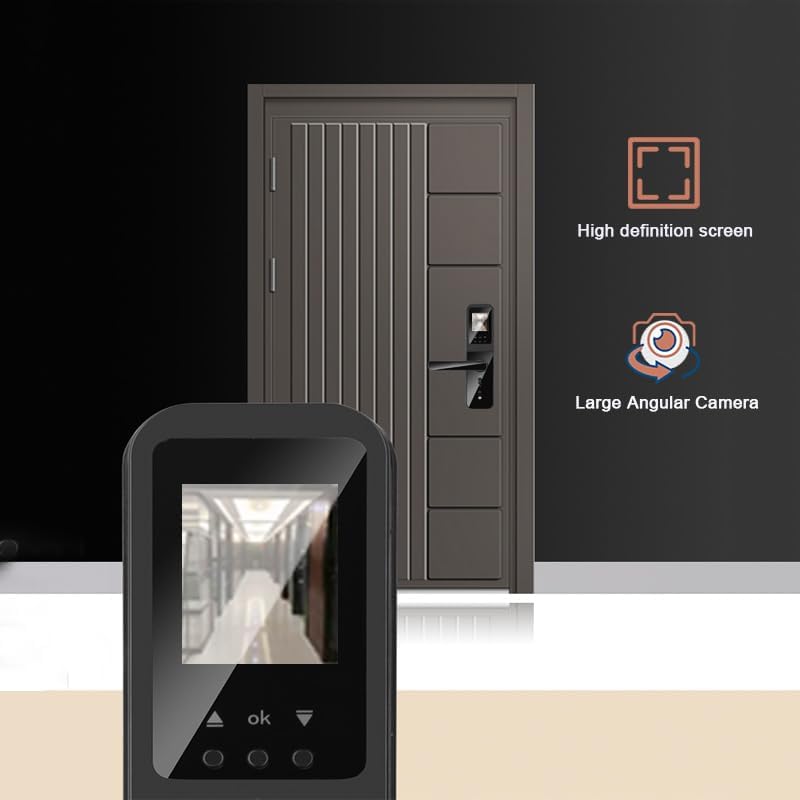

Obrázek 9: The high-definition screen provides a clear view from the large angular camera.

3. Dětská pojistka:

To prevent accidental unlocking from the inside by children or pets, engage the child safety lock switch located on the rear panel. This feature adds an extra layer of security for families.

Obrázek 10: The child safety lock switch is clearly marked on the internal panel of the lock.

Údržba

1. Výměna baterie:

The lock requires 4 AA batteries (not included). The estimated battery life is 2-4 months, depending on usage. When the battery level is low, the lock will emit an automatic audio warning. Replace all four batteries promptly when this warning occurs to ensure continuous operation.

2. Emergency Power:

In the event of complete battery depletion, you can provide emergency power to the lock using a Type-C cable connected to a power bank or adapter. The Type-C port is located on the bottom edge of the front panel. This will allow you to unlock the door using any registered method.

3. Čištění:

Wipe the lock's surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and electronic components.

Odstraňování problémů

Specifikace

Záruka a podpora

XSDTS provides unlimited technical consultations for this product. For any questions, issues, or technical assistance, please contact our support team. Refer to the product packaging or the official XSDTS webstránky pro kontaktní informace.
