AIYAPLAY Adjustable Children's Desk and Chair Set (3-12 Years)

Zavedení

This manual provides instructions for the assembly, operation, and maintenance of your AIYAPLAY Adjustable Children's Desk and Chair Set. This set is designed for children aged 3 to 12 years, offering a comfortable and ergonomic study environment.

Bezpečnostní informace

Assemble the product carefully to ensure stability.
Do not exceed the maximum weight capacity of 20 kg for the tilting plate.
Exercise caution when using the tilting plate mechanism.
Před použitím se ujistěte, že jsou všechny šrouby a upevňovací prvky bezpečně utažené.

Obsah balení

Your AIYAPLAY desk and chair set includes all necessary components for assembly. Please verify all parts are present before beginning assembly. Refer to the included parts list in the packaging for a complete inventory.

Nastavení a montáž

Assembly of the AIYAPLAY desk and chair set requires careful attention. While not overly complex, some parts may require firm pressure to fit correctly. It is recommended to follow the step-by-step instructions provided in the physical manual for best results.

Klíčové vlastnosti Overview

Child sitting at the AIYAPLAY adjustable desk and chair set in a room. — Figure 1: AIYAPLAY Adjustable Children's Desk and Chair Set in use. This image shows the overall design and how a child interacts with the desk and chair.

The desk and chair are constructed from MDF panels and a steel frame, ensuring durability and stability. Adjustable non-slip feet are included to maintain balance on various surfaces.

Rozměry a komponenty

Diagram showing the dimensions of the AIYAPLAY desk and chair set. — Figure 2: Detailed dimensions of the desk and chair. This diagram illustrates the height, width, and depth measurements of both components.

Refer to Figure 2 for detailed measurements of the desk and chair. The desk measures 80L x 55P x 92.5-107.5A cm, and the chair measures 51L x 46P x 70-78A cm.

Labeled Features

Image labeling various features of the AIYAPLAY desk and chair set, including reading shelf, padded backrest, footrest bar, and non-slip feet. — Figure 3: Labeled features of the desk and chair. This image highlights the reading shelf, padded backrest, footrest bar, and non-slip feet for easy identification.

Figure 3 points out key features such as the reading shelf, padded backrest, footrest bar, and non-slip feet, which contribute to the ergonomic design and stability of the set.

Návod k obsluze

Adjusting Desk and Chair Height

Diagram illustrating how to adjust the height of the desk and chair, with recommended height tables. — Figure 4: Height adjustment mechanisms for the desk and chair. This image shows how to use the handle for desk adjustment and screws for chair adjustment, along with recommended height tables for different child heights.

Desk Height Adjustment: To adjust the desk height (92.5-107.5 cm), use the crank handle located on the side of the desk frame. Turn the handle to raise or lower the desktop to the desired height.
Nastavení výšky židle: To adjust the chair height (70-78 cm), loosen the screws on the chair frame, set the seat to the appropriate height, and then securely tighten the screws.
Refer to the recommended height tables in Figure 4 to find the optimal settings for your child's height.

Tilting Desktop Function

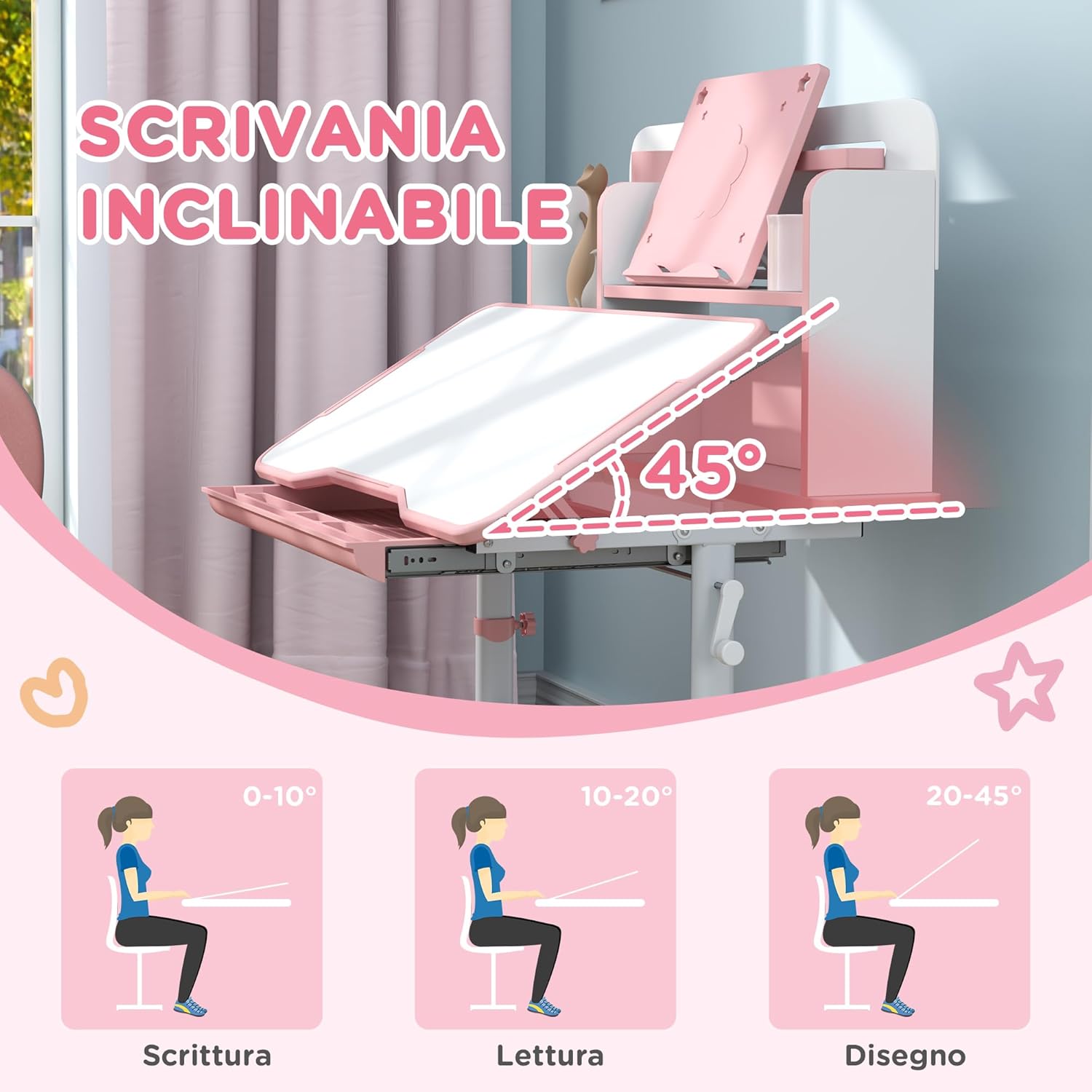

Diagram showing the tilting desktop feature of the AIYAPLAY desk, with angles for writing, reading, and drawing. — Figure 5: Tilting desktop mechanism. This image illustrates how the desk surface can be adjusted from 0 to 45 degrees, with suggested angles for different activities like writing, reading, and drawing.

The desktop can be tilted from 0 to 45 degrees to facilitate correct posture and comfort during various activities. Use the mechanism located beneath the desktop to adjust the angle.

0-10°: Ideální pro psaní.
10-20°: Doporučeno k přečtení.
20-45°: Vhodné pro kreslení a malování.

Detailní záběr view of the tilting mechanism and edge of the AIYAPLAY desk. — Figure 6: Close-up of the tilting desktop. This image provides a detailed view of the mechanism that allows the desk surface to tilt.

Organizing Workspace

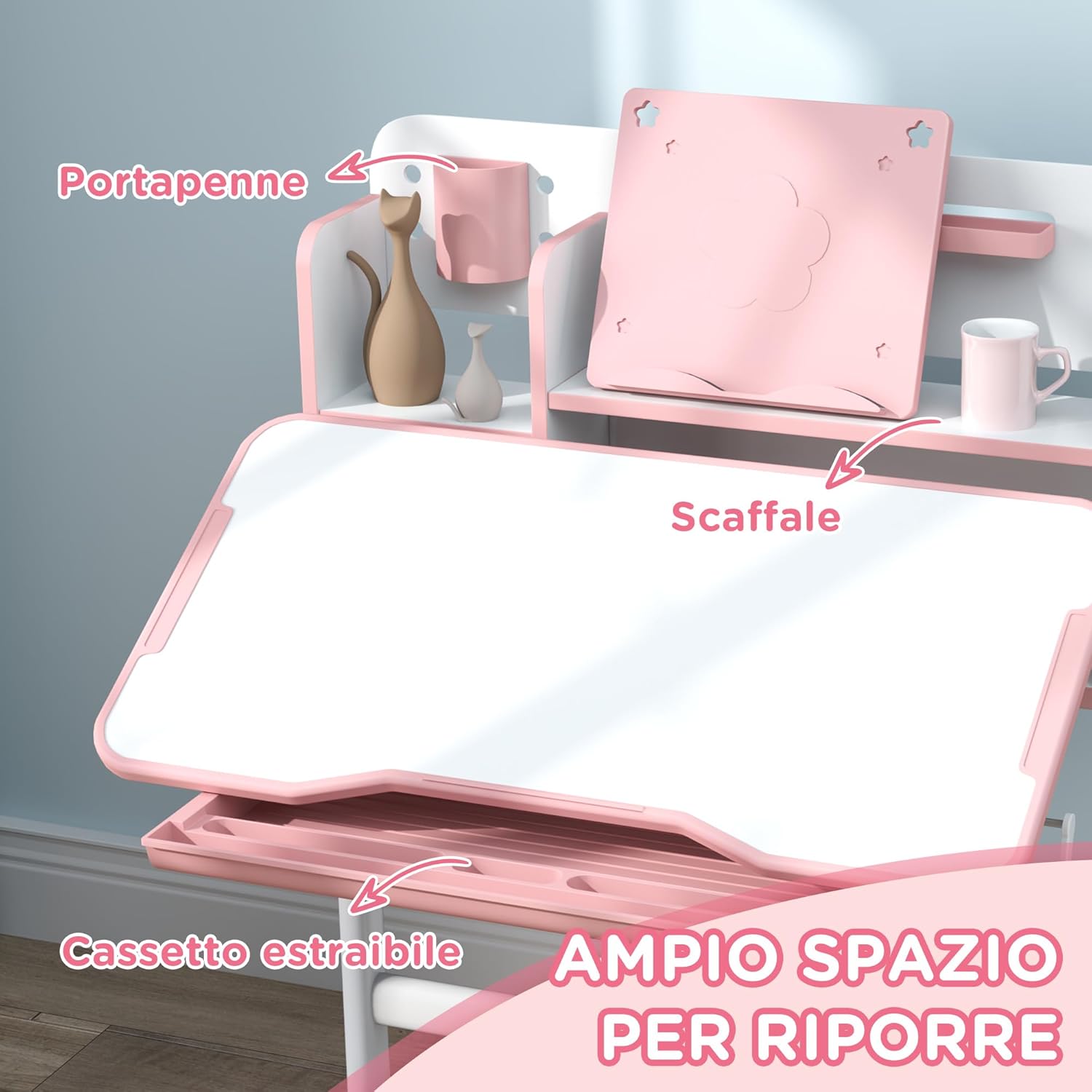

Image showing the storage features of the AIYAPLAY desk, including a pull-out drawer, shelf, and pen holder. — Figure 7: Integrated storage solutions. This image highlights the pull-out drawer, shelf, and pen holder, designed to keep the workspace organized.

The desk includes a large pull-out drawer, a shelf, and an additional pen holder for organizing study materials. A book support is also integrated for eye protection during reading.

Údržba

Čištění: Otřete povrchy měkkým, damp tkanina. Vyhněte se abrazivním čisticím prostředkům nebo agresivním chemikáliím, které mohou poškodit povrch.
Inspekce: Pravidelně kontrolujte všechny šrouby a upevňovací prvky, zda jsou pevně utažené. V případě potřeby je dotáhněte pro zachování stability.
Stěhování: When moving the desk and chair, lift them rather than dragging to prevent damage to the floor or the product.

Odstraňování problémů

Obtížnost při montáži: If parts do not fit easily, ensure you are following the instructions precisely. Some components may require firm, but gentle, pressure to snap into place. Do not force parts excessively.
Nestabilita: Check that all adjustable feet are properly positioned and tightened. Ensure all assembly screws are fully secured.
Tilting mechanism not working smoothly: Ensure no obstructions are present. If the mechanism feels stiff, check for any loose parts or debris.

Specifikace

Značka	AIYAPLAY
Model	IT312-124V80PK0631
Rozměry produktu (stůl)	80L x 55P x 92.5-107.5H cm
Rozměry produktu (židle)	51L x 46P x 70-78H cm
Hmotnost (položka)	21.6 kg
Materiál	Engineered Wood (MDF), Steel Alloy
Vlastnosti	Height adjustable, Pull-out drawer, Ergonomic, Tilting desktop (0-45°)
Doporučený věk	3-12 roky
Weight Capacity (Desk)	80 kg
Nosnost (židle)	100 kg

Video o produktu

Pro vizuální představu se podívejte na toto videoview of the AIYAPLAY Adjustable Children's Desk and Chair Set.

Video: Konecview of the AIYAPLAY Children's Desk and Chair Set. This video demonstrates the features and functionality of the product, including height adjustments and the tilting desktop.
