Domi 9'x9' Cantilever Patio Umbrella Instruction Manual

1. Důležité bezpečnostní informace

• Vždy se ujistěte, že je základna slunečníku dostatečně zatížená, aby se zabránilo převrácení, zejména za větrného počasí. Note: A weighted base is NOT included with this umbrella.
• Close the umbrella when not in use, during strong winds, heavy rain, or other severe weather conditions to prevent damage to the umbrella and potential injury.
• Během otevírání a zavírání držte děti a domácí zvířata v dostatečné vzdálenosti od slunečníku.
• Nezavěšujte předměty na rám ani na žebra deštníku.
• Regularly inspect all components for wear and tear. Replace damaged parts immediately.

2. Konec produktuview

The Domi 9'x9' Cantilever Patio Umbrella is designed for outdoor use, providing shade and protection. It features a robust aluminum frame, a durable polyester canopy, and adjustable mechanisms for optimal sun coverage.

• Velké pokrytí: 9'x9' square canopy suitable for various outdoor spaces.
• Otočení o 360°: Foot pedal allows for effortless rotation to adjust shade throughout the day.
• Tilt Adjustable: Convenient crank system and handle design for smooth canopy raising, lowering, and tilting.
• Odolná konstrukce: Features 8 heavy-duty ribs, an aluminum pole, and a triangular top for enhanced stability and wind resistance.
• Vysoce kvalitní tkanina: Crafted from 250/gsm yarn-dyed polyester with a PU coating, offering fade, tear, and weather resistance.

3. Obsah balení

Před zahájením montáže ověřte, zda jsou přítomny všechny součásti. Pokud některé součásti chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.

• Umbrella Canopy (1)
• Main Pole Assembly (1)
• Cantilever Arm (1)
• Crank Handle (1)
• Foot Pedal (pre-attached to base plate) (1)
• Ribs (8, pre-attached to canopy)
• Hardware Pack (bolts, nuts, washers, tools) (1)

4. Montážní návod

Assembly typically requires two adults. Ensure you have sufficient space and a stable, level surface for assembly. A weighted base is required for stability and is NOT included.

1. Připravte si základ: Place your weighted umbrella base (not included) in the desired location. Ensure it is stable and level.
2. Připojení hlavní tyče: Insert the main pole assembly into the weighted base. Secure it according to your base's instructions.
3. Attach Cantilever Arm: Connect the cantilever arm to the main pole. Align the pre-drilled holes and secure with the provided bolts and nuts from the hardware pack. Ensure all connections are tightened securely.
4. Připevněte stříšku: Carefully attach the umbrella canopy to the cantilever arm. The canopy's central hub should align with the attachment point on the arm. Secure it using the designated pins or bolts.
5. Závěrečná kontrola: Verify all connections are tight and the umbrella is securely mounted to the base.

5. Návod k obsluze

This umbrella offers multiple adjustment options for optimal shade positioning.

• Otevírání a zavírání: Use the crank handle located on the main pole to smoothly raise or lower the canopy. Turn the handle clockwise to open and counter-clockwise to close.

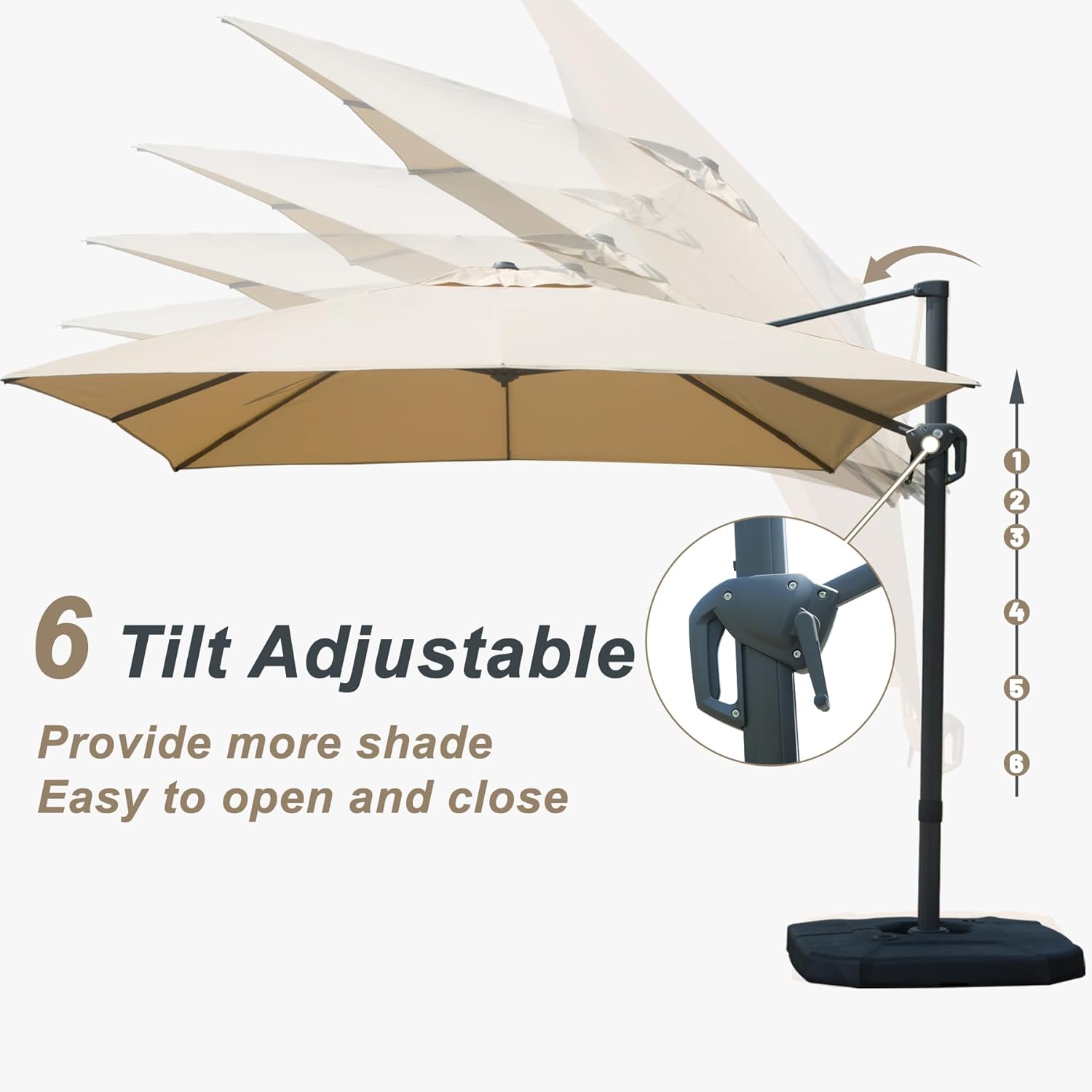

• Tilting the Canopy: The umbrella features a unique handle design for tilting. Once the canopy is open, use the tilt handle to adjust the angle of the canopy, providing shade as the sun moves. There are multiple tilt positions available.
• Otočení o 360°: To rotate the entire umbrella, locate the foot pedal at the base of the main pole. Press down on the foot pedal to unlock the rotation mechanism, then gently rotate the umbrella to the desired position. Release the foot pedal to lock it in place.

6. Údržba

Proper maintenance will extend the life of your Domi patio umbrella.

• Čištění stříšek: The 250/gsm yarn-dyed polyester fabric with PU coating is designed to resist fading and weathering. Clean the canopy regularly with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
• Péče o rám: The aluminum pole and ribs are rust and corrosion-resistant. Wipe down the frame with a damp cloth periodically to remove dirt and debris.
• Rib Replacement: In case of damage, individual umbrella ribs can be replaced. The ribs and disc are secured with screws and nuts, allowing for quick replacement without disassembling the entire disc. Contact customer support for replacement parts.
• Skladování: When not in use for extended periods, or during off-season, it is recommended to close the umbrella and cover it with a protective cover (not included) or store it indoors to protect it from the elements.

7. Řešení problémů

If you encounter issues with your umbrella, refer to the following common problems and solutions:

8. Specifikace

9. Záruka a podpora

For warranty information, specific replacement parts, or further assistance, please contact Domi Outdoor Living customer support. Refer to your purchase documentation for contact details or visit the official Domi Outdoor Living webmísto.

Výrobce: domi venkovní bydlení

ASIN: B0DFM35FDD
