1. Důležité bezpečnostní informace
Please read all instructions carefully before using the Hatteker Electric Body Trimmer. Retain this manual for future reference.
- Do not use the trimmer on irritated or broken skin.
- Avoid placing the blades near eyes, ears, or other sensitive areas.
- Clean the blades and shaving head regularly to prevent bacterial growth.
- Během nabíjení zařízení nepoužívejte.
- Avoid using the trimmer near water sources unless specifically designed for wet use (this model is IPX6 waterproof).
- Uchovávejte mimo dosah dětí.
2. Konec produktuview
The Hatteker Electric Body Trimmer Model 6198 is a versatile grooming kit designed for various body areas, including the back, face, arms, and chin. It features multiple interchangeable heads and an adjustable extendable arm for hard-to-reach areas.
2.1 Obsah balení
- Hatteker Electric Body Trimmer (Main Unit)
- Přesná zastřihovací hlava
- Nosní/ušní zastřihovací hlava
- Body Hair Shaver Head
- Main Shaver Head (for back)
- Výsuvné rameno
- Guide Combs (1mm, 2mm, 3mm for precision trimmer; 3mm, 6mm for body hair trimmer)
- USB nabíjecí kabel
- Čisticí kartáč
- Uživatelská příručka
Image: Hatteker Electric Body Trimmer with all included accessories, including various heads, guide combs, and charging cable.
3. Nastavení a nabíjení
3.1 Počáteční poplatek
Before first use, fully charge the trimmer. The device may not power on if the battery is low, even if the LED display shows a percentage. A full charge takes approximately 1.5 hours and provides up to 60 minutes of running time.
- Připojte nabíjecí kabel USB k nabíjecímu portu zastřihovače.
- Plug the other end of the USB cable into a universal USB charging head (not included), computer, or power bank.
- The LED display will indicate the charging status and battery level.

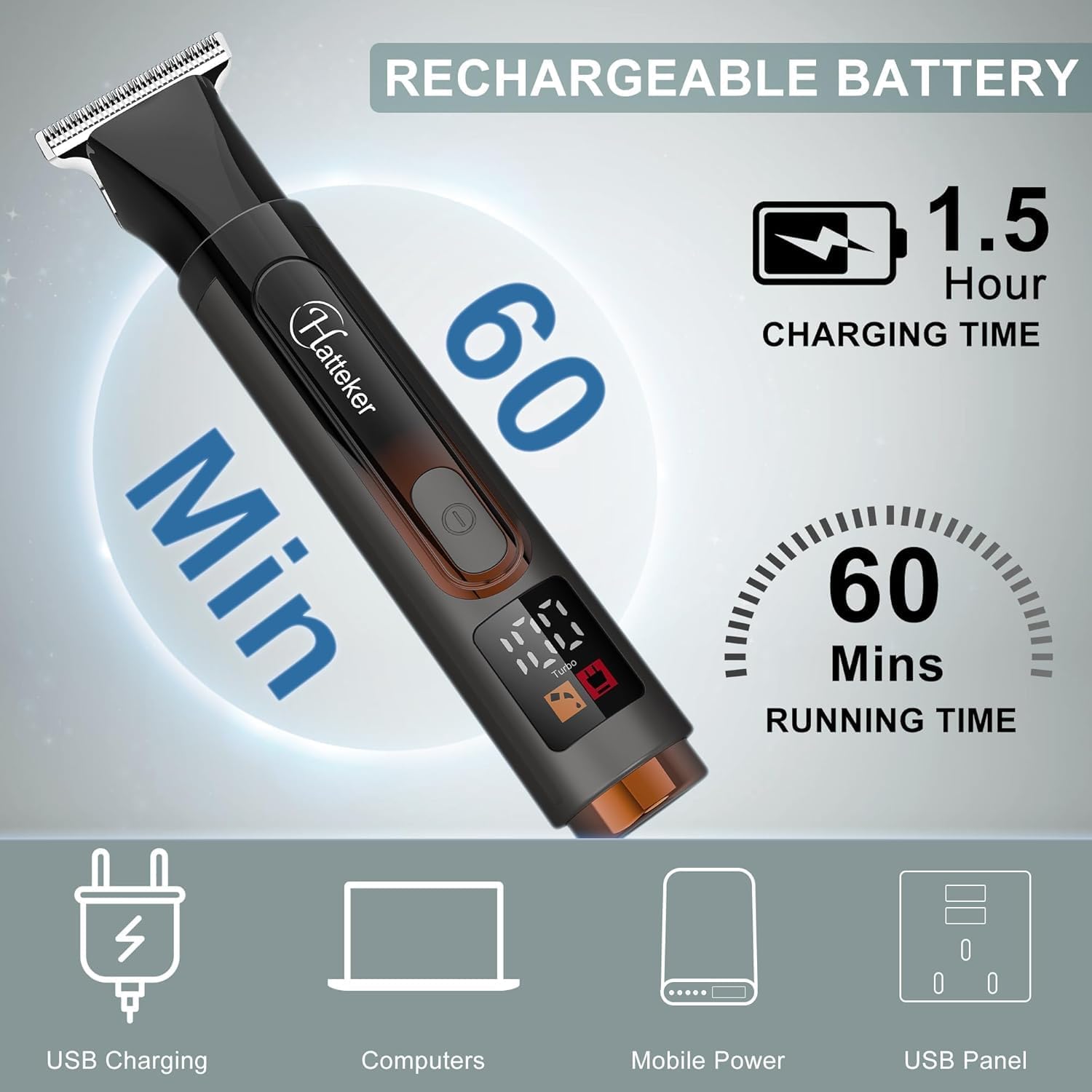

Image: The trimmer displaying battery level and charging information, indicating 1.5 hours charging time for 60 minutes running time.
3.2 Attaching and Changing Trimmer Heads
The trimmer comes with four interchangeable heads for different grooming needs.
- To attach a head: Align the desired head with the main unit and gently push until it clicks into place.
- To remove a head: Hold the main unit firmly and pull the head straight off.
- The main shaver head can be mounted in two directions for easier access to certain areas.
Image: Visual guide demonstrating the four different trimmer heads: Precision Trimmer, Main Shaver, Nose/Ear Trimmer, and Body Hair Shaver, along with examples of their use on face, back, and chest.
3.3 Assembling the Extendable Arm
The extendable arm is designed to help reach difficult areas like the back.
- Attach the main trimmer unit to the end of the extendable arm. Ensure it is securely fastened.
- The arm features a 180° adjustable angle. Press the 'PRESS' button on the arm to adjust the angle and length as needed.
- Extend the arm to the desired length for comfortable reach.
Image: The extendable arm demonstrating its 180-degree adjustable opening and how to extend its length by pressing the lock button.
4. Návod k obsluze
4.1 Zapnutí/vypnutí a nastavení rychlosti
The trimmer is operated with a single button.
- To turn on: Press the ON/OFF button once.
- To adjust speed: Press the ON/OFF button again to cycle through available speeds. The 'Turbo' mode will be indicated on the LED display.
- To turn off: Press the ON/OFF button until the device powers down.
4.2 Funkce cestovního zámku
The travel lock prevents accidental activation during transport.
- To activate travel lock: Press and hold the ON/OFF button for 3 seconds. A lock icon will appear on the LED display.
- To deactivate travel lock: Press and hold the ON/OFF button for 3 seconds. The lock icon will disappear.
Image: The trimmer's LED display illustrating the ON/OFF button, travel lock activation/deactivation, battery display, running time, and charging time.
4.3 Tipy pro péči o srst
- For best results, ensure skin is clean and dry before trimming.
- Use the appropriate guide comb for desired hair length.
- Move the trimmer against the direction of hair growth for a closer trim.
- The blades are designed to be skin-friendly, gliding smoothly to prevent pulling or irritation.
- For back shaving, utilize the extendable arm to reach all areas comfortably.
Obrázek: Detail view of the skin-friendly blades on various trimmer heads, including the foil shaver and nose/ear trimmer.
5. Údržba a čištění
Pravidelné čištění zajišťuje optimální výkon a prodlužuje životnost vašeho zastřihovače.
5.1 Čištění zastřihovače
The Hatteker Electric Body Trimmer features an IPX6 waterproof design, allowing for easy cleaning.
- After each use, remove the trimmer head.
- Rinse the trimmer head and the main unit directly under running tap water.
- Use the provided cleaning brush to remove any stubborn hair clippings from the blades.
- Před opětovnou montáží nebo uložením nechte všechny díly zcela vyschnout na vzduchu.
Image: The Hatteker trimmer submerged in water, highlighting its IPX6 washable design for easy cleaning under running water.
5.2 Skladování
Store the trimmer in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the travel lock is activated if transporting the device.
6. Řešení problémů
If you encounter issues with your Hatteker Electric Body Trimmer, refer to the following common solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Trimmer se nezapne. | Vybitá baterie nebo aktivovaný cestovní zámek. | Charge the trimmer for 1.5 hours. Deactivate travel lock by pressing and holding the ON/OFF button for 3 seconds. |
| Trimmer stops during use. | Automatic shutdown feature or low battery. | The trimmer automatically shuts off after 15 minutes of continuous use. Press the ON/OFF button to resume. If it continues to stop, recharge the battery. |
| Špatný výkon zastřihování. | Čepele jsou tupé nebo zanesené vlasy. | Clean the trimmer head and blades thoroughly. Consider replacing the head if performance does not improve. |
| Podráždění kůže po použití. | Improper technique or sensitive skin. | Ensure blades are clean. Use a gentle touch and trim in the direction of hair growth if irritation occurs. Avoid pressing too hard. |
7. Specifikace
- Číslo modelu: 6198
- Značka: kloboučník
- Zdroj napájení: Napájení z baterie
- Typ baterie: 1 AA (součástí balení)
- Životnost baterie: Až 60 minut
- Doba nabíjení: Přibližně 1.5 hodiny
- Hodnocení voděodolnosti: IPX6 (omyvatelné)
- Materiál čepele: Nerez
- Hmotnost: 200 gramů
- Barva: Černý
- Země původu: Čína
8. Záruka a podpora
For any problems encountered during use, please contact Hatteker customer support. Refer to your purchase documentation for specific warranty details and contact information.
Note: The set does not include a charging adapter; the USB cable is compatible with universal charging adapters.
