1. Úvod
Thank you for choosing the Codnida 4MP Outdoor Surveillance Camera System. This manual provides detailed instructions to help you install, operate, and maintain your security system effectively. Please read this manual thoroughly before use and retain it for future reference.
Image 1.1: Codnida 4MP Outdoor Surveillance Camera System components.
2. Obsah balení
Ověřte, zda jsou všechny níže uvedené položky součástí balení. Pokud některé položky chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.
- 2 x Codnida 4MP Outdoor Cameras
- 2 x solární panely
- 1 x základnová stanice
- 1 x HDMI kabel
- 1 x napájecí adaptér s kabelem
- 1 x 64GB TF Memory Card (pre-installed or separate)
- 1 x Síťový kabel
- 4 x montážní šrouby
- 2 x výstražné samolepky
- 1 x Uživatelská příručka (tento dokument)
3. Průvodce nastavením
3.1 Připojení základnové stanice
- Connect the Base Station to a power outlet using the provided power adapter.
- Connect the Base Station to your router using the provided network cable.
- Optionally, connect the Base Station to a TV or monitor using the HDMI cable for a larger display.
3.2 Instalace kamery
The cameras are designed for outdoor use and are solar-powered, minimizing the need for frequent battery charging.
- Choose a mounting location that provides optimal sunlight exposure for the solar panel and a clear view oblasti, kterou chcete monitorovat.
- Mount the camera and solar panel securely using the provided screws. Ensure the solar panel is angled to receive maximum direct sunlight.
- Připojte kabel solárního panelu ke kameře.
- Ensure the camera is within range of the Base Station's Wi-Fi signal (2.4 GHz or 5 GHz).

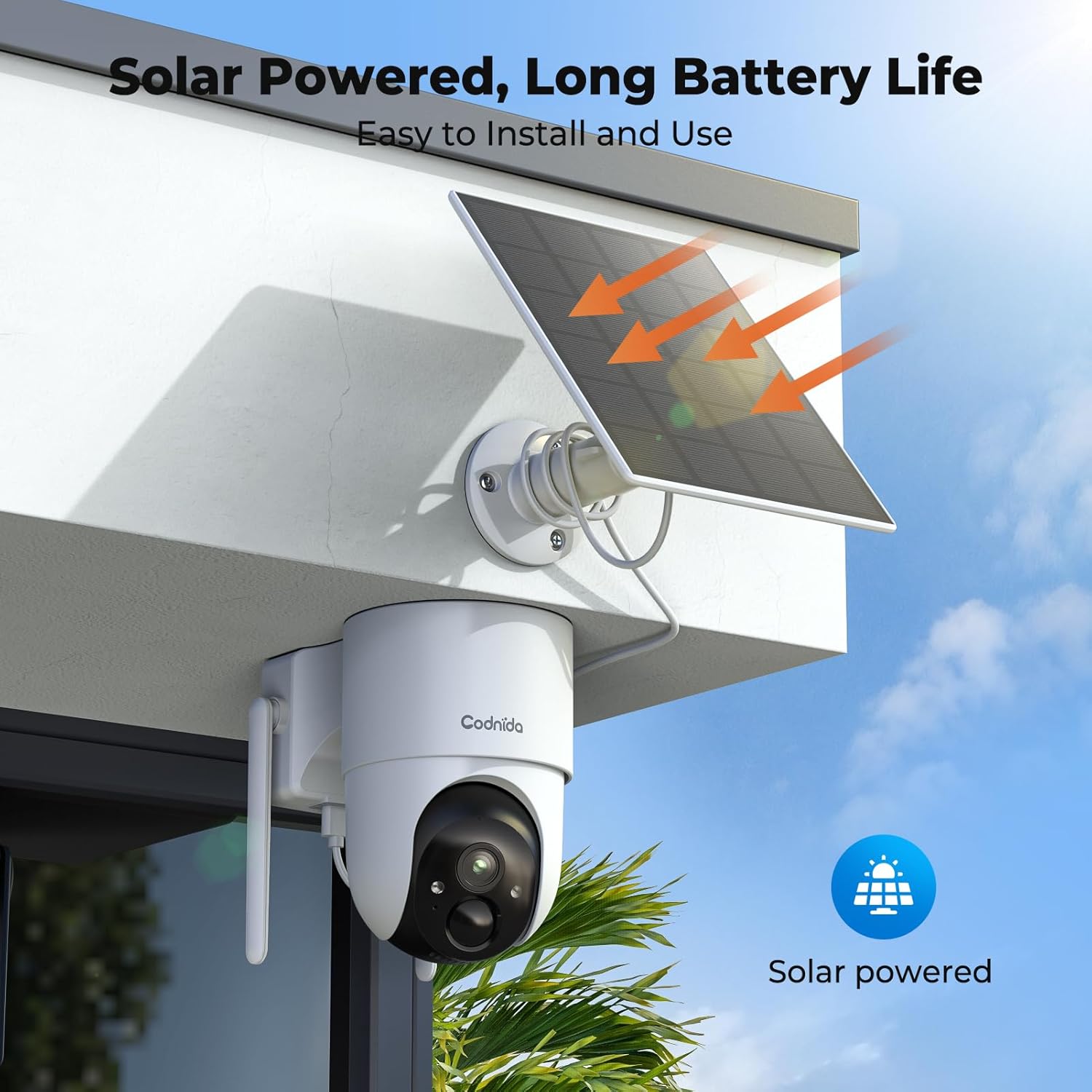

Obrázek 3.2.1: Příkladample of solar-powered camera installation.
3.3 App Setup (EseeCloud)
- Download the "EseeCloud" app from your smartphone's app store.
- Zaregistrujte si účet nebo se přihlaste, pokud jej již máte.
- Follow the in-app instructions to add your Base Station and cameras. This typically involves scanning a QR code or manually entering device IDs.
- Po připojení můžete view live feeds, access recordings, and configure settings.
4. Návod k obsluze
4.1 Živě View a Nahrávání
Access the EseeCloud app or a connected monitor to view živé footage from your cameras. The system supports 24/7 recording to the included 64GB TF card, providing up to 120 days of video storage.
Obrázek 4.1.1: Živý přenos view display on a monitor.
4.2 Ovládání otáčení, naklánění a přiblížení (PTZ)
The cameras offer 355° pan and 90° tilt capabilities, providing a 360° view of your surroundings. Control these movements directly from the EseeCloud app.
Image 4.2.1: Pan-Tilt control via EseeCloud app.
4.3 Detekce pohybu a upozornění
The system features PIR motion detection, capable of identifying persons, vehicles, and animals. You will receive real-time notifications on your smartphone when motion is detected in designated areas.
Image 4.3.1: PIR motion detection identifying objects.
4.4 Noční vidění
The cameras provide crystal clear 4MP video quality, including two night vision modes: infrared and color night vision, effective up to 15 meters (65 feet).

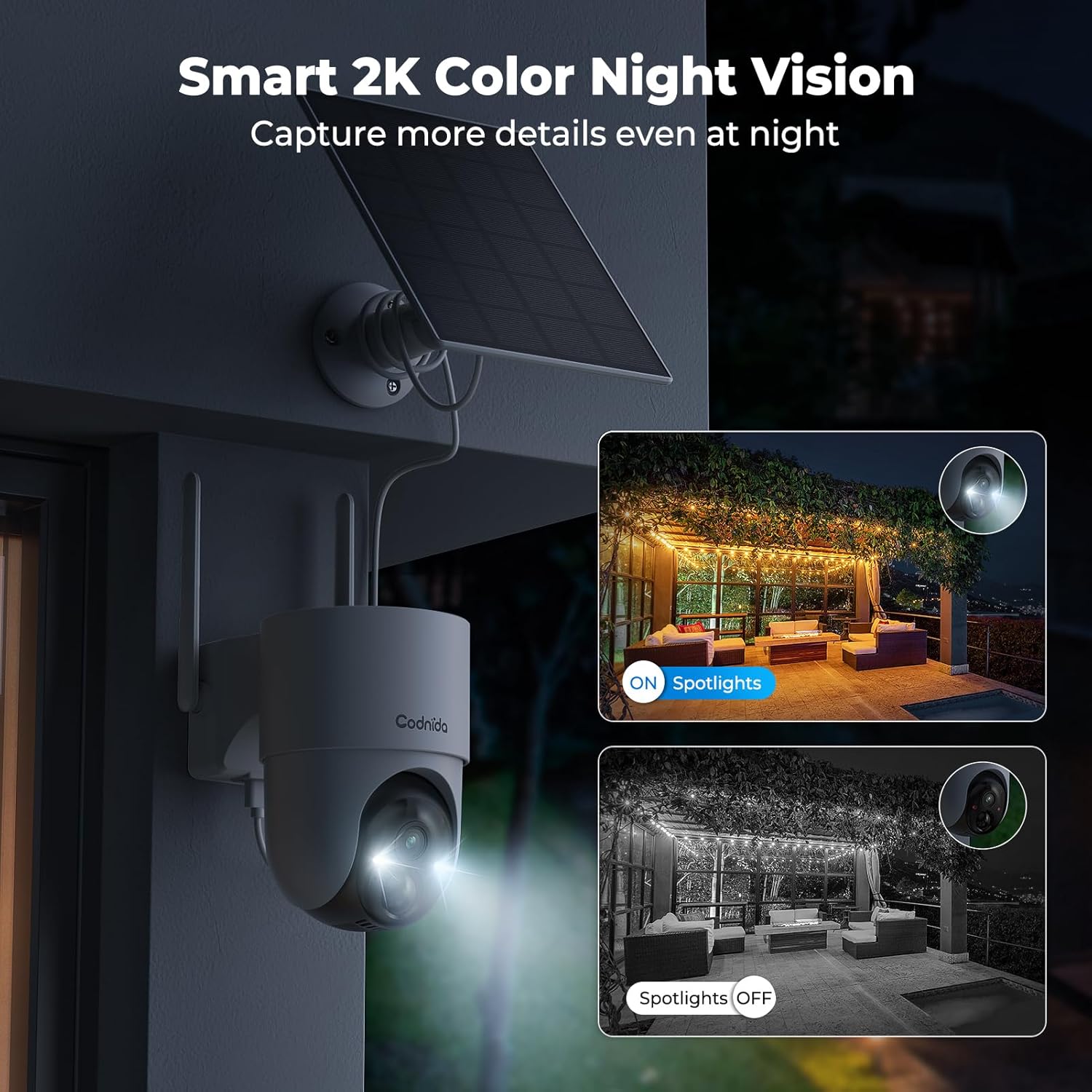

Image 4.4.1: Smart 2K color night vision with spotlights.
4.5 Obousměrný zvuk
Utilize the built-in microphone and speaker for two-way communication through the EseeCloud app. This allows you to speak to visitors or deter intruders remotely.
Image 4.5.1: Two-way audio functionality via smartphone.
5. Údržba
5.1 Péče o solární panely
Regularly clean the surface of the solar panels to ensure optimal charging efficiency. Dust, dirt, and debris can reduce sunlight absorption. Use a soft, damp hadřík na čištění.
5.2 Čištění fotoaparátu
Wipe the camera lens and body with a soft, lint-free cloth to remove any smudges or dirt. Avoid using harsh chemicals that could damage the camera's finish or lens coating. The cameras are IP65 water-resistant, designed to withstand rain and snow.
Image 5.2.1: IP65 water resistance for all-weather protection.
5.3 aktualizací firmwaru
Periodically check the EseeCloud app for available firmware updates. Keeping your device's firmware updated ensures optimal performance, security, and access to new features.
6. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Camera not connecting to Base Station | Out of range; Wi-Fi interference; incorrect pairing. | Move camera closer to Base Station; reduce interference; re-pair camera via EseeCloud app. |
| Žádný kanál videa | Camera offline; network issue; power issue. | Check camera power and network connection; restart Base Station and router. |
| Špatná kvalita obrazu | Dirty lens; low network bandwidth; app setting. | Clean camera lens; ensure stable Wi-Fi; select HD quality in EseeCloud app. |
| Solární panel se nenabíjí | Insufficient sunlight; dirty panel; faulty connection. | Relocate panel for more sun; clean panel surface; check cable connection. |
| Motion alerts not working | Motion detection disabled; incorrect sensitivity; app notification settings. | Enable motion detection in app; adjust sensitivity; check phone notification settings for EseeCloud. |
7. Specifikace
| Funkce | Detail |
|---|---|
| Model | COD-214 (D214) |
| Rozlišení videa | 4MP (1440p recording) |
| Viewúhel | 360 stupňů (355° otáčení, 90° náklon) |
| Rozsah nočního vidění | 15 metrů (65 stop) |
| Skladování | 64GB TF karta (součástí balení) |
| Konektivita | Wireless (Wi-Fi 2.4GHz/5GHz), HDMI |
| Zdroj napájení | Solar Powered (Lithium-ion battery) |
| Voděodolnost | IP65 (vodotěsný) |
| Speciální funkce | Two-way audio, Motion detection, HD Resolution, PTZ Technology, Night vision |
| Kompatibilní zařízení | Smartphone (EseeCloud app) |
| Materiál | Plast |
| Spotřeba energie | 5 wattů |
| Typ instalace | Screw-in (Wall, Ceiling, Tree, Door mounting) |
8. Záruka a podpora
8.1 Záruka výrobce
The Codnida 4MP Outdoor Surveillance Camera System comes with a manufacturer's warranty of 1.5 years from the date of purchase. Please retain your proof of purchase for warranty claims.
8.2 Zákaznická podpora
For technical assistance, troubleshooting, or warranty inquiries, please contact Codnida customer support. Refer to the contact information provided on the product packaging or the official Codnida webmísto.
