1. Úvod
Thank you for choosing the HAUSHOF HH24048A Robotic Window Cleaner. This device is designed to automate the cleaning of smooth surfaces such as windows, glass doors, and mirrors, providing a streak-free finish with minimal effort. Featuring powerful suction, intelligent navigation, and multiple cleaning modes, it simplifies window maintenance for your home or office.
Před použitím zařízení si prosím pečlivě přečtěte tento návod k obsluze, abyste zajistili jeho bezpečné a efektivní používání. Uschovejte si tento návod pro budoucí použití.
Image: A user relaxing indoors while the HAUSHOF robotic window cleaner operates on a large window, demonstrating ease of use.
2. Bezpečnostní pokyny
Abyste předešli zranění nebo poškození, vždy dodržujte následující bezpečnostní pokyny:
- Always attach the safety rope securely to a fixed object before placing the robot on the window. The safety rope is designed to withstand up to 120 kg.
- Ensure the power cord is properly connected and the robot is powered by the mains during operation. The backup battery provides up to 25 minutes of power in case of a power outage, allowing the robot to remain attached to the surface.
- Nepoužívejte robota na prasklých nebo poškozených skleněných površích.
- Udržujte ruce, vlasy a volný oděv mimo pohyblivé části.
- Nepoužívejte robota v dešti nebo extrémně vlhkém prostředí.
- Uchovávejte mimo dosah dětí a domácích zvířat.
- Používejte pouze dodaný napájecí adaptér a příslušenství.
Image: The HAUSHOF robotic window cleaner demonstrating its dual security features: a safety rope securely fastened to a railing and an indicator for its 25-minute backup battery.
3. Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- HAUSHOF Robotic Window Cleaner
- Dálkové ovládání
- Power Adapter and Extension Cords (4.5m, 1.5m, 1.5m)
- Safety Rope (5 meters)
- Microfiber Cleaning Cloths (10 pieces)
- Cleaning Solution (small bottle)
- Uživatelská příručka
Image: All components of the HAUSHOF robotic window cleaner package, including the robot, remote control, power cables, safety rope, microfiber cloths, and cleaning solution.
4. Konec produktuview
Familiarize yourself with the main components of your robotic window cleaner:
- Tlačítko/indikátor napájení: To turn the device on/off and check status.
- Suction Pads: Two rotating pads for movement and cleaning.
- Ultrasonic Spray Nozzle: Generates a fine mist for effective cleaning.
- Nádrž na vodu: Holds 20ml of cleaning solution for the spray function.
- Bod uchycení bezpečnostního lana: Pro zajištění bezpečnostního lana.
- Napájecí vstup: Pro připojení napájecího adaptéru.
- Senzory detekce hran: Automatically detect window frames and edges.
Image: Close-up of the HAUSHOF robotic window cleaner highlighting its ultrasonic spray technology, which creates a 12µm mist for deep cleaning.

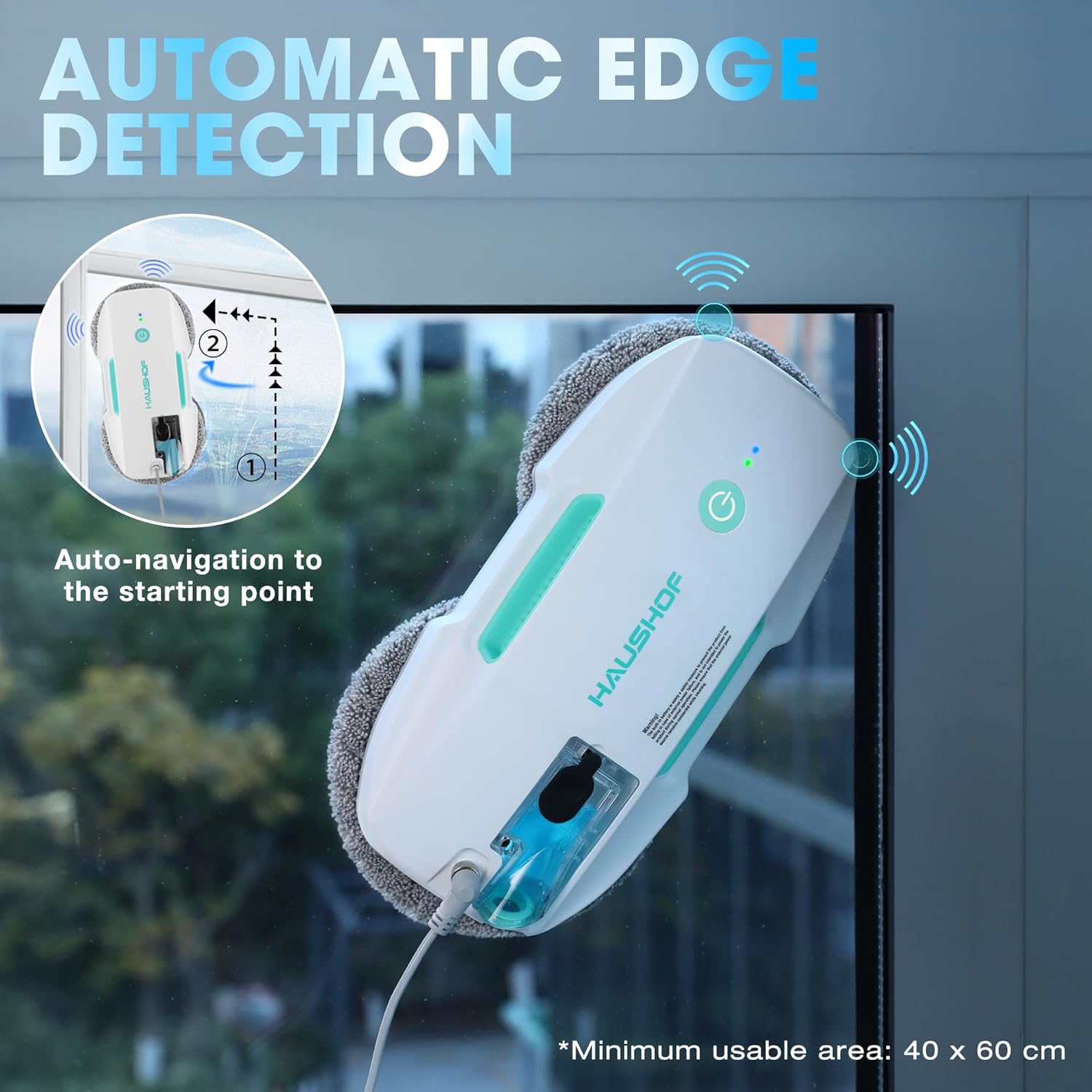

Image: The HAUSHOF robotic window cleaner on a window, illustrating its automatic edge detection system and auto-navigation to the starting point.
5. Nastavení
- Nabijte zařízení: Before first use, fully charge the internal backup battery. Connect the power adapter to the robot and a power outlet. The charging time is approximately 140 minutes.
- Připevněte čisticí utěrky: Securely attach two clean microfiber cloths to the bottom suction pads of the robot. Ensure they are flat and cover the pads completely.
- Naplňte nádrž na vodu: Open the water tank cap and carefully fill it with the provided cleaning solution or distilled water (max 20ml). Close the cap tightly.
- Připojení bezpečnostního lana: Attach one end of the 5-meter safety rope to the robot's safety rope attachment point and the other end to a sturdy, fixed object indoors (e.g., a heavy piece of furniture, a window frame anchor).
- Připojte napájecí adaptér: Connect the power adapter to the robot and then to a power outlet. Ensure all connections are secure.
- Příprava okna: Ensure the window surface is free from large debris or loose particles that could scratch the glass or interfere with suction.
Image: A step-by-step diagram illustrating the connection of the HAUSHOF robotic window cleaner to its power source and the proper attachment of the 5-meter safety rope.
6. Návod k obsluze
- Zapnutí: Press and hold the power button on the robot for 3 seconds until the indicator light turns on and you hear a confirmation sound.
- Umístění na okno: Carefully place the robot onto the window surface. Ensure it adheres firmly before releasing your hand. The robot will automatically create suction.
- Začněte s čištěním: S čištěním můžete začít jedním ze dvou způsobů:
- Start jedním tlačítkem: Press the power button on the robot once to initiate automatic cleaning.
- Dálkové ovládání: Use the remote control to select a cleaning mode and start the cleaning process.
- Sledovat průběh: The robot will intelligently plan its path and clean the entire surface. It will return to its starting point upon completion.
- Pozastavit/Zastavit: Press the power button on the robot or the pause/stop button on the remote control to pause or stop the cleaning cycle.
- Remove from Window: Once cleaning is complete or paused, carefully grasp the robot and press the power button for 3 seconds to release suction. Remove the robot from the window.
Image: A hand pressing the power button on the HAUSHOF robotic window cleaner, illustrating the one-button operation. Tips are provided to spray water on the cleaning cloth before use to prevent slippage.
Video: Krátká předmluvaview demonstrating the HAUSHOF robotic window cleaner in operation, moving across a window surface.
7. Režimy čištění
The HAUSHOF Robotic Window Cleaner offers three distinct cleaning modes, selectable via the remote control:
- Automatické čištění: The robot intelligently plans its path to cover the entire window surface. This is the default and most common mode.
- Deep Cleaning (x2): For heavily soiled windows, this mode performs two passes over the surface, ensuring a more thorough clean.
- Ruční čištění: Use the directional arrows on the remote control to guide the robot to specific areas for spot cleaning or to navigate around obstacles.
Image: A visual representation of the three cleaning paths (Up to Down, Right to Down, Left to Down) the robot can take, alongside an illustration of the remote control and its buttons for automatic, manual, and deep cleaning modes.
8. Údržba
Regular maintenance ensures optimal performance and longevity of your device:
- Čisticí utěrky: After each use, remove the microfiber cloths and wash them. They are reusable and can be hand-washed or machine-washed. Replace cloths when they show signs of wear or no longer clean effectively.
- Tělo robota: Wipe the robot's body with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
- Rozprašovací tryska: If the spray nozzle becomes clogged, gently clean it with a small brush or a cotton swab dampzalité vodou.
- Skladování: Robota a jeho příslušenství skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
- Péče o baterie: For long-term storage, ensure the backup battery is partially charged (around 50%). Recharge every 3-6 months to maintain battery health.
Obrázek: Detailní záběr view of the microfiber cleaning cloths, emphasizing their texture, alongside a pile of clean cloths and icons indicating they are washable.
9. Řešení problémů
If you encounter issues with your HAUSHOF Robotic Window Cleaner, refer to the following table:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Robot se nelepí na okno. | Nedostatečné sání; znečištěné podložky; problém s napájením. | Ensure power cord is connected. Check if pads are clean and properly attached. Ensure window surface is smooth and clean. |
| Robot zanechává šmouhy. | Dirty cleaning cloths; too much cleaning solution; very dirty window. | Replace with clean cloths. Use less cleaning solution. For very dirty windows, perform multiple passes with fresh cloths. |
| Robot se nepohybuje nebo se pohybuje nepravidelně. | Obstruction; low battery; sensor issue. | Check for obstructions. Ensure the robot is connected to power. Clean edge detection sensors. |
| Dálkové ovládání nefunguje. | Vybité baterie; překážka. | Replace remote control batteries. Ensure no obstruction between remote and robot. |
10. Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | HH24048A |
| Značka | HAUSHOF |
| Sací výkon | 3800 Pa |
| Rozměry | 31.3 x 18.2 x 16.8 cm |
| Hmotnost položky | 980 g |
| Materiál | Plast |
| Záložní baterie | 1 lithium-iontová (součástí balení) |
| Backup Battery Runtime | Až 25 minut |
| Doba nabíjení | Přibl. 140 minut |
| Délka bezpečnostního lana | 5 metrů |
| Kapacita vodní nádrže | 20 ml |
| Země původu | Čína |
11. Záruka a podpora
HAUSHOF products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact HAUSHOF customer support directly.
If you have any questions, require technical assistance, or need to report an issue, please contact our customer support team. Contact details can typically be found on the product packaging or the official HAUSHOF webmísto.
